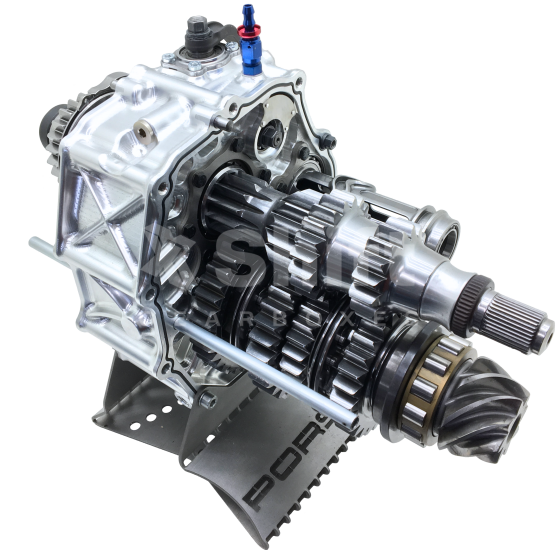

7 Speed sequential gearbox kit Porsche 911 - 996/997 GT2/GT3

Suitable for:

7-speed PS7-GT sequential gearbox kit for the Porsche 911, 996/997 model series, GT2/GT3 type, is designed for pure racers to take their racing to the next level!

7: Gears
800 Nm: Torque
9000 RPM: Revelations

Specification

Compared to the standard six-speed variant, the seven-speed sequential variant enables faster acceleration and, above all, quicker gear changes. Maximum torque transferability of 800Nm and billet casings ensure reserve for modified engines, and with fast and precise shifting, there is no other sequential gearbox that comes close to the same performance. All this positive differences will catapult your Porsche into the first position in any race!

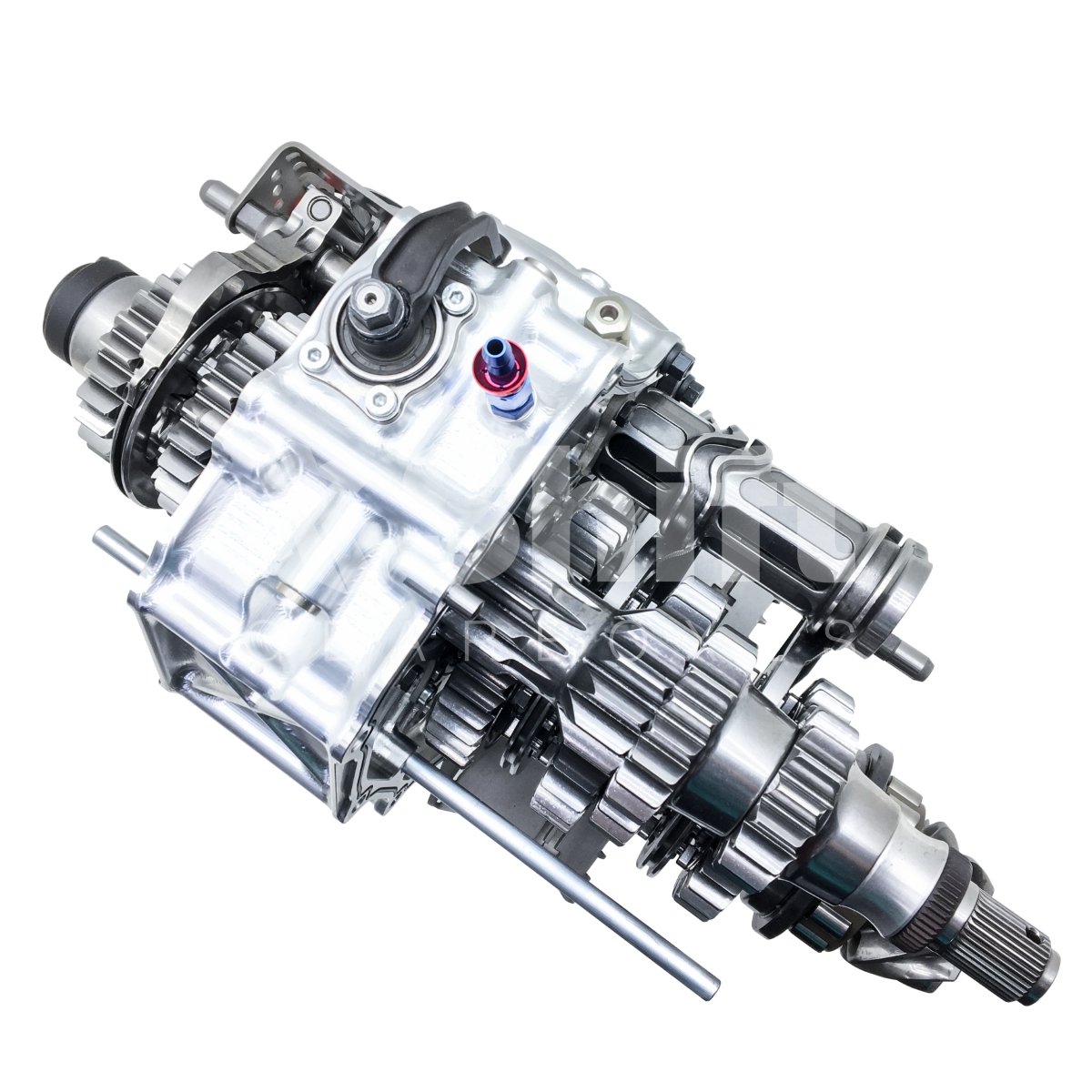

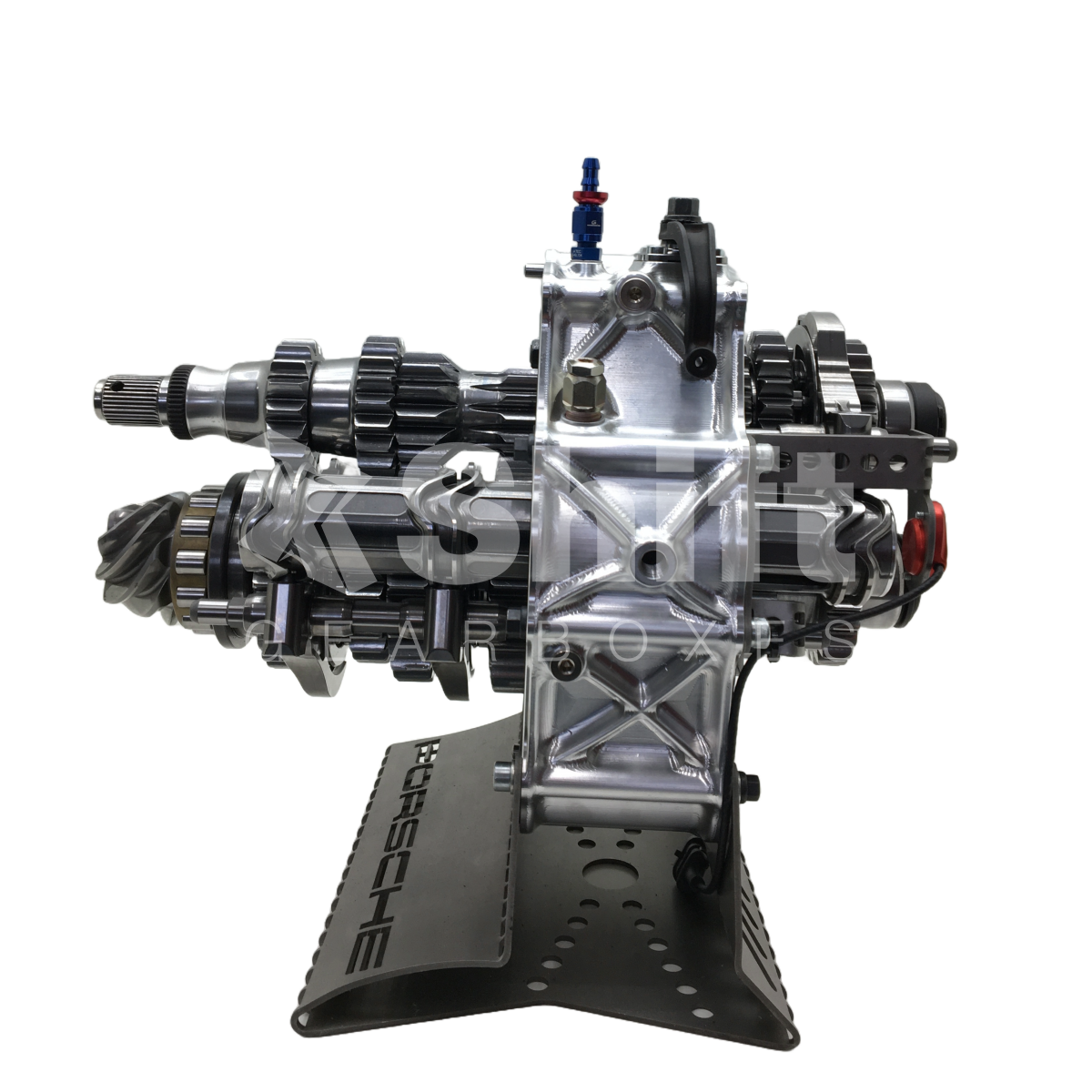

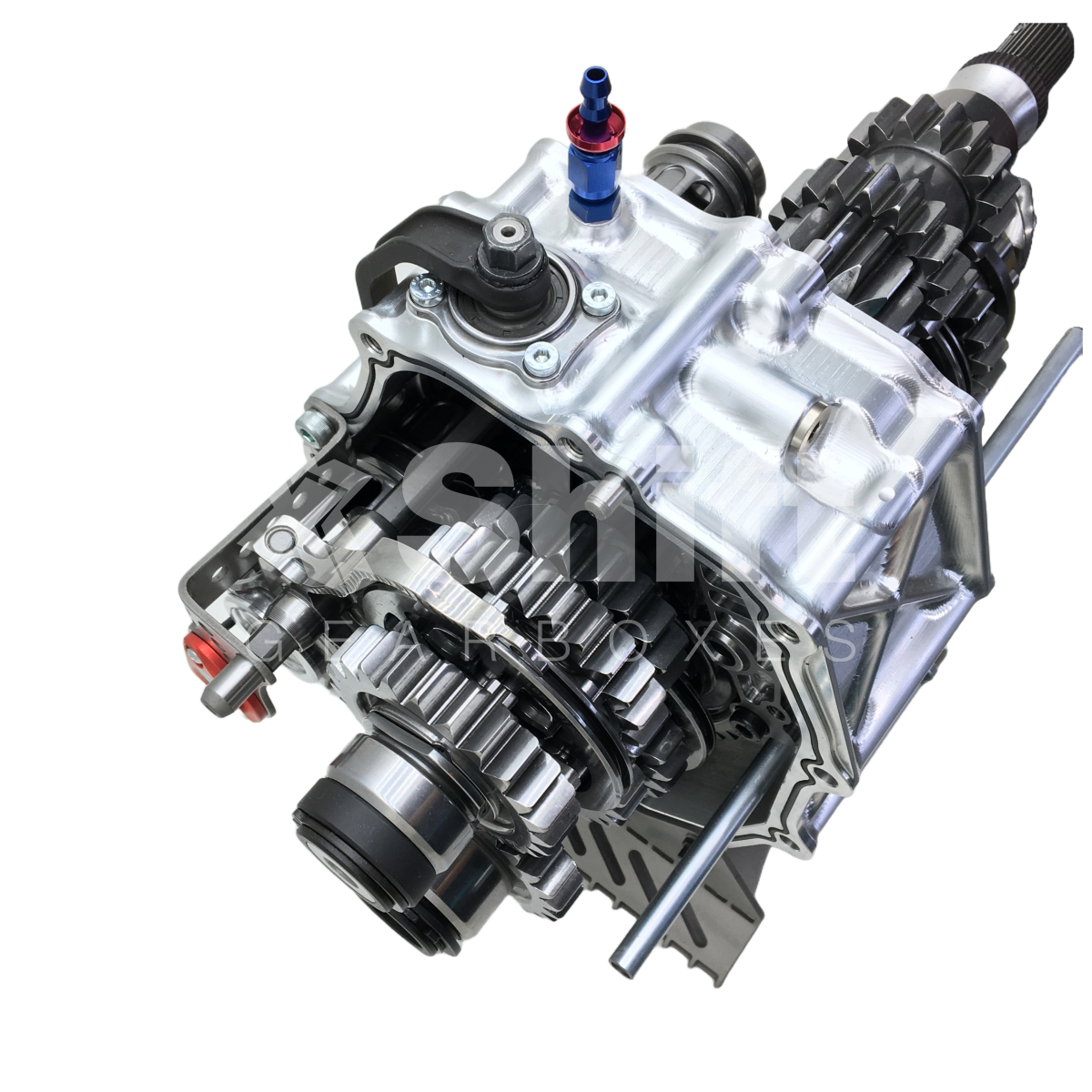

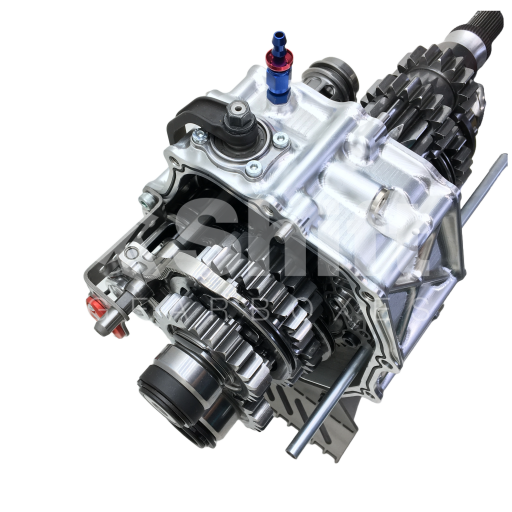

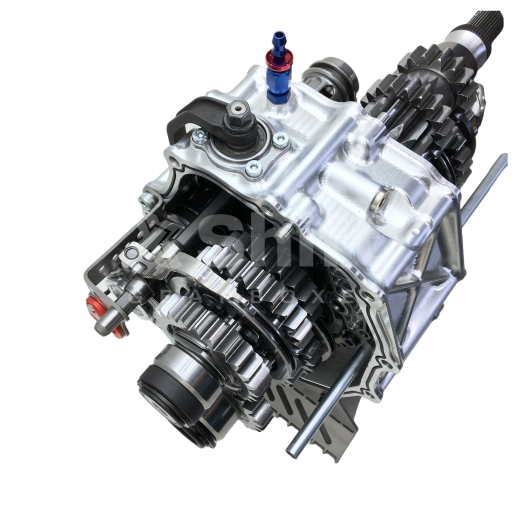

The sequential gearbox Porsche 7 speed has integrated an ultra lightweight aircraft grade aluminium CNC billet section that holds the sequential mechanism, shafts, forks and gears.

Why XSHIFT?

Major Advantages

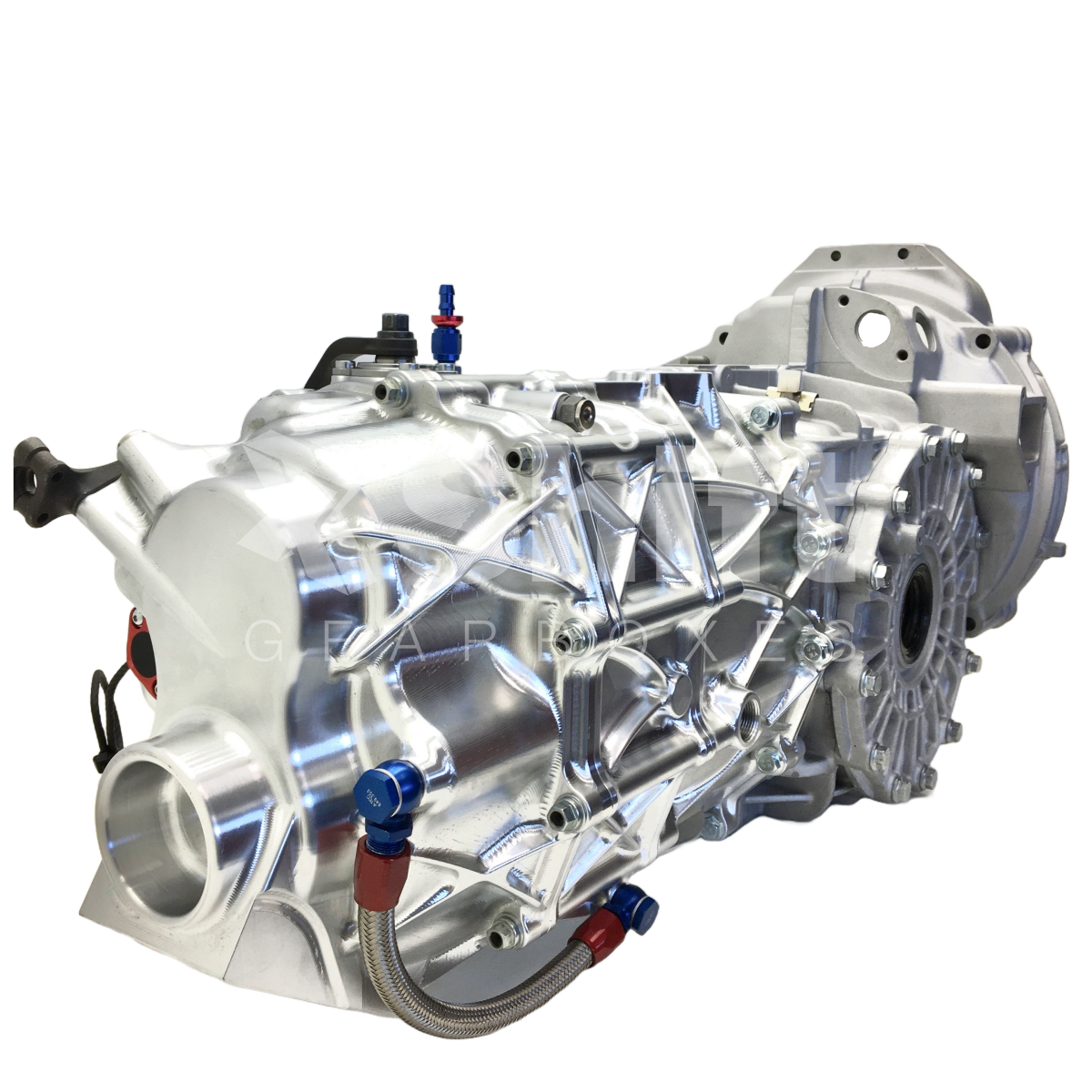

Billet aircraft grade aluminium casing
Parts are specially heat treated and polished by REM isotropic superfinishing technology
Rated up to 800 Nm
Internal oil pump

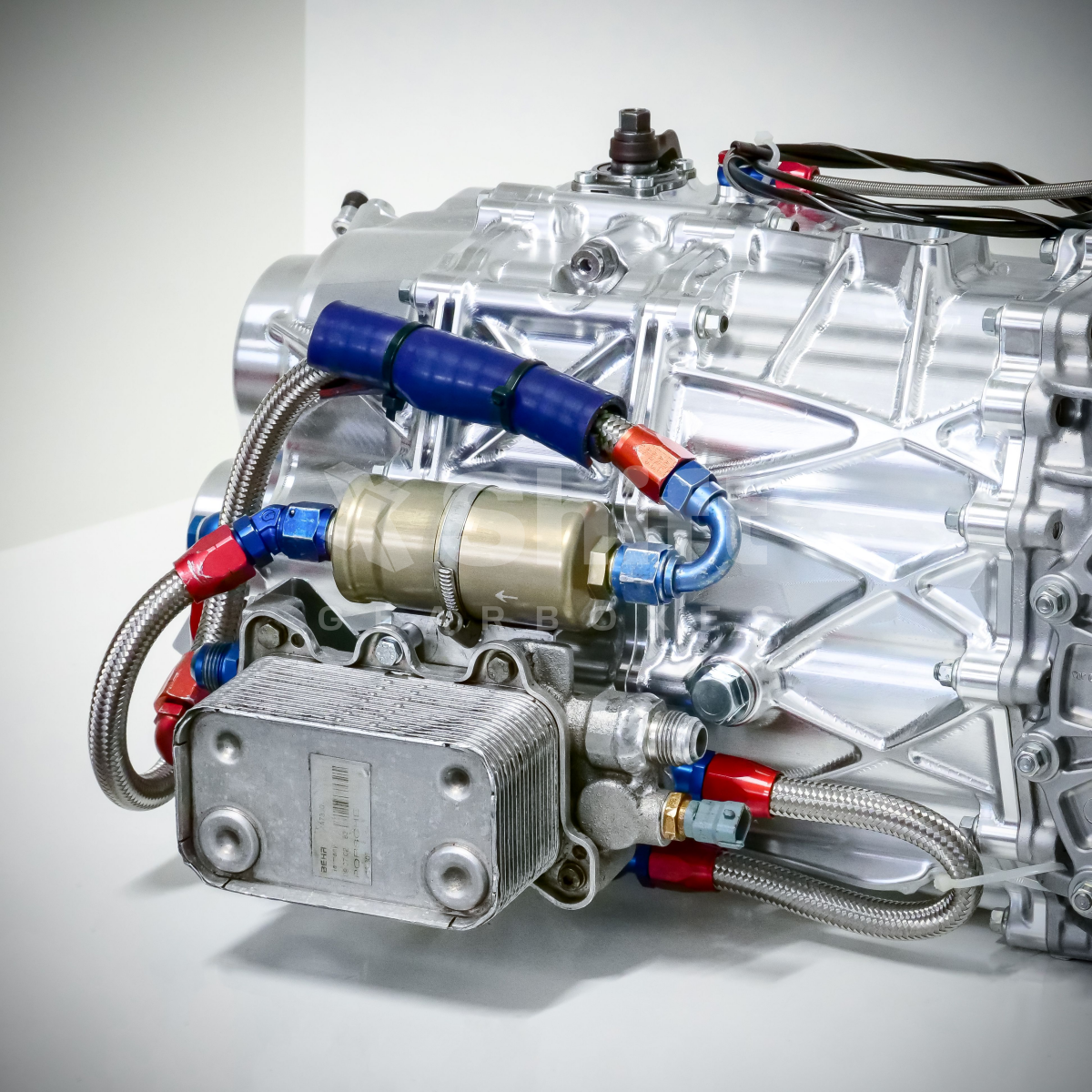

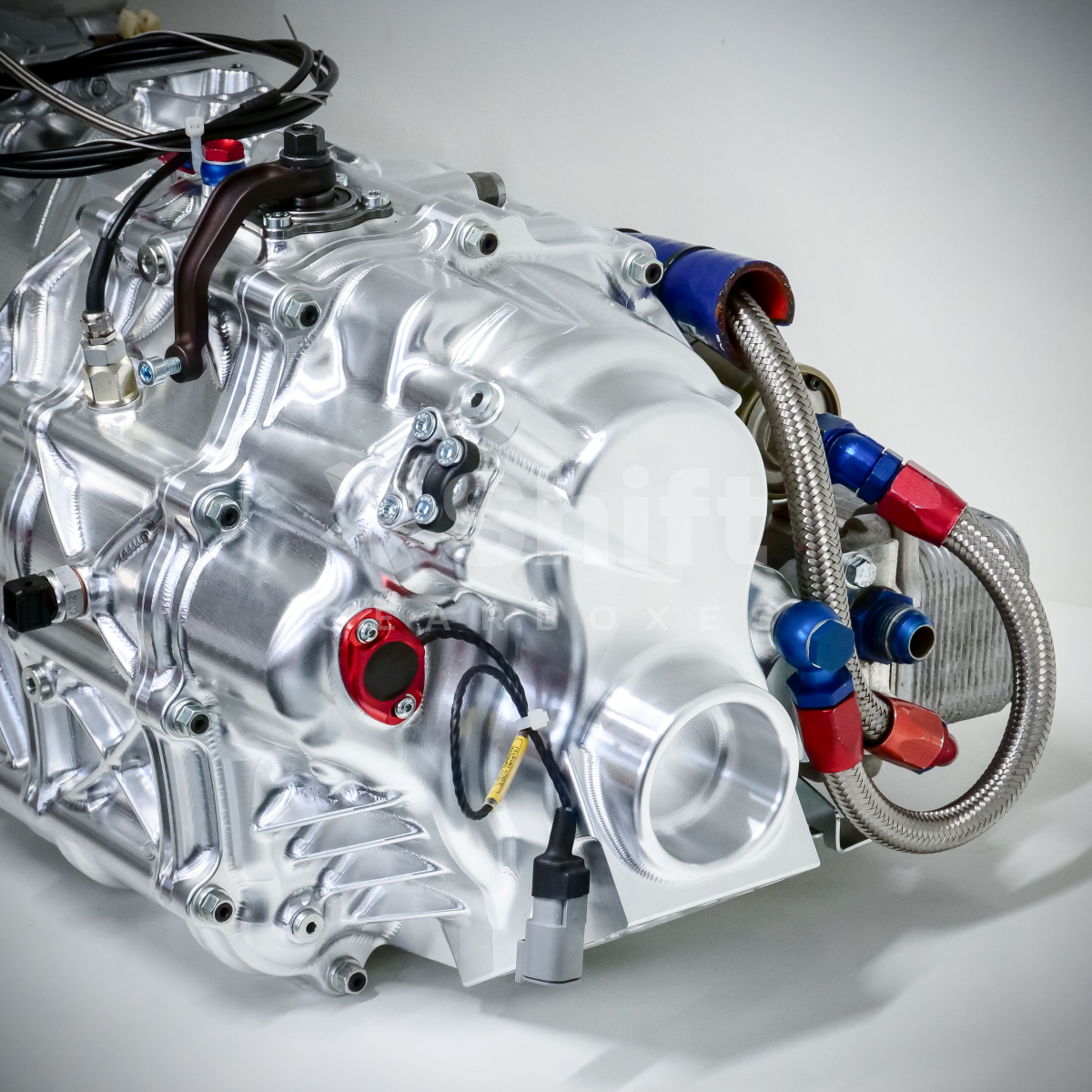

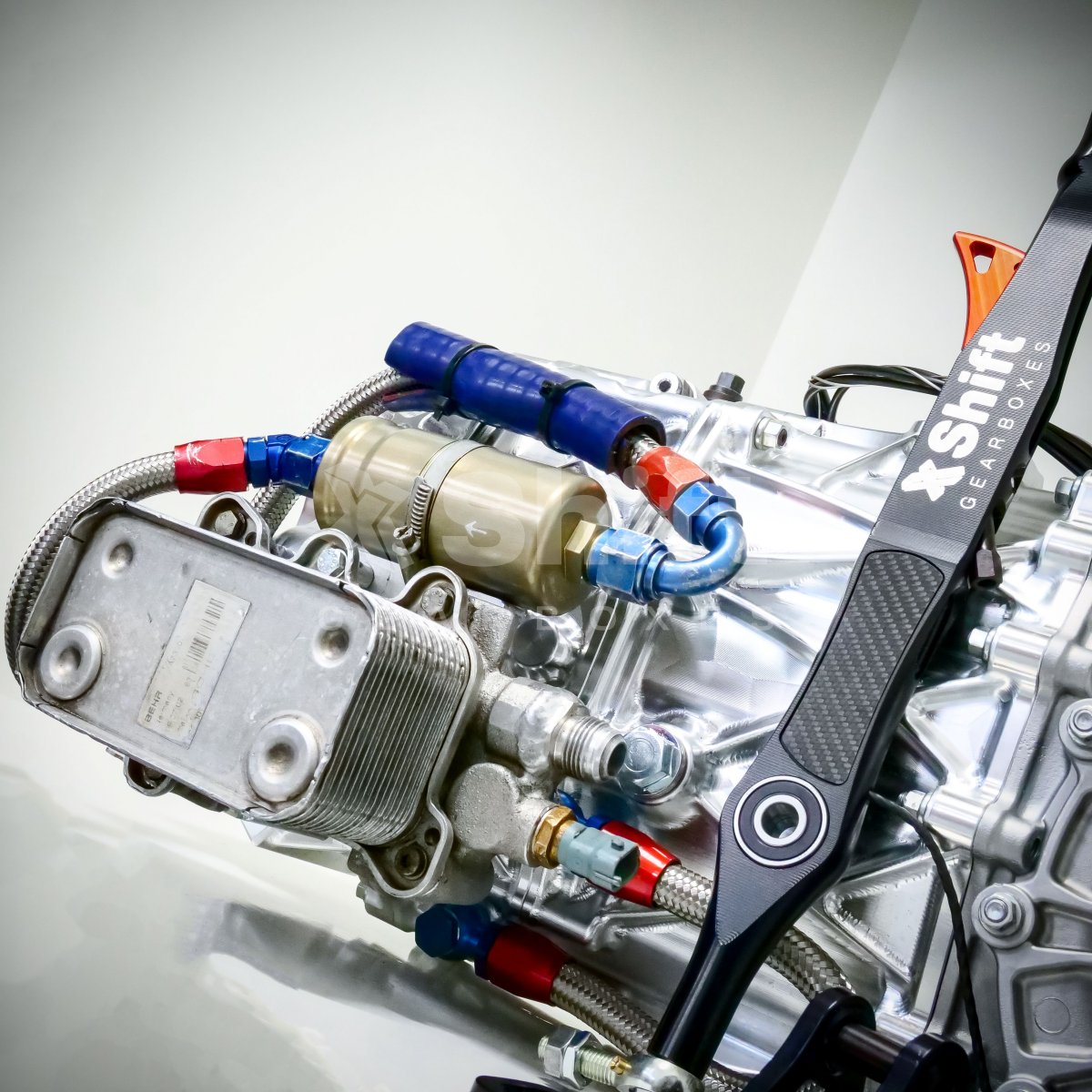

Oil inlet/outlet for external cooler
Position for oil temperature sensor

Shifting and gear ratios

There are 2 main gear ratios available and one option for the final drive.

Gear ratio	1	2	3	4	5	6	7
BASIC	3,08	2,23	1,75	1,42	1,2	1,04	0,92
LONG	3,08	2,00	1,47	1,17	0,96	0,81	0,69
Final drive	10/40 (4:1)

Accessories

Together with the powerful Porsche sequential gearbox we can provide many performance accessories that helps you achieve top results on the track.

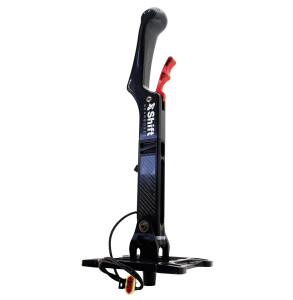

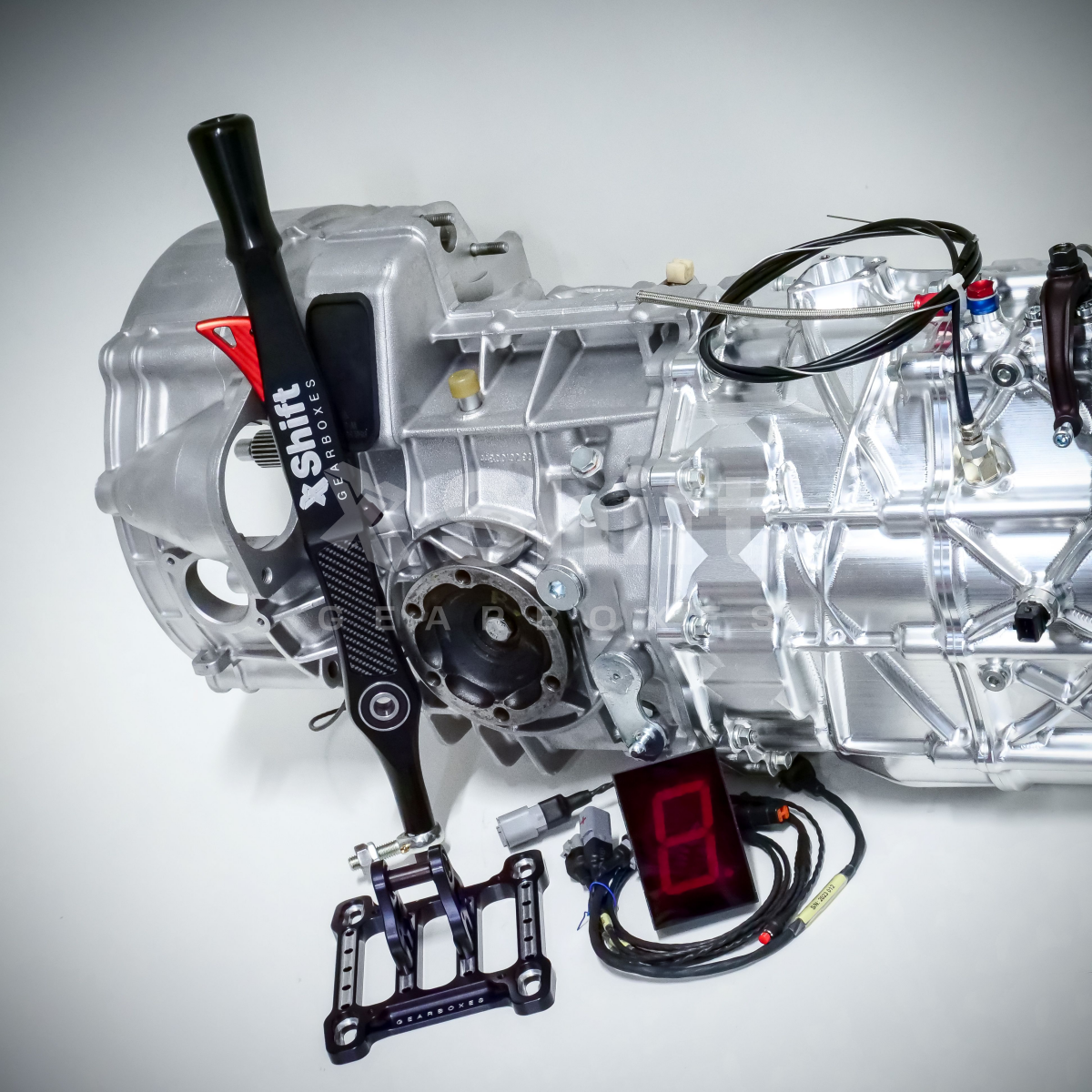

Carbon or Aluminium shifting lever
- Porsche Gear Levers

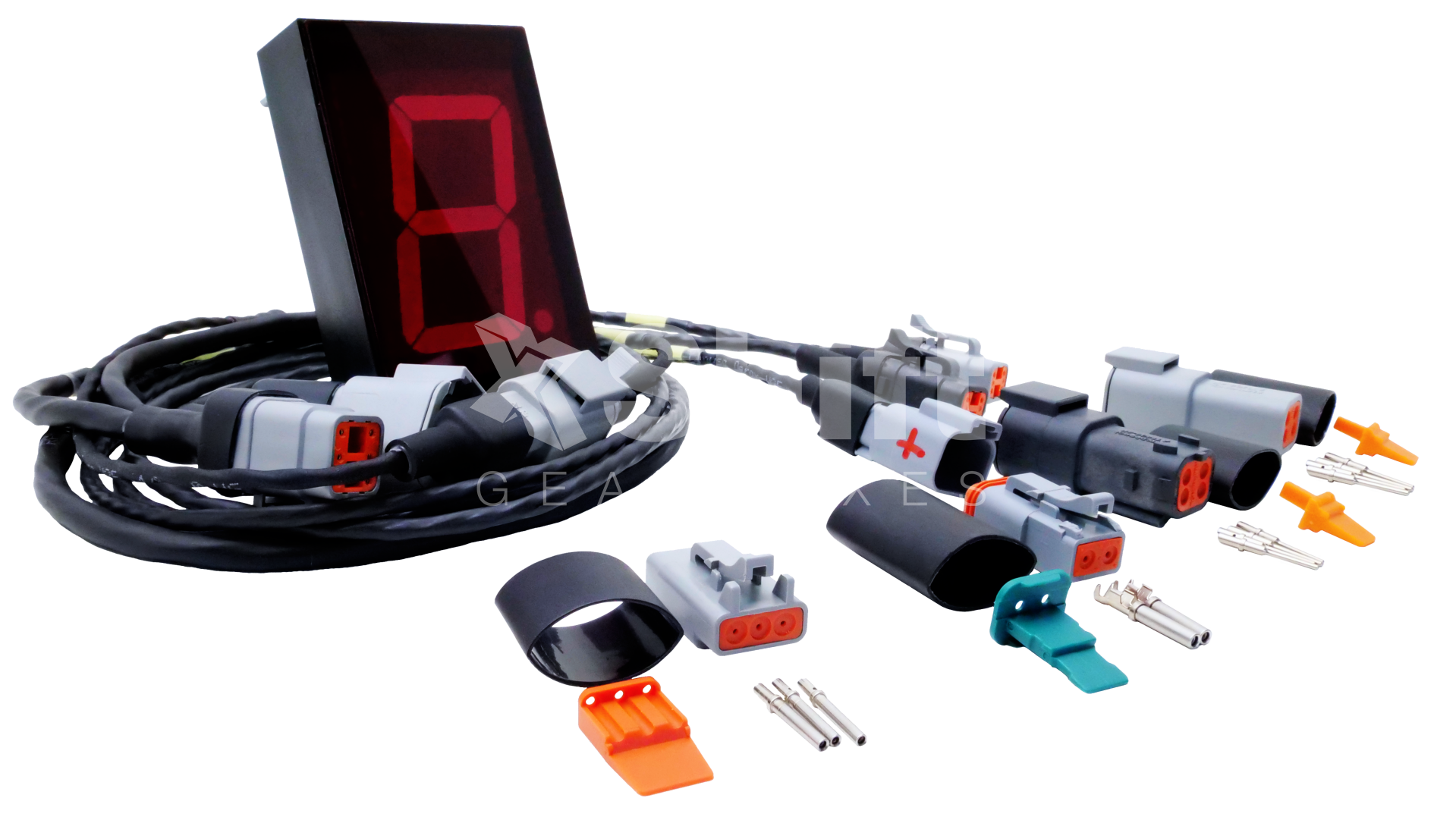

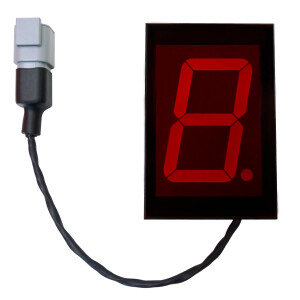

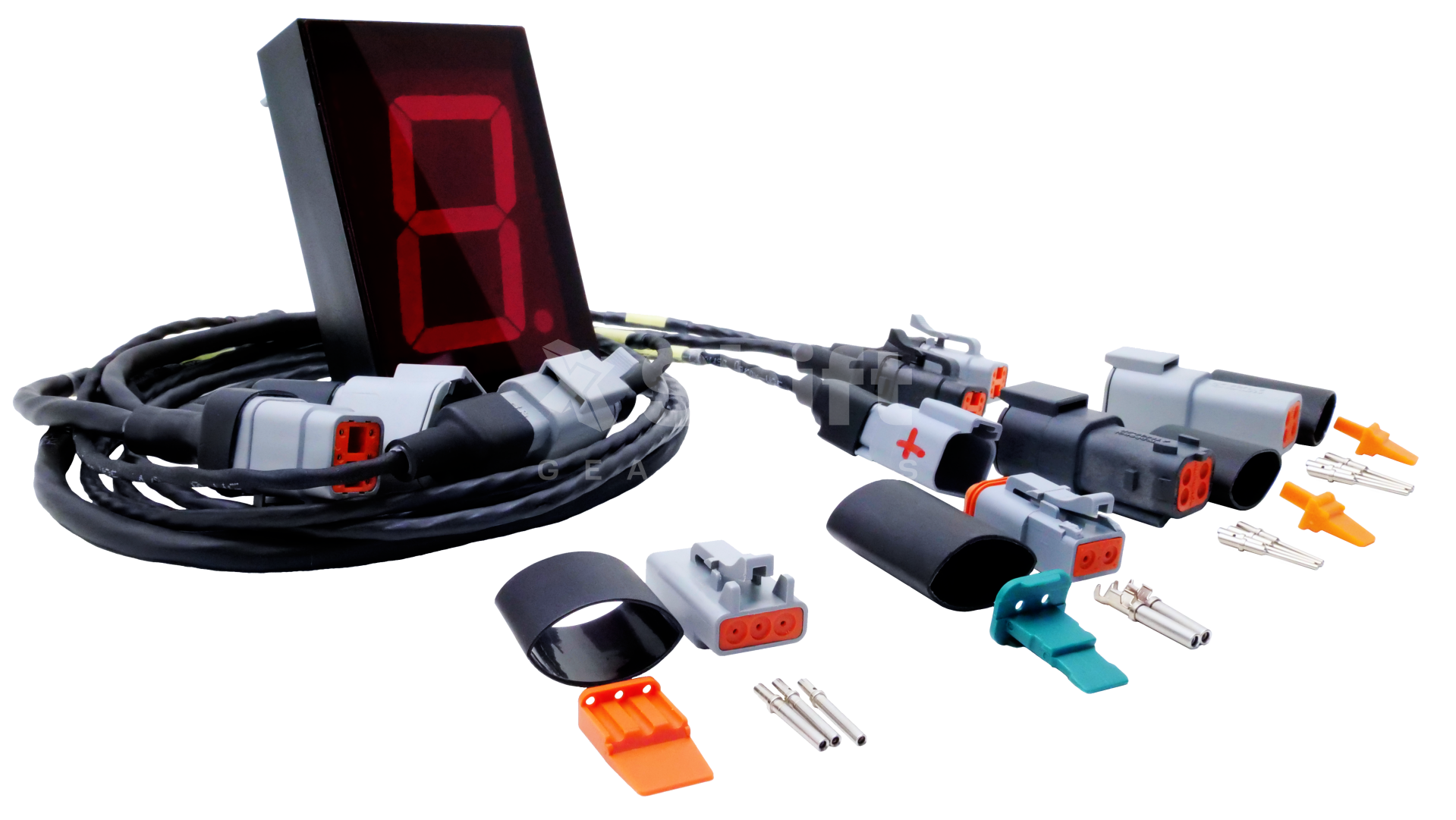

LED programmable display with automatic dimmer and optional sunvisor
- LED display

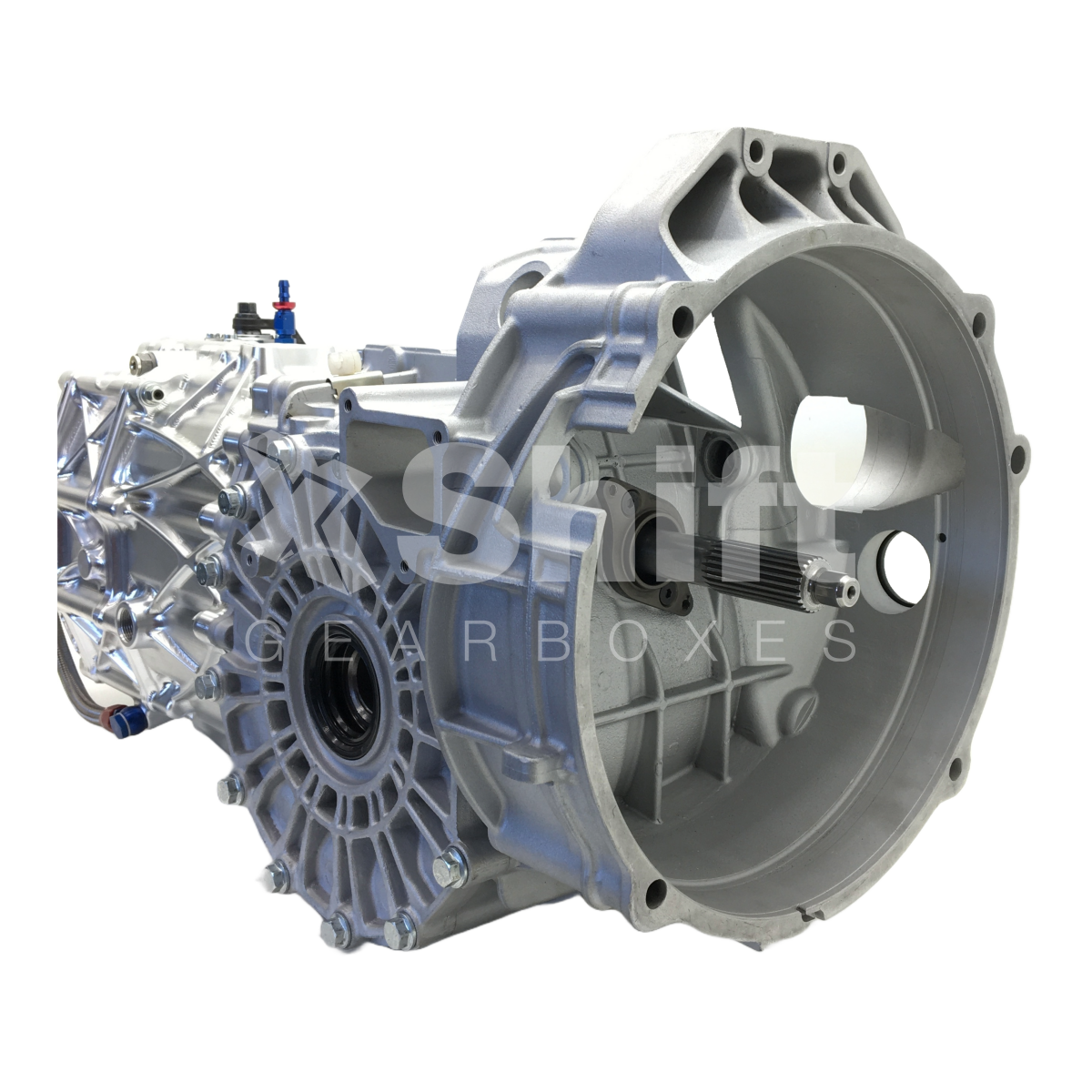

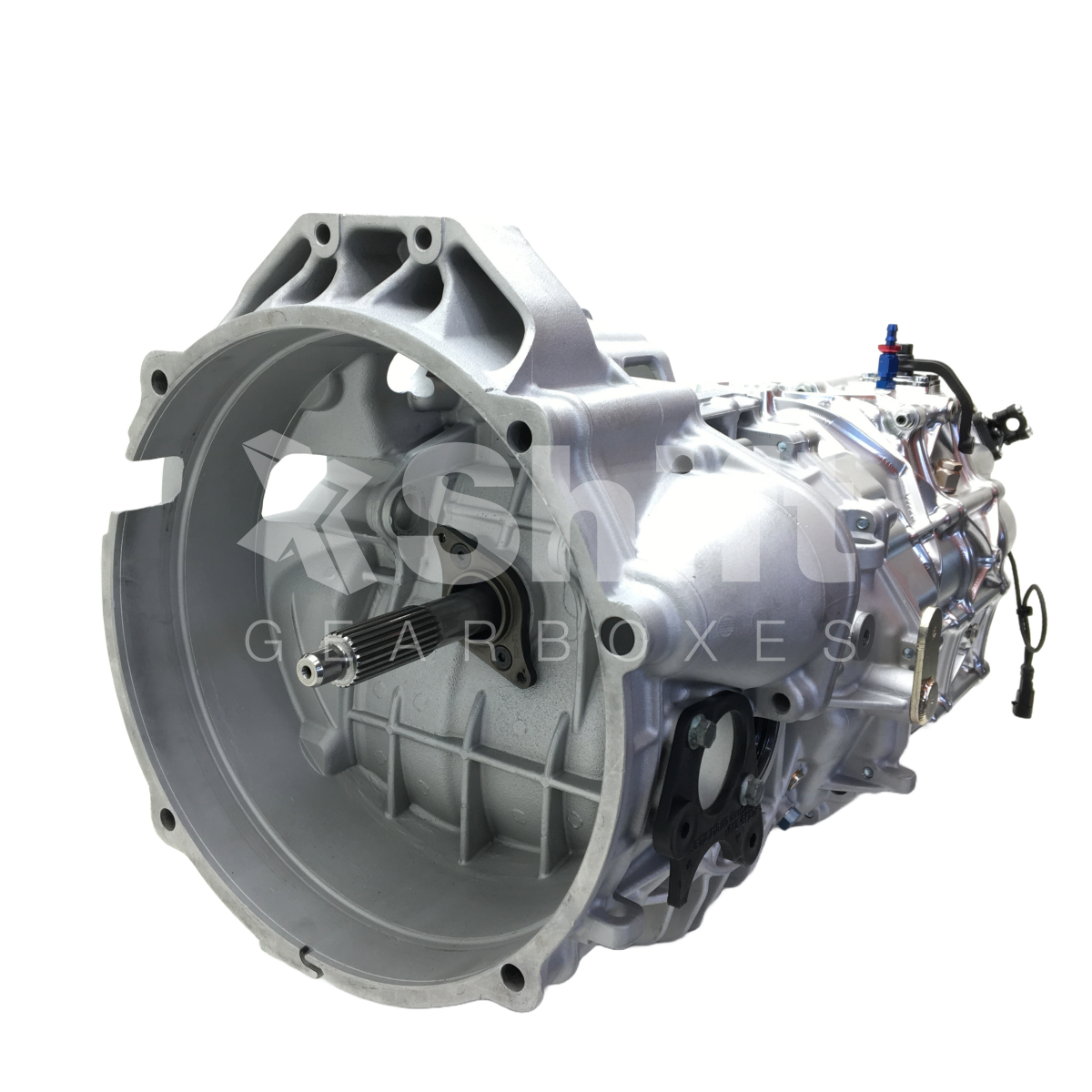

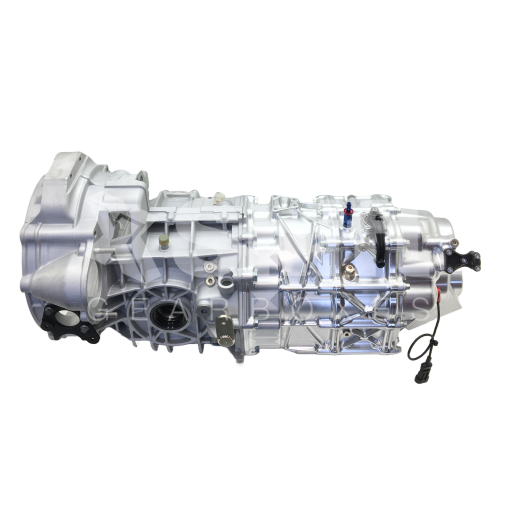

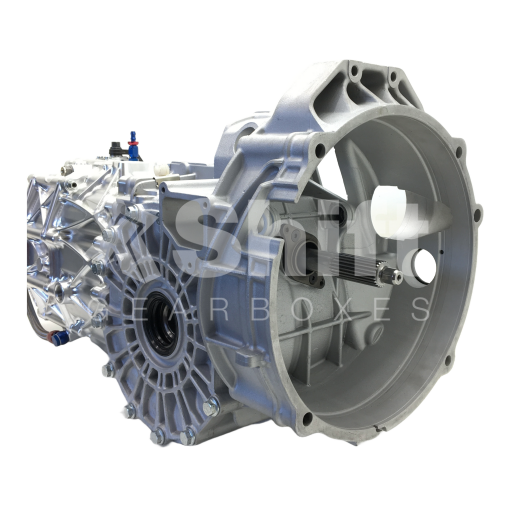

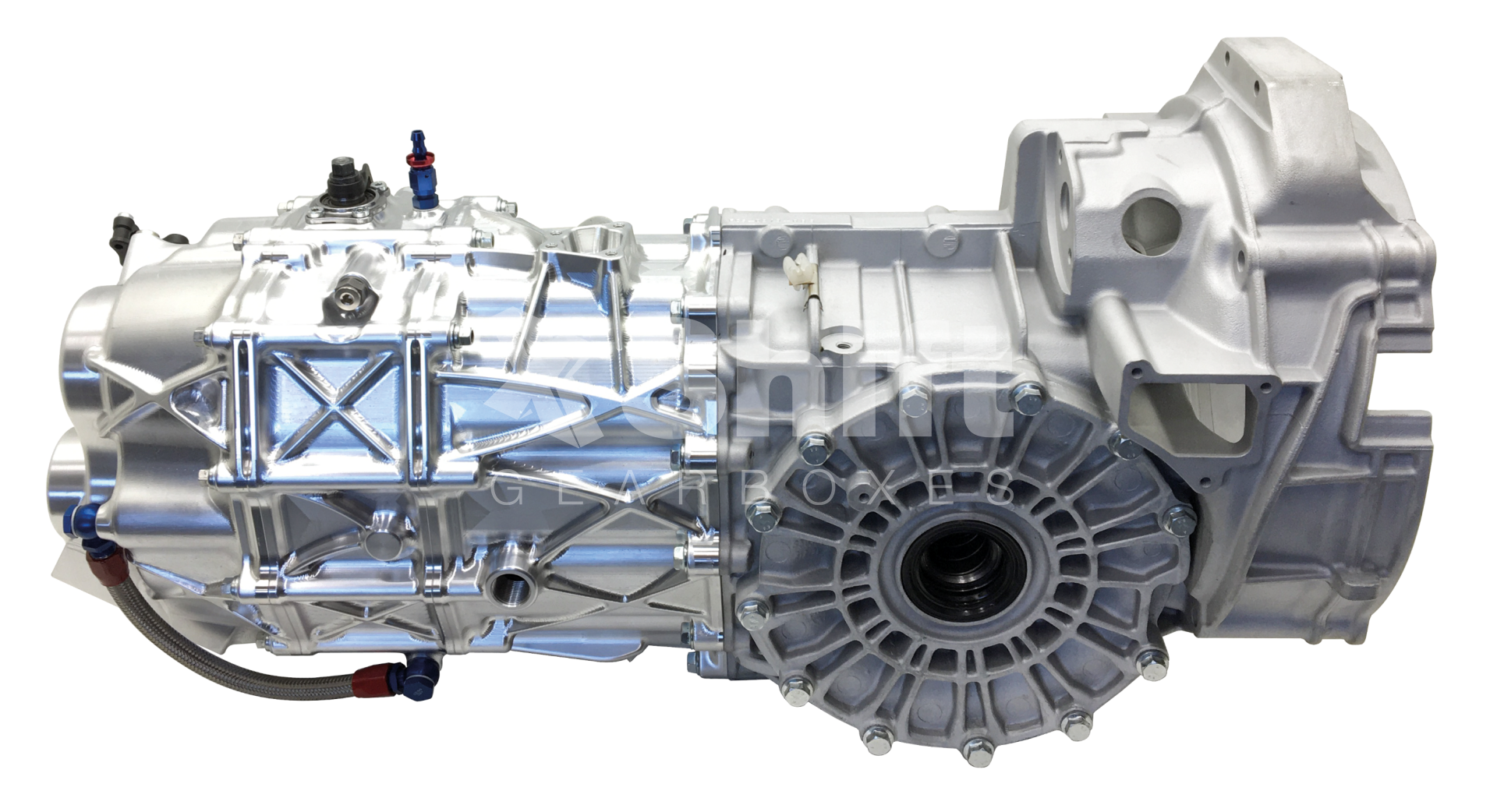

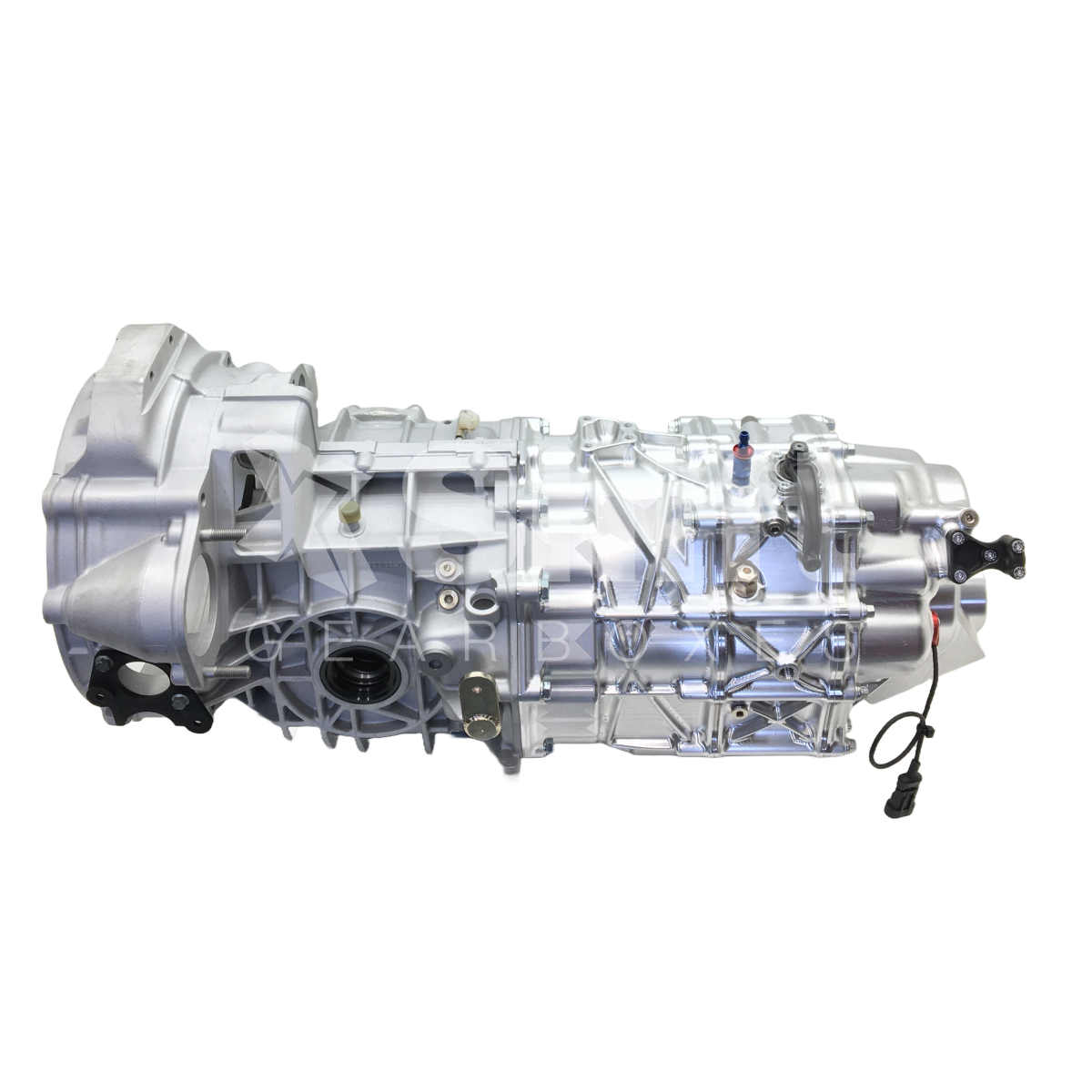

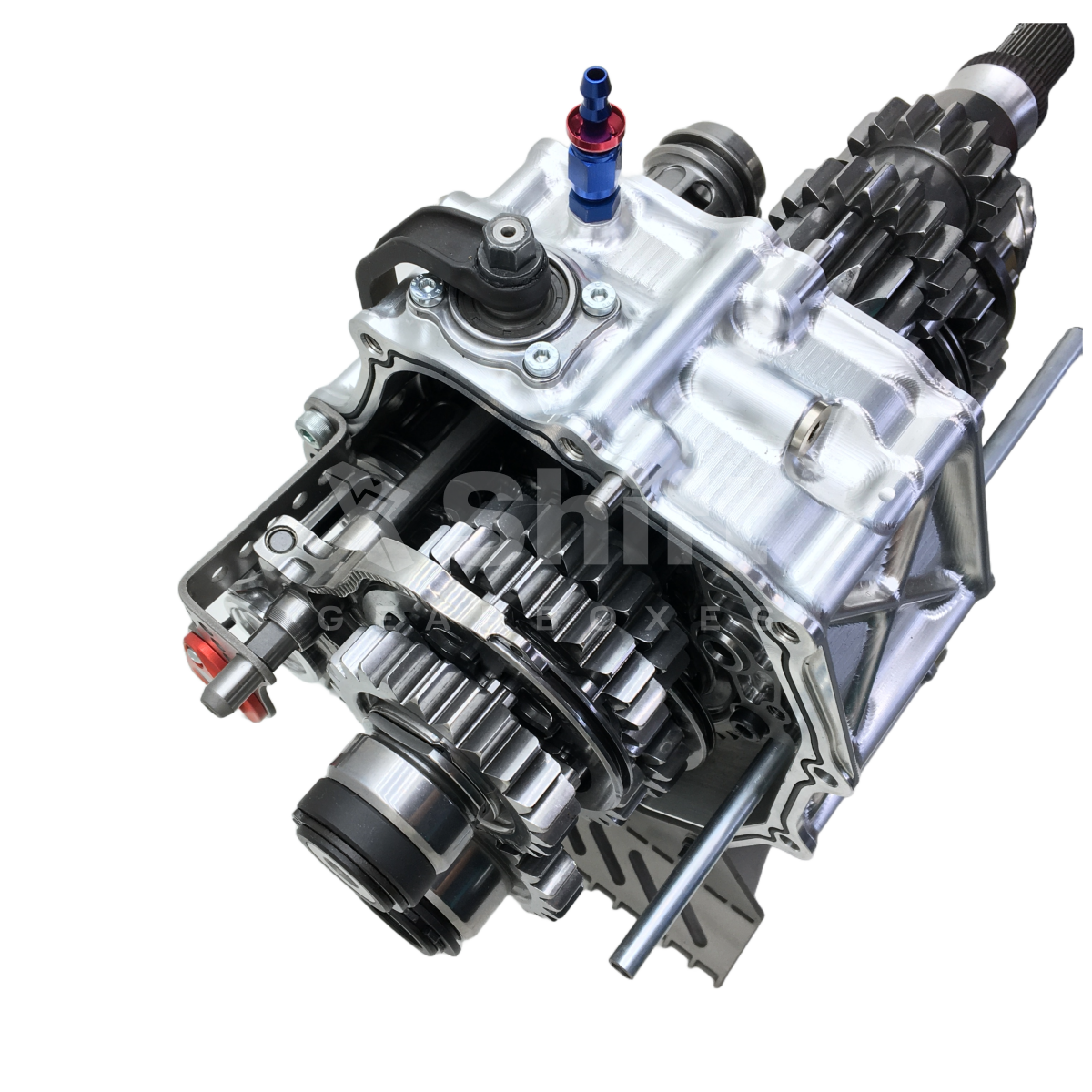

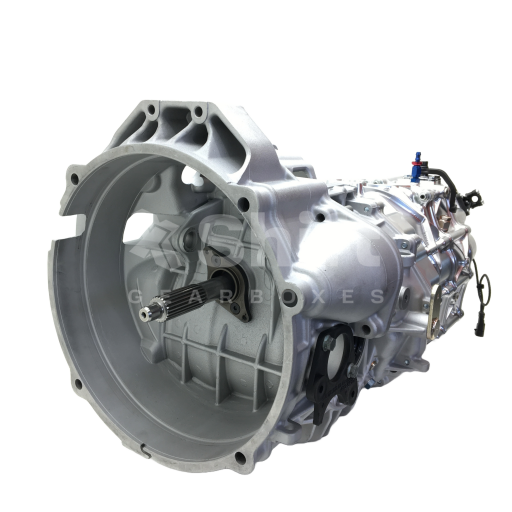

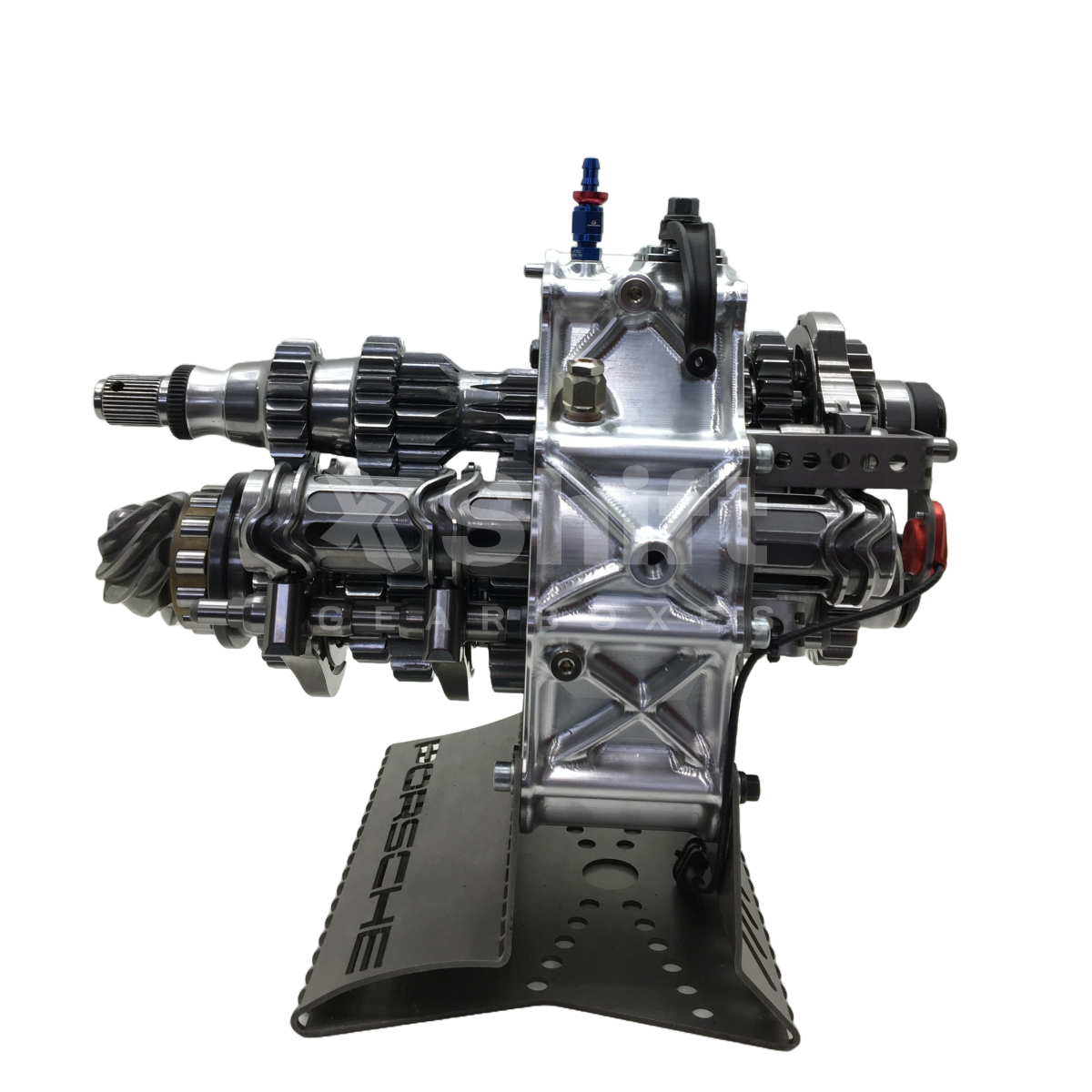

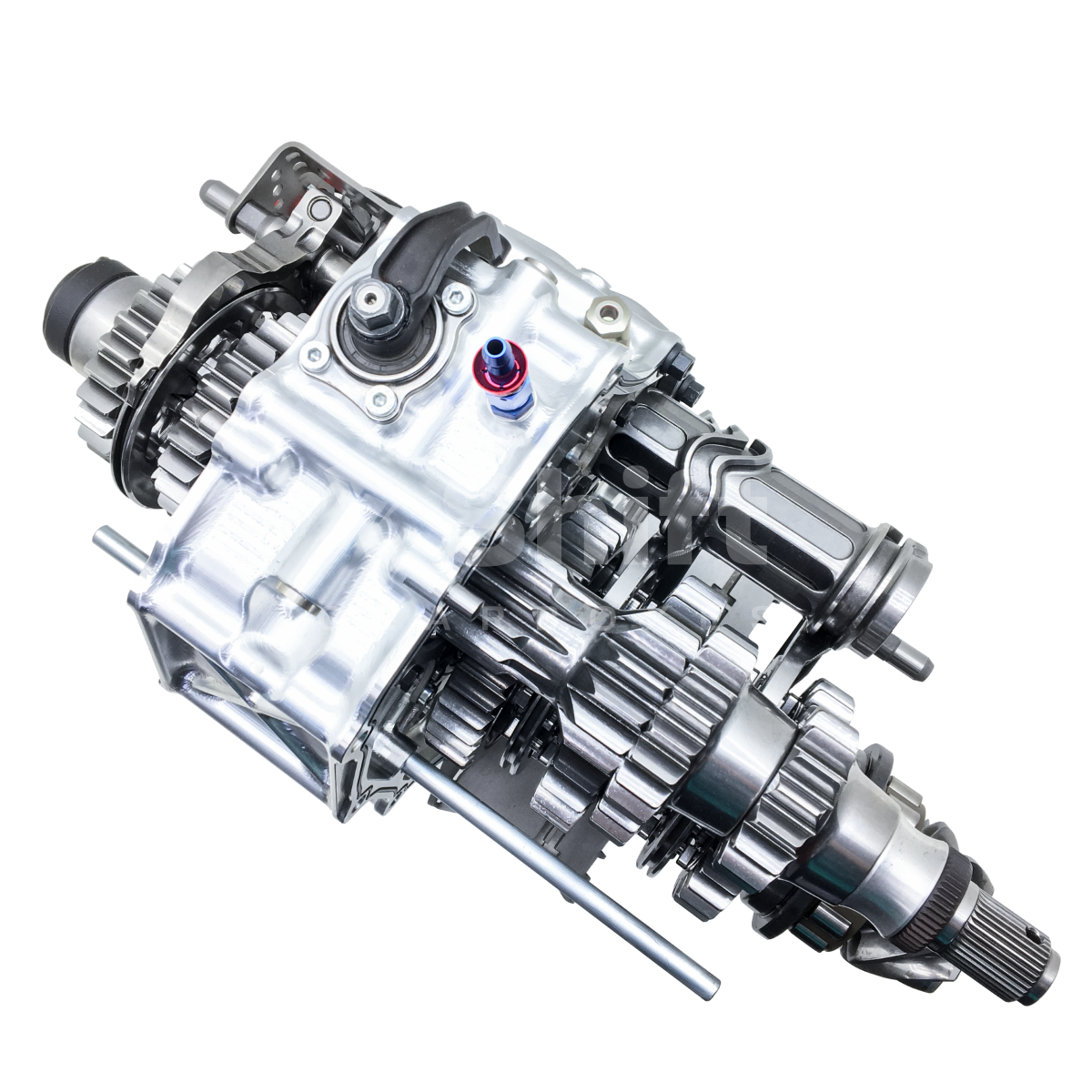

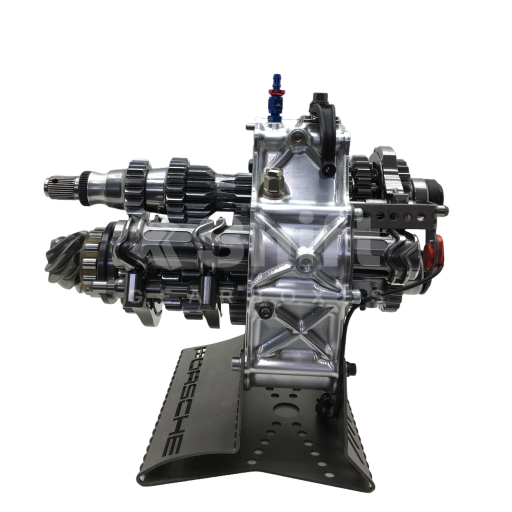

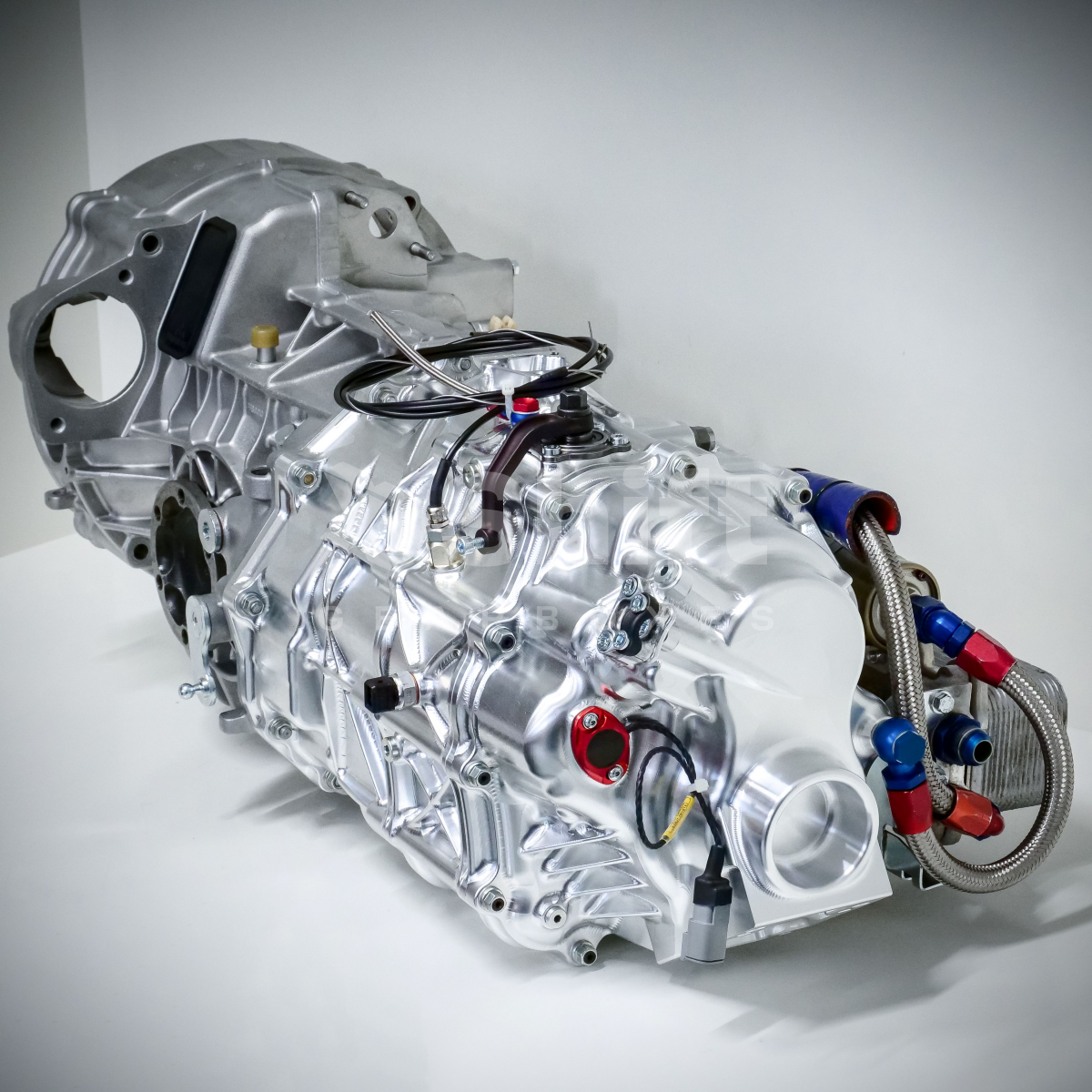

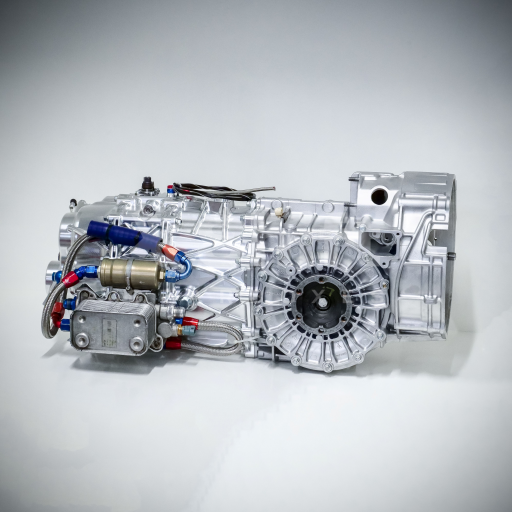

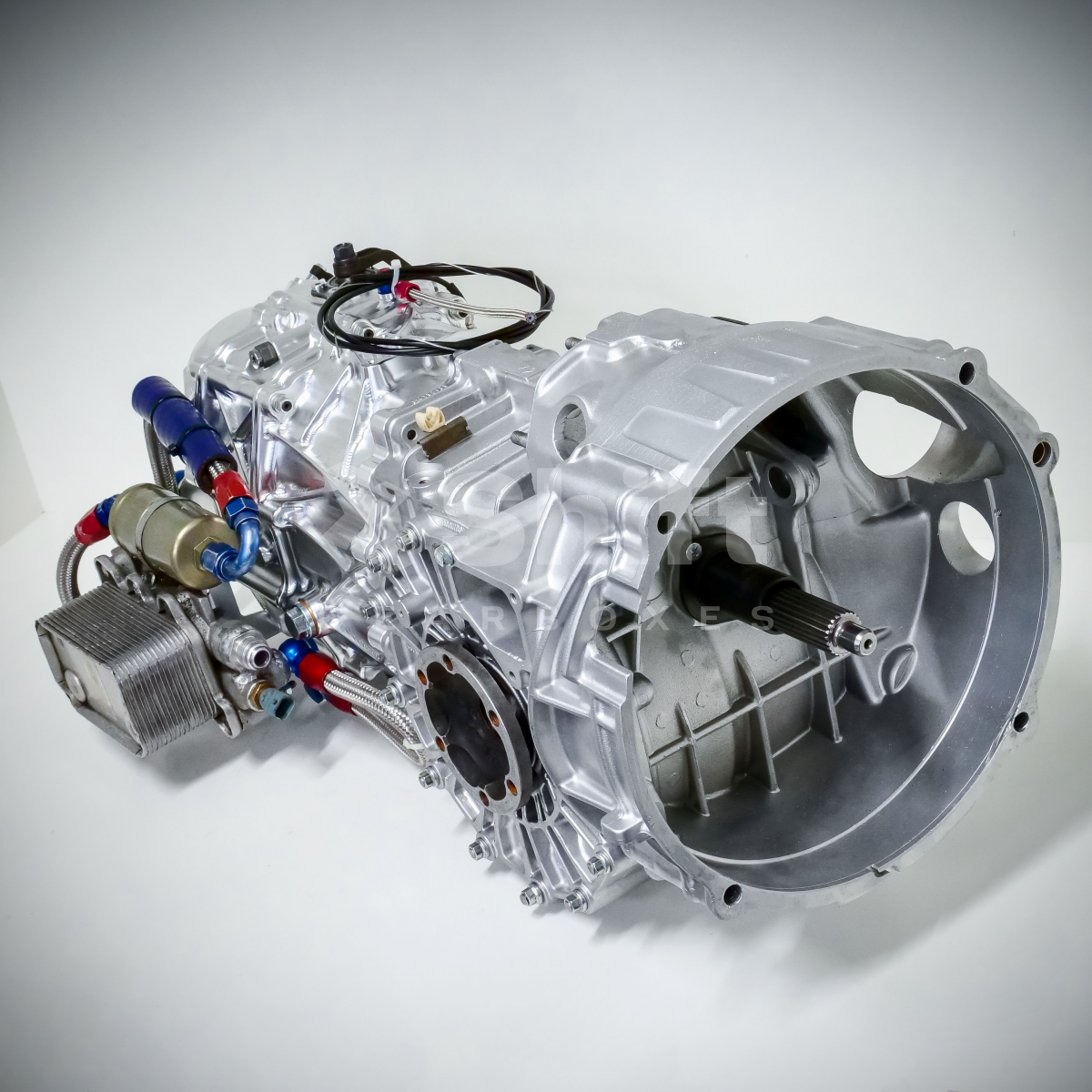

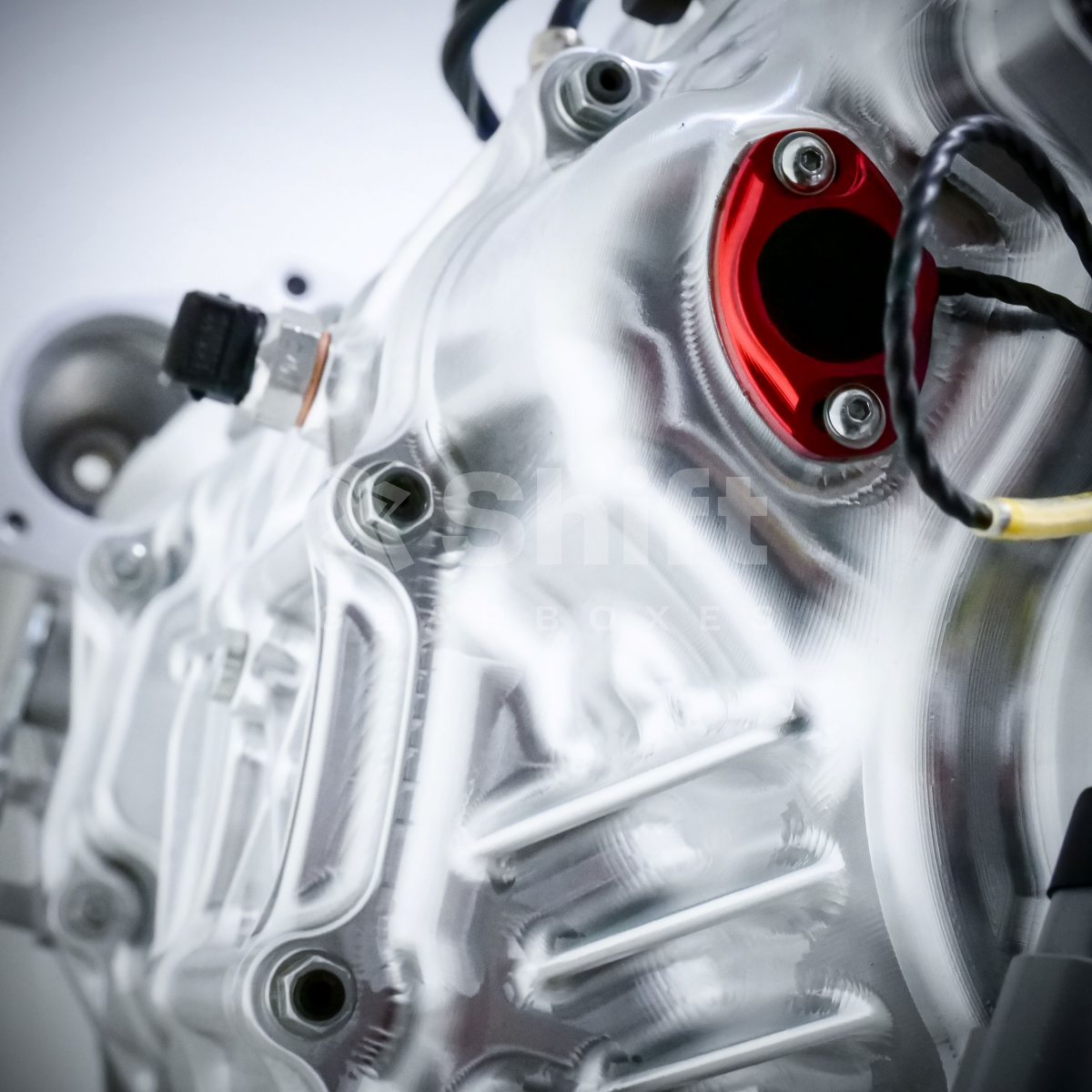

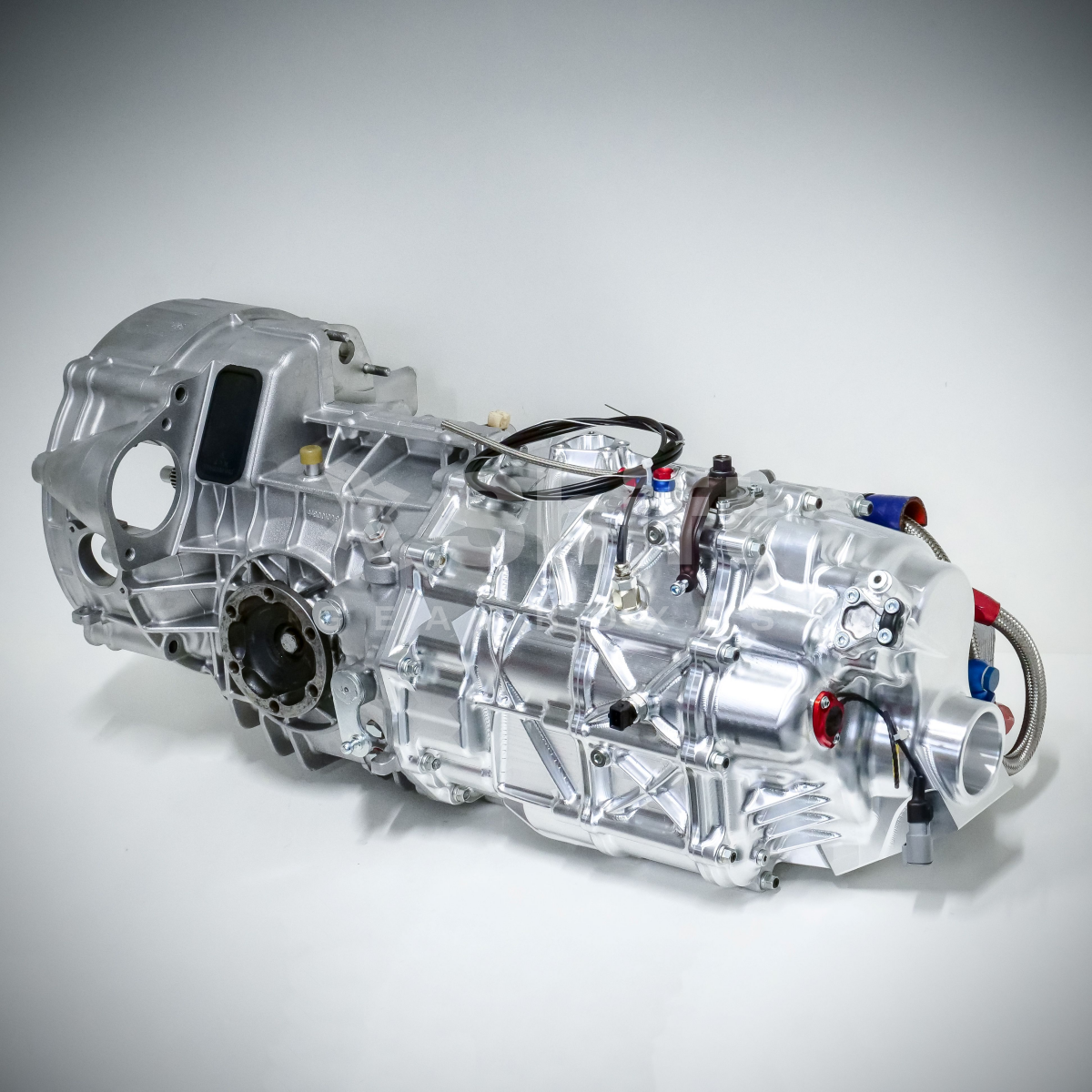

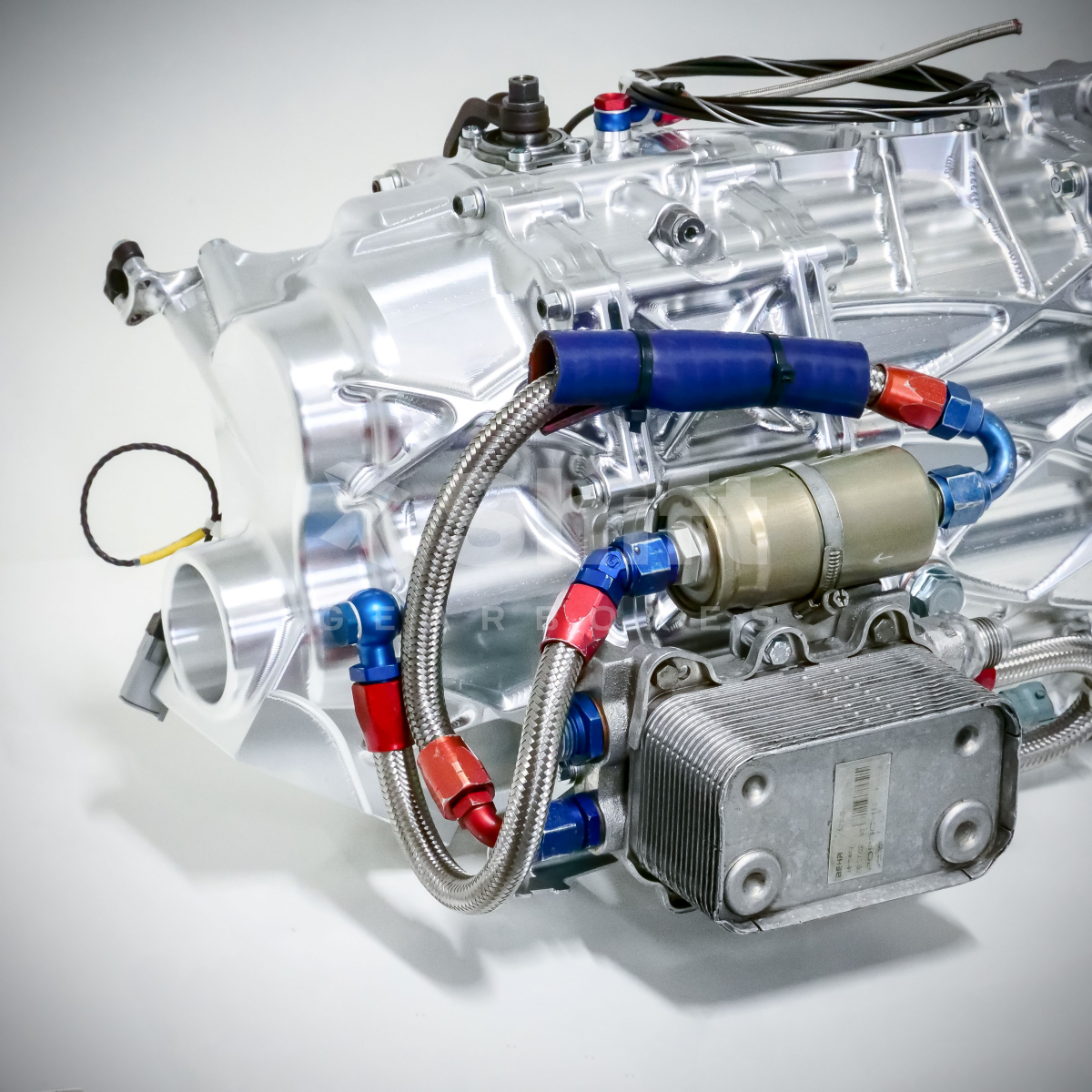

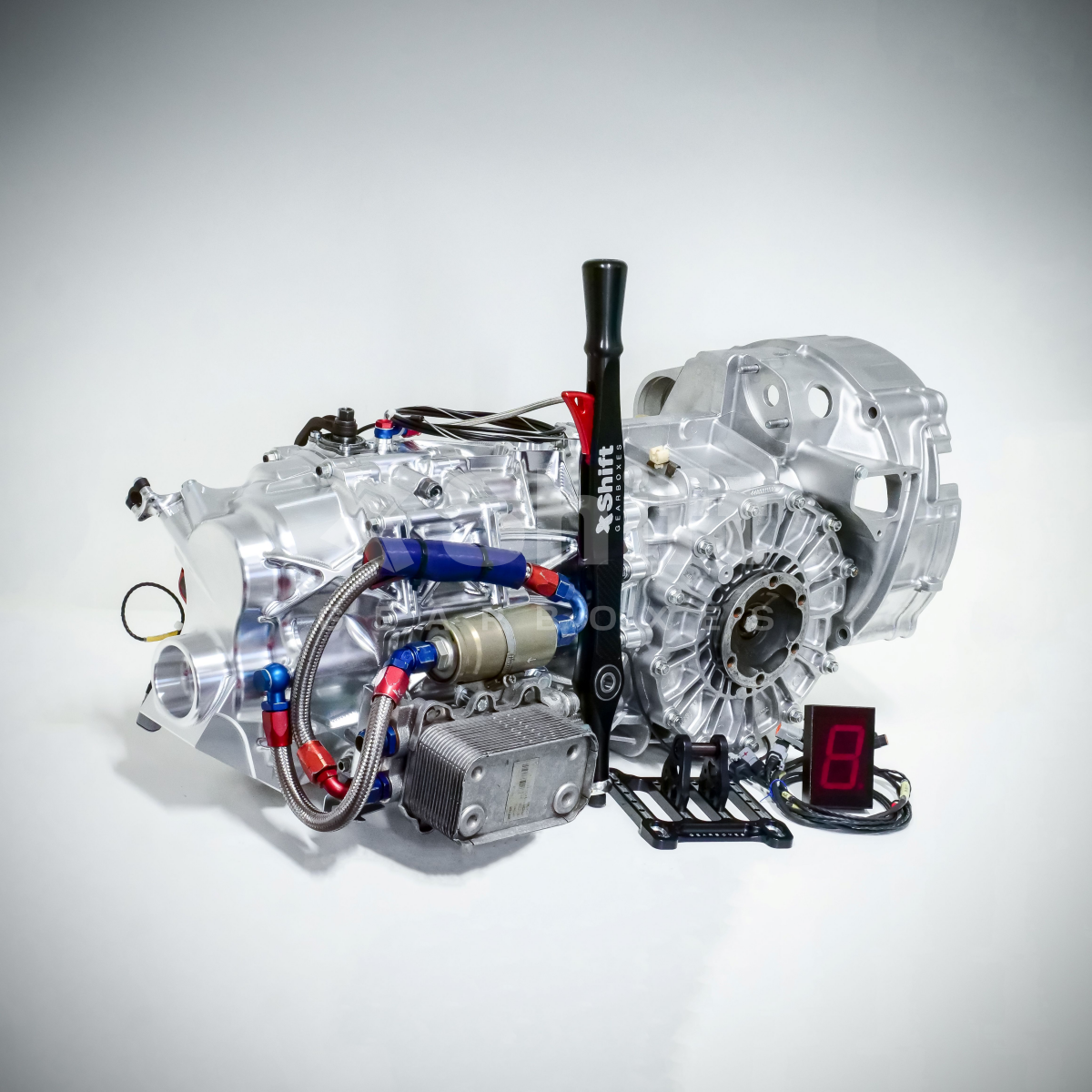

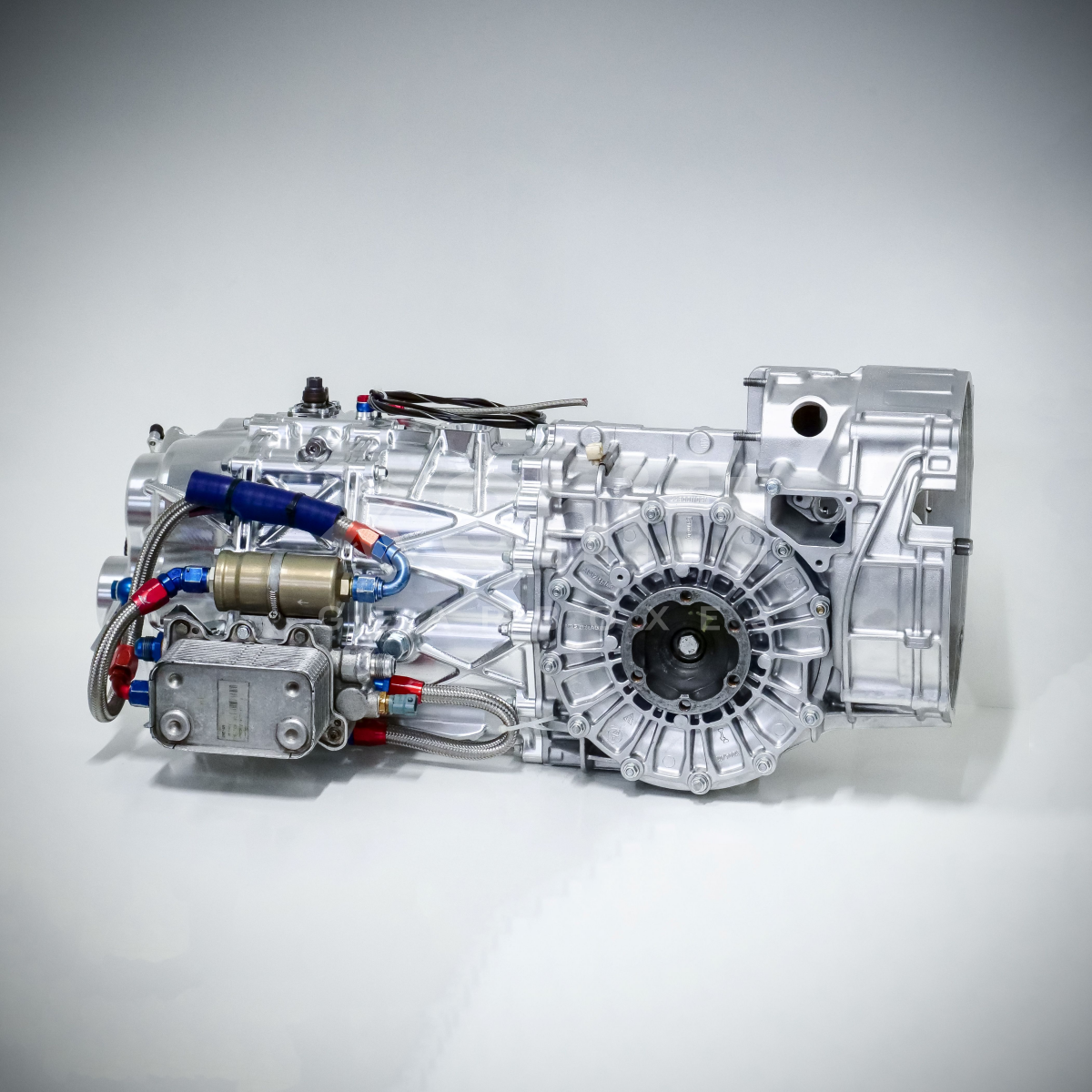

Photogallery

Gear ratios calculator

Gear	T1	T2	ratio	RPM down	speed	speed down
1	12	37	3.08	-	74.5	-
2	13	29	2.23	2075	103	28.5
3	16	28	1.75	1617	131.3	28.3
4	19	27	1.42	1410	161.7	30.4
5	20	24	1.2	1164	191.4	29.7
6	24	25	1.04	990	220.5	29.1
7	24	22	0.92	901	250.6	30.1

Calculation #1

Km / h

Mp / h

Gear count

Final drive

Gear ratio

Max RPM

Calculation type

Metric

Imperial (inches)

Custom

Tire width (mm)

Aspect ratio

Rim size

Pneu diameter (inch)

Pneu width (inch)

Rim size

Tire diameter

If you have choosen your configuration, please take a screenshot of this calculator and attach it to the configurator below.

Gearbox configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
