STRONG – 5 Speed SHD sequential kit Mitsubishi EVO X

Suitable for:
Mitsubishi

The Mitsubishi EVO five-speed STRONG sequential gearbox is the fastest and most STRONGEST gearbox on the worldwide market!

Torque
1200-1400 Nm
Torque
Revelations
8000 RPM
Revelations
Gears
5
Gears

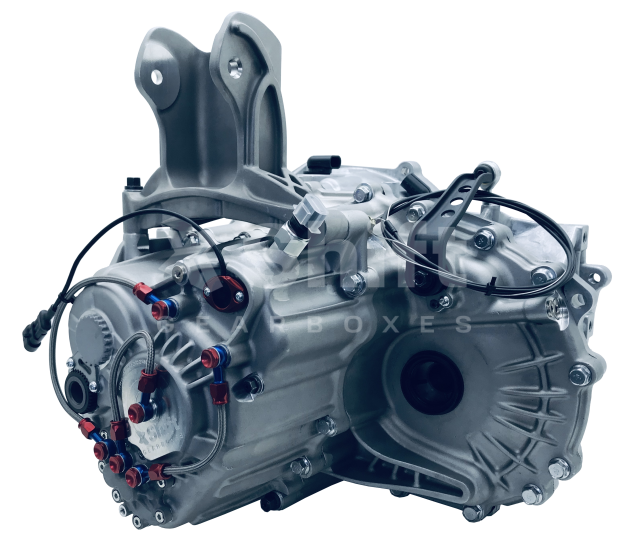

STRONG – 5 Speed SHD sequential kit Mitsubishi EVO X
Specification

The sequential "SHD" kit is designed with reinforced gears, dog rings and a reinforced shifting system, fully tested for up to 1400 Nm of torque! This is a full replacement for the OEM 5 speed gearbox, direct to the original car, for the most extreme applications you can imagine with EVO!

The cases of sequential gearbox Mitsubishi EVO IV-IX are casted of ultra lightweight aluminium that meets the highest requirements for strength and durability without unnecessary weight. The kit fits to OEM 5 speed bellhousing.

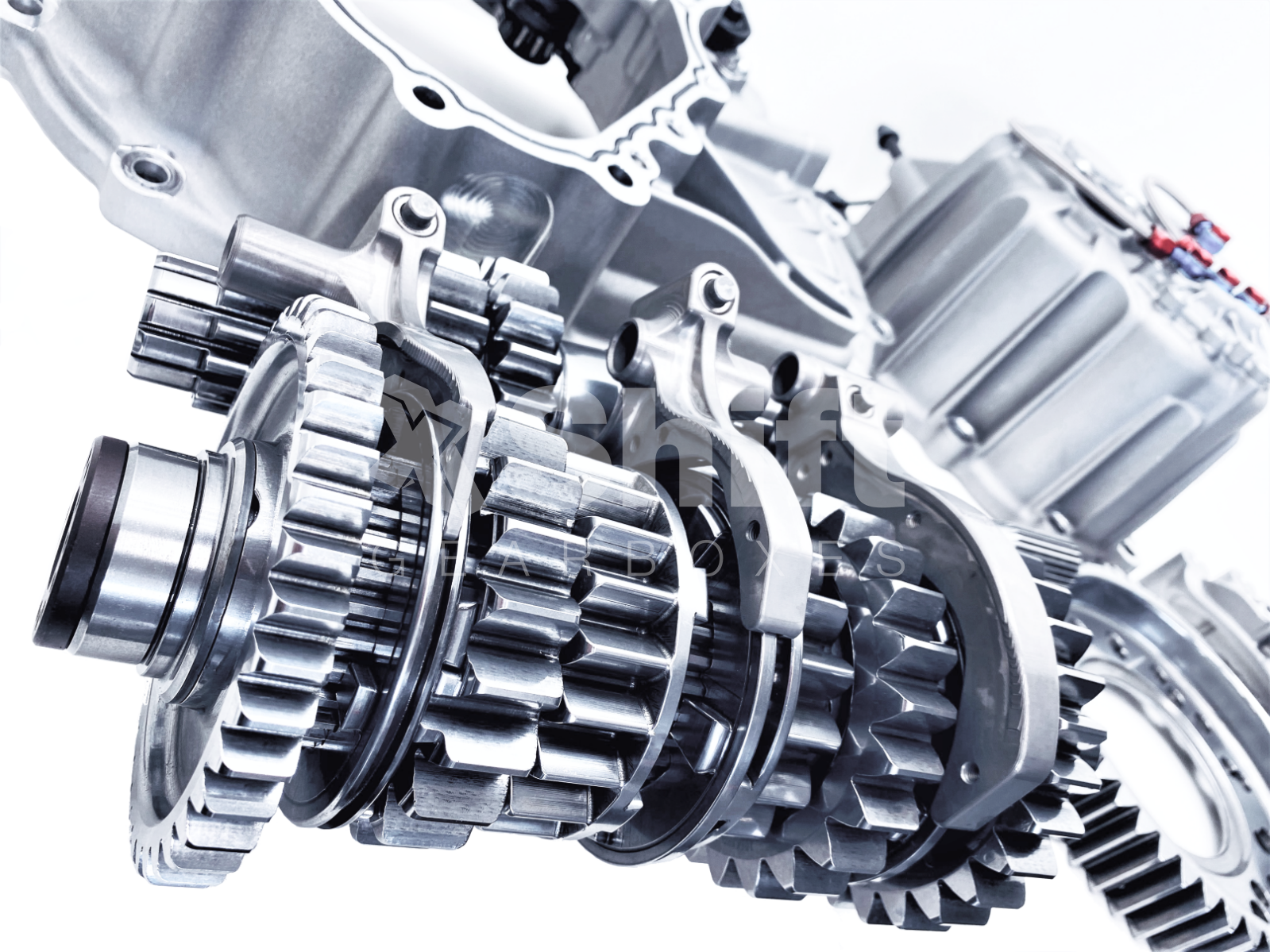

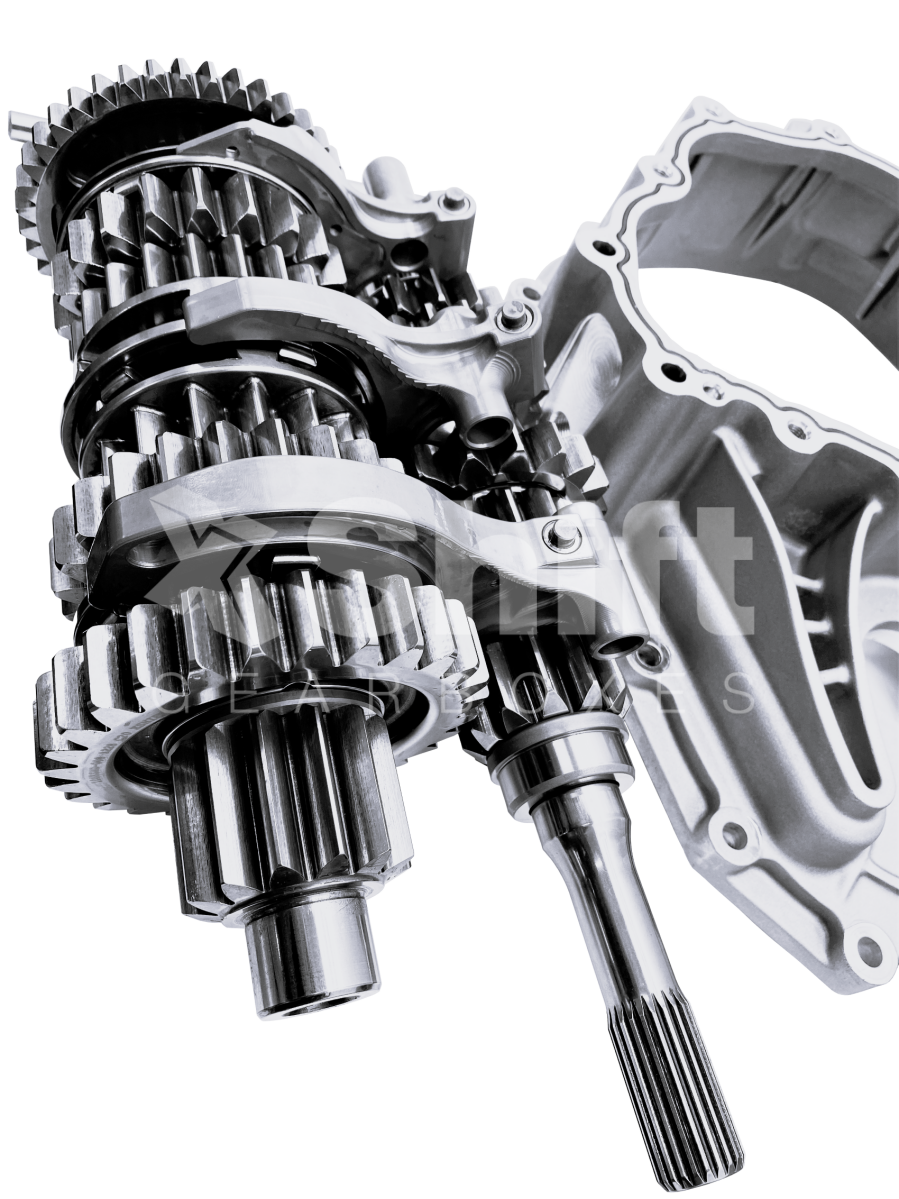

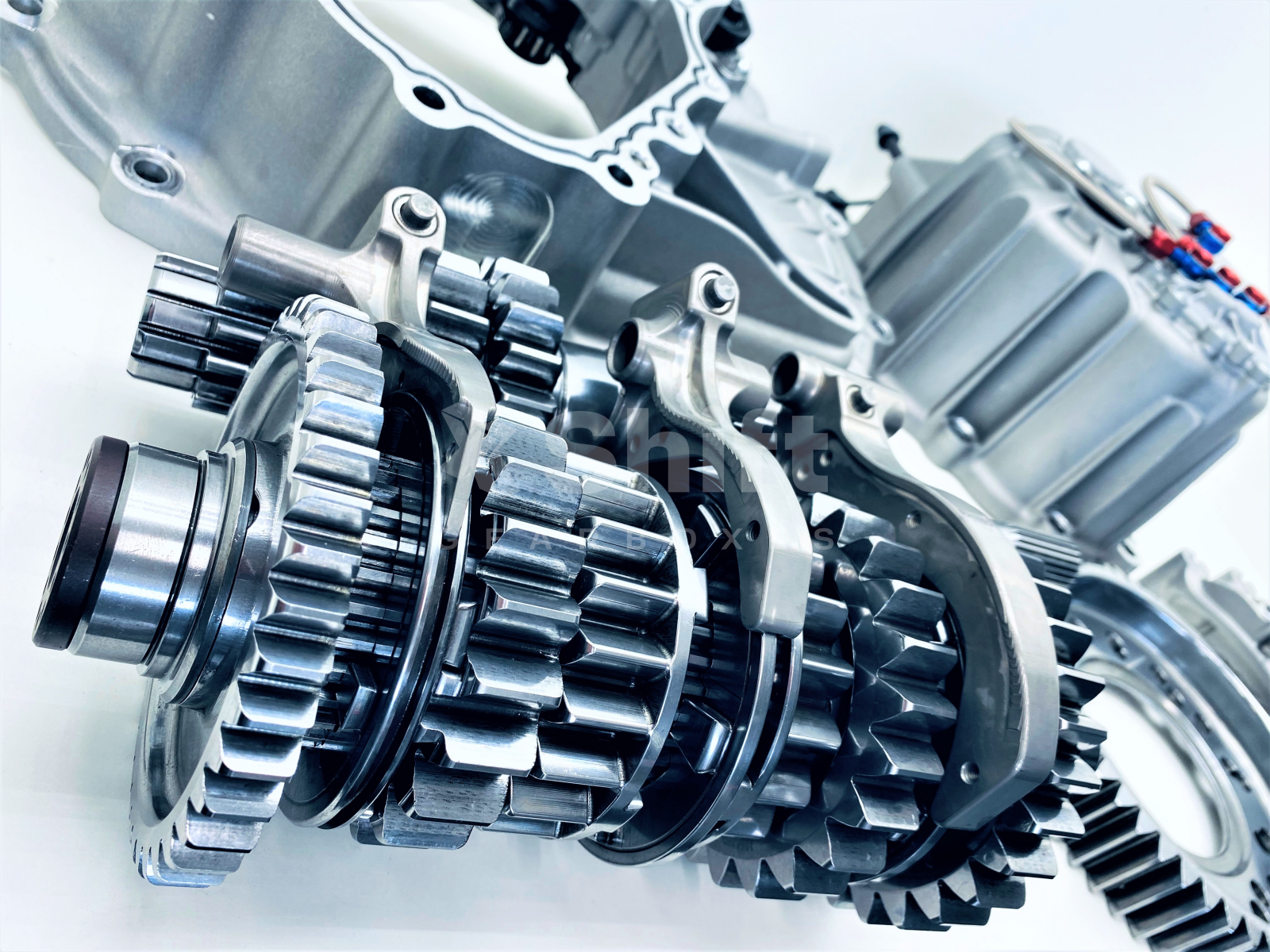

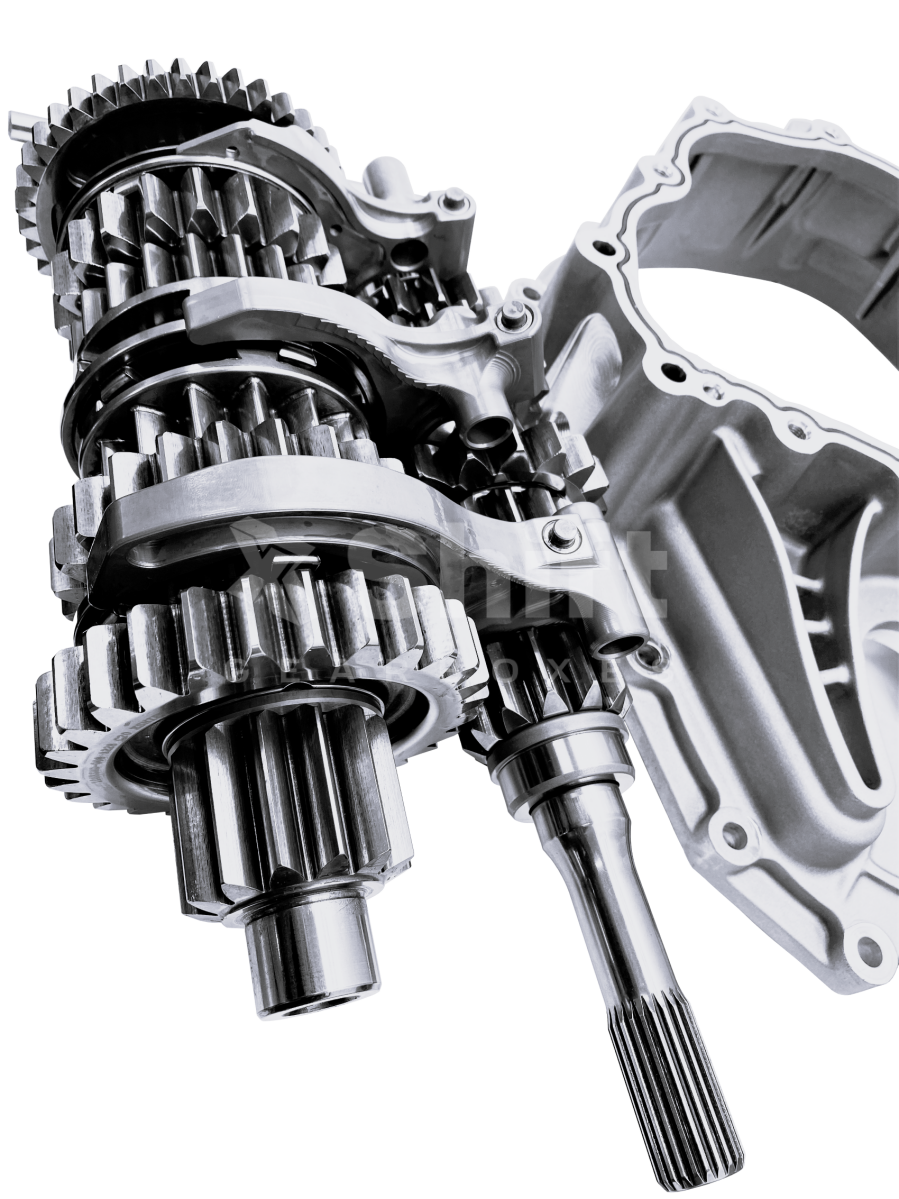

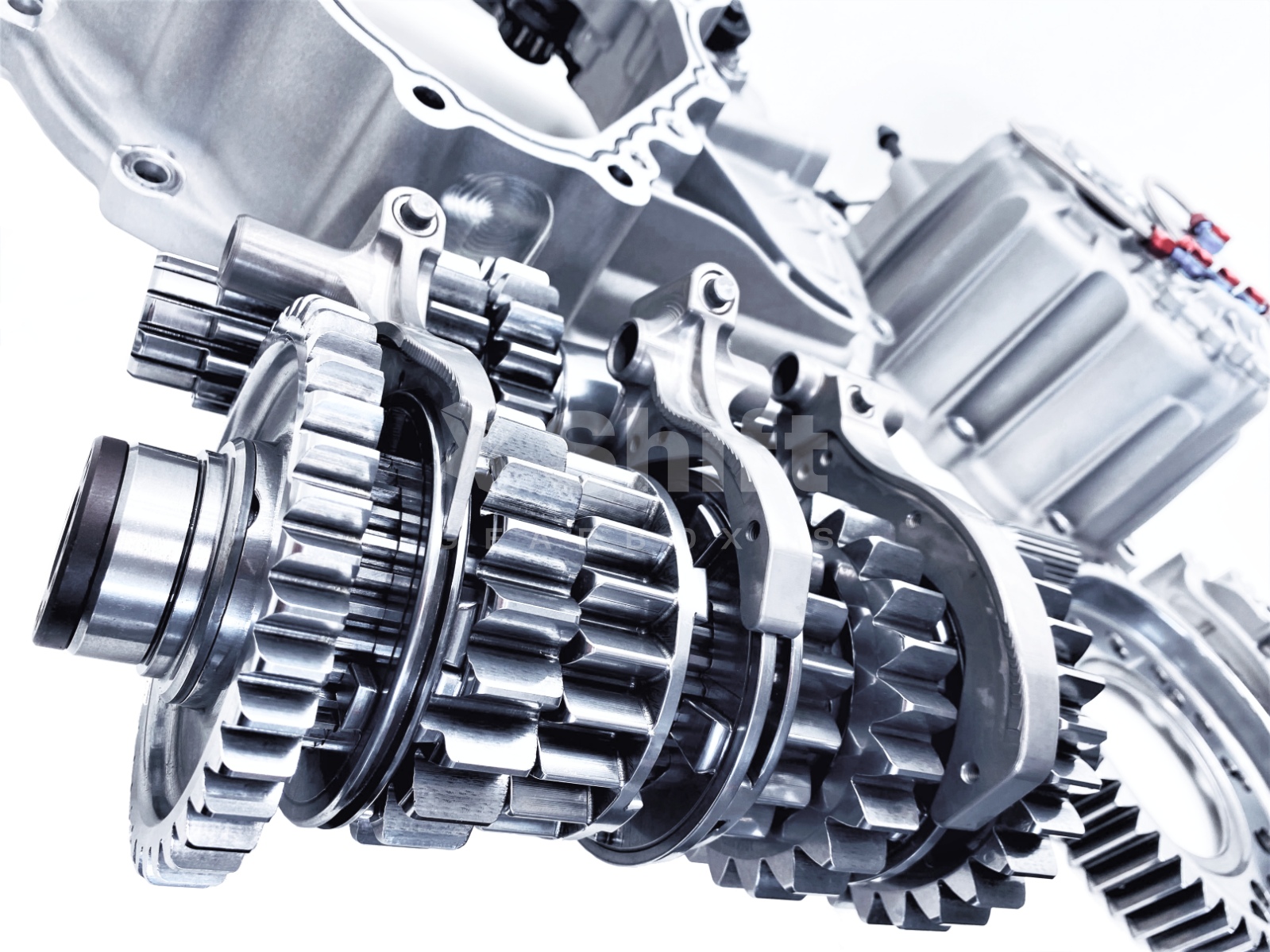

The gearbox consists of upgraded high performance gears, shafts, billet selector forks and rods, all made of the highest quality steel that is specially heat treated. Thanks to this the strength is ensured. All parts are REM isotropic superfinished to achieve smooth function in parts contact areas.
Why XSHIFT?
Major Advantages

Thanks to inovative design the gearbox contains internal oil pump, therefore it lubricates perfectly, which increases life span of the gearbox. It has also possibility to easily connect additional oil cooler when inlet and outlet hoses are disassembled.

  • Choice of sequential kit or complete ready to install gearbox
  • Direct replacement of OEM gearbox
  • Strong holder for silentblock
  • Rated up to 1400 Nm
  • All parts REM isotropic superfinished
  • Preparation for pneumatic paddle shift system
  • Possible to use OEM or racing clutch bearing
  • Up to 6 final drive options
Shifting and gear ratios

There are 2 gear ratios tailored for the Mitsubishi EVO STRONG sequential gearbox. Ratios can be combined, but due to big differences between them, it is not recommended.

 Gear ratio 1 2 3 4 5 6
SHD 3 2 1,47 1,14 0,89 –

SHD-N

 2,62 1,92 1,5 1,21 1 –
Final drive 12/59 (4,92) 12/57 (4,75) 13/56 (4,31) 12/50 (4,17) 12/48 (4,00) 14/54 (3,86)
Kit or Complete Gearbox

X Shift offers either sequential kits or complete transmissions assembled with OEM parts and ready to install in your car. OEM parts can be supplied by the customer or we can supply brand new parts.

Complete gearbox

Fitting a complete gearbox at X Shift saves the time and ensures that the assembly will be done correctly. The OEM components used are the standard bellhousing, centre differential with bearings and small parts like bearings, speed sensor, reverse sensor etc.

Kit includes
  • Complete sequential mechanism
  • Rear and middle cover
  • Final gear

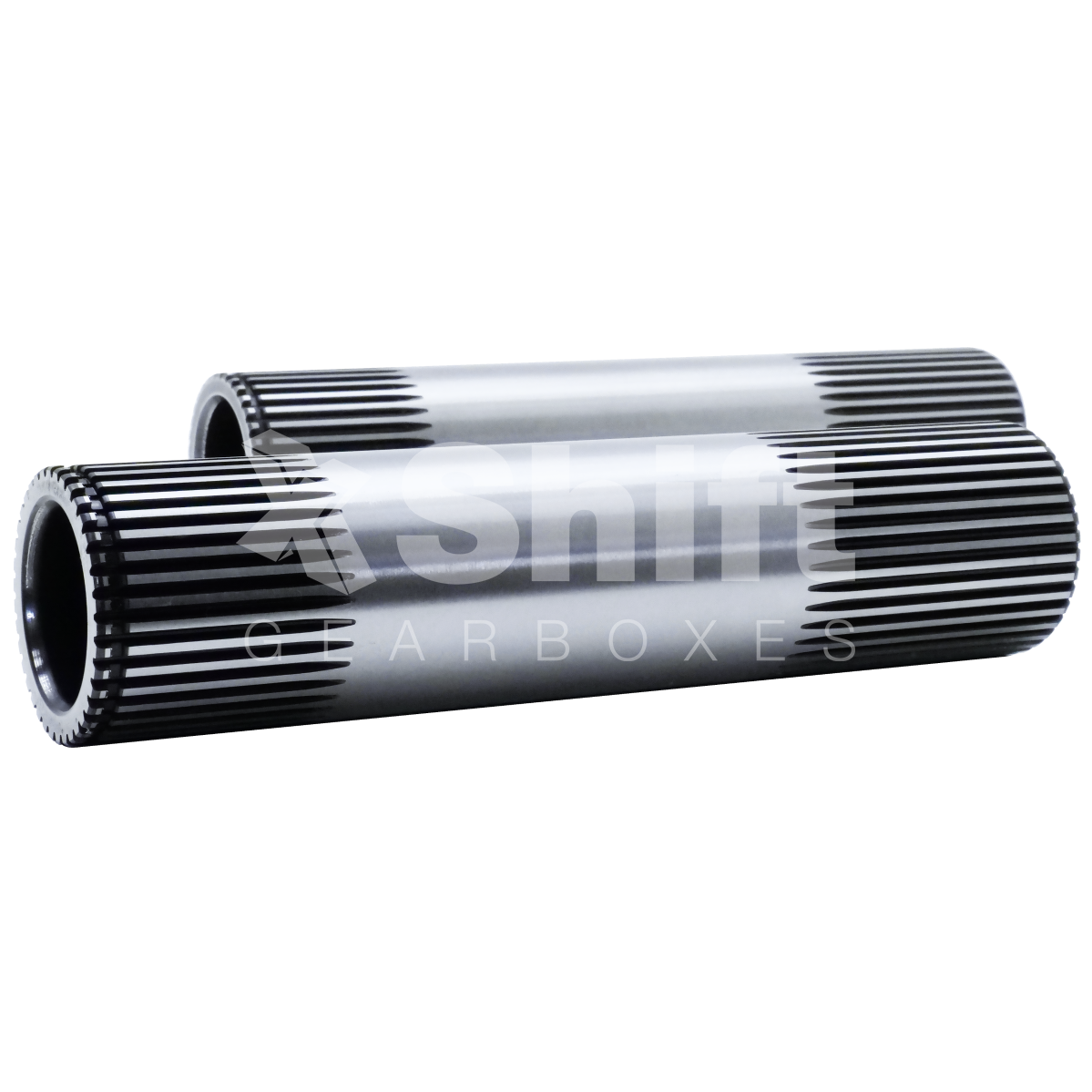

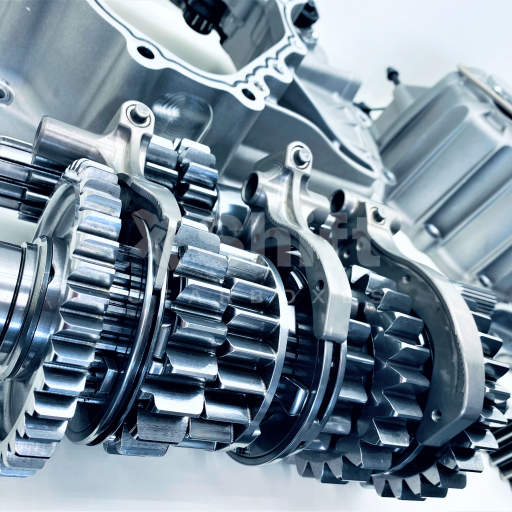

  • Drive and driven shaft
  • Shafts are already fitted with gears, hubs, shifters, impellers, bearings etc.
  • Shifting forks and rods
  • Complete set of necessary bearings
  • Internal oil pump with inlets and outlets
  • Shifting barell position sensor
  • Silent block holder
Accessories

Together with the powerful Mitsubishi EVO sequential gearbox we can provide many performance accessories that helps you achieve top results on the track.

Gear ratios calculator

Gear T1 T2 ratio RPM down speed speed down
1 12 36 3 - 71.1 -
2 13 26 2 2502 106.7 35.6
3 17 25 1.47 1985 145.1 38.4
4 22 25 1.14 1702 187.7 42.6
5 28 25 0.89 1607 238.9 51.2
Tyre metric dimensions
Tyre inch dimensions

If you have choosen your configuration, please take a screenshot of this calculator and attach it to the configurator below.

Gearbox configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
