Sequential gearboxes

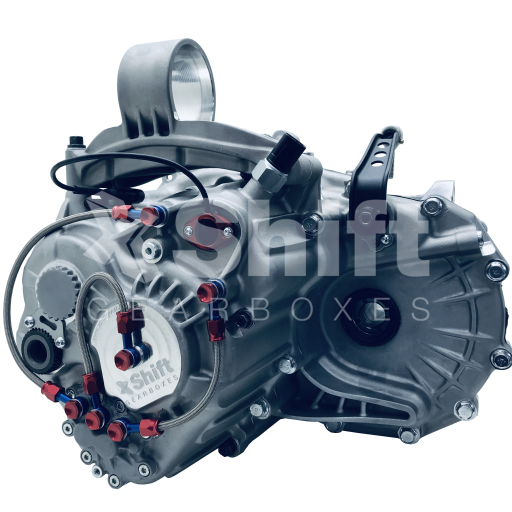

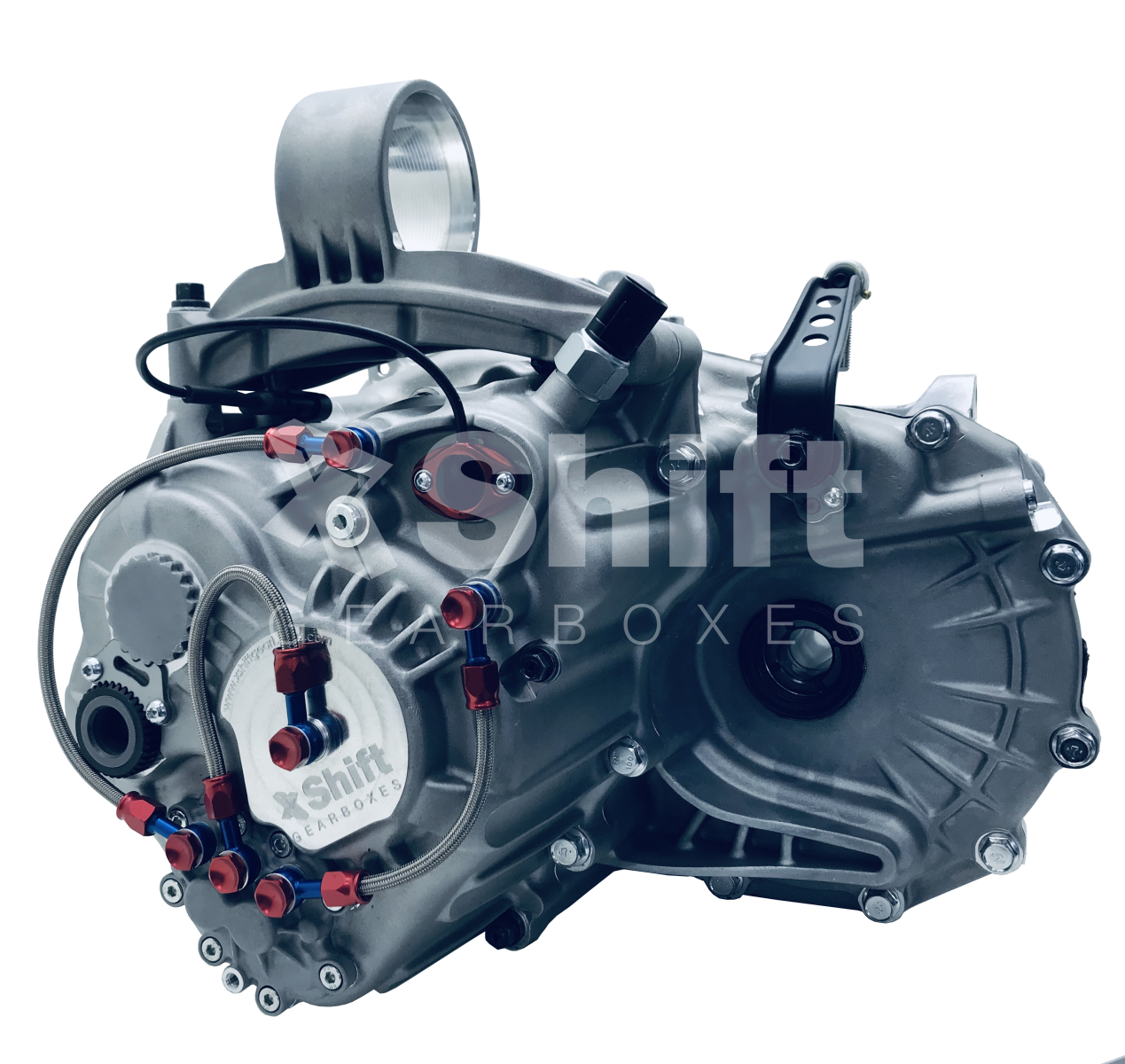

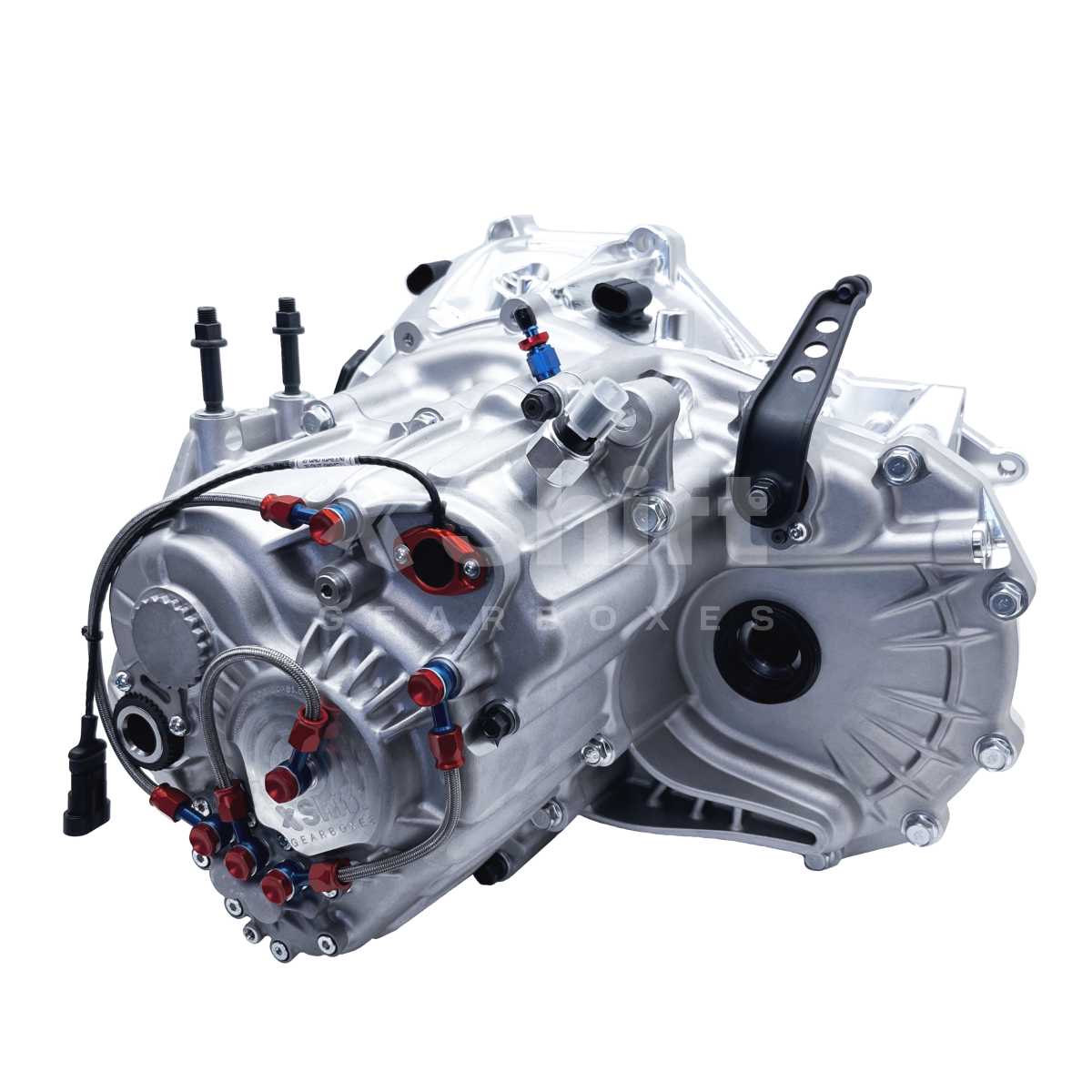

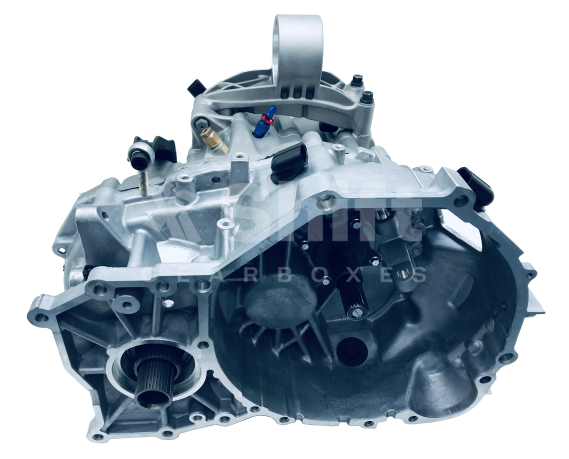

+PLUS – 6 Speed sequential kit Mitsubishi EVO IV-IX

Suitable for:

Mitsubishi EVO full sequential gearbox is the fastest gearbox on the worldwide market!

900 Nm: Torque
7500 RPM: Revelations
6: Gears

Specification

Compared to the standard five-speed version, the six-speed sequential kit allows for faster acceleration and most importantly, faster gear changes. This gearbox is the ideal choice for all disciplines with engine torque up to 900 Nm, where speed and reliability are important. A wide choice of gear ratios and final drives allows you to tailor the gearbox to your specific needs. This is a kit to rebuild the original OEM 5 speed gearbox. The gearbox can also be supplied in a "complete" version - including all new OEM parts. Turn your EVO into a hidden weapon against your opponents!

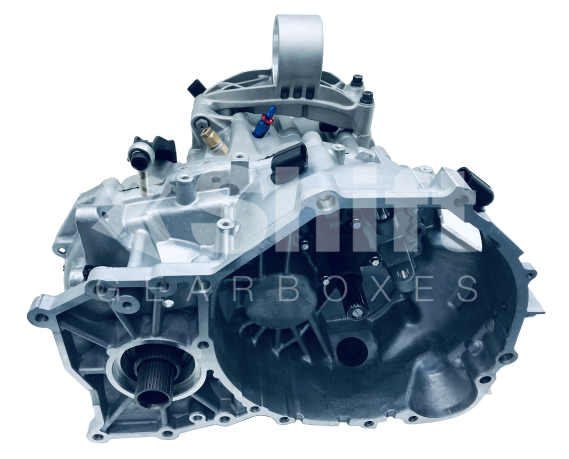

The cases of sequential gearbox Mitsubishi EVO IV-IX are casted of ultra lightweight aluminium that meets the highest requirements for strength and durability without unnecessary weight. The kit fits to OEM 5 speed bellhousing but you can also use our upgraded billet bellhousing. It is available in version for OEM clutch bearing (push-pull) and version with RACING clutch bearing (push-push).

The gearbox consists of upgraded high performance gears, shafts, billet selector forks and rods, all made of the highest quality steel that is specially heat treated. Thanks to this the strength is ensured. All parts are REM isotropic superfinished to achieve smooth function in parts contact areas.

Why XSHIFT?

Major Advantages

Thanks to inovative design the gearbox contains internal oil pump, therefore it lubricates perfectly, which increases life span of the gearbox. It has also possibility to easily connect additional oil cooler when inlet and outlet hoses are disassembled.

Choice of sequential kit or complete ready to install gearbox
Direct replacement of OEM gearbox

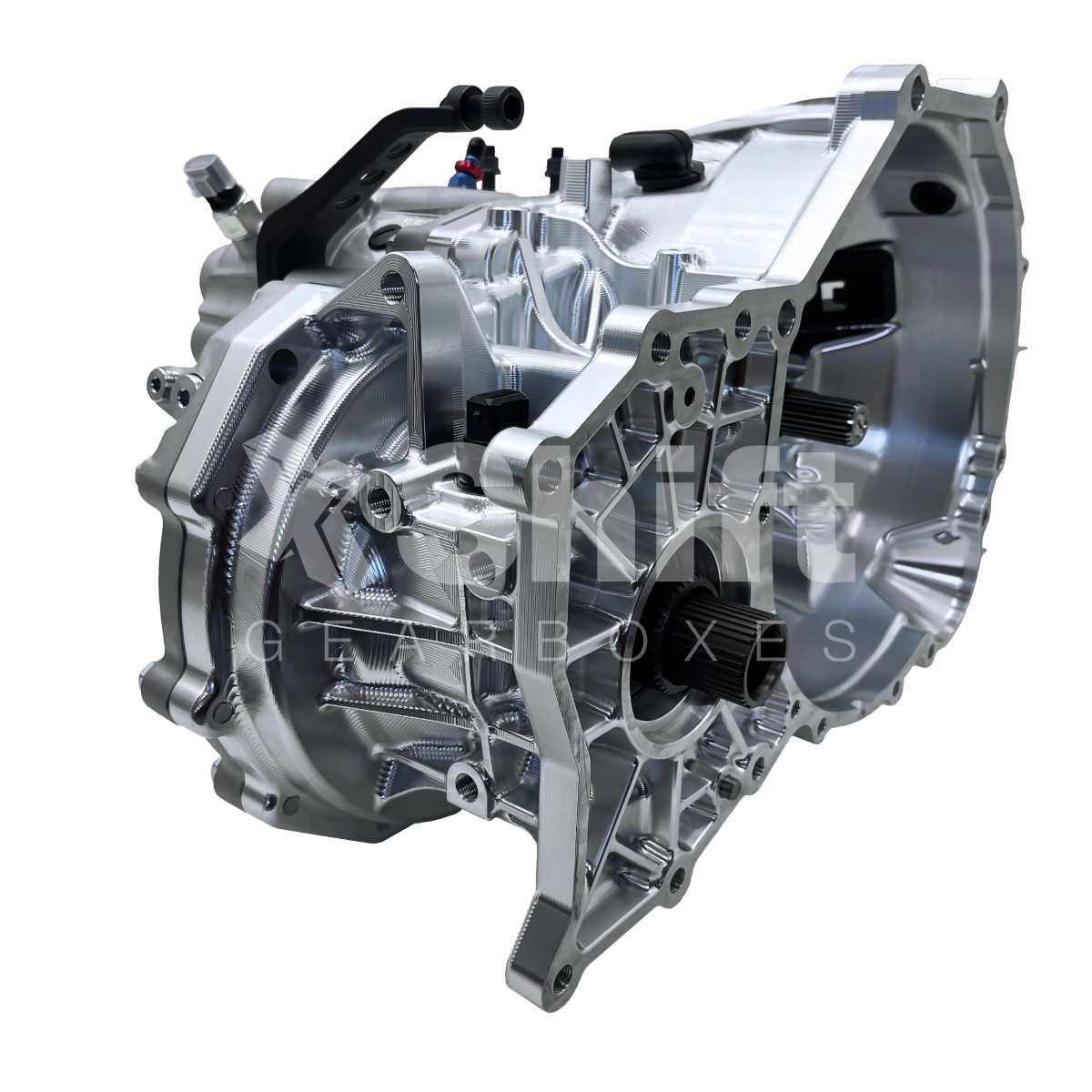

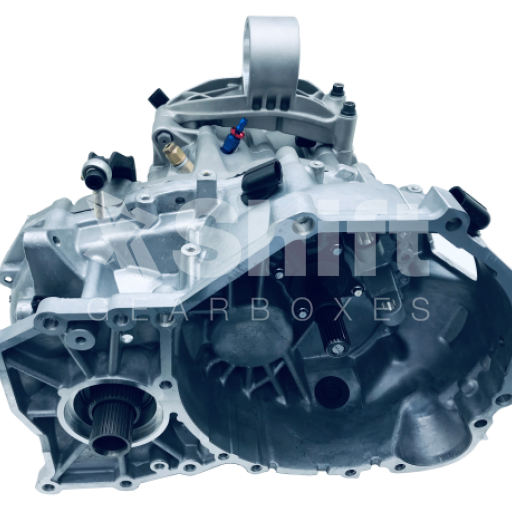

OEM casted or X Shift billet bellhousing
Strong holder for silentblock
Rated up to 900 Nm
All parts REM isotropic superfinished
Preparation for pneumatic paddle shift system
Possible to use OEM or racing clutch bearing
Up to 6 final drive options

Shifting and gear ratios

There is one elementary option of gear ratio for 5 speed gearbox and two for 6 speed. However, gear ratios can be combined and can be made with longer or shorter 1st gears. Because ratios can be mutually mixed, there is wide range of gear ratio combinations.

5 speed version: suitable for rally
6 speed version: rally, circuit, time attack, hill climb, drag or street

Gear ratio	1	2	3	4	5	6
Gr. N (5 speed)	3	2	1,47	1,14	0,89	–
BASIC (6 speed)	2,62	1,92	1,50	1,21	1	0,83
SHORT (6 speed)	2,62	1,85	1,45	1,22	1,04	0,89
Final drive	12/59 (4,92)	12/57 (4,75)	13/56 (4,31)	12/50 (4,17)	12/48 (4,00)	14/54 (3,86)

Kit or Complete Gearbox

X Shift offers either sequential kits or complete transmissions assembled with OEM parts and ready to install in your car. OEM parts can be supplied by the customer or we can supply brand new parts.

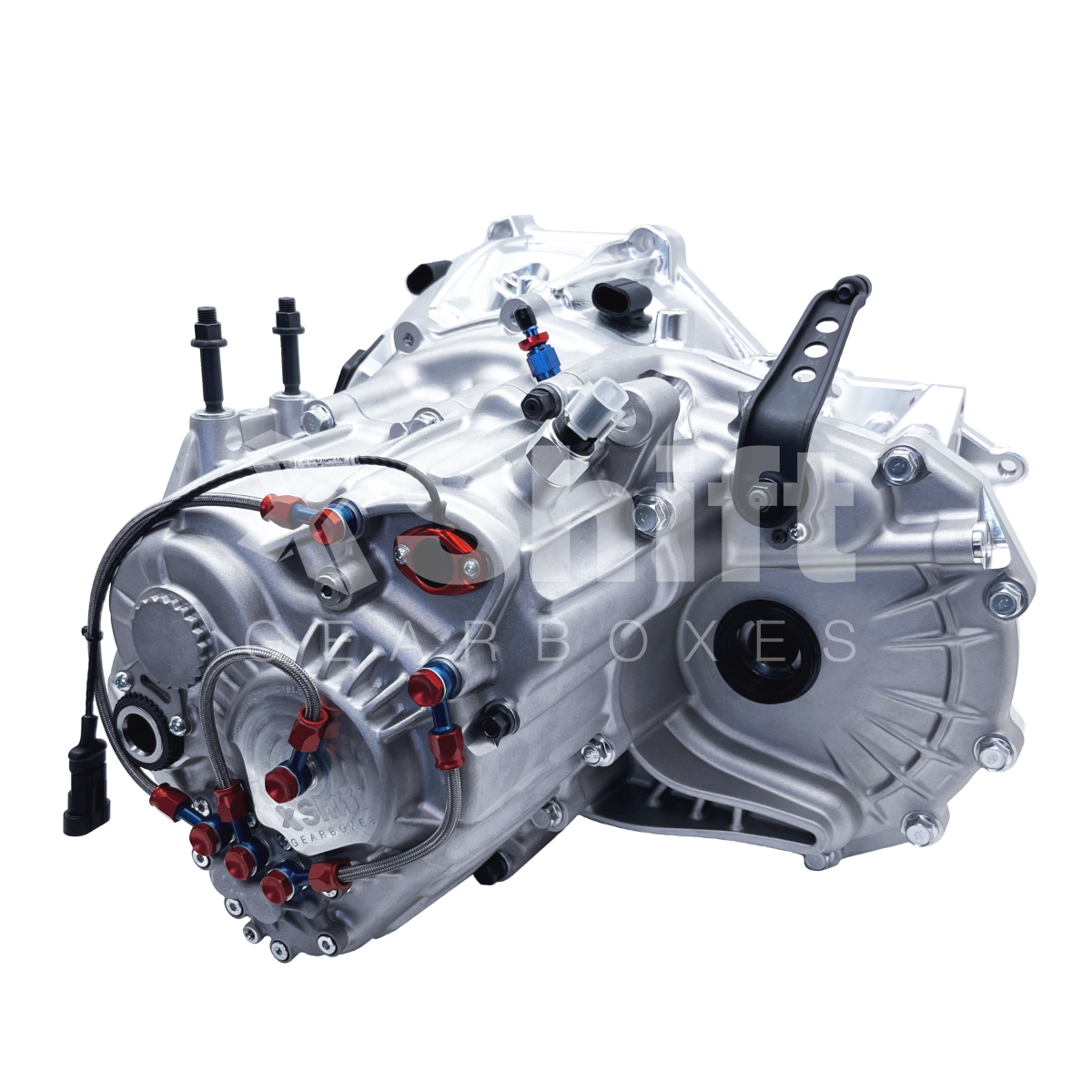

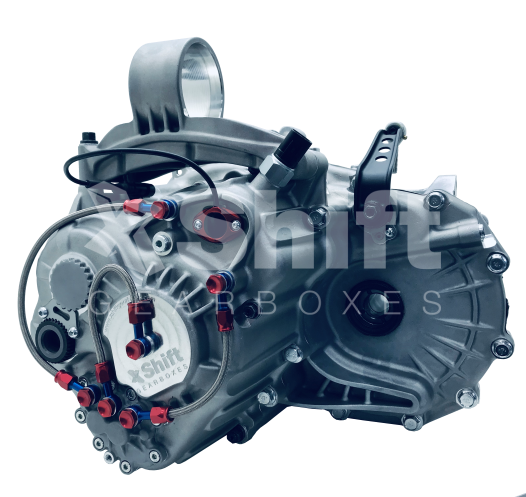

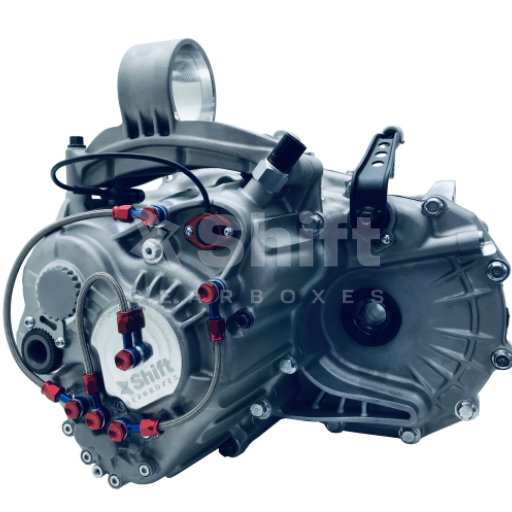

Complete gearbox

Fitting a complete gearbox at X Shift saves the time and ensures that the assembly will be done correctly. The OEM components used are the standard bellhousing, centre differential with bearings and small parts like bearings, speed sensor, reverse sensor etc.

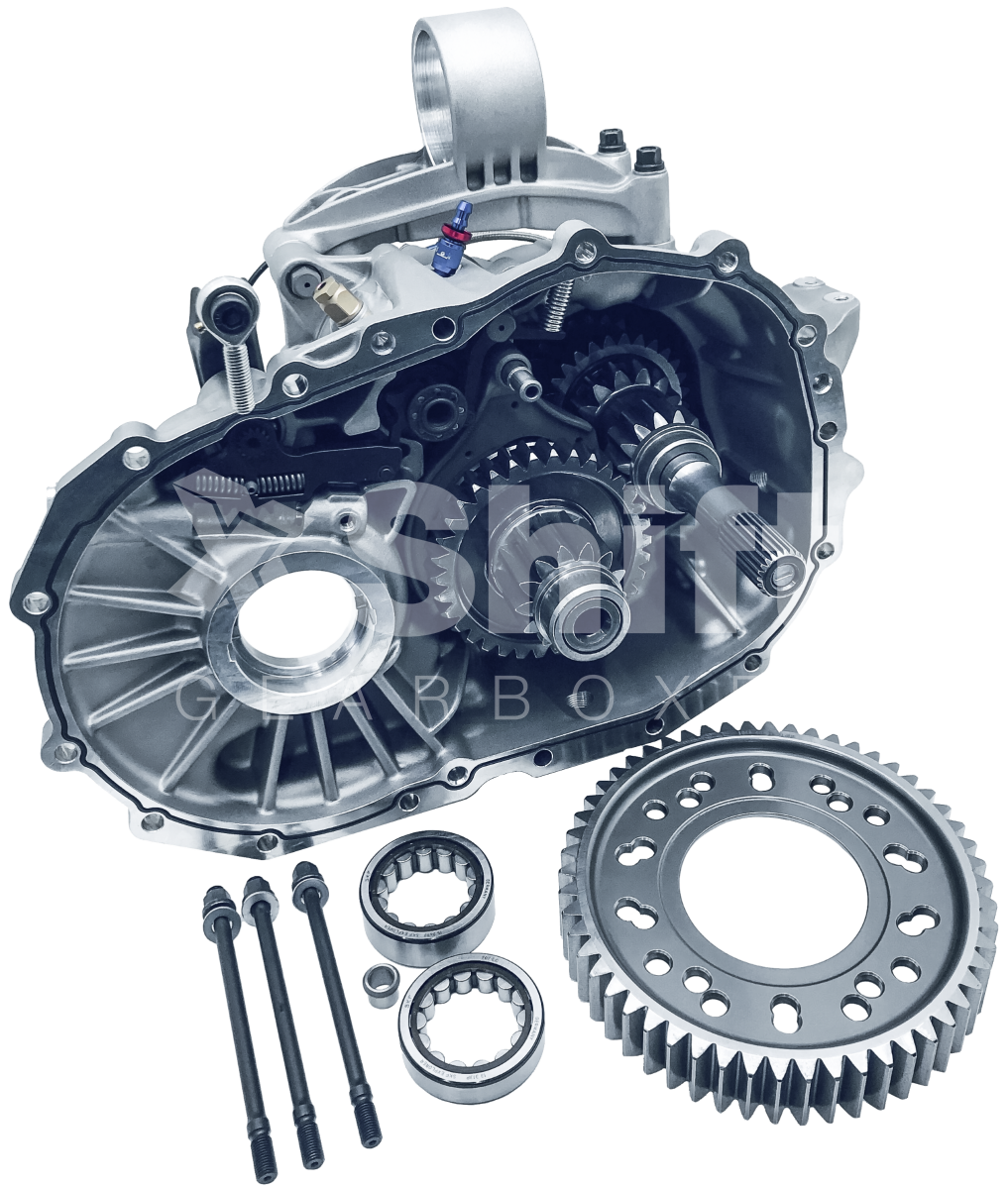

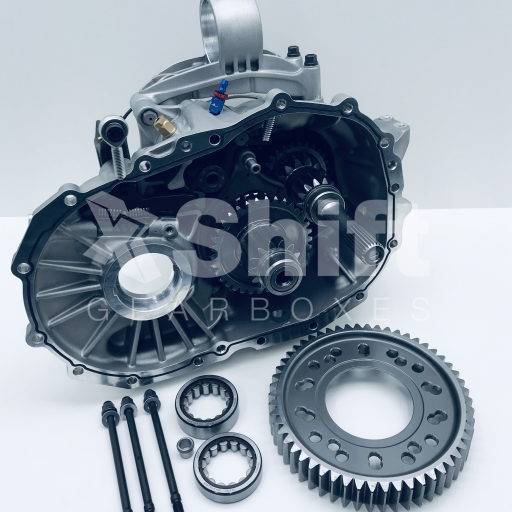

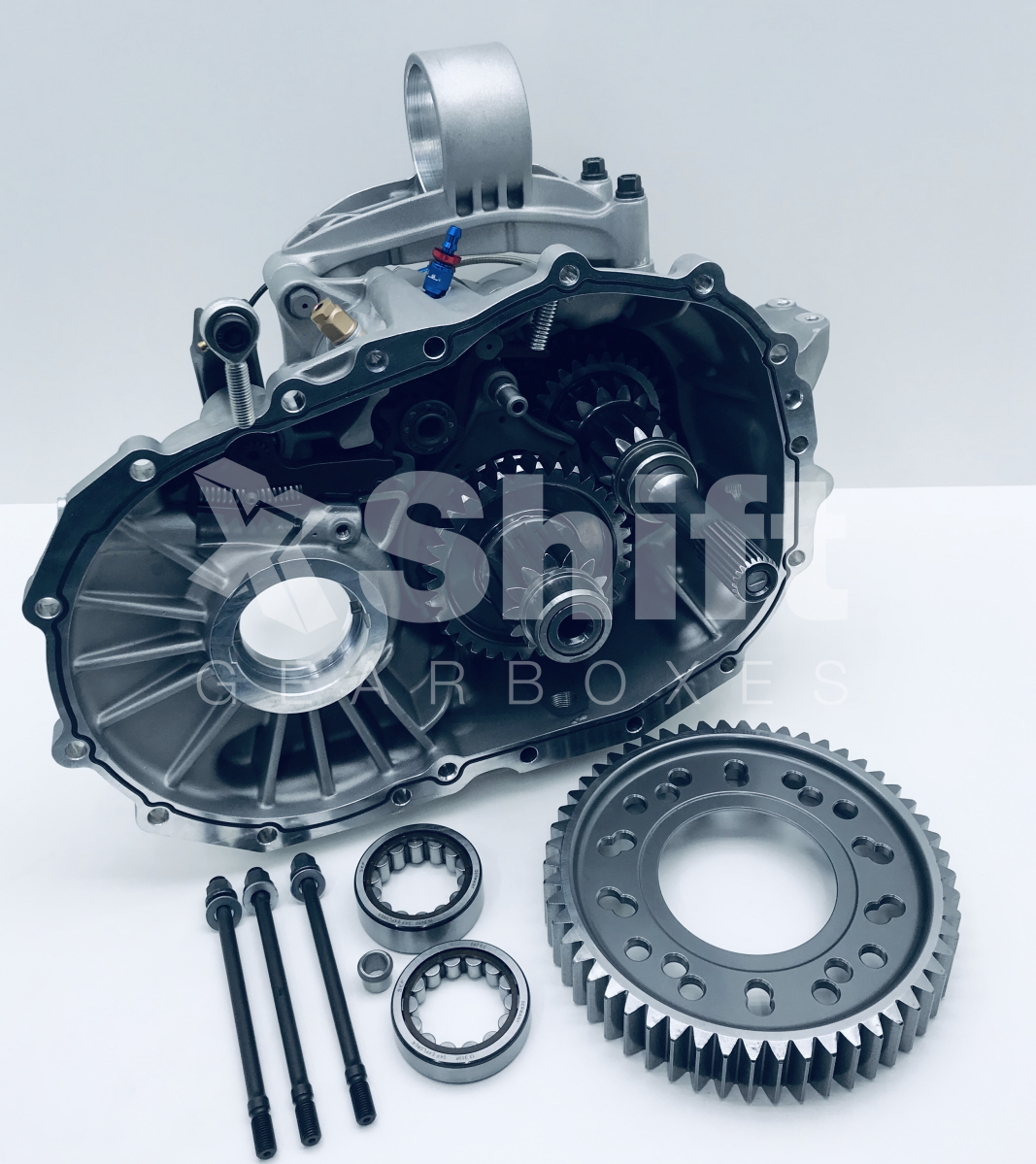

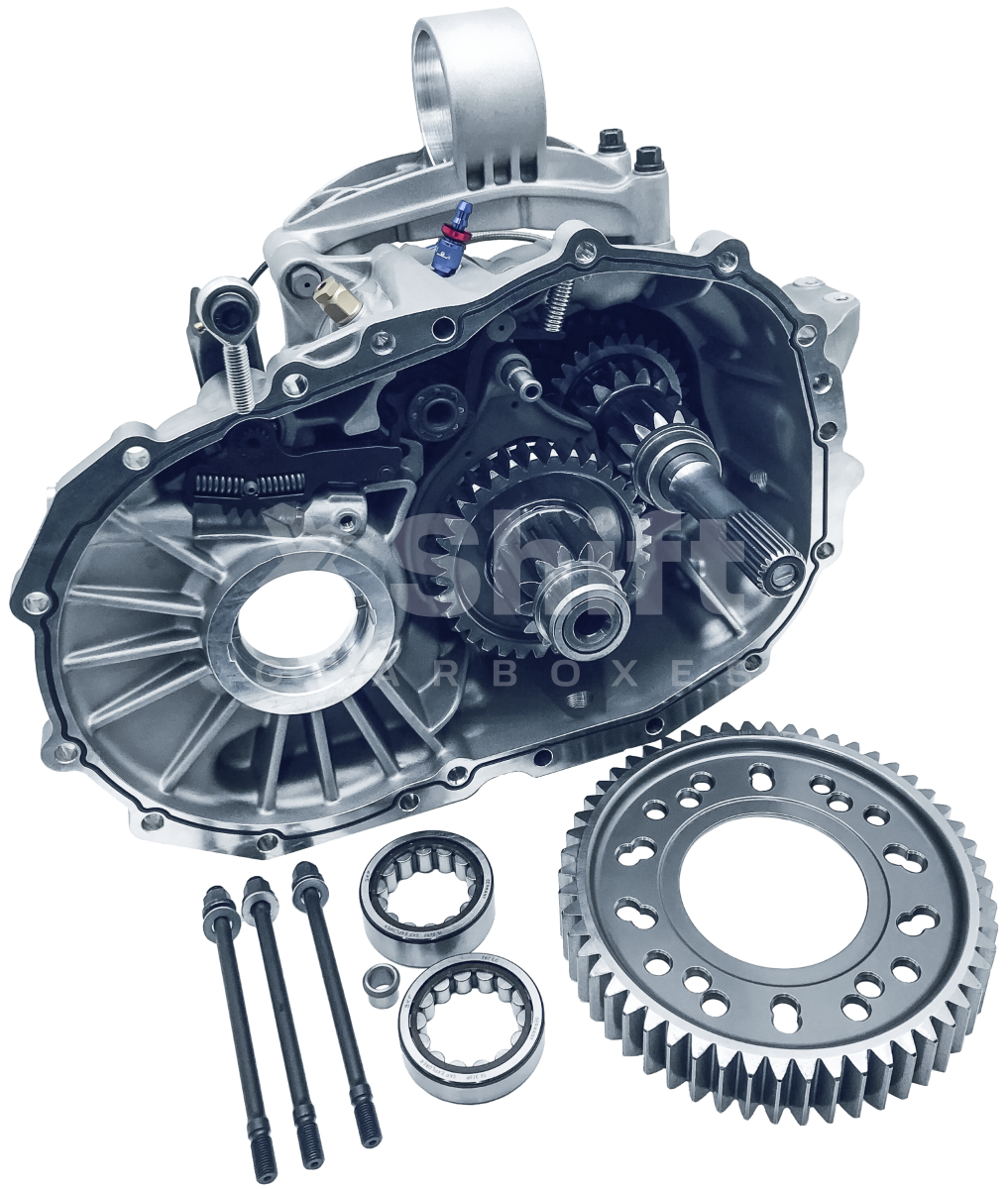

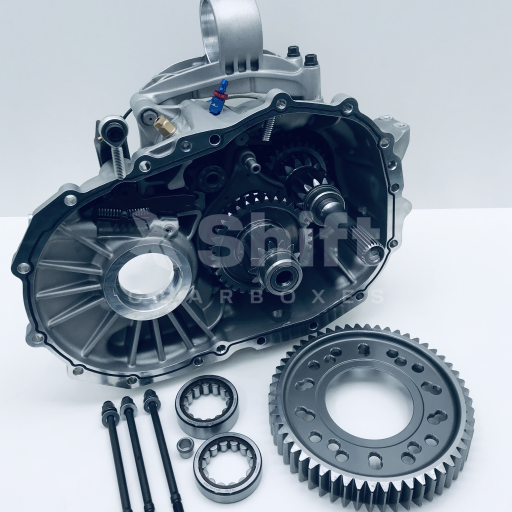

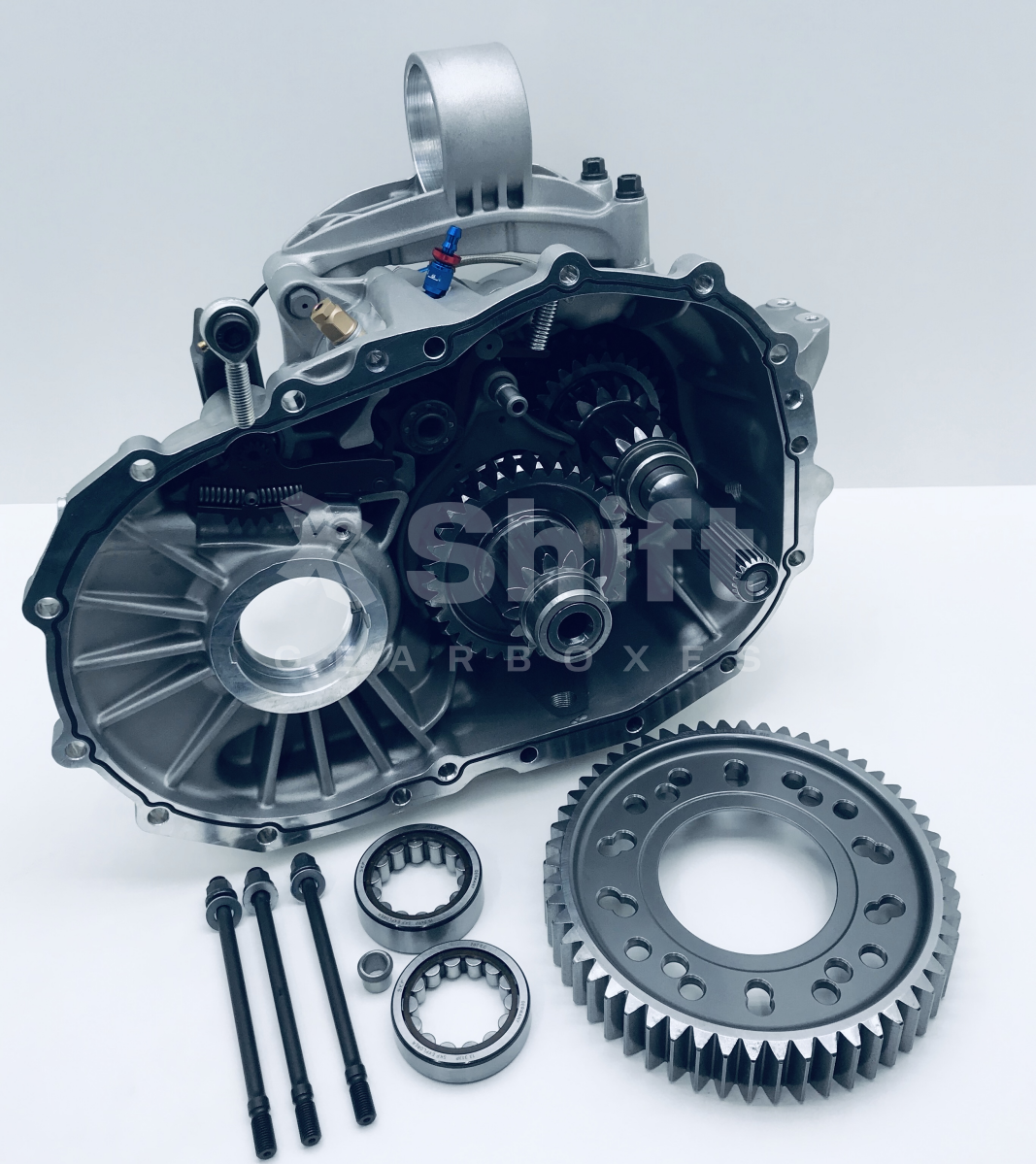

Kit includes

Complete sequential mechanism
Rear and middle cover
Final gear
Drive and driven shaft
Shafts are already fitted with gears, hubs, shifters, impellers, bearings etc.
Shifting forks and rods
Complete set of necessary bearings
Internal oil pump with inlets and outlets
Shifting barell position sensor
Silent block holder

Accessories

Together with the powerful Mitsubishi EVO sequential gearbox we can provide many performance accessories that helps you achieve top results on the track.

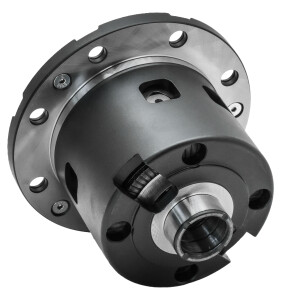

Front and rear differential with fast lock up reaction and customisable preload
- Mitsubishi EVO V-IX Front LSD
- Mitsubishi EVO IV-X Rear LSD
Due to higher torque that can be applied with our gearbox, we developed strengthened transfer tube
- Mitsubishi EVO SHD Transfer Tube
Gearbox cases are prepared for optional connection of pneumatic system and use of paddle shift
- Mitsubishi EVO Paddle Shift
Last but not least are multiple types of shifting levers and it's accessories
- Mitsubishi EVO Sequential Gear Levers

Gear ratios calculator

Gear	T1	T2	ratio	RPM down	speed	speed down
1	13	34	2.62	-	70.7	-
2	13	25	1.92	1718	96.1	25.4
3	16	24	1.5	1434	123.3	27.2
4	19	23	1.21	1251	152.7	29.4
5	25	25	1	1132	184.9	32.2
6	24	20	0.83	1084	221.9	37

Calculation #1

Km / h

Mp / h

Gear count

Final drive

Gear ratio

Max RPM

Calculation type

Metric

Imperial (inches)

Custom

Tire width (mm)

Aspect ratio

Rim size

Pneu diameter (inch)

Pneu width (inch)

Rim size

Tire diameter

If you have choosen your configuration, please take a screenshot of this calculator and attach it to the configurator below.

Photogallery

Gearbox configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
