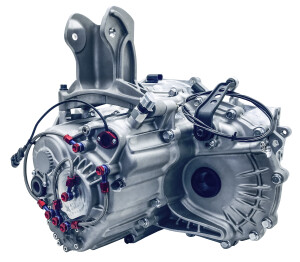

DOGBOX – 5 Speed H-pattern kit Mitsubishi EVO X

Suitable for:
Gears
5
Gears
Torque
800 Nm
Torque
Revelations
7500 RPM
Revelations
Specification

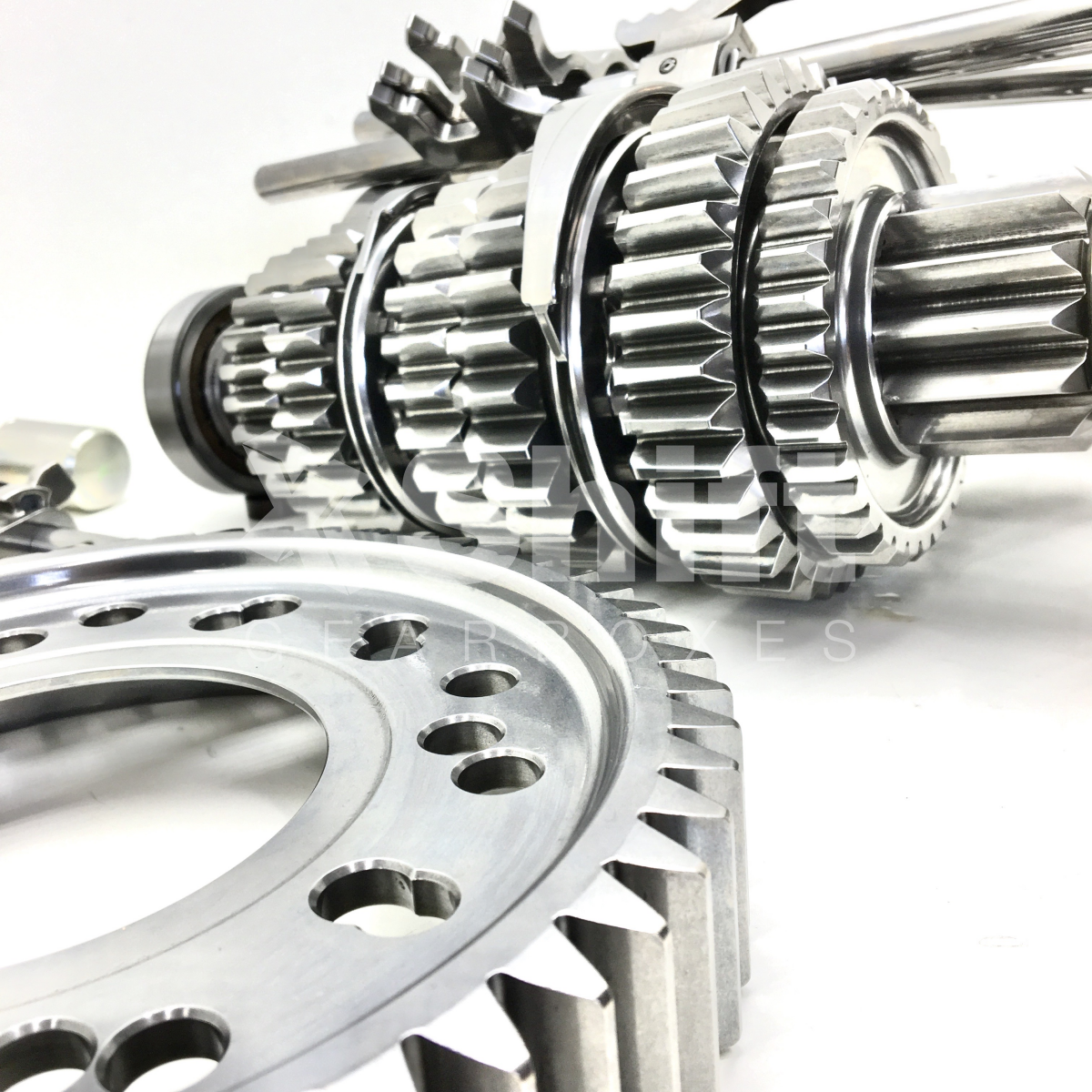

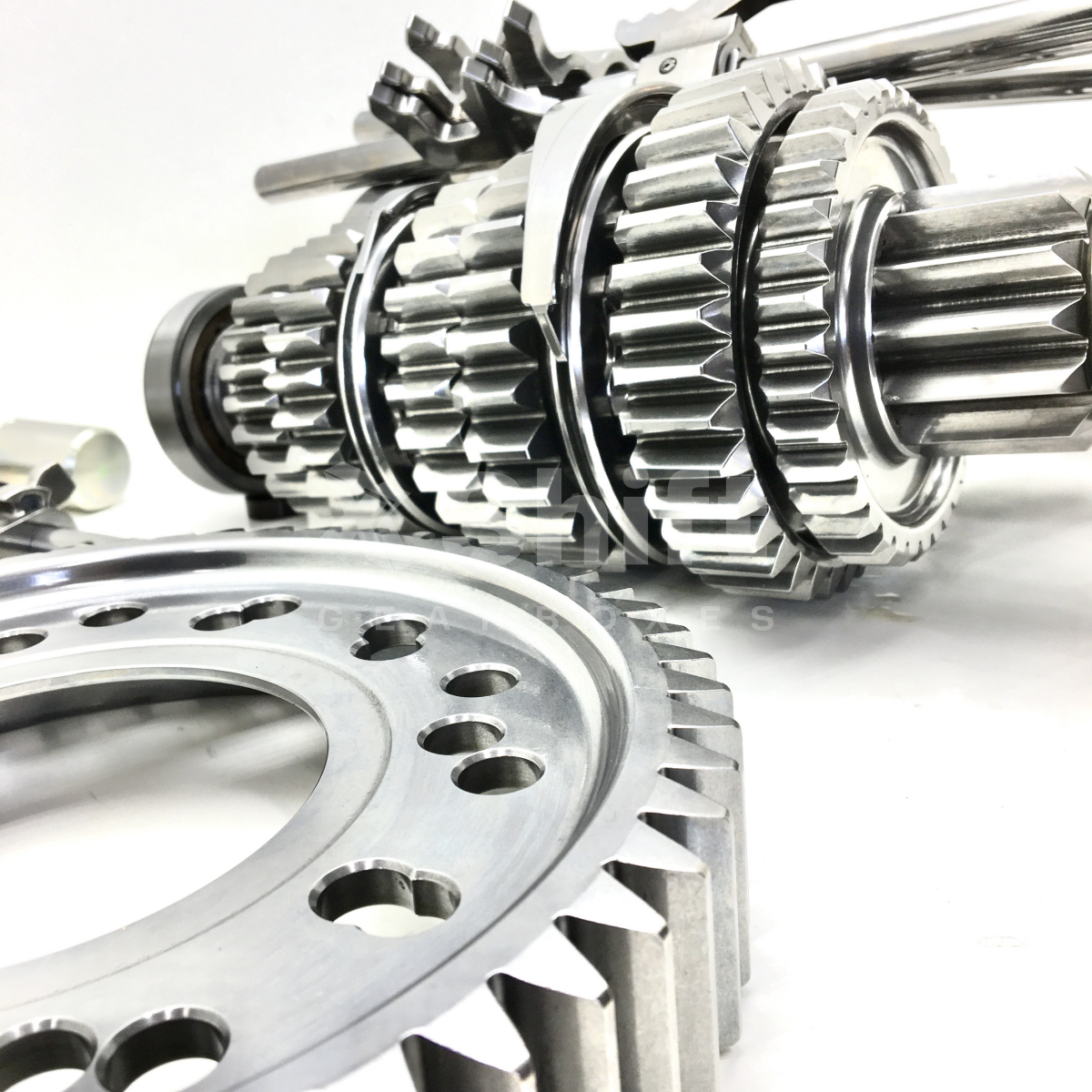

DOGBOX for OEM Mitsubishi Lancer EVO X gearboxes is a complete kit with straight teeth and unique dogbox engagement system. The kit is designed to fit into the OEM case without major modifications. Rebuild at X Shift Gearboxes includes overall inspection of the gearbox, renovation of casings, adjusting bearing backlash, complete installation and assembly.

Thanks to the unique narrow dogbox system, it was possible to maximize the width of the gears and thus achieve engine torque capacity of up to 800 Nm while maintaining a smooth shifting action. All improvements are based on testing in harsh rally conditions and the gear ratio is homologated for FIA Gr. N, Whether you have a car for serious racing or street, this kit is an excellent choice! For higher performance, you can also reach for the XSHIFT sequential gearbox versions.

Why XSHIFT?
Major Advantages
  • Available with homologated gears for FIA group N
  • Rated up to 800 Nm
  • Less expensive strong gearbox solution for race cars
  • Smooth and quick shifting
  • Easy to swap for an original internals
Shifting and gear ratios

The kit incorporates reinforced shifter elements compared to competitive kits, making the shifting more reliable and accurate. All the improvements are based on testing in the most demanding stages of rallying and the gearing is FIA Gr. N homologated.

 Gear ratio 1 2 3 4 5
Gr. N (5 speed) 3 2 1,47 1,14 0,89
Final drive 13/56 (4,31)
Accessories

Together with the powerful Mitsubishi EVO DOGBOX kit we can provide performance accessories that helps you achieve top results on the track.

Gear ratios calculator

Gear T1 T2 ratio RPM down speed speed down
1 12 36 3 - 71.1 -
2 13 26 2 2502 106.7 35.6
3 17 25 1.47 1985 145.1 38.4
4 22 25 1.14 1702 187.7 42.6
5 28 24 0.86 1844 248.9 61.2
Tyre metric dimensions
Tyre inch dimensions

If you have choosen your configuration, please take a screenshot of this calculator and attach it to the configurator below.

Kit configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
