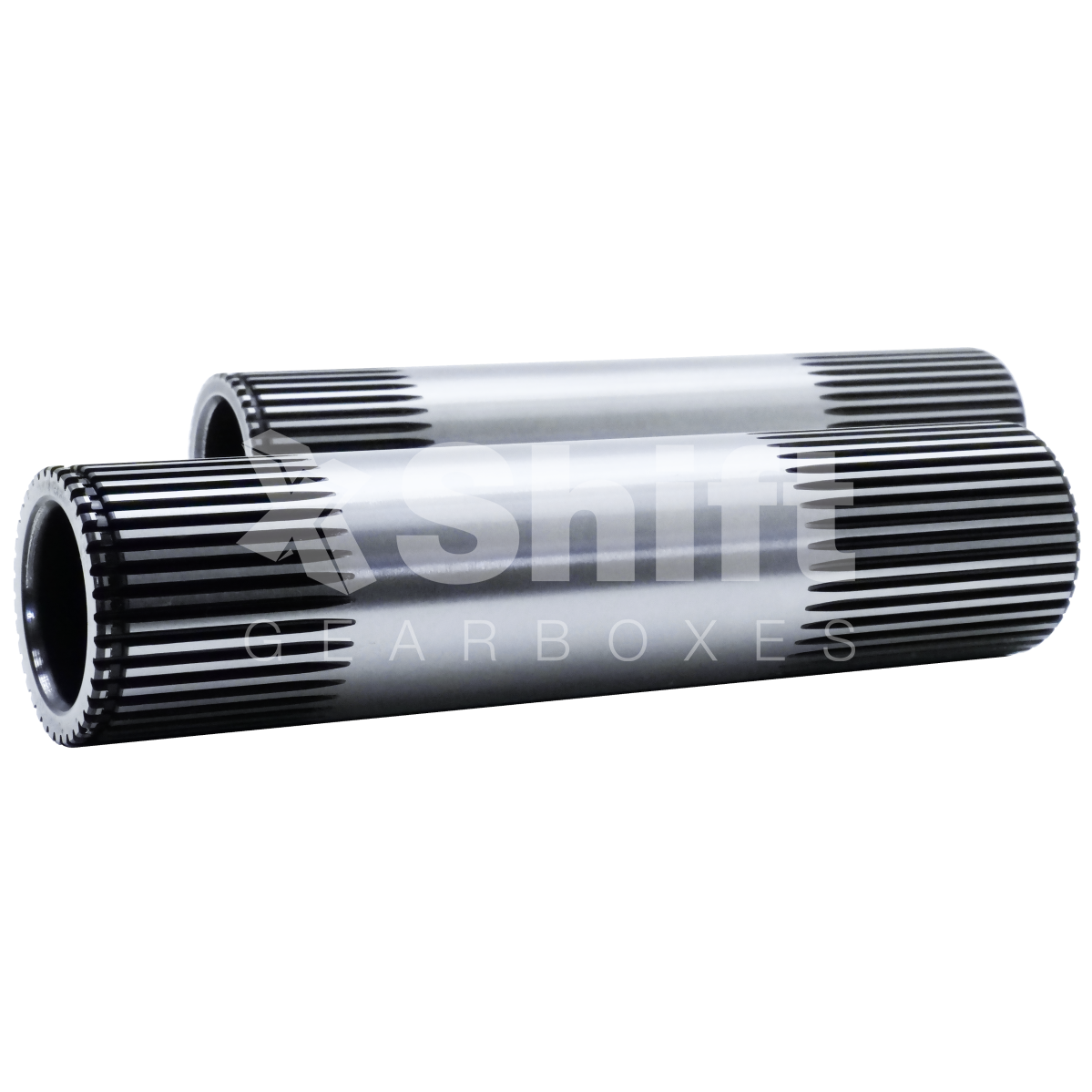

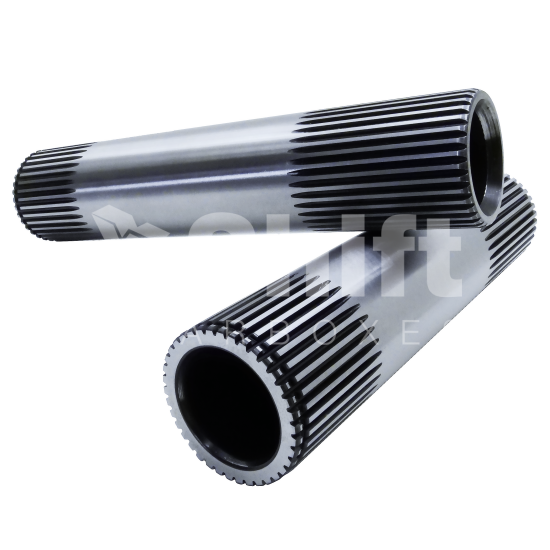

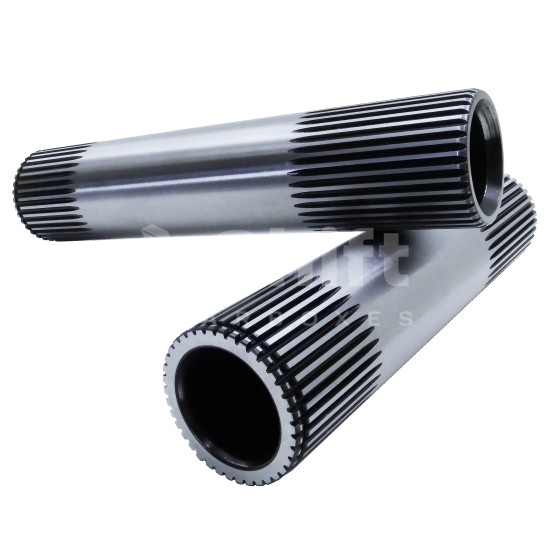

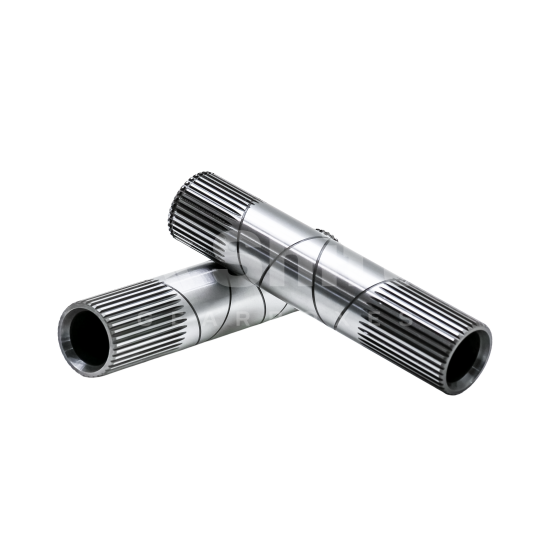

SHD Transfer Tube Mitsubishi EVO

Suitable for:

SHD upgraded tube offers significant reinforcement of the EVO 4-X center differential and eliminates the weak point of the most stressed drivetrain component.

Specification

Mitsubishi EVOLUTION-X strong transfer tube serves for high performance cars in which stock tube can´t withstand!

Made of high-strength billet steel
Rated up to 1800 HP
REM isotropic superfinished
Suitable for drag, circuit, rally, hill climb and more
Compatible with gearboxes W5M51, W5M6A, W6MGA

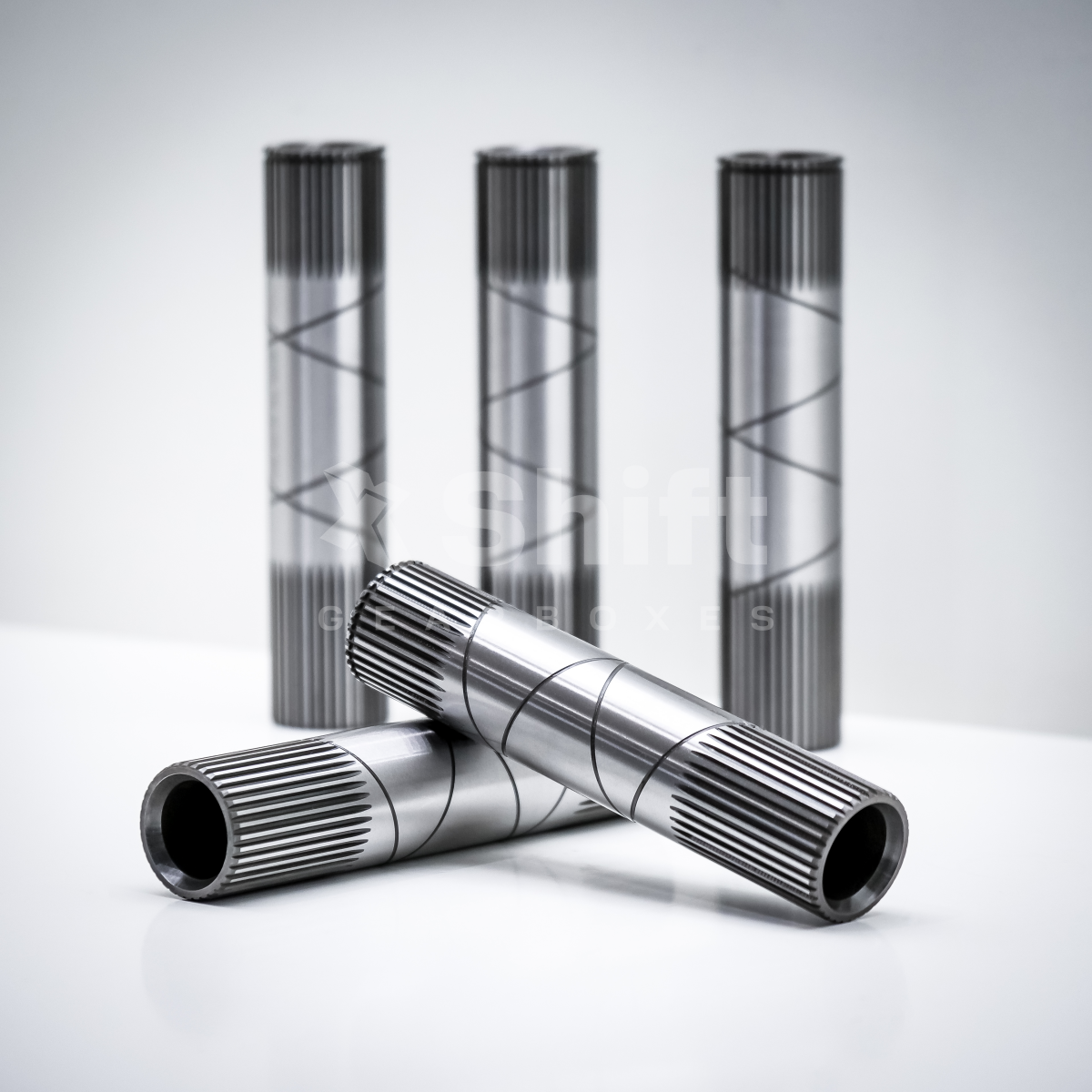

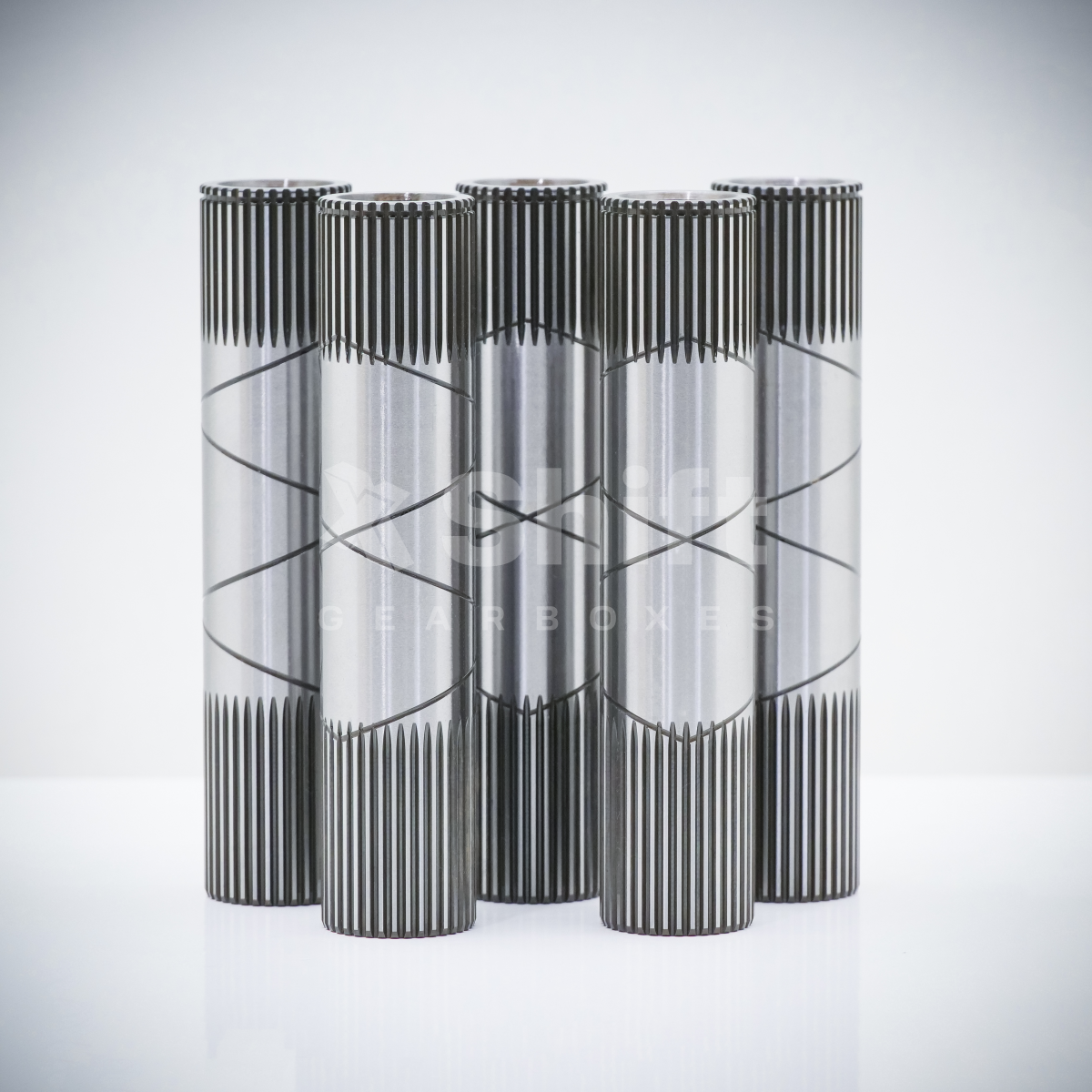

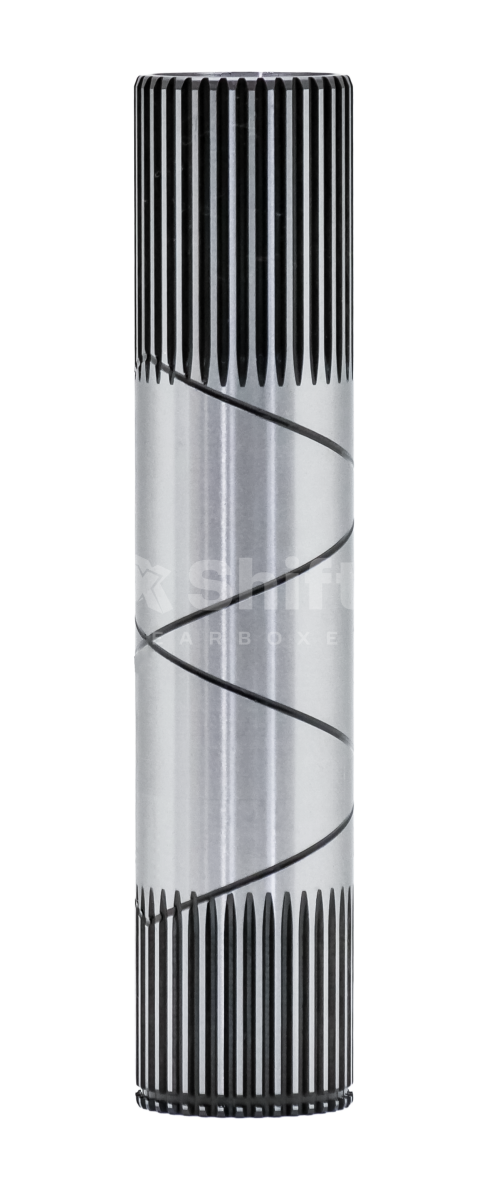

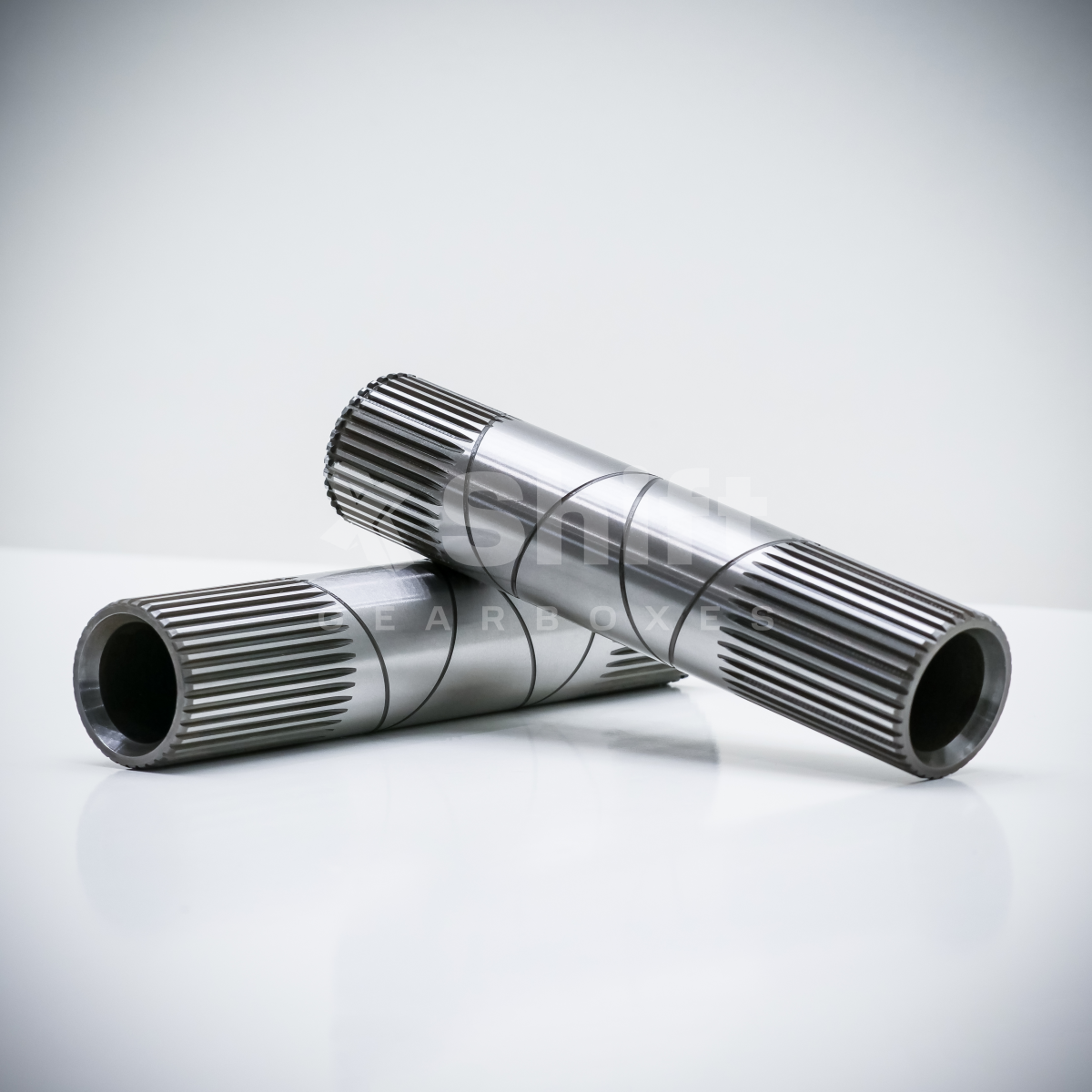

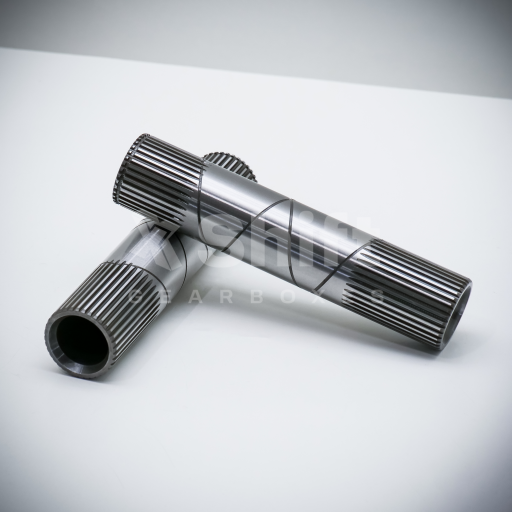

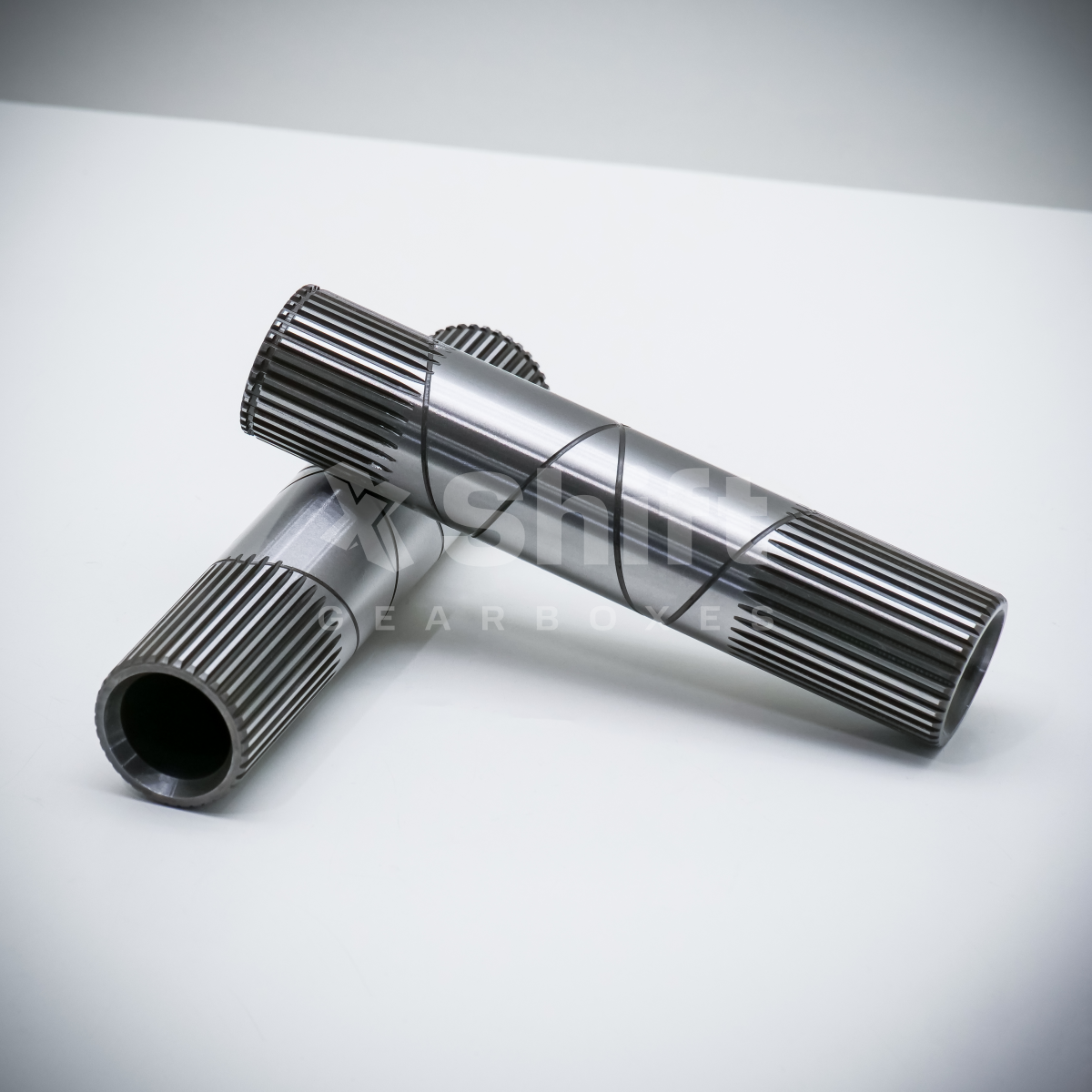

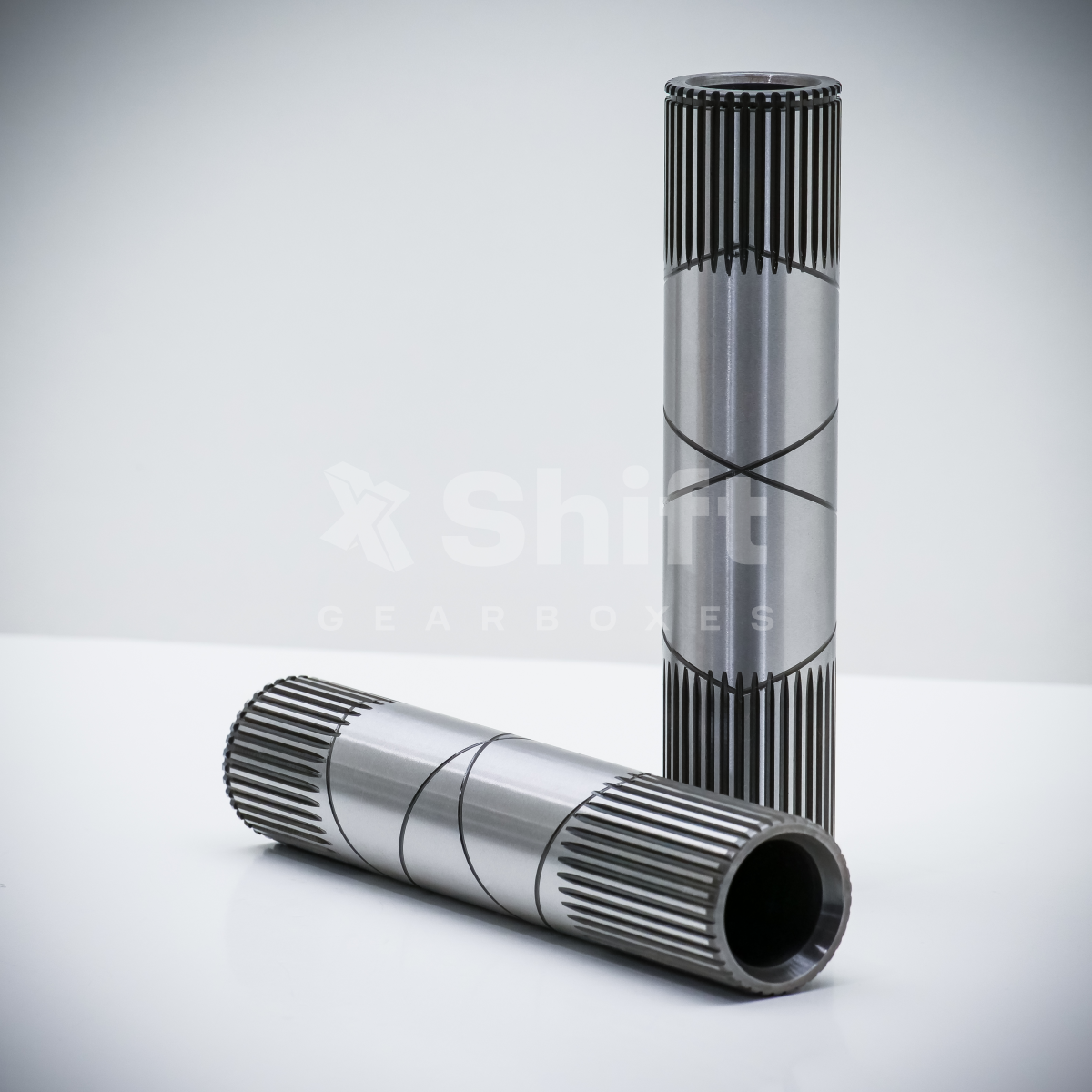

Tube has special lubrication grooves to improve the oil film between the inner and outer tubes of the center differential

Two versions available for EVO IV-IX and EVO X. Designed as a high-strength replacement for the stock tube or Ralliart equivalent.

Tube fit to this cars:

CN9A - Evolution IV - W5M51 (5MT manual)
CP9A - Evolution V VI - W5M51 (5MT manual)
CT9A - Evolution VII-IX - W5M51 (5MT manual), W6MGA (6MT manual)
CZ4A - Evolution X - W5M6A (5MT manual)

Key features

The upgraded tube offers significant reinforcement of the EVO 4-X center differential and eliminates the weak point of the most stressed component. Tube is direct replacement for the Mitsubishi OEM part and is fully compatible not only with our dogbox/sequential kits, but also with OEM kits.

The special military grade material of the highest quality in combination with a special heat-treatment process ensures strength in any conditions - whether you are rallying without a restrictor and jumping with the car, circuit/hillclimbing with sticky tires and high aero downforce, or drag racing with extremely sticky tires on the track and huge power, the tube eliminates damage and ensures reliable operation of the differential at all times.

X Shift forged tube is a replacement for OEM components:

MN139254 (EVO 4-9)
- Mitsubishi Lancer Evolution IV–IX manual AWD
- W5M51 (5-speed) and W6MGA (6-speed) gearboxes
3562A039 (EVO X)
- Mitsubishi Lancer Evolution X GSR manual AWD
- W5M6A (5-speed) (not compatible with EVO X MR/SST automatic)
