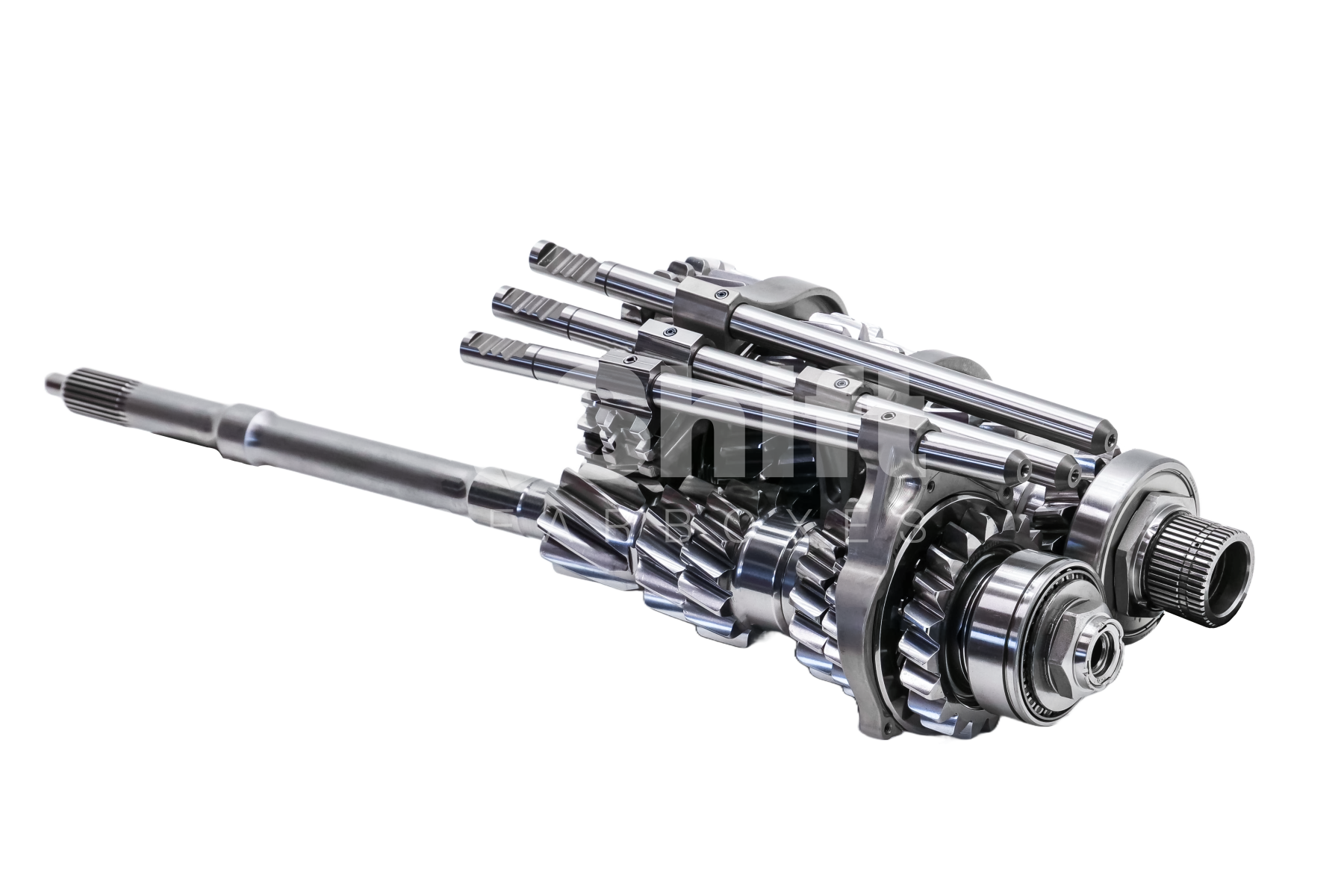

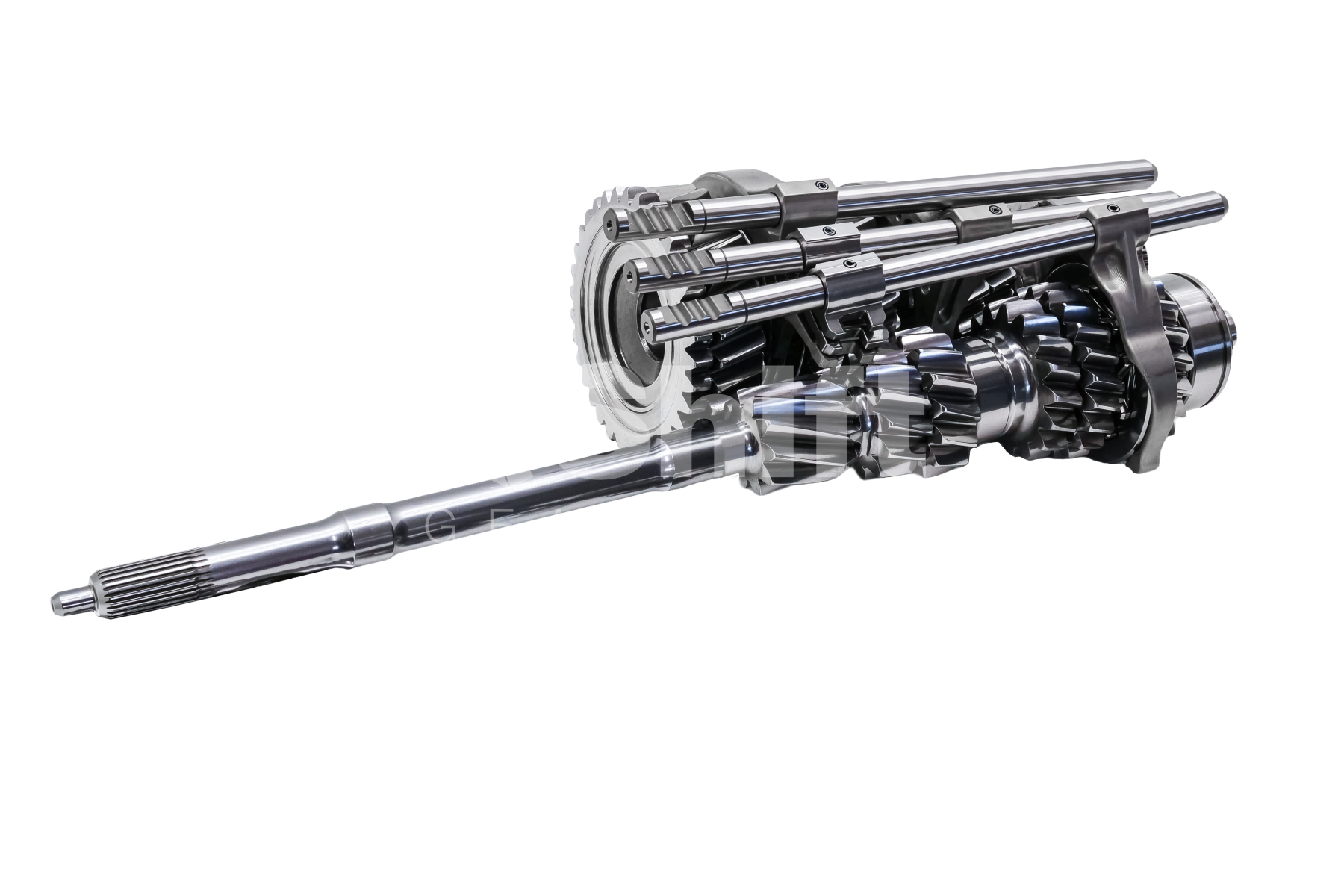

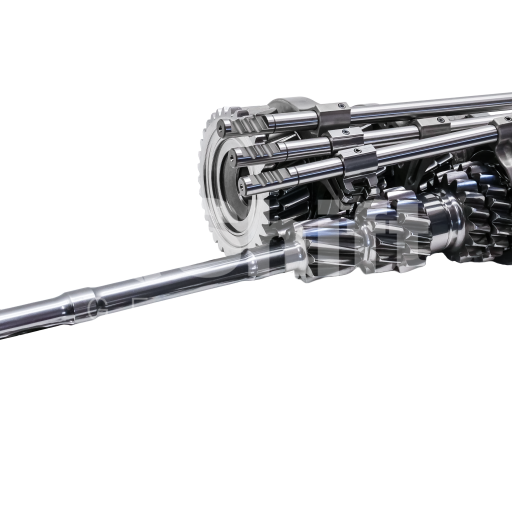

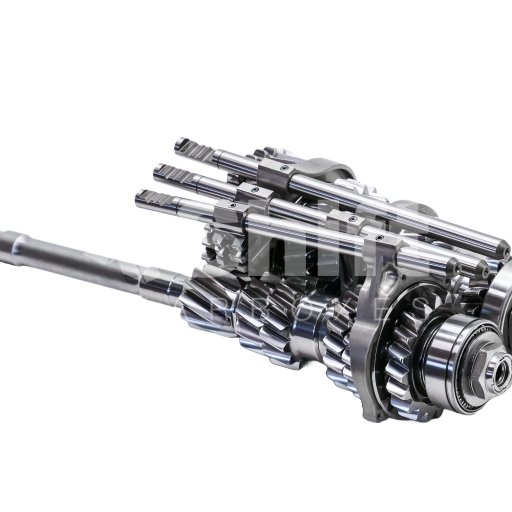

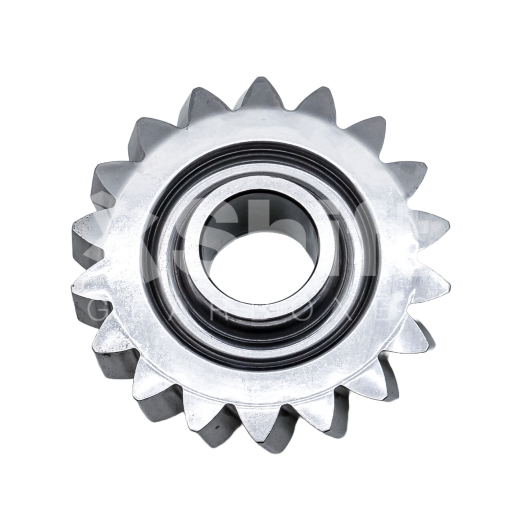

+PLUS HELICAL DOGBOX – 6 Speed SHD kit Subaru STi

Suitable for:
Subaru

The brand new 6 speed DOGBOX kit for Subaru STi follows all the success of our previous H-pattern kit that was proven by years on the market.

Revelations
6500 RPM
Revelations
Torque
1200 Nm
Torque
Gears
6
Gears

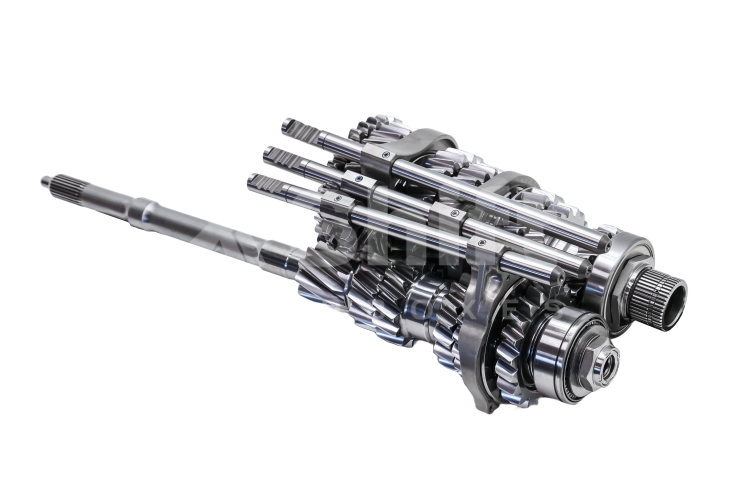

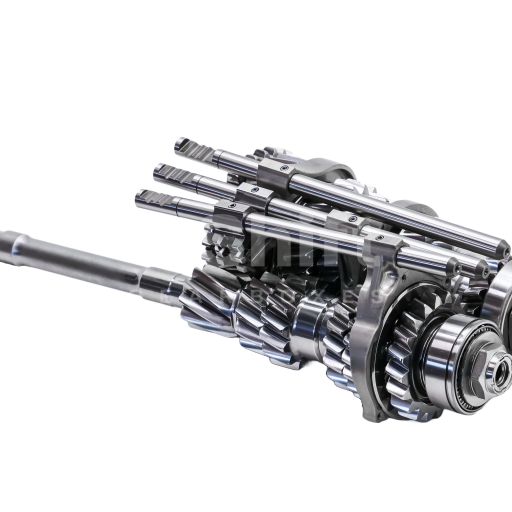

+PLUS HELICAL DOGBOX – 6 Speed SHD kit Subaru STi
Specification

This DOGBOX for original Subaru STi gearboxes is a complete kit with straight teeth and unique dogbox engagement system. Compared to the older H-pattern version, the gearbox offers a dramatic increase in stiffness of the entire shifting system, significantly improving shifting reliability and accuracy. Upgraded version utilizes a revised shifting mechanism based on the +PLUS version, with stronger dog rings with modified dog geometry that ensures a perfect gear-to-shaft connection. Kit has unique 17° helical gearing, achieving approximately 40-50 % noise reduction compared to the straight cut versions +PLUS and R4 PRO.

The kit is designed to fit into the OEM case without major modifications. Rebuild at X Shift Gearboxes is possible and includes overall inspection of the gearbox, renovation of casings, adjusting bearing backlash, complete installation and assembly.
Why XSHIFT?
Major Advantages
  • Noise reduction 40 – 50 %
  • Available with several gear ratio options
  • Strong H pattern = cost saving solution for racing cars
  • Smooth and fast shifting
  • Rated up to 1200 Nm
  • Total gearbox weight: 81 kg (5 kg lighter than standard 6 speed STi)
  • Easy replacement of original kit
  • Parts made of billet steel, specially heat treated and finished by REM method
Shifting and gear ratios

The Subaru SHD +PLUS HELICAL dogbox kit and gear ratio was tailored to handle the power of racing cars and to increase the comfort while driving at the same time.

 Gear ratio 1 2 3 4 5 6
HELICAL 2,90 2,00 1,50 1,18 0,95 0,80
Final drive 10/39 (3,9) 10/44 (4,4)

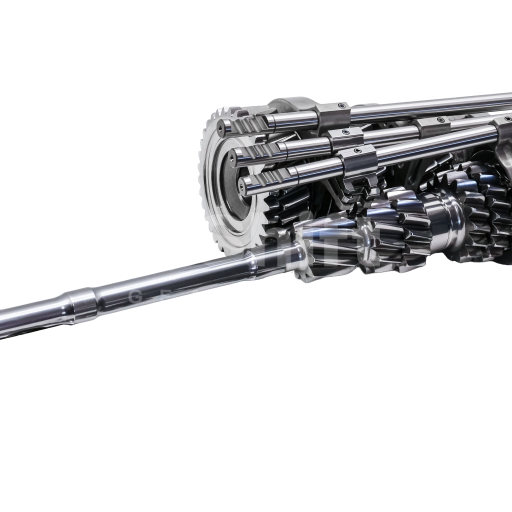

Kit includes

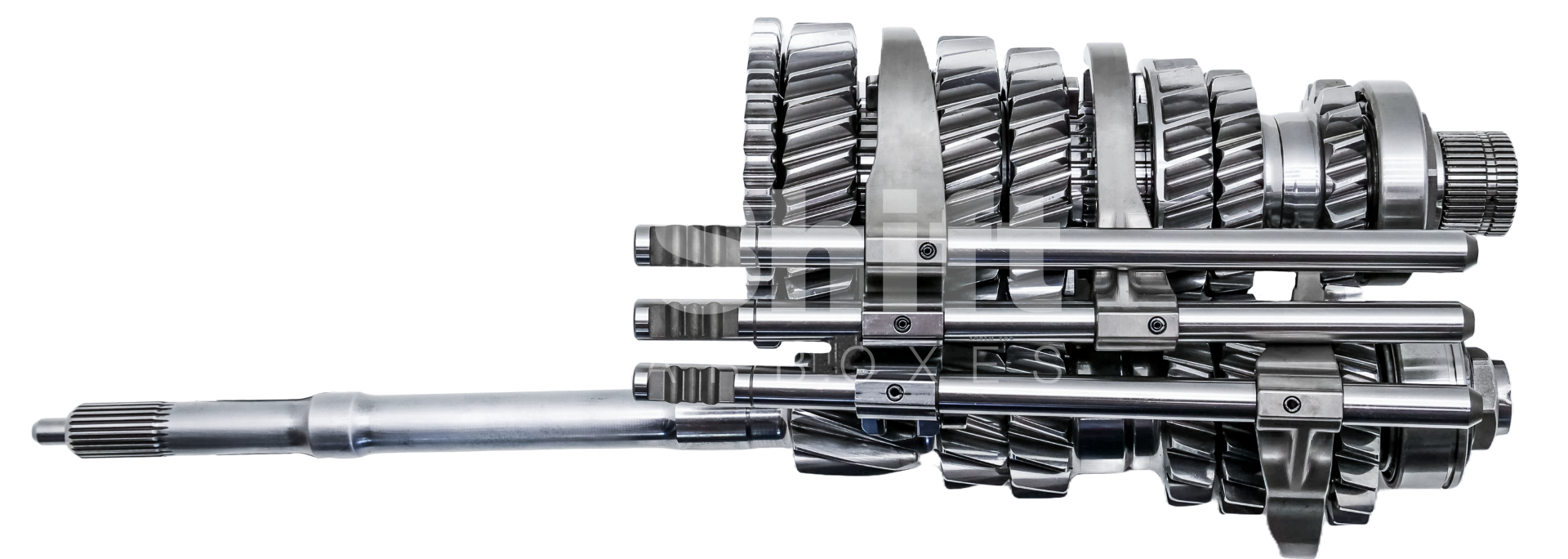

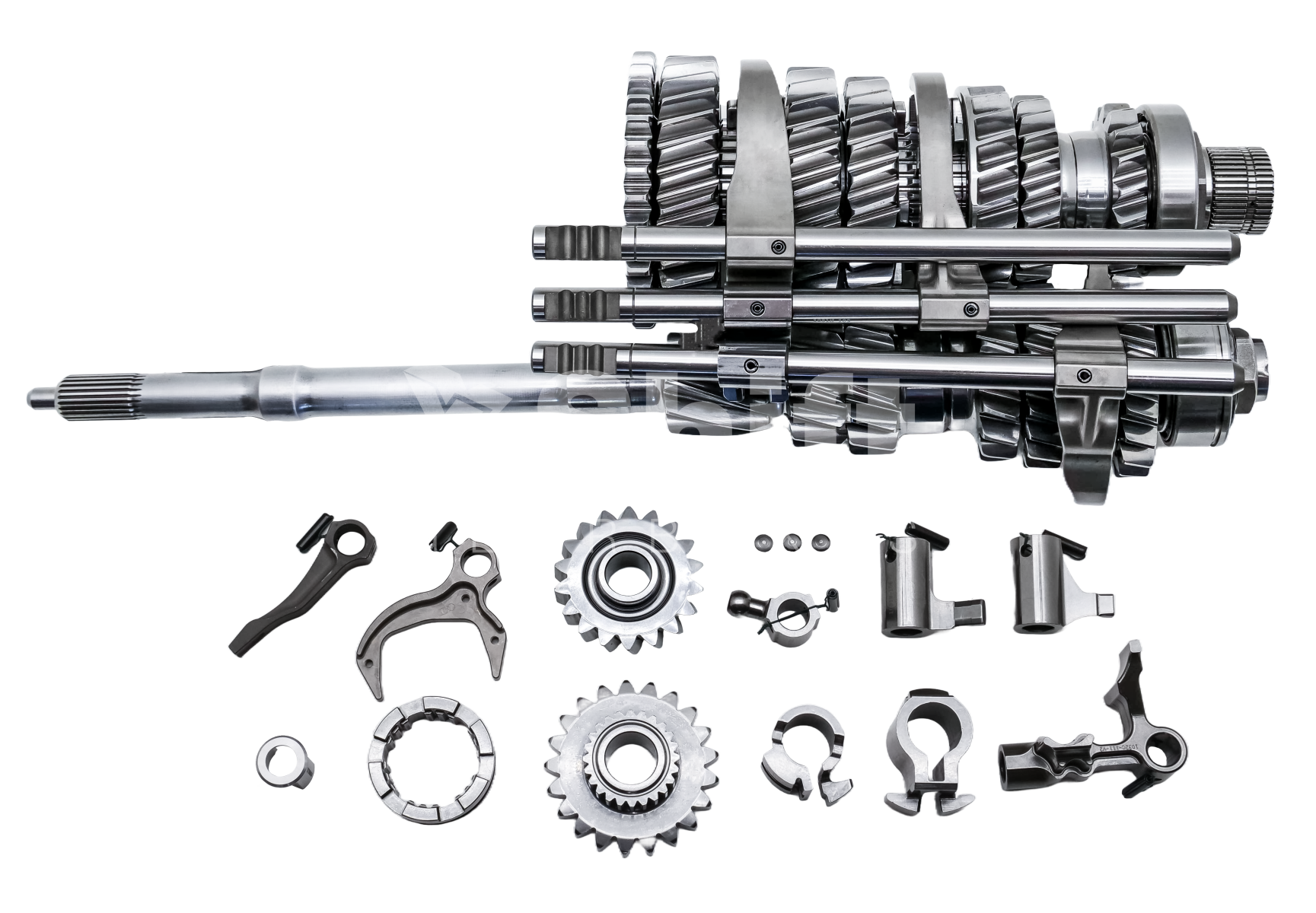

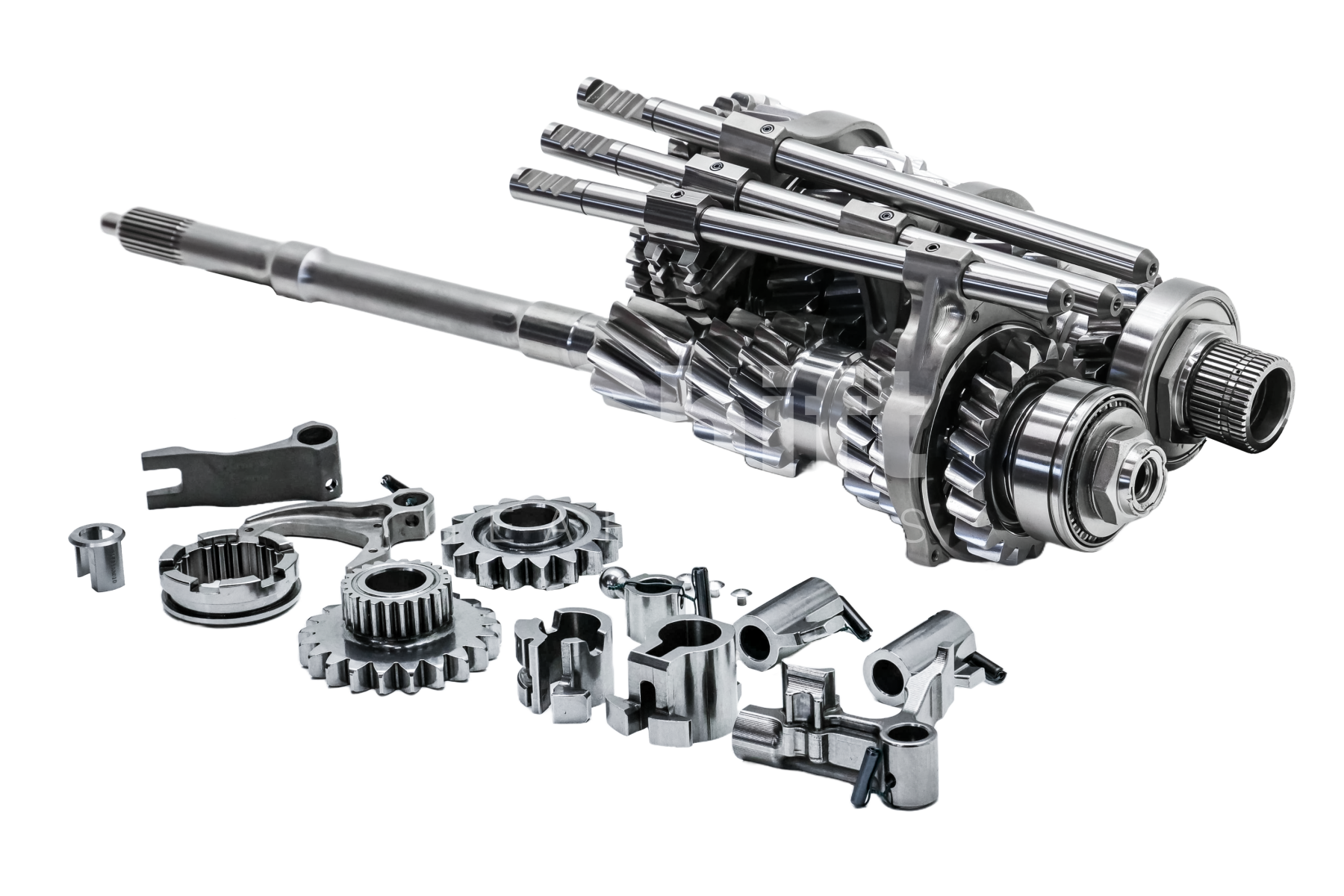

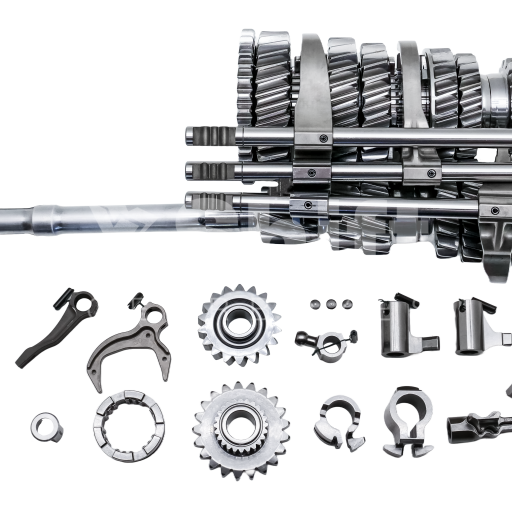

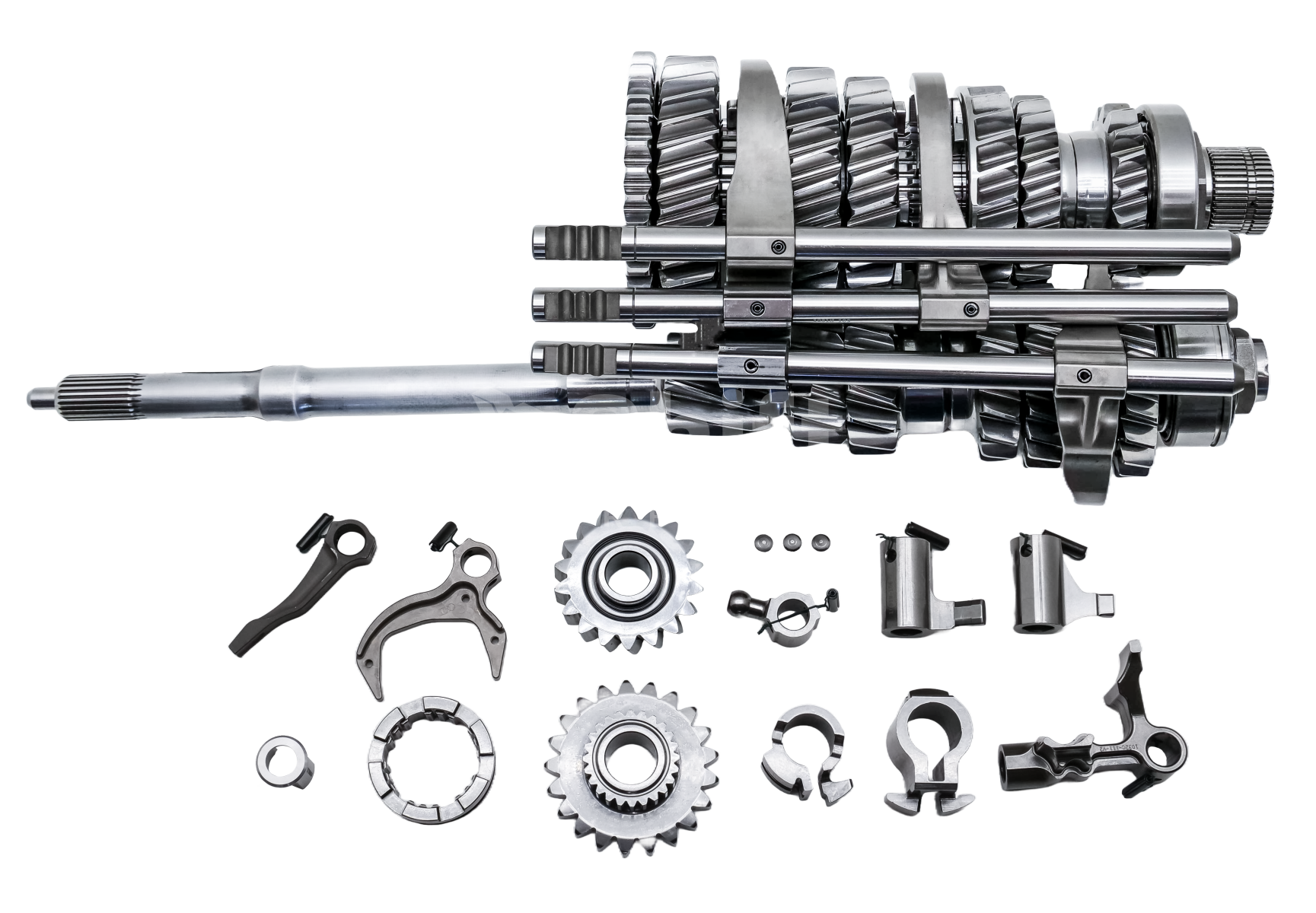

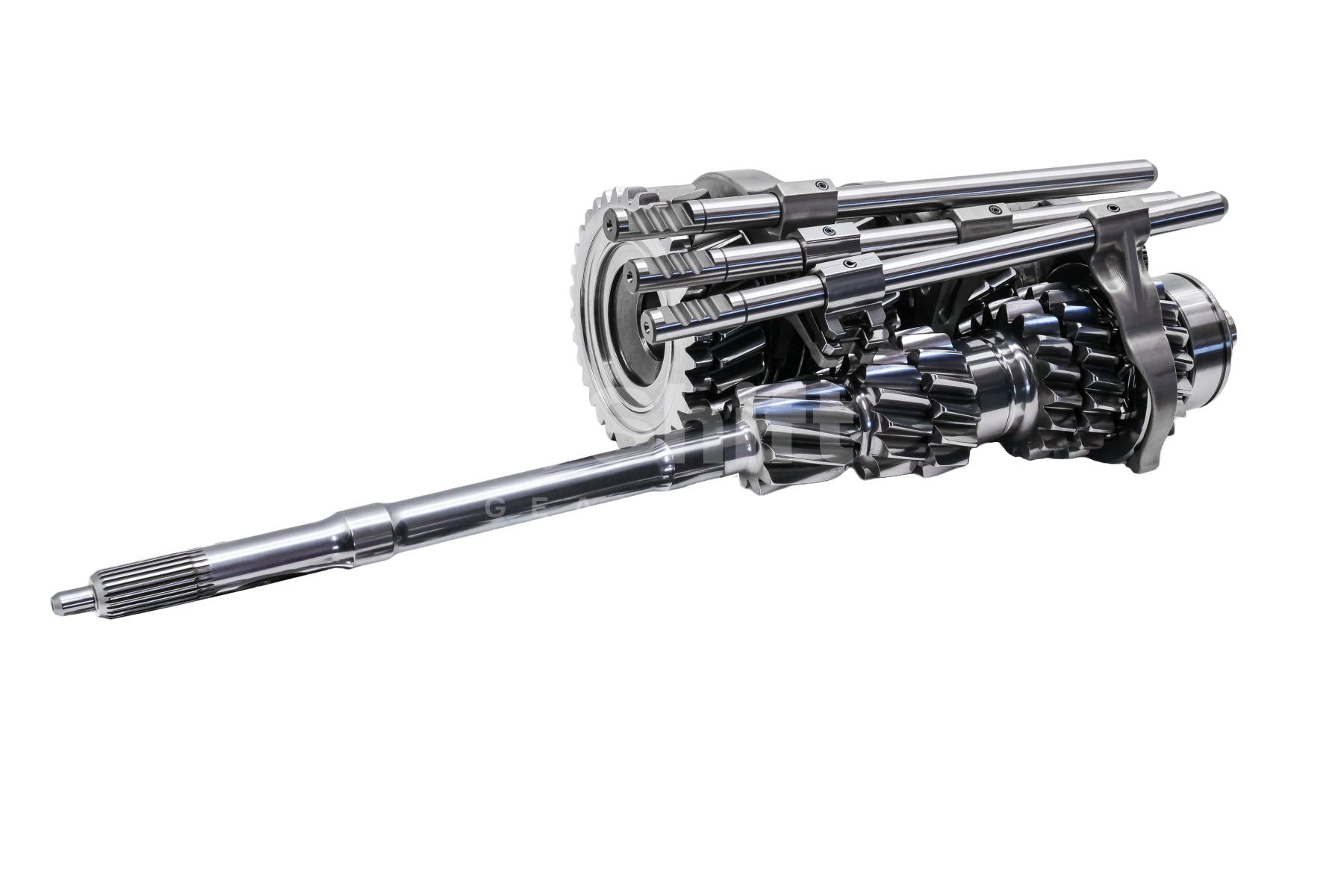

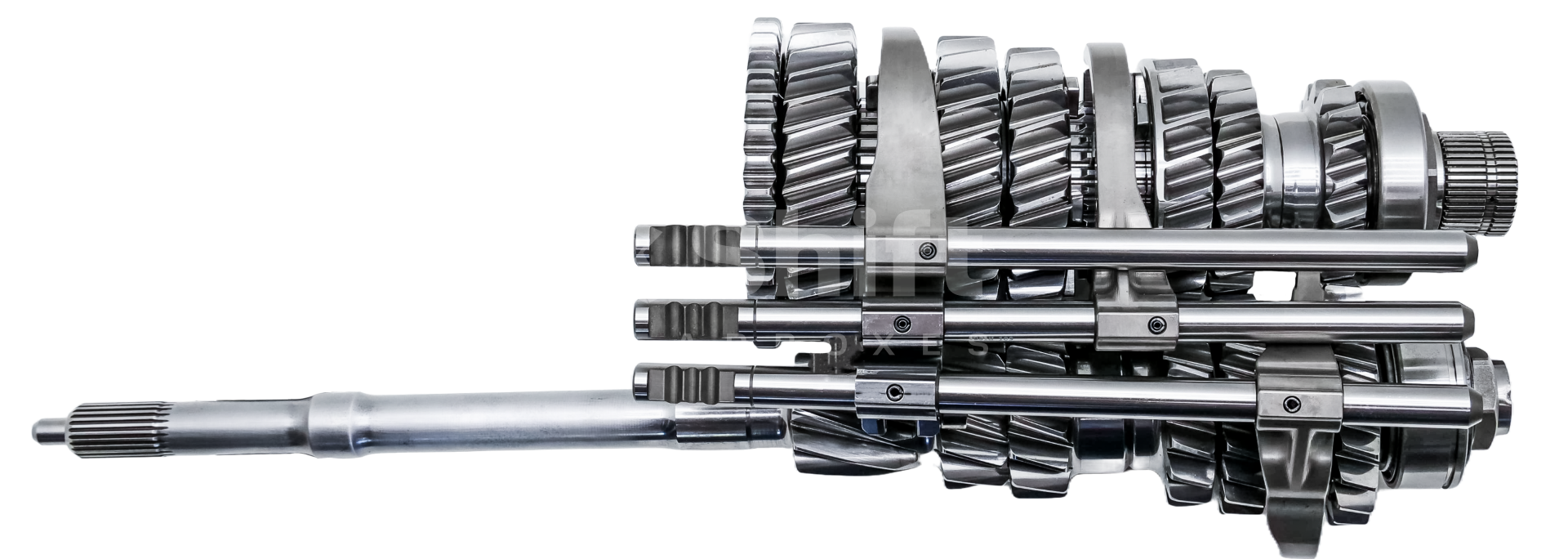

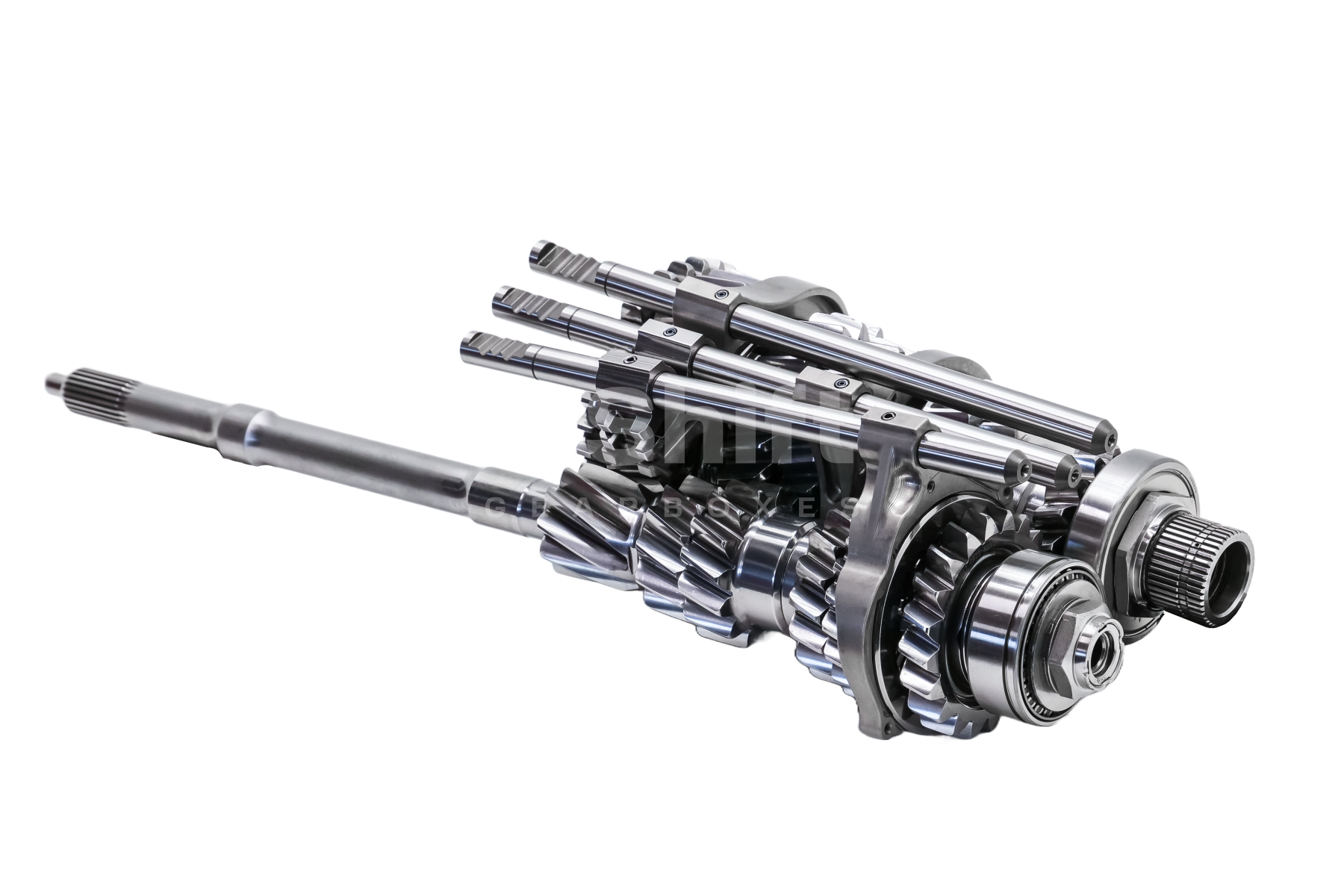

  • Aircraft grade CNC aluminium case

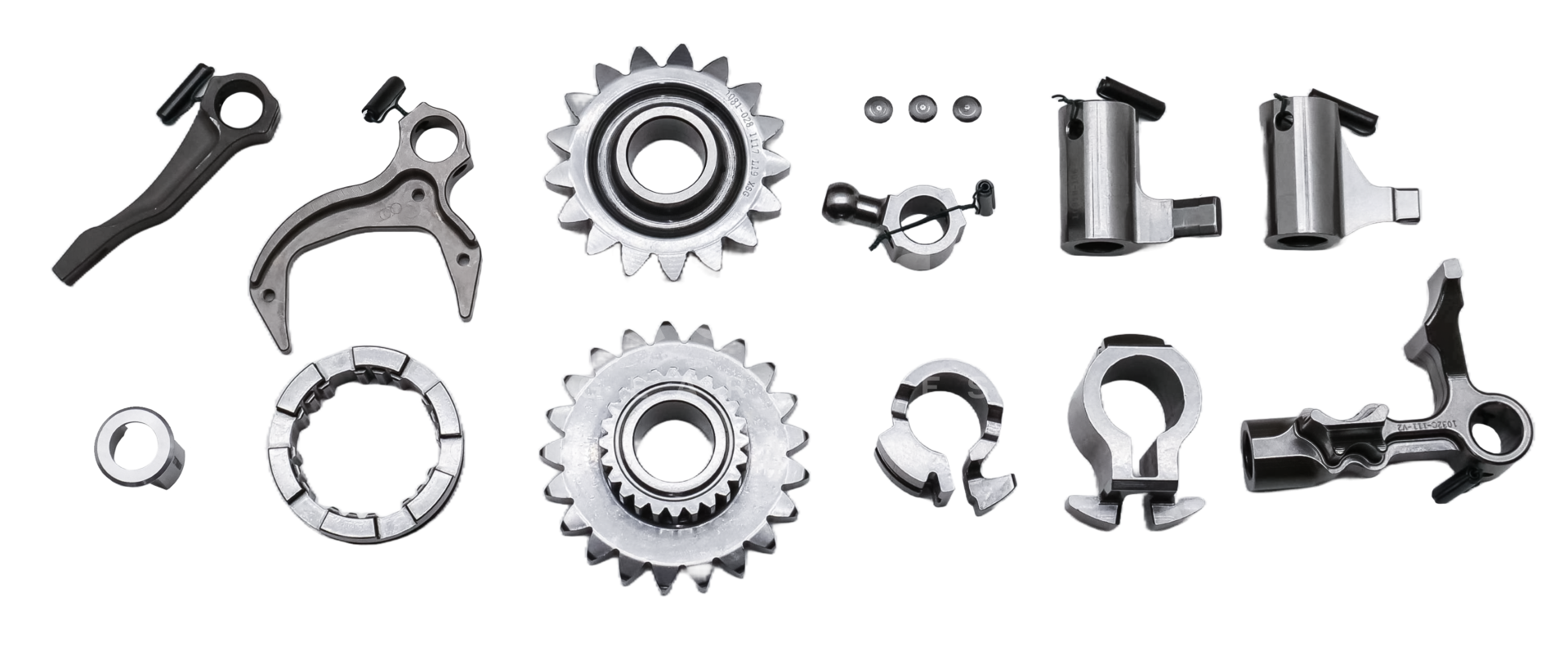

  • Complete sequential mechanism with dog engagement
  • Input and output shaft

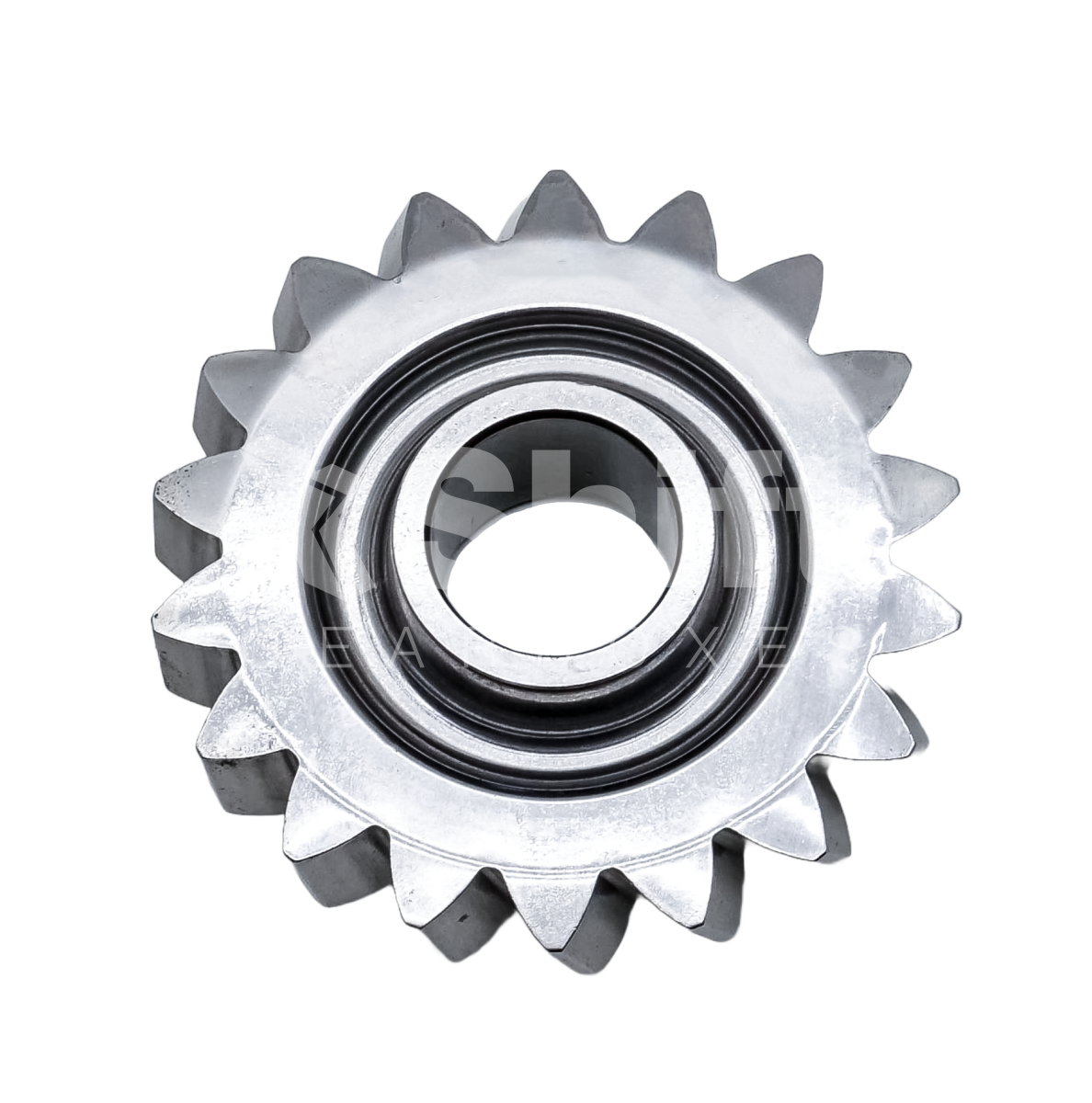

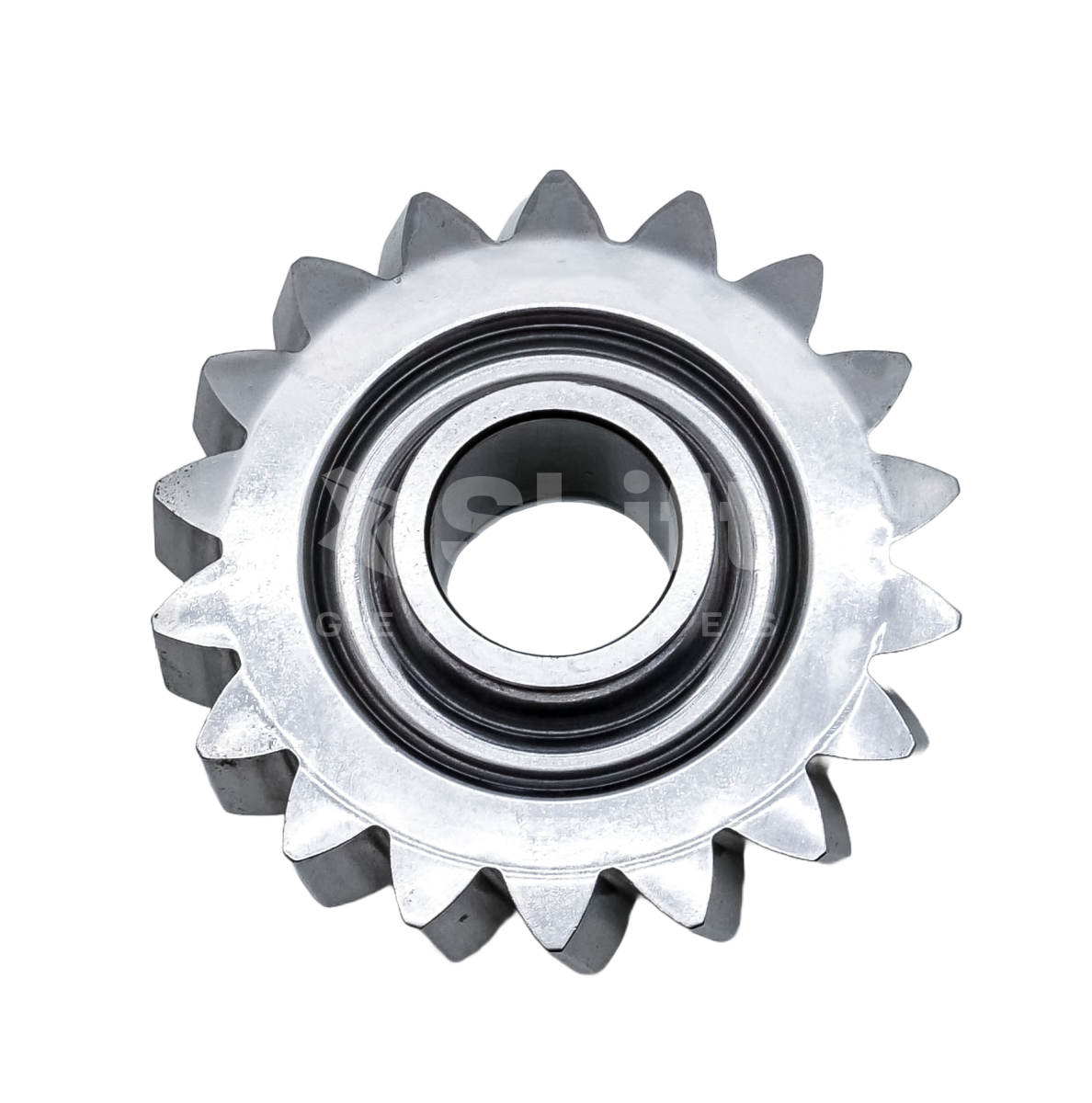

  • Gears 1st – 6th

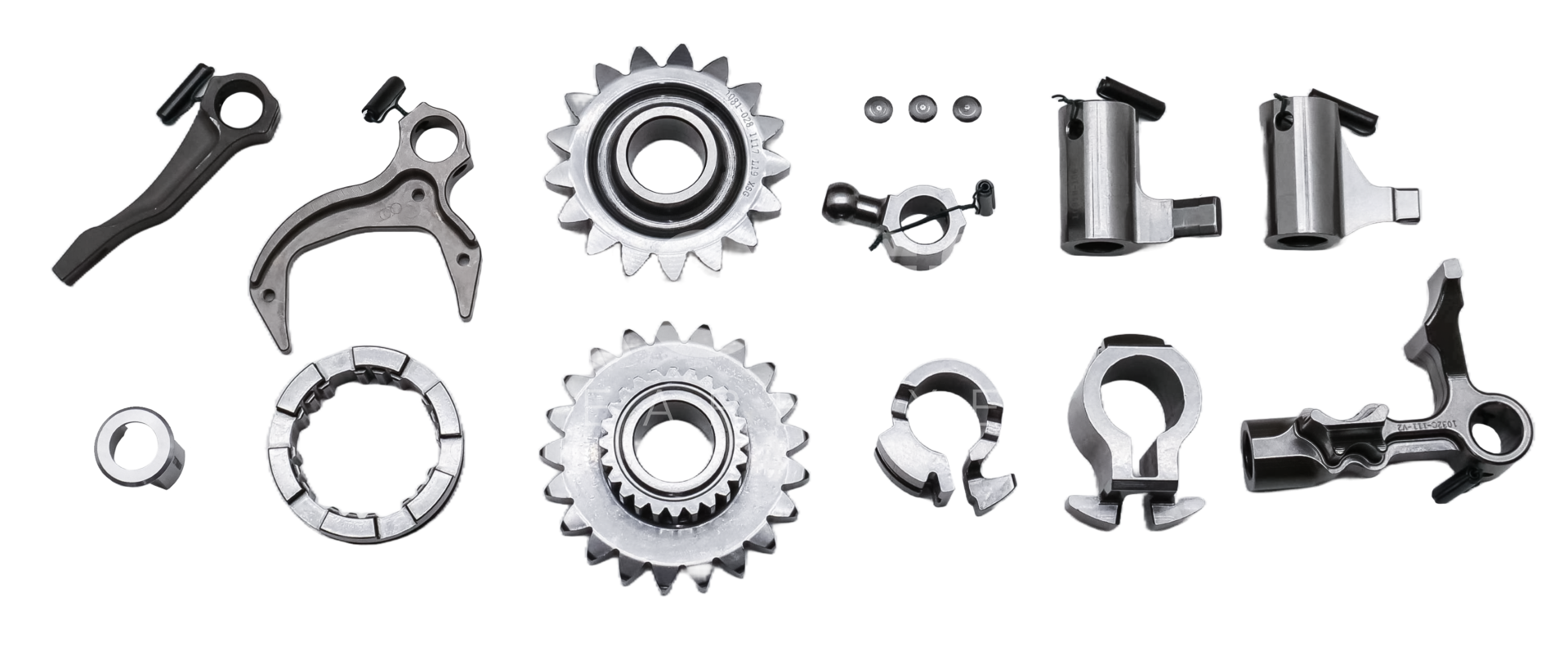

  • Shiting forks
  • Bearing and needle bearing set
  • Gear position Indicator Sensor
  • Inlet/Outlet for oil cooler

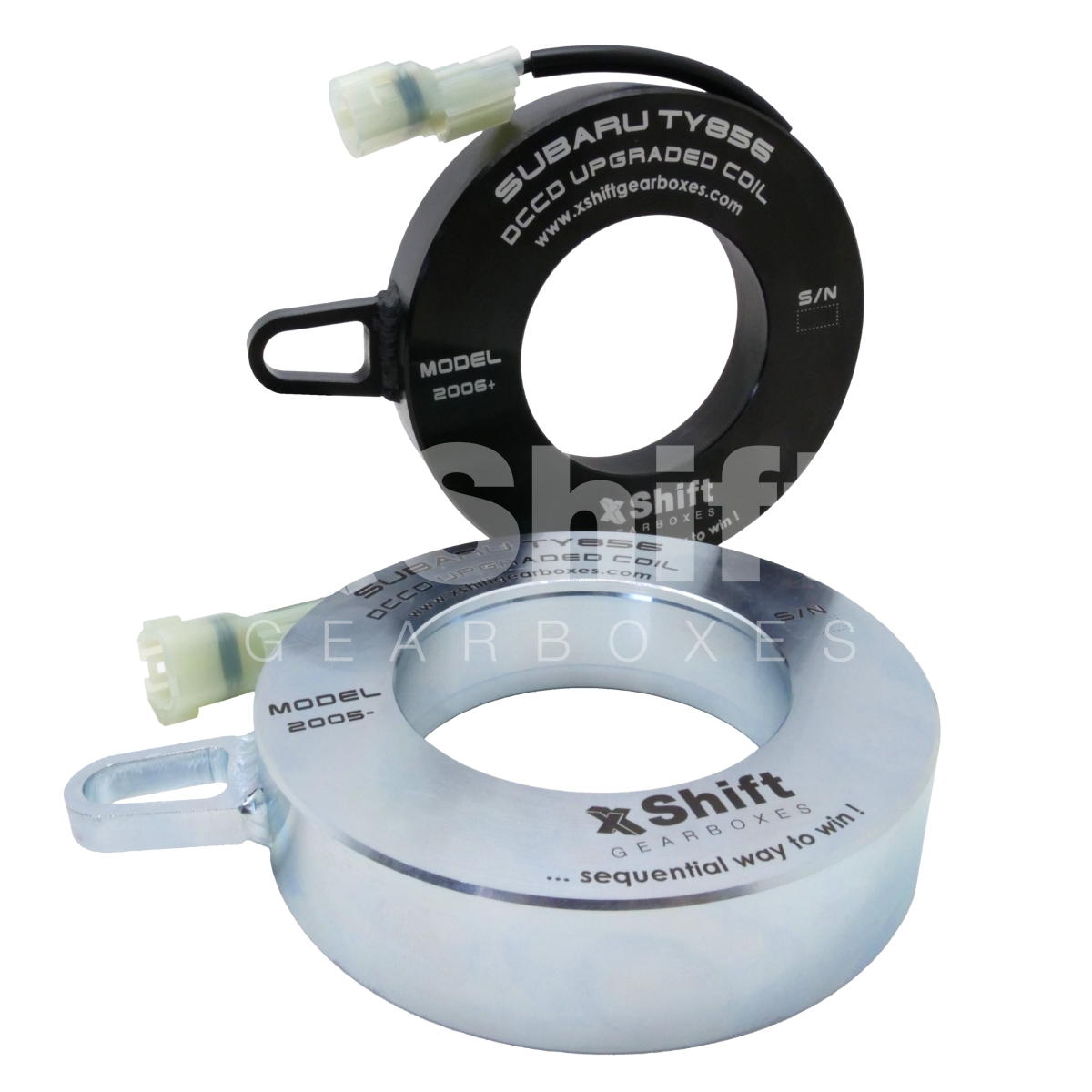

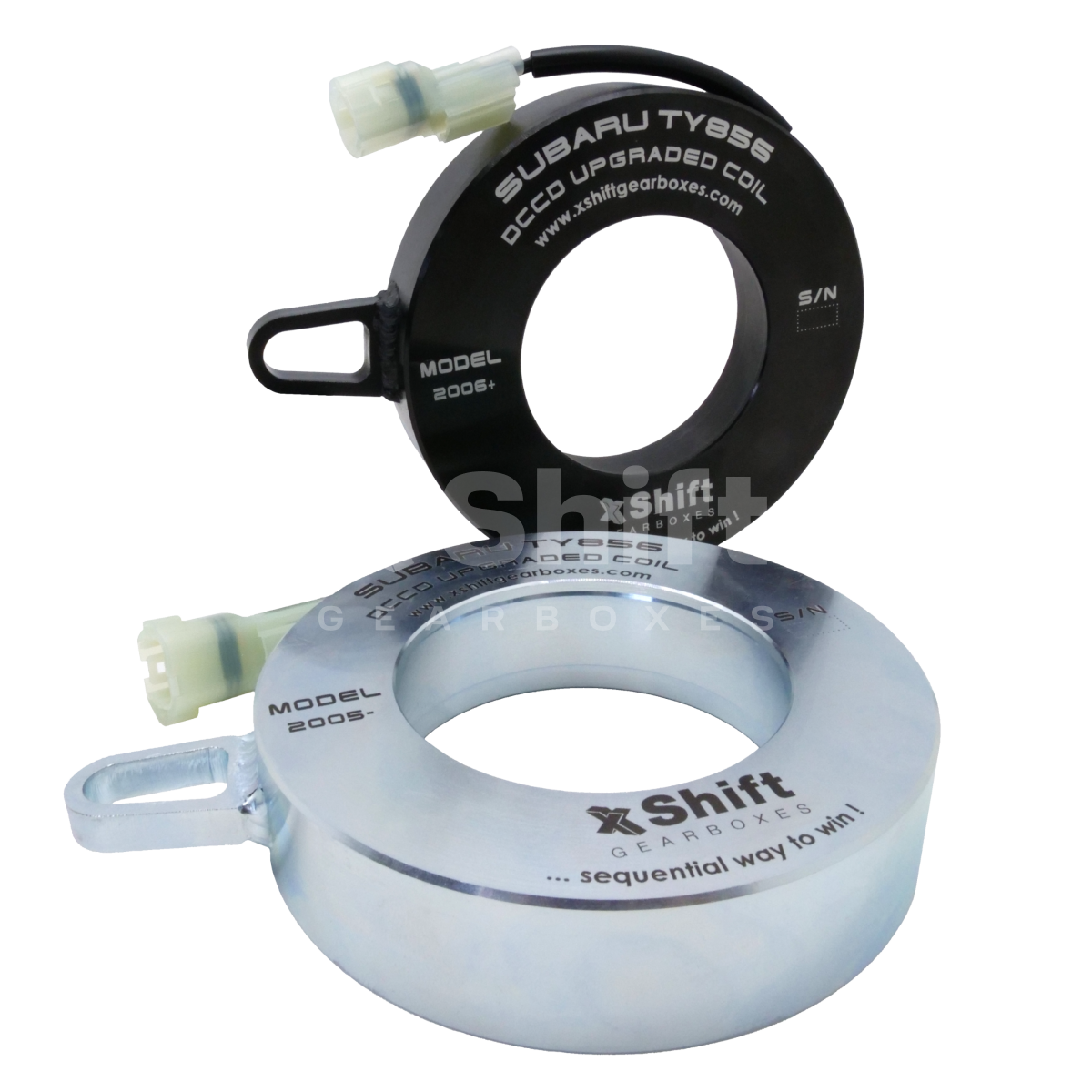

Accessories

Together with the powerful Subaru SHD +PLUS HELICAL dogbox kit we can provide many performance accessories that helps you achieve top results on the track.

and many more...
Photogallery

Gear ratios calculator

Gear T1 T2 ratio RPM down speed speed down
1 10 29 2.9 - 70.4 -
2 13 26 2 2018 102.1 31.7
3 14 21 1.5 1624 136.1 34
4 17 20 1.18 1404 173.6 37.5
5 20 19 0.95 1252 215 41.4
6 20 16 0.8 1026 255.3 40.3
Tyre metric dimensions
Tyre inch dimensions

If you have choosen your configuration, please take a screenshot of this calculator and attach it to the configurator below.

Kit configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
