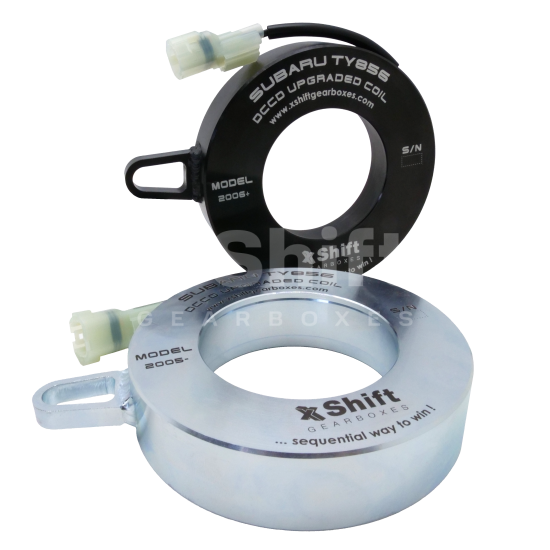

DCCD Coil Subaru

Suitable for:
Specification

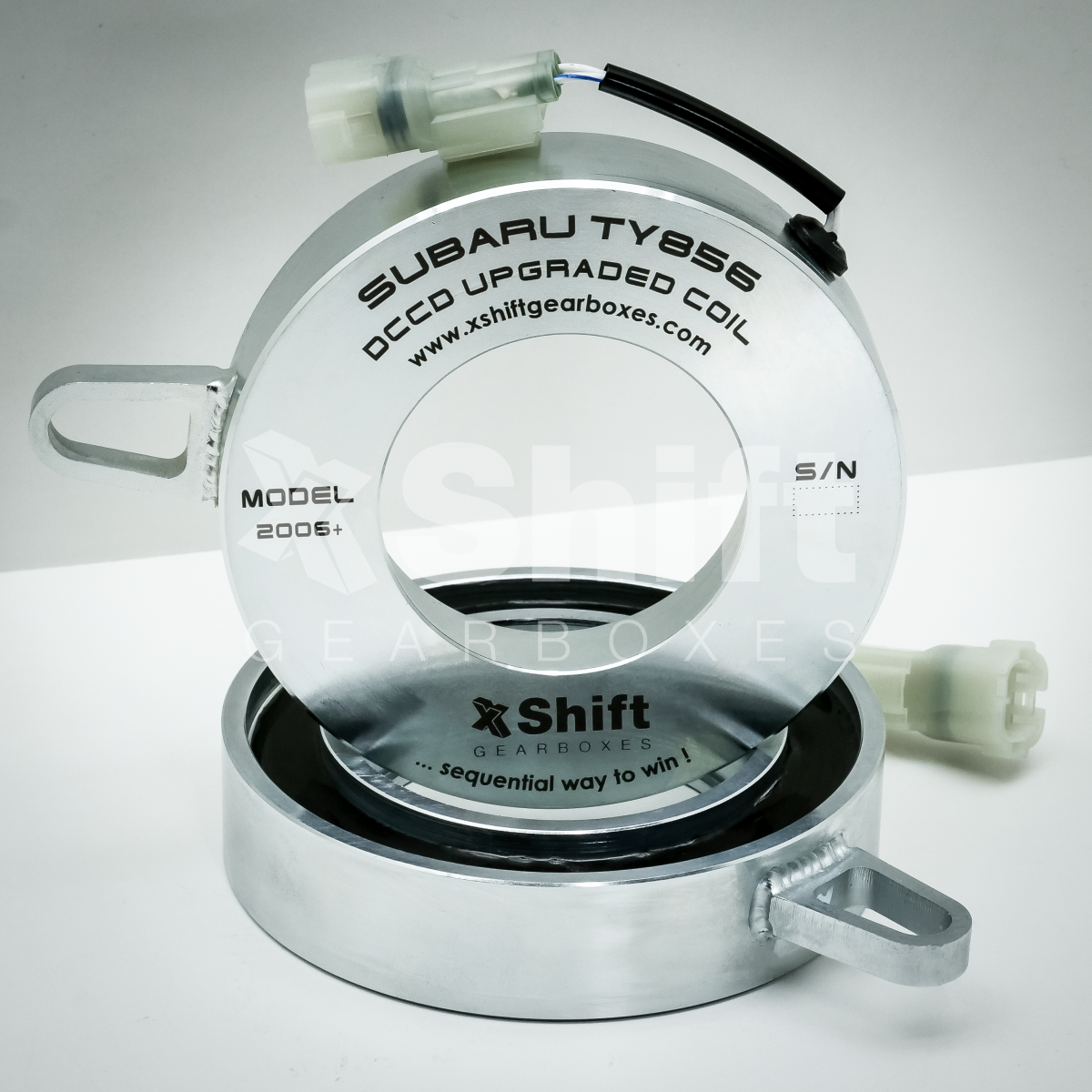

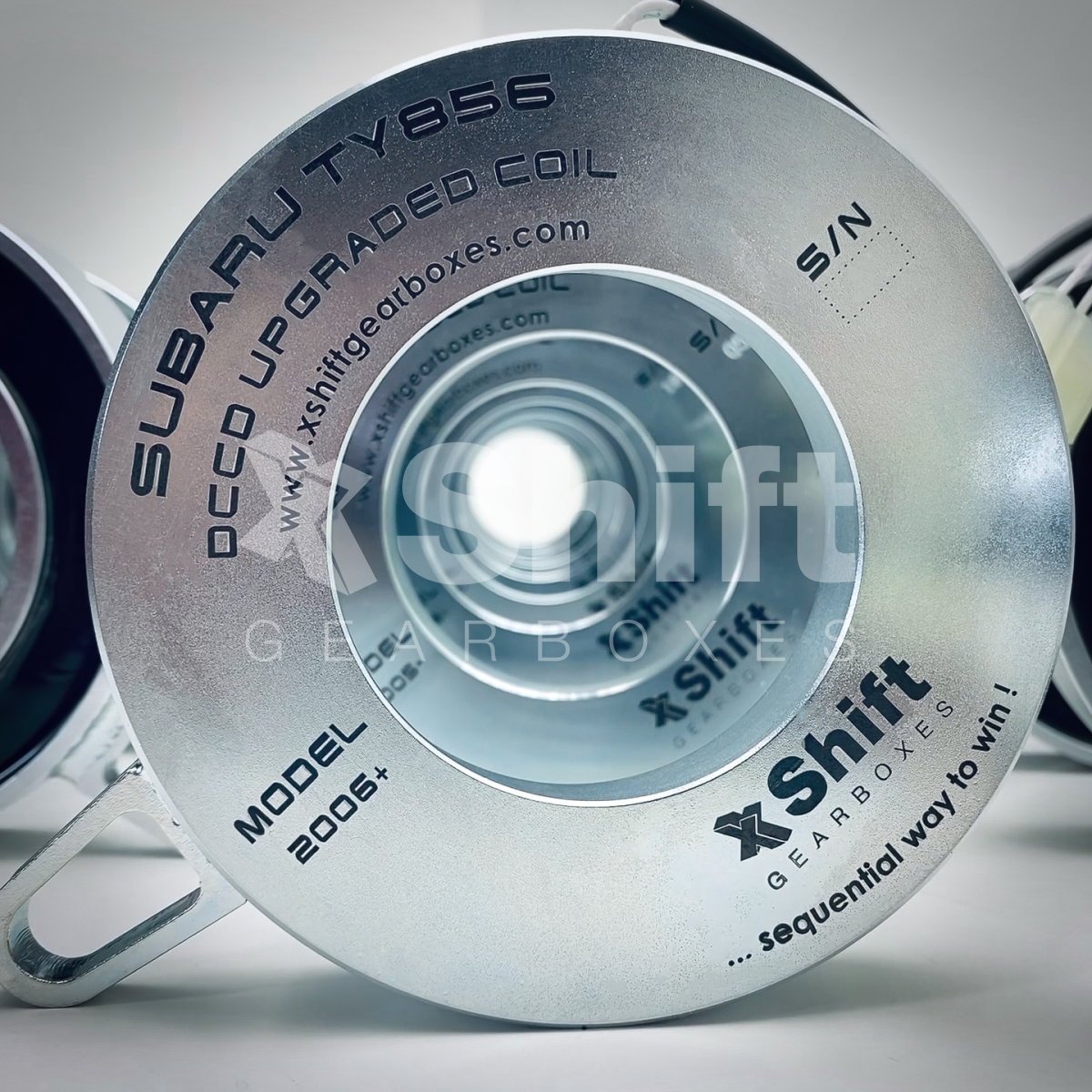

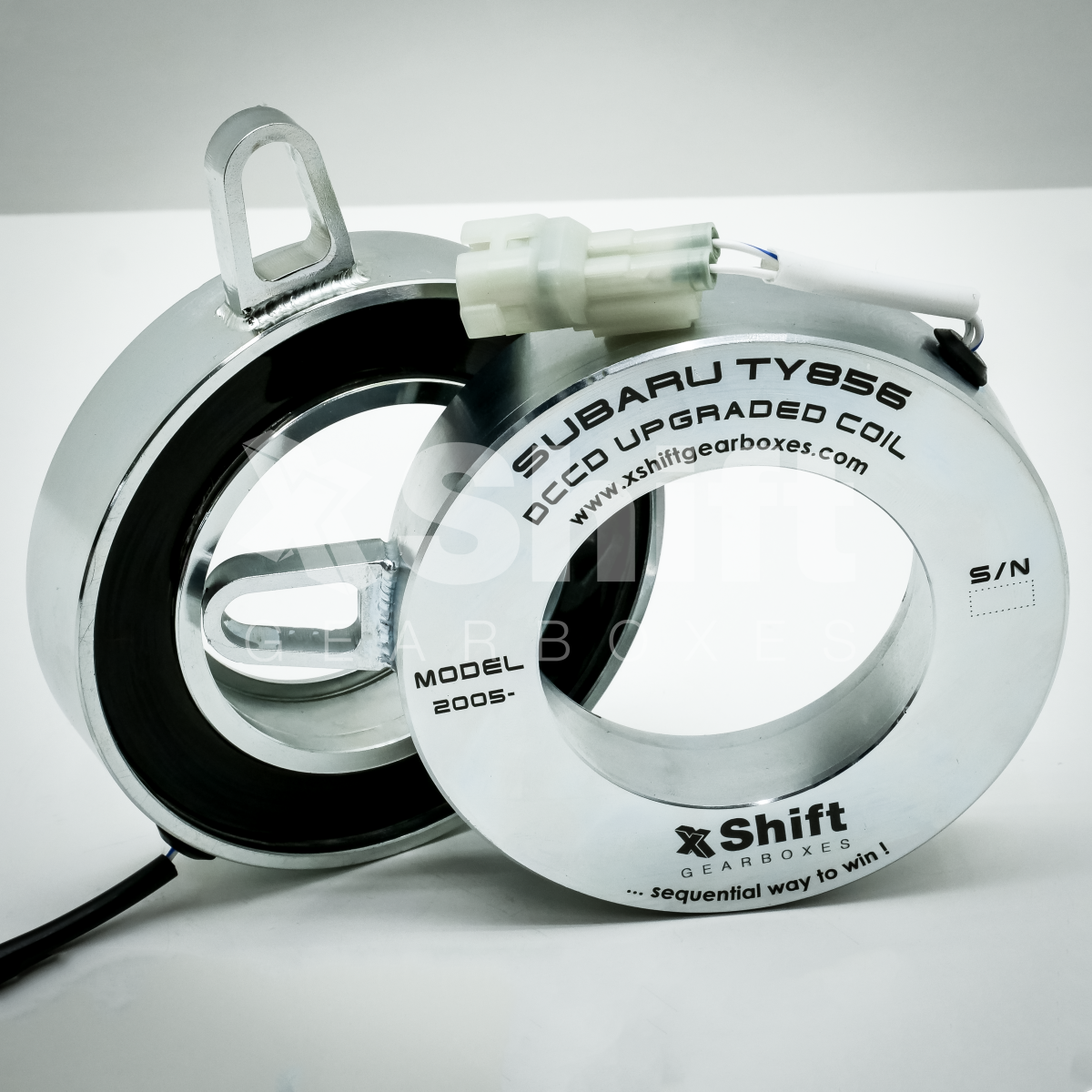

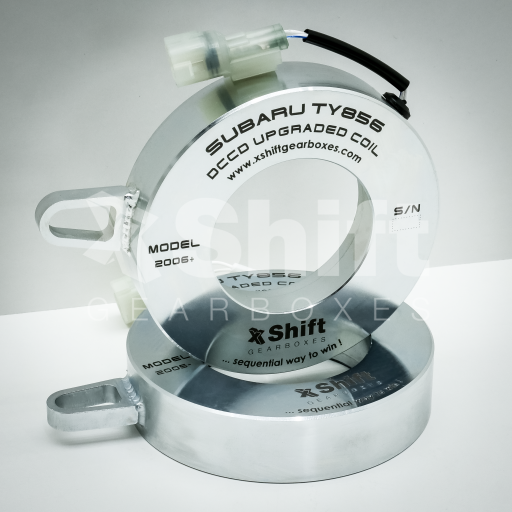

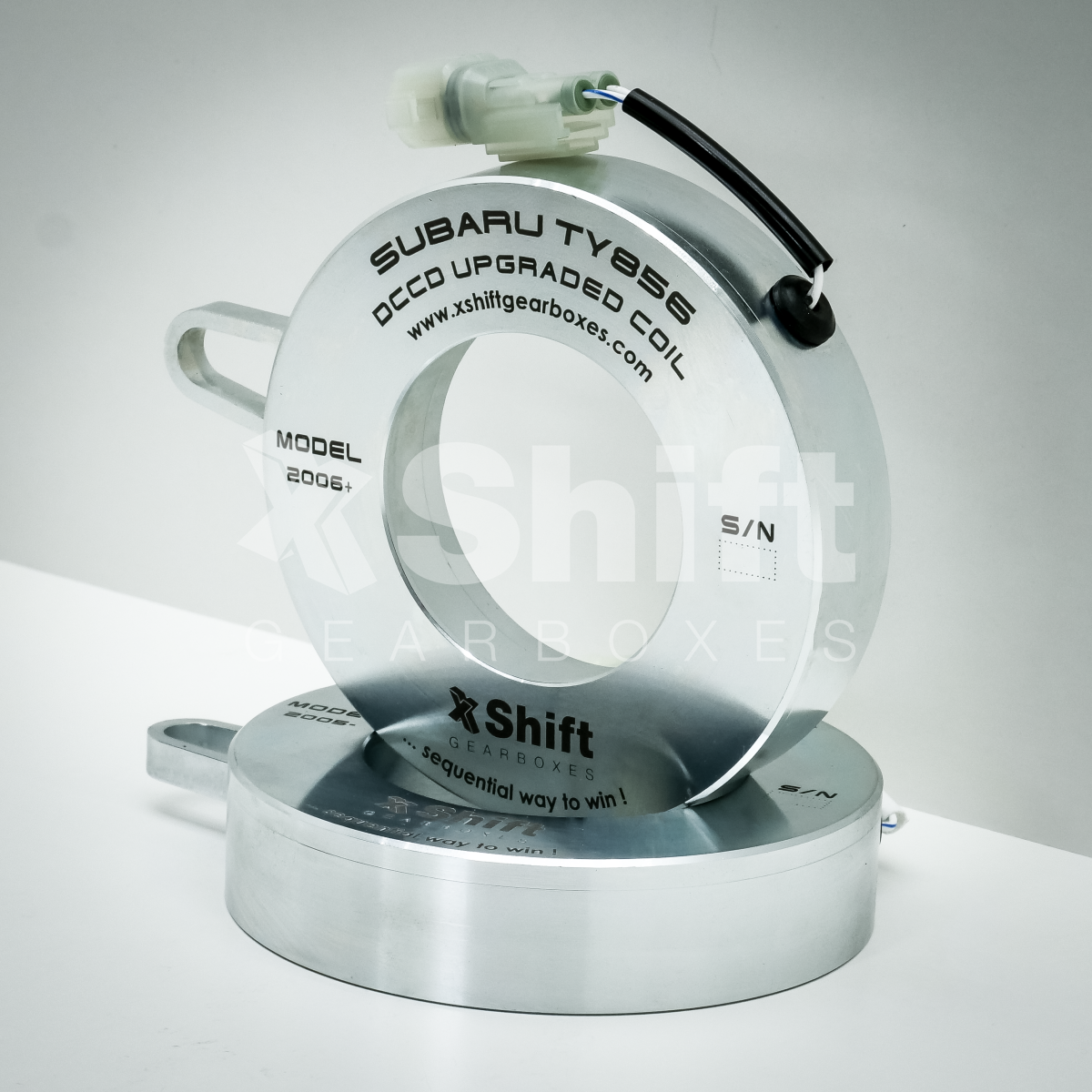

Upgraded DCCD electromagnetic coils for race and serial cars. Thanks to otimization of parameters, this coil provides much better features.

  • Pressing force increase, resulting in stronger DCCD lock up
  • Reduction of current = reduction of thermal stressing of the coil

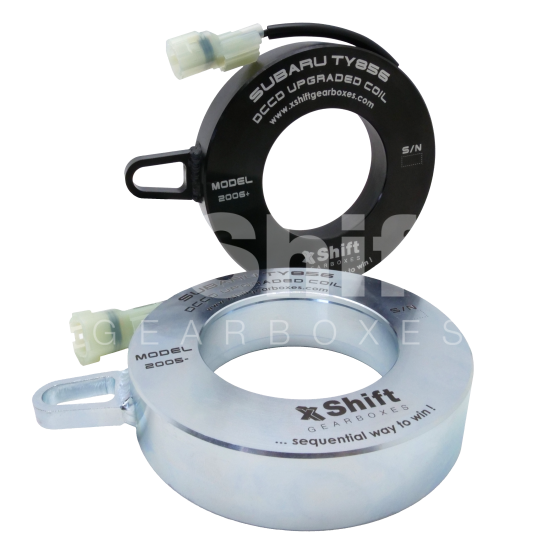

  • Available for all 3 variants of DCCD – small 5 speed WRX gearbox, STi gearbox till 2005 and STi gearbox 2006+

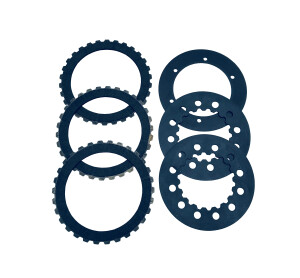

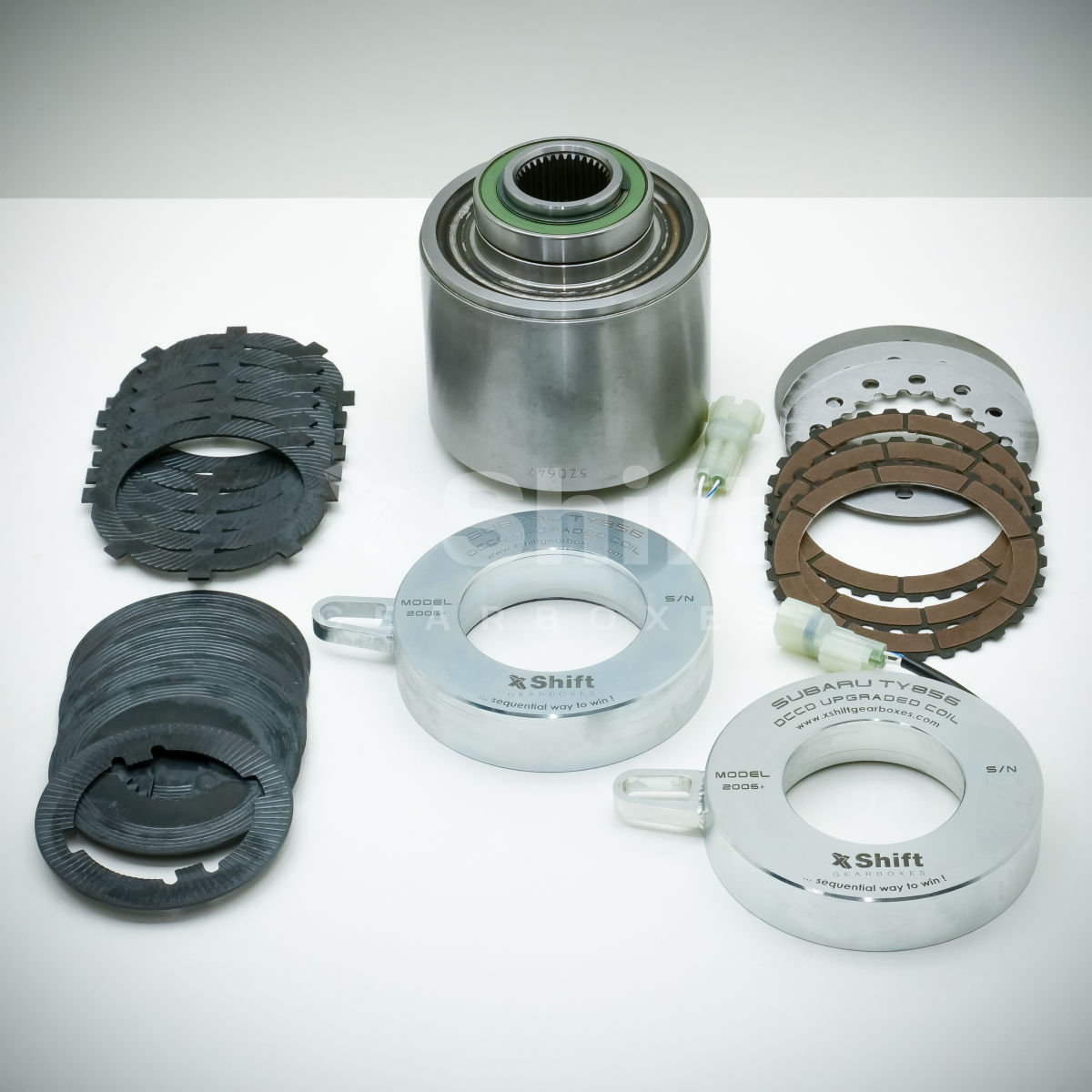

There is a possibility to order coil together with upgraded DCCD Steel Plates, that boost performance of your DCCD even further.

How it works?

Subaru DCCD (Driver's Control Centre Differential) is a sophisticated system that allows driver to control the torque distribution between front and rear wheels. It dramatically improves handling, stability and performance during dynamic driving scenarios.

DCCD consists of mechanical Limited Slip Differential and electromagnetic multi-plate clutch controlled by coil. All these components work together to provide the ideal power distribution in different racing conditions. There are two modes of operation of Subaru DCCD. First is manual mode, where the system controls the elecromagnetic clutch and therefore LSD to acquire the differential limiting force set by driver. Second is auto mode, in which the system controls LSD based on information from sensors detecting vehicle driving conditions and "driver's intentions" like position of accelerator pedal or steering angle.

Our upgraded coil is able to produce bigger force than standard coil, requiring the same voltage.It also operates with smaller current which leads to significant decrease of thermal stress.

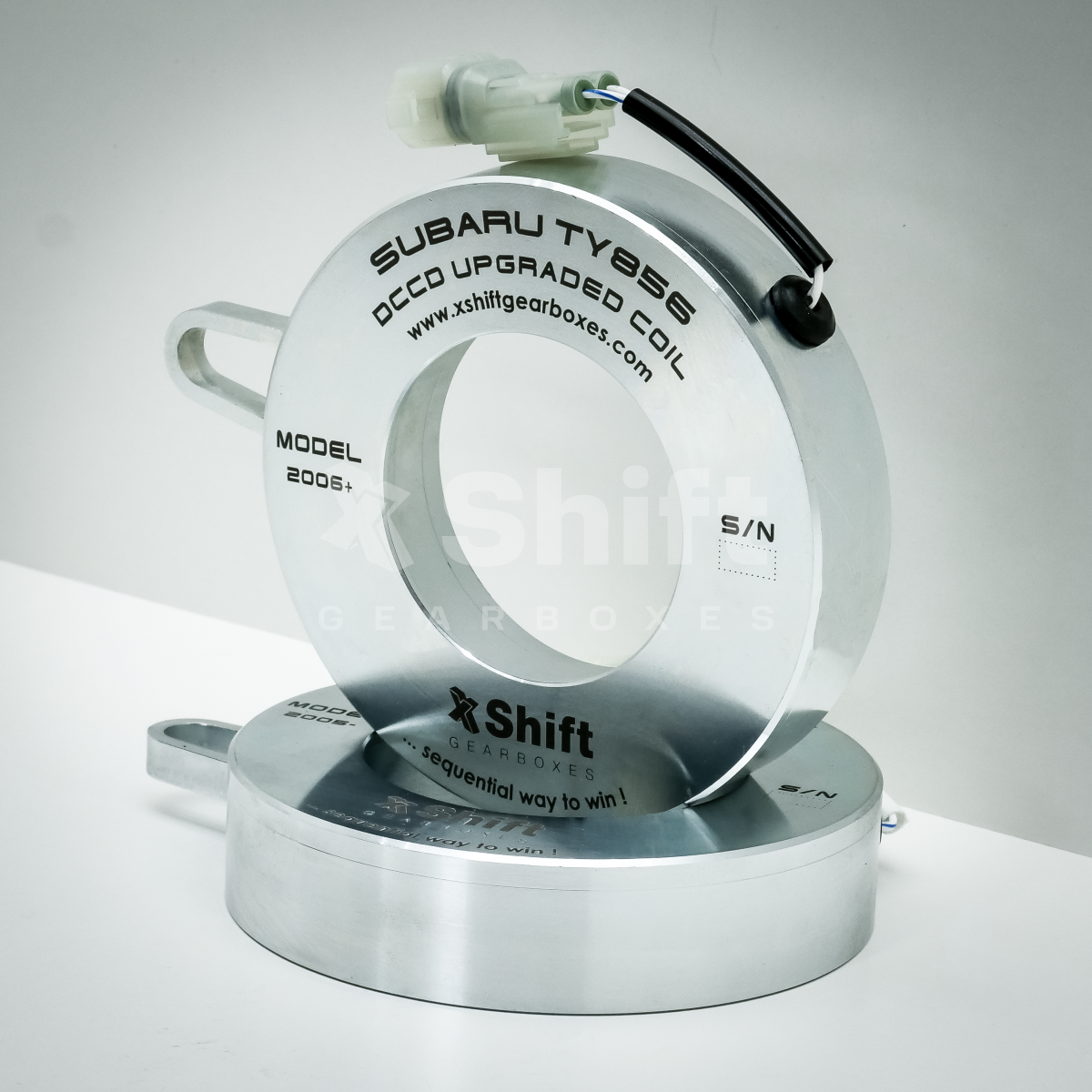

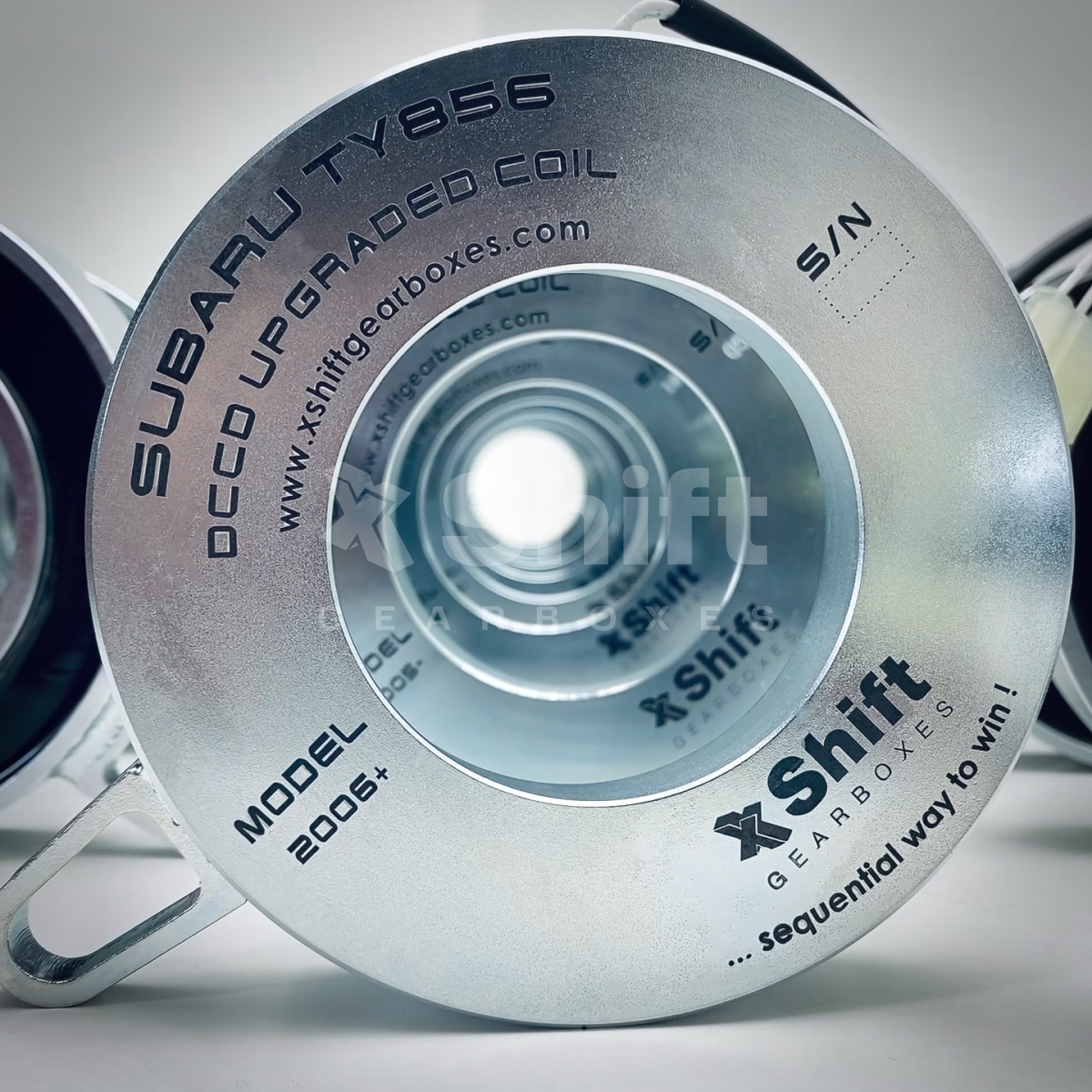

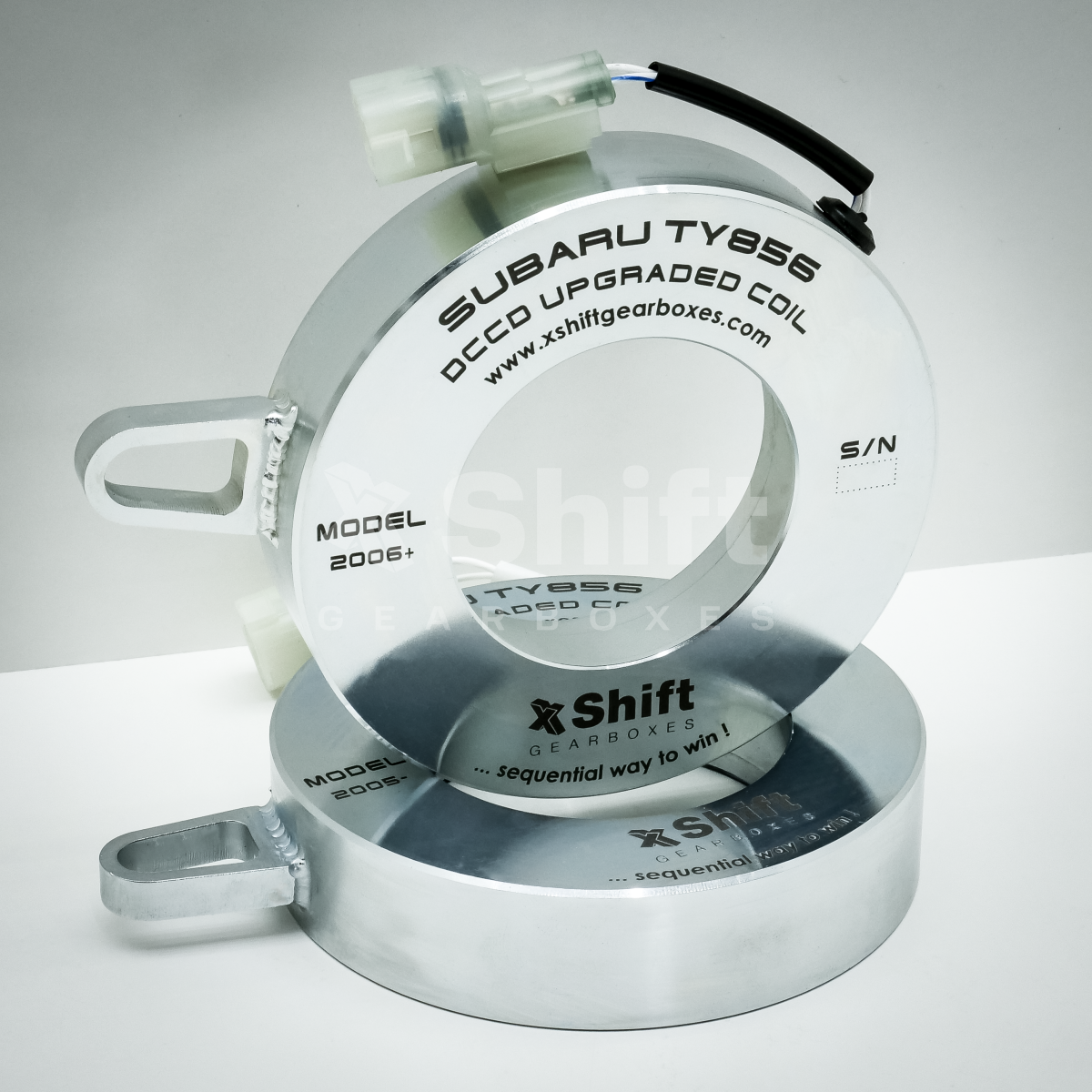

Photogallery
Product configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
