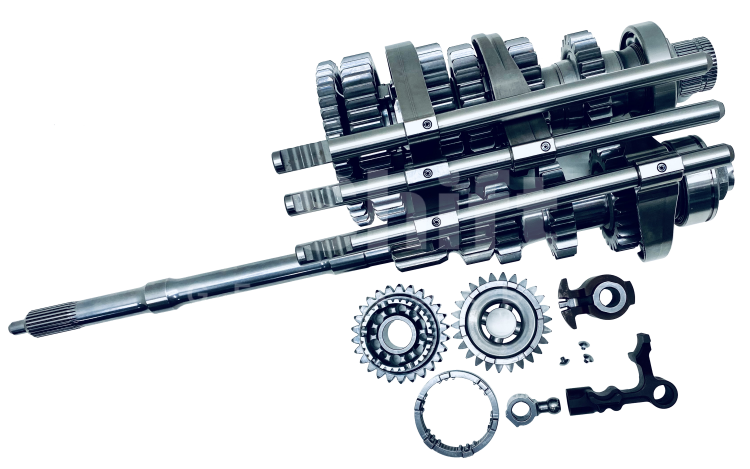

DOGBOX – 5 Speed H-pattern kit Subaru STi

Suitable for:
Gears
5
Gears
Torque
700 Nm
Torque
Revelations
6500 RPM
Revelations
Specification

DOGBOX for original Subaru STi gearboxes is a complete kit with straight or helical teeth and unique dogbox engagement system. The kit is designed to fit into the OEM case without major modifications. Rebuild at X Shift Gearboxes includes overall inspection of the gearbox, renovation of casings, adjusting bearing backlash, complete installation and assembly.

Why XSHIFT?
Major Advantages
  • Strong H pattern – cost saving solution for racing cars
  • Smooth and fast shifting
  • Rated up to 800 Nm
  • Easy replacement of original kit
  • Parts made of billet steel, specially heat treated and finished by REM method
Shifting and gear ratios

Shifting is provided by reinforced shifting mechanism with strengthened components that are more reliable than in stock gearboxes. There is one gear ratio available, that is homologated by FIA. For final drive you can choose from two options.

 Gear ratio 1 2 3 4 5
Gr. N 3,33 2,38 1,75 1,33 1,04
Final drive 10/39 (3,9) 10/44 (4,4)

Gear ratios calculator

Gear T1 T2 ratio RPM down speed speed down
1 12 40 3.33 - 61.3 -
2 13 31 2.38 1845 85.6 24.3
3 16 28 1.75 1732 116.7 31.1
4 18 24 1.33 1549 153.2 36.5
5 25 26 1.04 1427 196.3 43.1
Tyre metric dimensions
Tyre inch dimensions

If you have choosen your configuration, please take a screenshot of this calculator and attach it to the configurator below.

Gearbox configurator

For prices or more info, please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
