5/6/7 Speed sequential gearbox Toyota GR Corolla

Suitable for:
Toyota

TY7-GR. The first fully sequential gearbox for TOYOTA GR COROLLA in the world by X Shift Gearboxes is what will make the difference between you and the rest of the pack!

Gears
5/6/7
Gears
Revolutions
7000 RPM
Revolutions
Torque
1400 Nm
Torque
5/6/7 Speed sequential gearbox Toyota GR Corolla
Specification

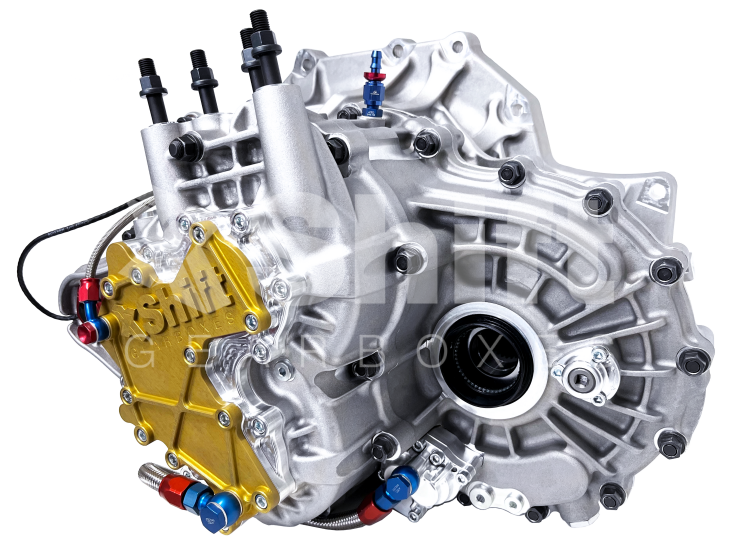

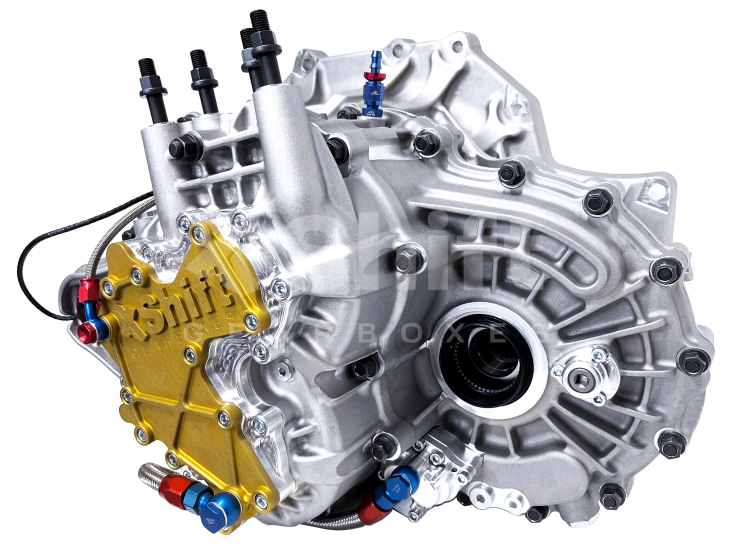

Unique 5/6/7-speed sequential gearbox for Toyota GR Corolla, featuring the most advanced shifting system on the market, is the latest addition to the XSHIFT family of sequential gearboxes. Combined with durable forks and shifters, it offers maximum durability, reliability, and outperforms any sequential shift design in the world. It comes as a complete - "plug and play" - direct replacement for the OEM gearbox, including LSD differential, oil pump, sensors and bellhousing. This gearbox takes the race car far beyond a mere "funcar" - it gives the car serious racing performance and makes the GR Corolla a true racing weapon!

It is designed for GR COROLLA series, that uses 1,6 L G16-E engine. The need for additional power that can't be transferred by original gearbox results in development of the first sequential gearbox for Toyota GR COROLLA on the market.

Faster acceleration, higher reliability and endurance, low weight, quicker shifting and availability of various final drives – all together it sounds like a necessary coctail for the win! It offers direct substitution for original gearbox without the need of large adjustments.
Why xshift?
Major Advantages
  • Casted cases for torque up to 1200 Nm
  • Billet cases for torque up to 1400 Nm
  • The most modern and sofisticated shifting mechanism on the market
  • Possibility to use with single or multi plate race clutches
  • Use with OEM or racing clucth bearing
  • 5/6/7 speed configurations
  • Choose of the shifting barrel type: R-N-1-7 (no 360°) or R-N-1-7-R-N-1-2... (360°)
  • Up to 5 final drive versions
  • Shifting lever with bowden or rod
  • Preparation for pneumatic paddle shift
  • Both OEM and racing temperature sensor can be mounted
  • OEM sensor of reverse gear

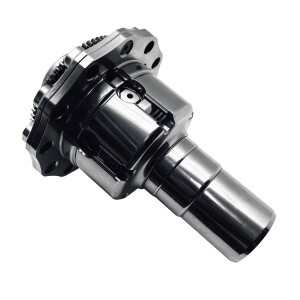

  • Front multiplate LSD and bellhousing included
  • Possibility of external preload adjustment of LSD
  • Holders, semi-axes and mounting points same as OEM
  • Wide accessories portfolio

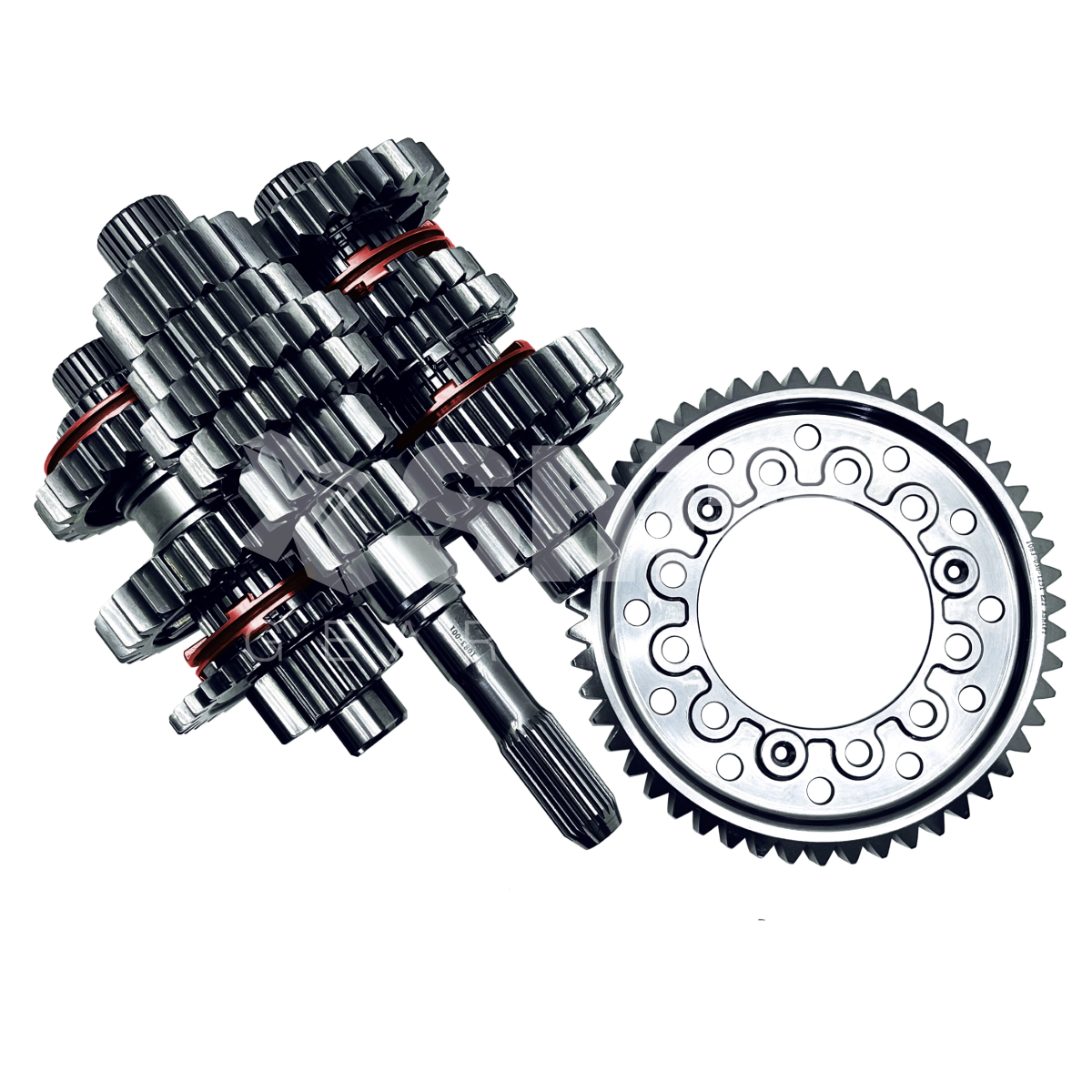

Shifting and gear ratios

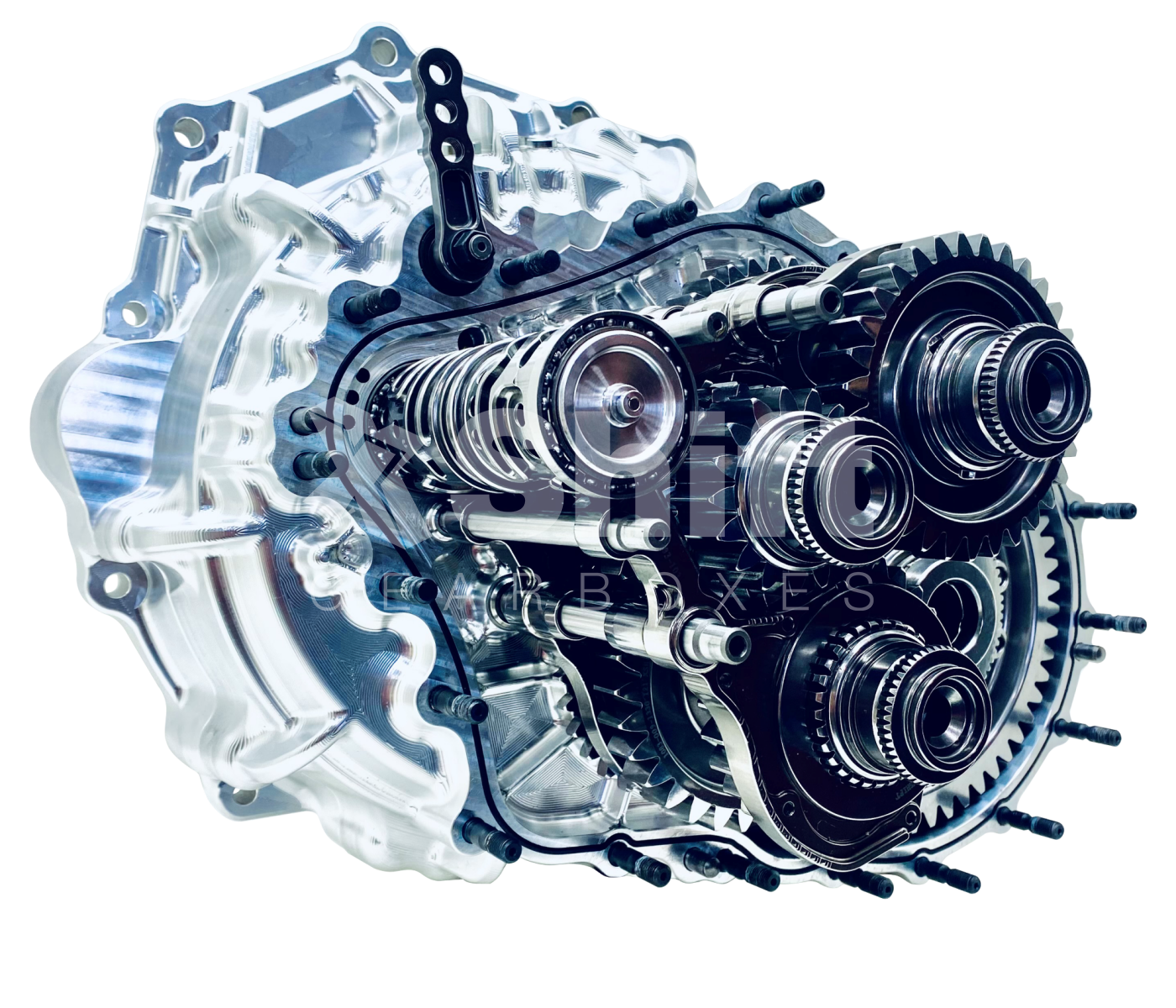

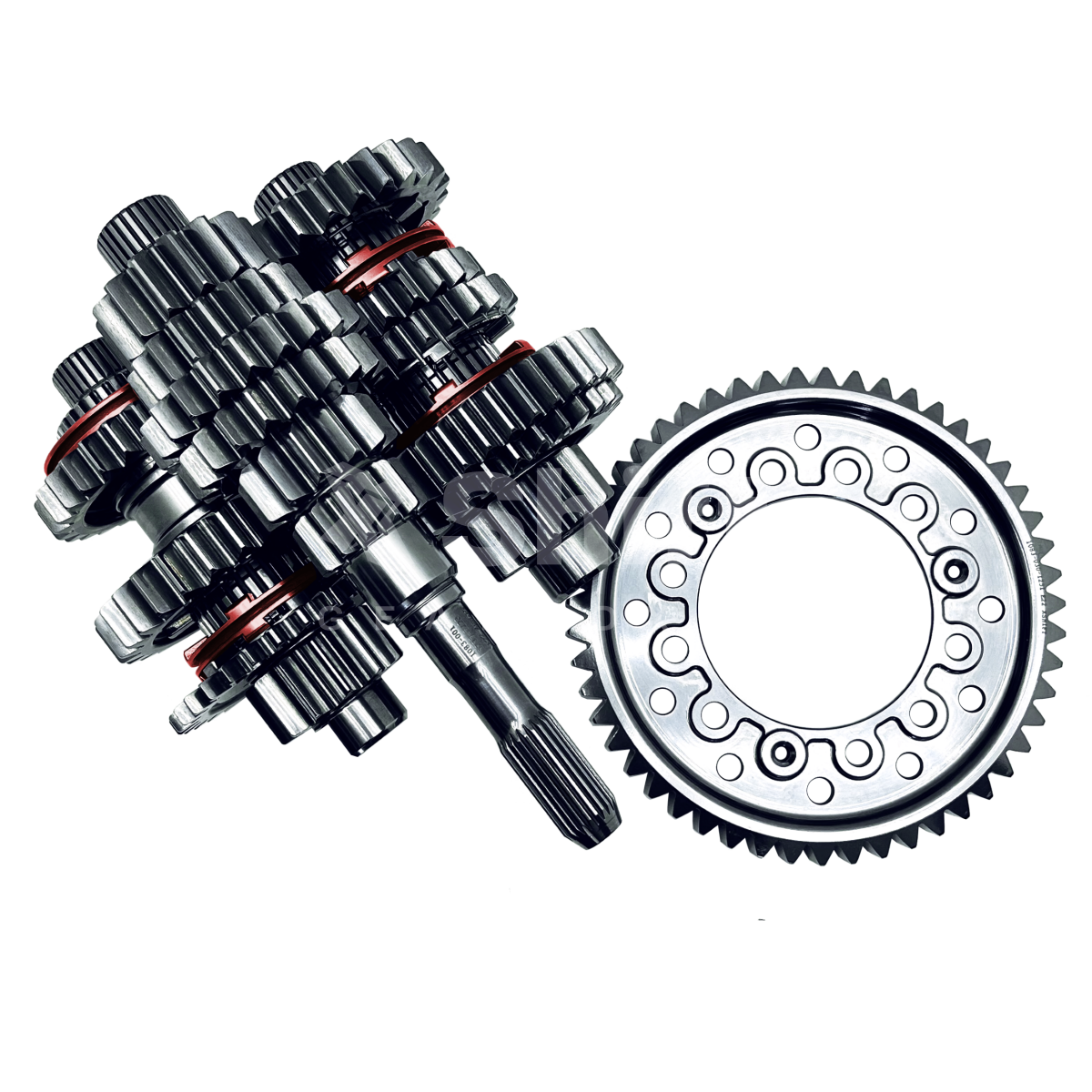

The gearbox is equipped with extremely fast and very reliable shifting mechanism with the latest system of double locking. Thanks to this it provides short, sharp and very smooth shifting experience within 30-40 ms in case of "flat shift" strategy. Mechanism incorporates undercut dogrings to ensure reliable lock of engaged gear with long lifespan. All gears and components of shifting mechanism are superfinished using special REM method and made with strict manufacturing processes.

TY-GR is available in 3 speed options and up to 5 various final drive ratios. Whether you need gearbox with short gear ratio or you build drag special attacking 300+ kph, we have solution for you!

  • 5 speed version: suitable for rally
  • 6 speed version: for rally, circuit, time attack, hillclimb, drag or street (universal)
  • 7 speed version: for circuit or street
Gear ratio 1 2 3 4 5 6 7
5 speed 3,2 3 2,5 2 1,5
6 speed  3,2 3 2,5 2 1,5 1
7 speed   3,2 3 2,5 2 1,5 1 0,8
Final drive 11/56 (5,09) 12/55 (4,58) 12/51 (4,25) 12/48 (4,00) 14/53 (3,79) 15/51 (3,4)
Accessories

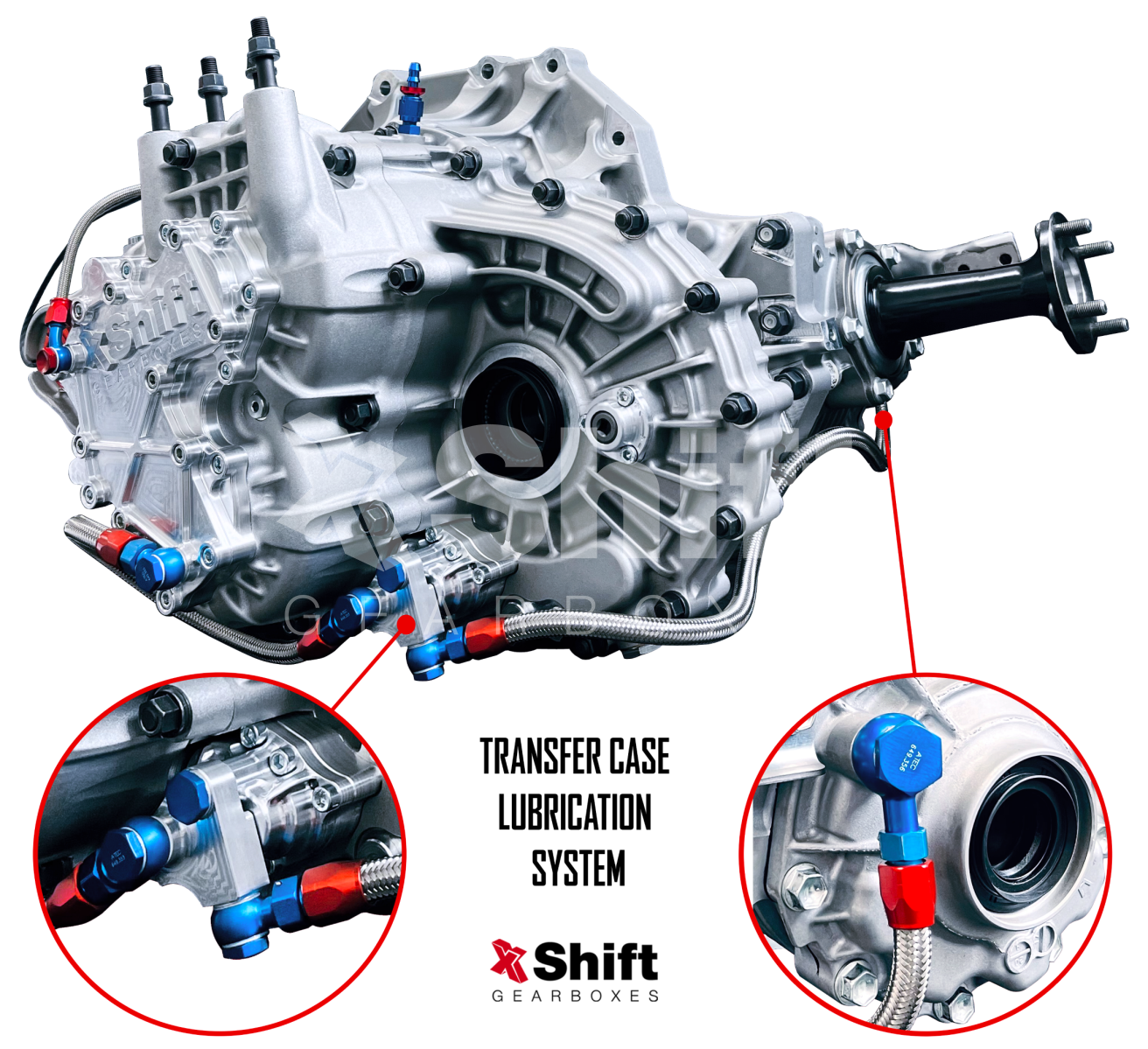

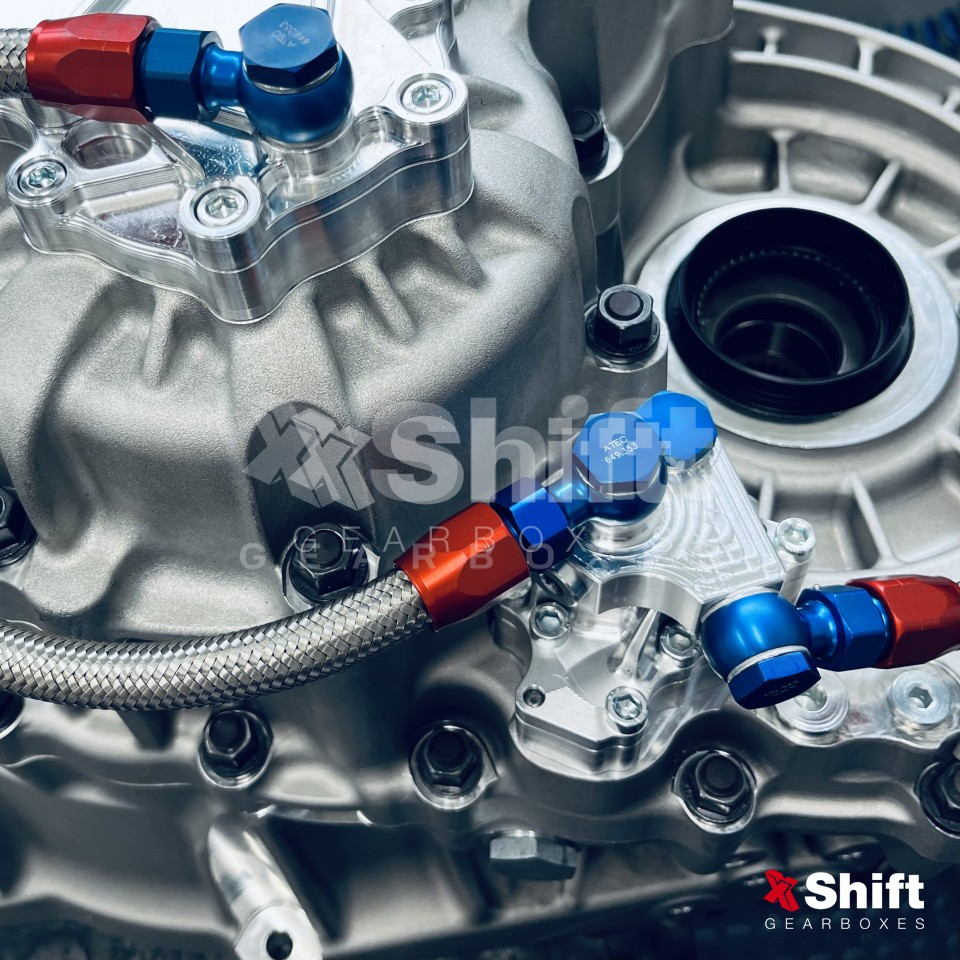

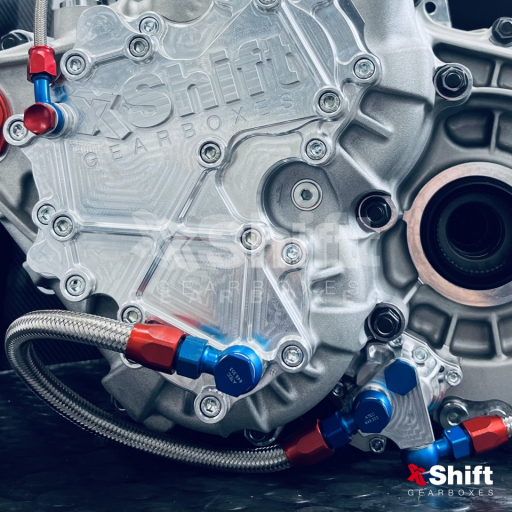

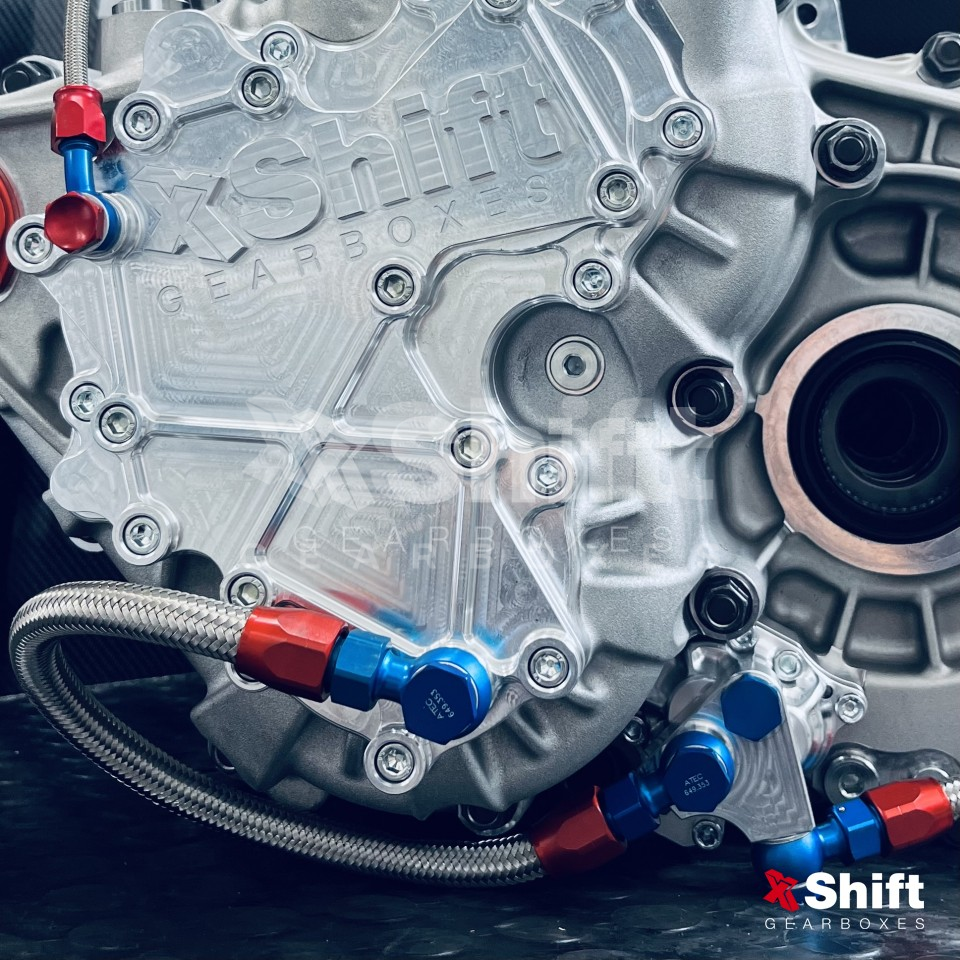

Gearbox is equipped with powerful oil pump and sofisticated lubrication system that can be connected also with our billet transfer case. This feature leads to lower wear of parts and thus longer lifespan.

Together with the powerful Toyota GR Yaris sequential gearbox we can provide many performance accessories that helps you achieve top results on the track.

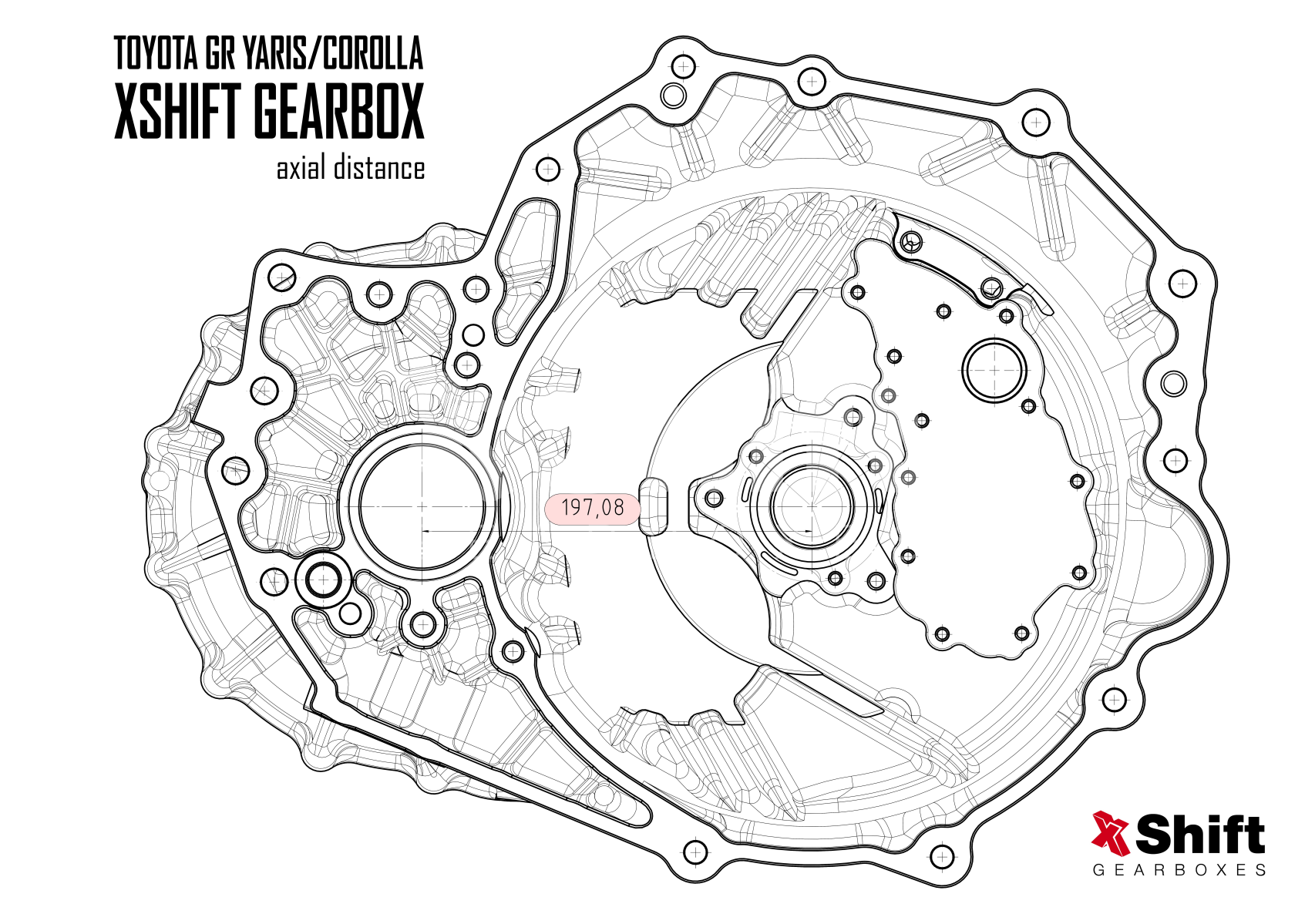

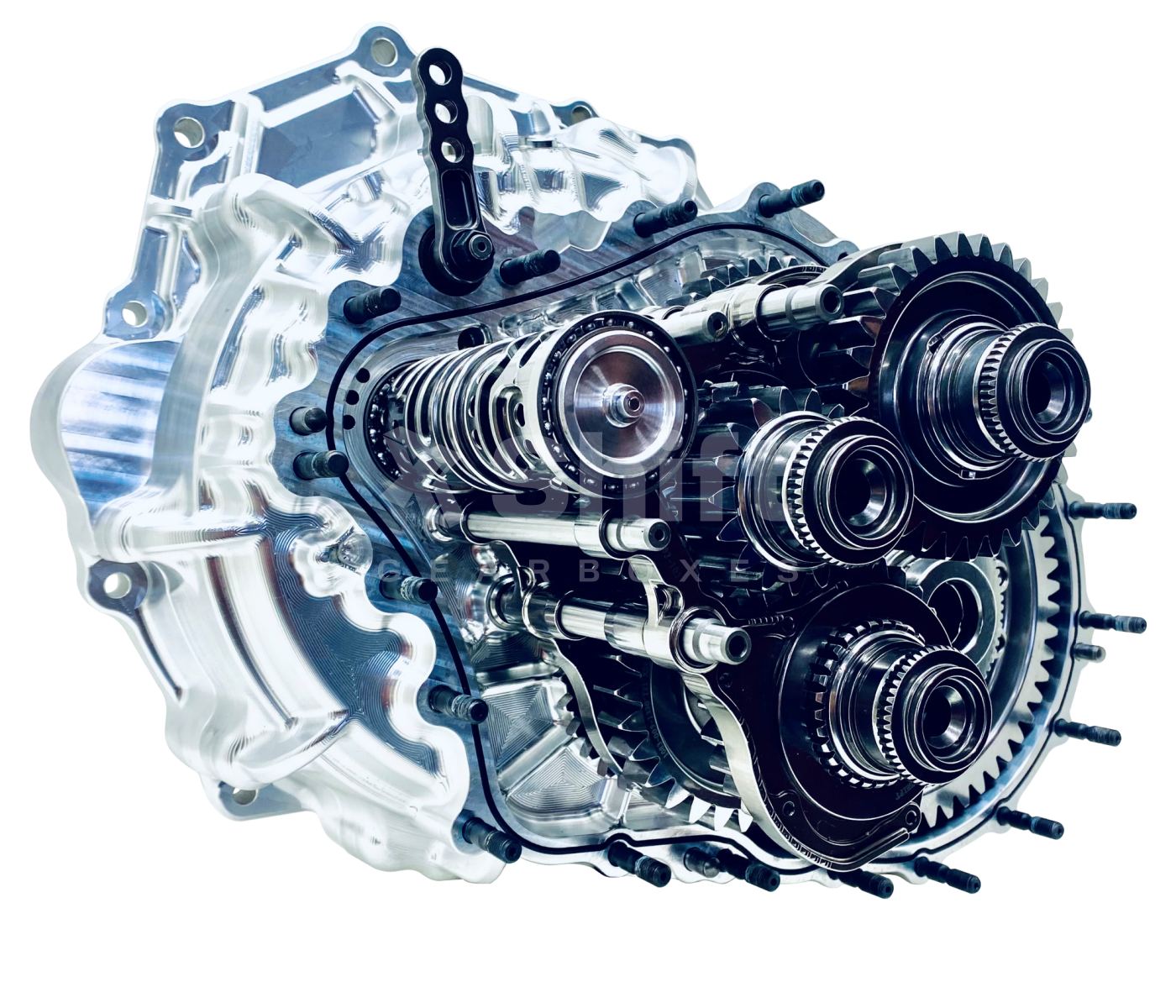

Design

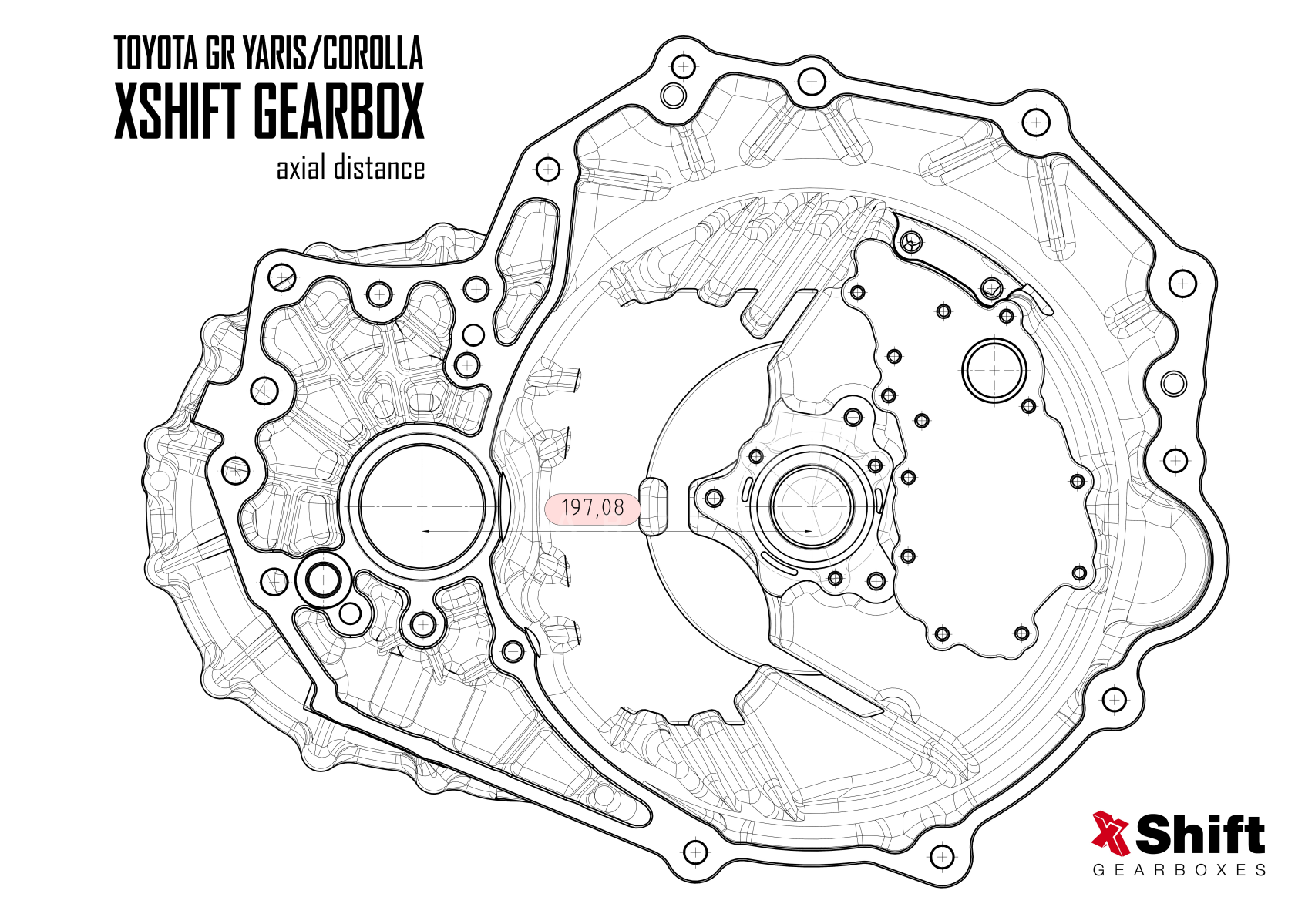

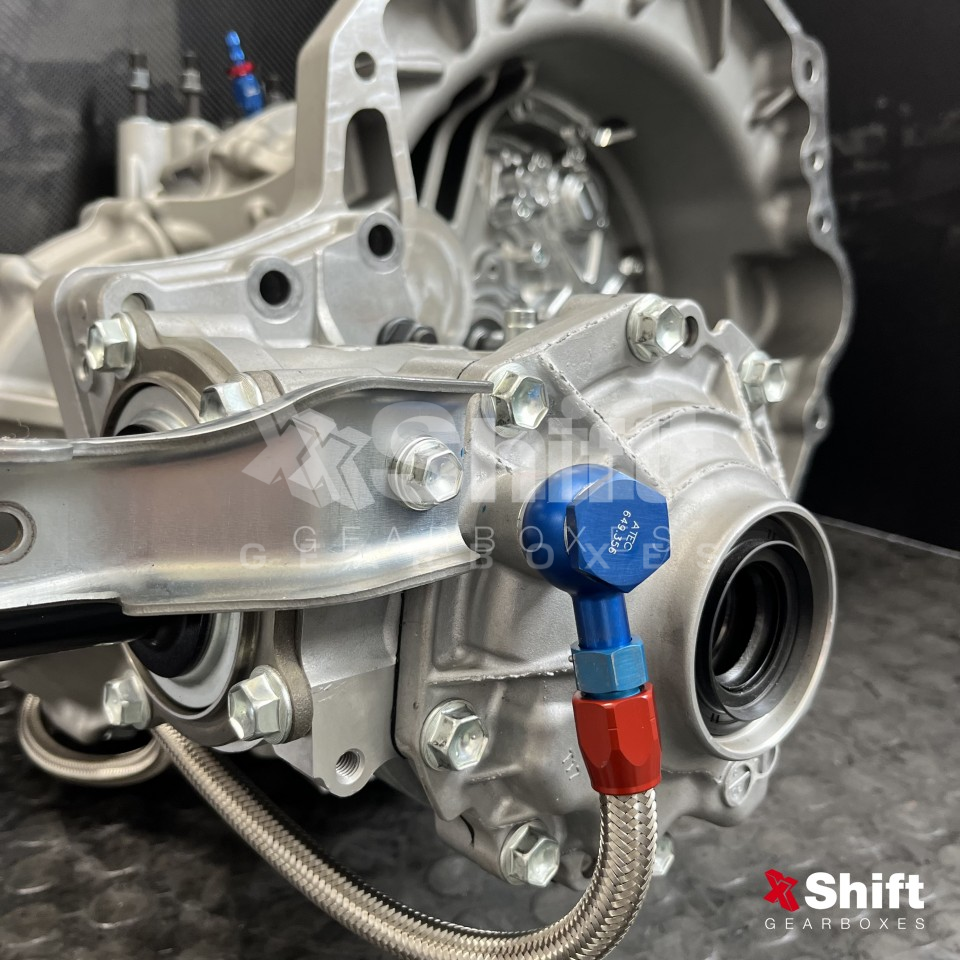

Due to inovative design it is possible to use our gearbox with original input shaft, clutch and holders without any changes. Gearbox contains own design of bellhousing, thus the installation is very fast and there is no need to use OEM parts from original gearbox.

It is offered with casted or billet cases. Gears and components of shifting mechanism are REM superfinished.
Photogallery

Gear ratios calculator

Gear T1 T2 ratio RPM down speed speed down
1 12 37 3.08 - 53.3 -
2 12 28 2.33 1708 70.5 17.2
3 14 25 1.79 1642 92.1 21.6
4 19 27 1.42 1428 115.7 23.6
5 19 22 1.16 1296 142 26.3
Tyre metric dimensions
Tyre inch dimensions

If you have choosen your configuration, please take a screenshot of this calculator and attach it to the configurator below.

Gearbox configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
