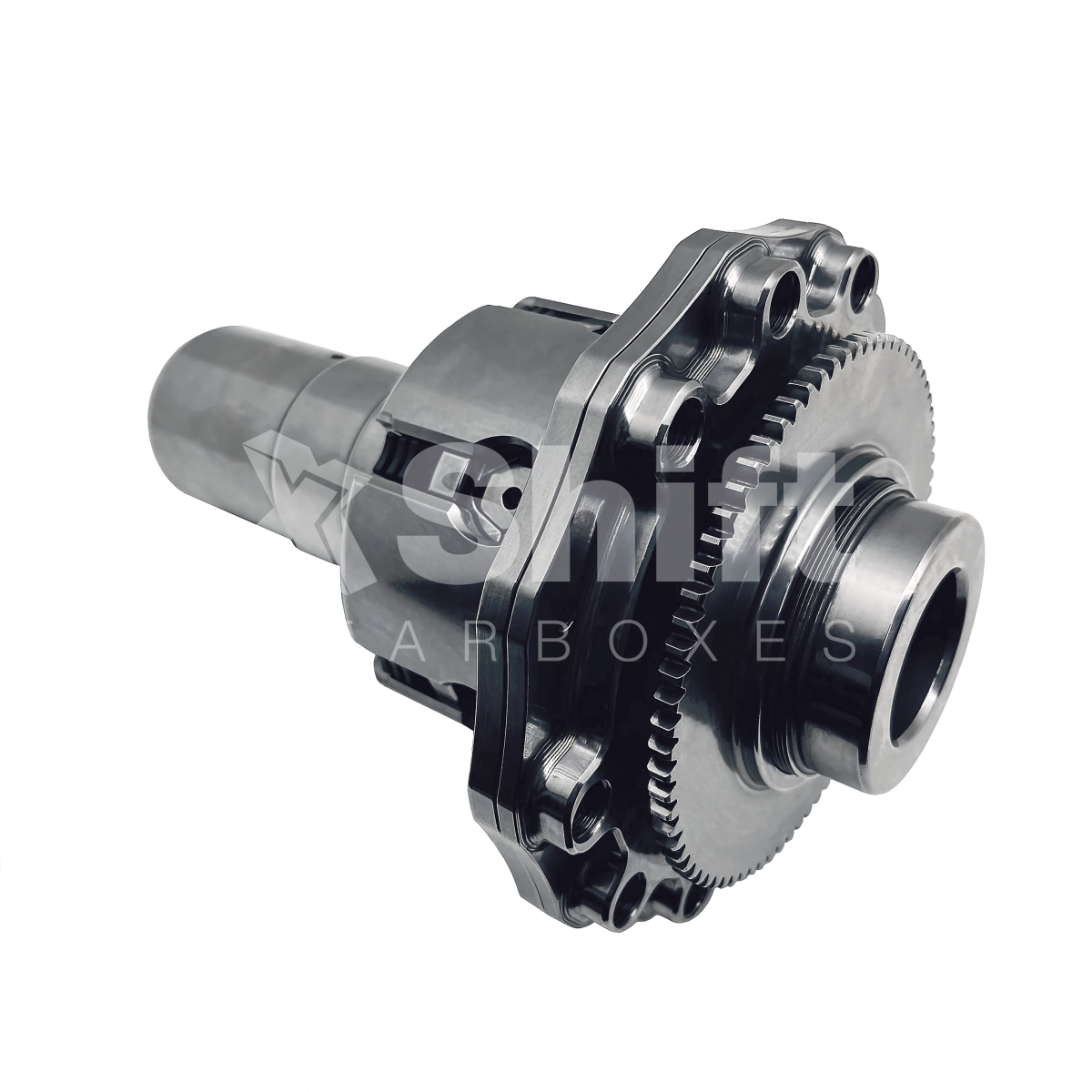

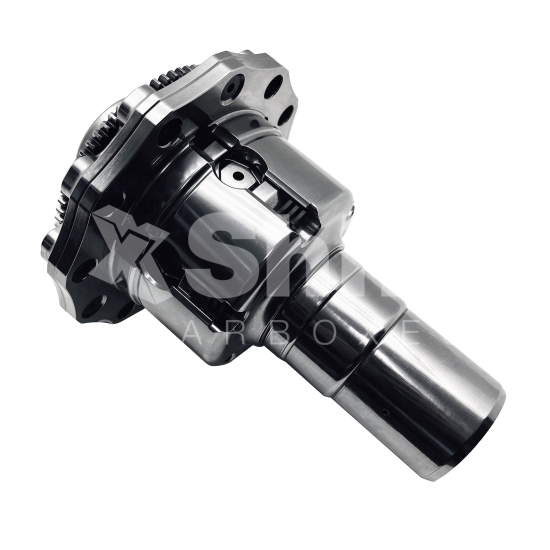

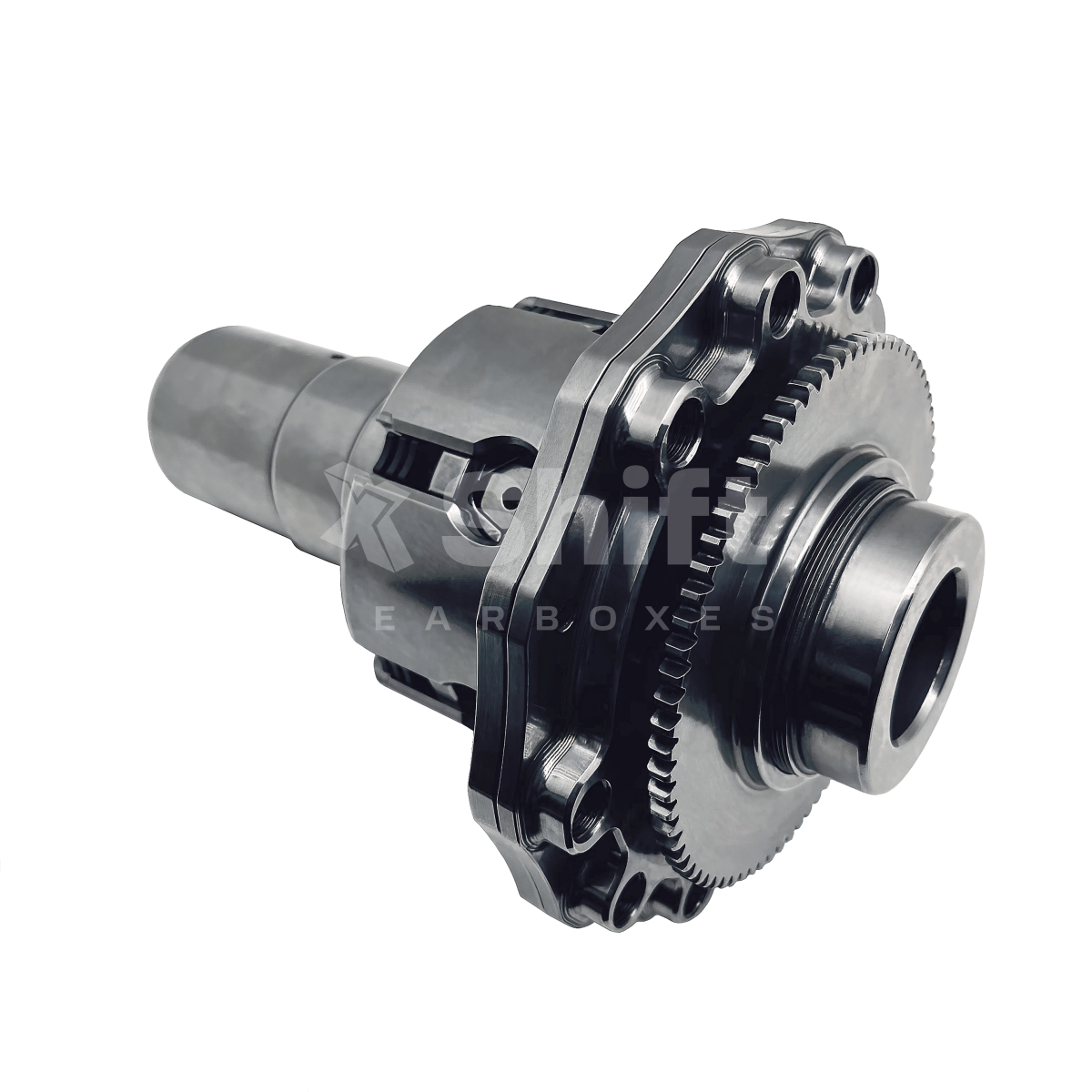

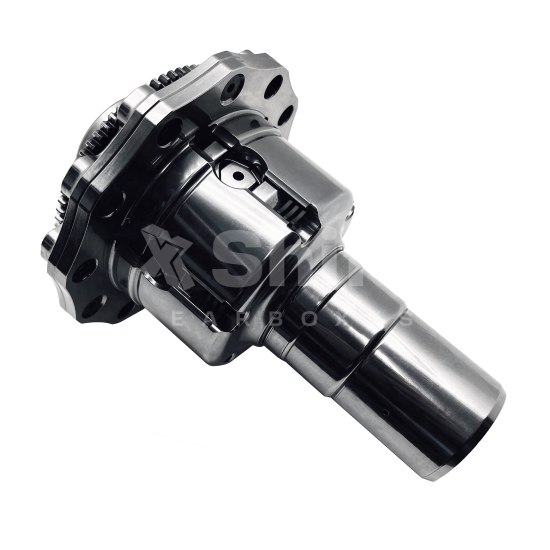

Front Plate LSD Toyota GR

Suitable for:
Specification

This product brings you all the advantages of proven technical solution of limited slip differential. With modern design and smart features it will move performance of your car to another level.

All bolts are secured with special locking plate to prevent them from any kind of looseness, thus the differential is able to withstand even the most extreme conditions.

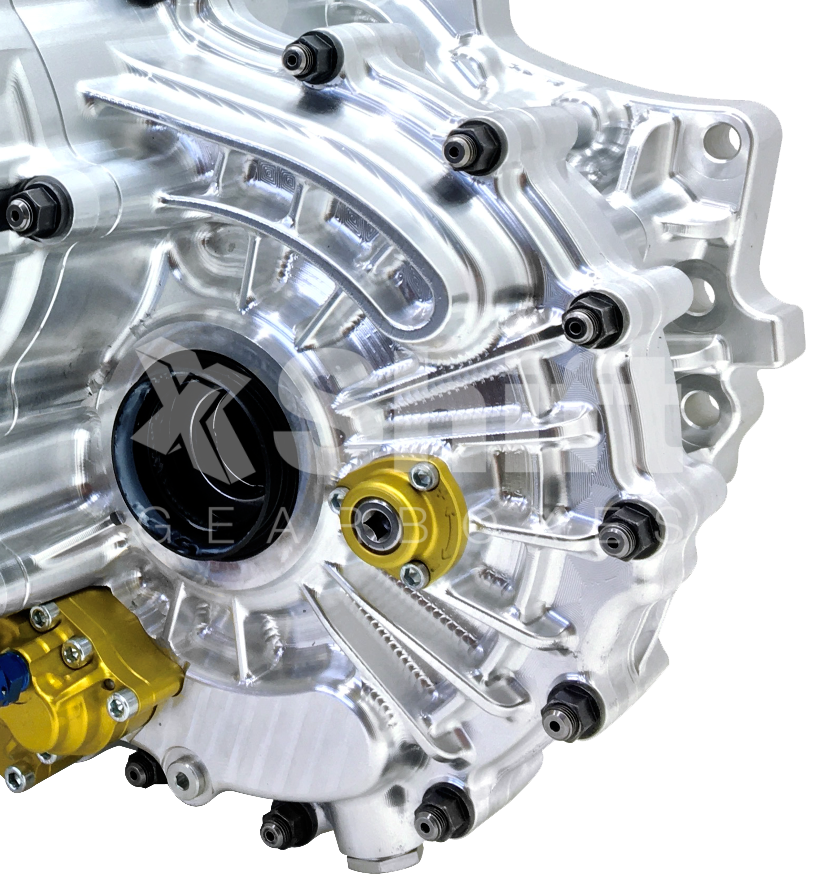

The differential preload is set during the assembly process with our custom tool, however it is also possible to adjust the preload on assembled gearbox. This is achieved by our new mechanism incorporated in LSD. You can modify preload simply with just standard tools.

Why XSHIFT?
Major Advantages
  • Components made from high-alloy steel
  • Standard ramp angles 45°x20°
  • Externally adjustable preload with standard tools
  • Locking plate to secure all bolts
  • Upgraded parts manufactured at X Shift Gearboxes
  • Possible to order spare parts separately if needed
Why LSD?

It is clear that limited slip differential is much more usable in racing cars than standard open differential, which is good tool to increase driveability, but cannot distribute the maximum power in performance conditions or on surfaces with different adhesion on right and left wheel.

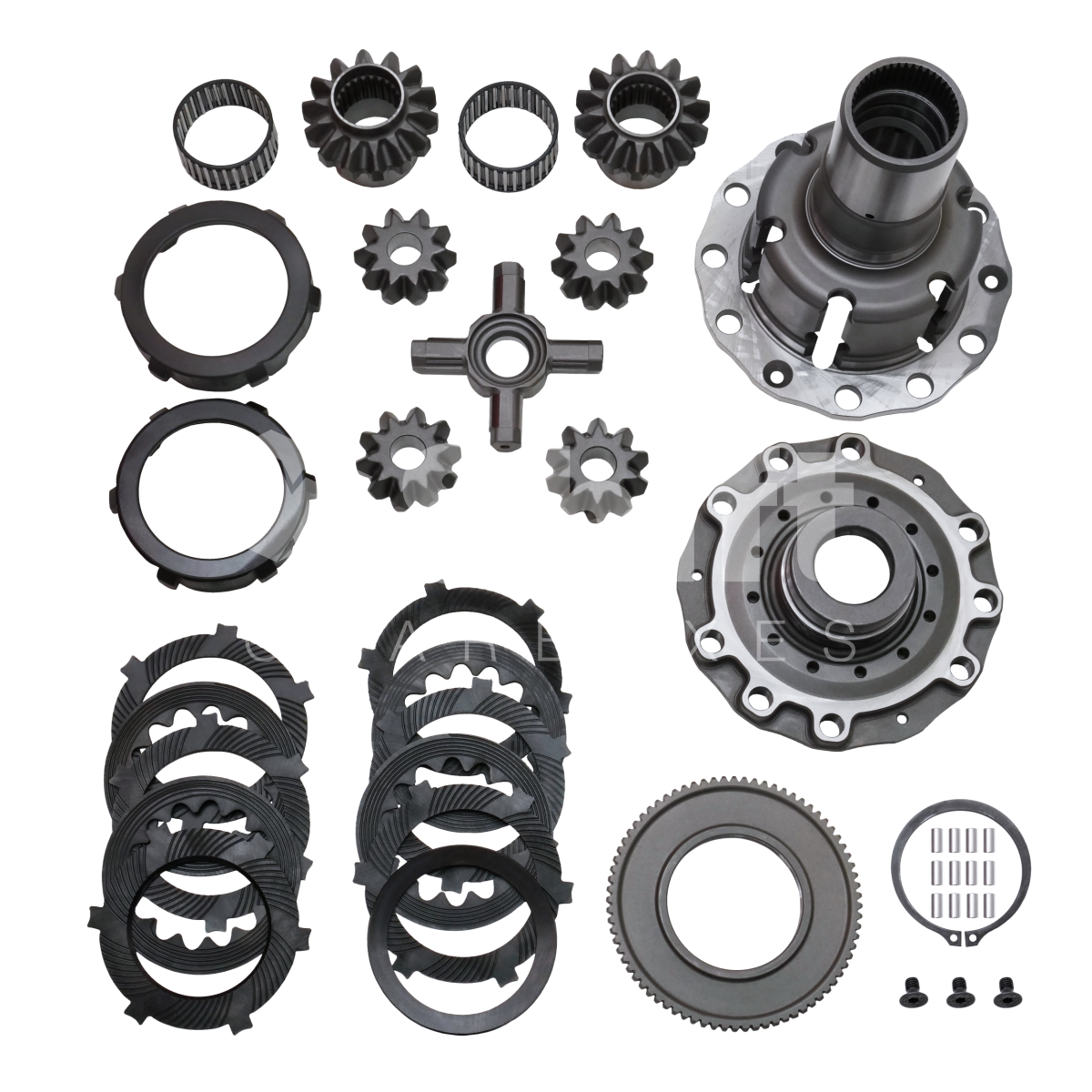

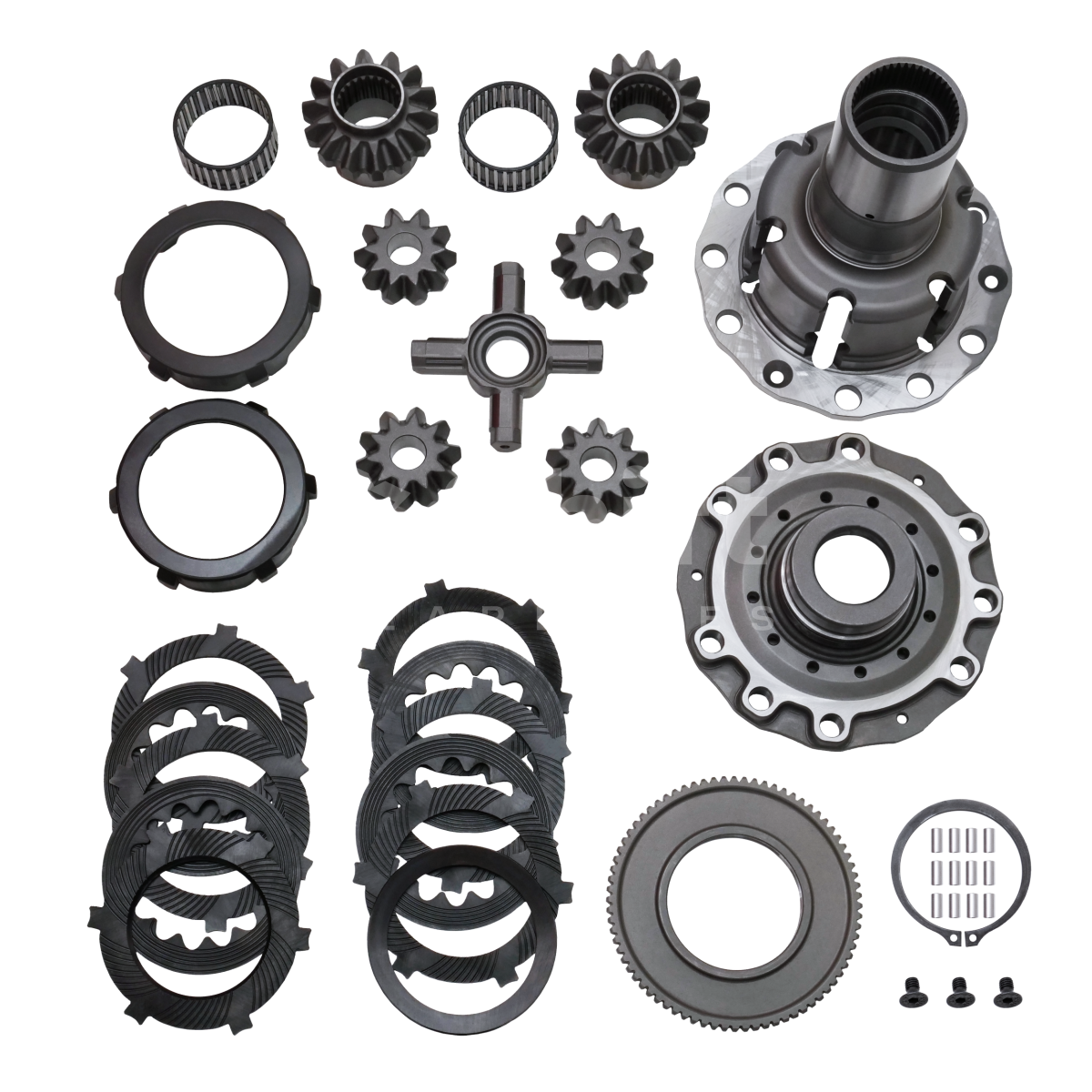

Plate LSD contains mechanism with ramps on pressure rings and cross shaft and steel plates that work as a clutch. As the car accelerates, the cross shaft is pushed to the the ramps of the pressure rings, which are forced to move outwards and push the steel plates together. With increasing pressure between plates, the friction also rises and therefore the driven gears are increasingly bind together and is more difficult for them to spin at different rates.

Plate LSD vs Torsen

Torsen differential uses gears instead of steel plates to transfer the torque on wheels. It is good solution for street driving with it's precise power distribution and stability on curvy roads. However, Torsen is not very suitable for high performance purposes, because it can't provide such aggressive torque transfer, especially under extreme conditions. As opposed, plate LSD is able to send power sharply to the wheel with grip which leads to improved traction and it's also more tunable than Torsen. Moreover, it works very fast and provides advanced handling even in the tight curves at high speeds.



Parameters

Essential influence on LSD function have ramp angles. It very depends how you measure the angle – if you measure the angle from axle axis, then the greater the angle, the stronger and more aggresive locking. There are 3 types of differential regarding ramp angles:

  • 1 way: only locks in acceleration
  • 1,5 way: ramp angle on the acceleration side is different to that on the braking side
  • 2 way: locks equally under acceleration or braking

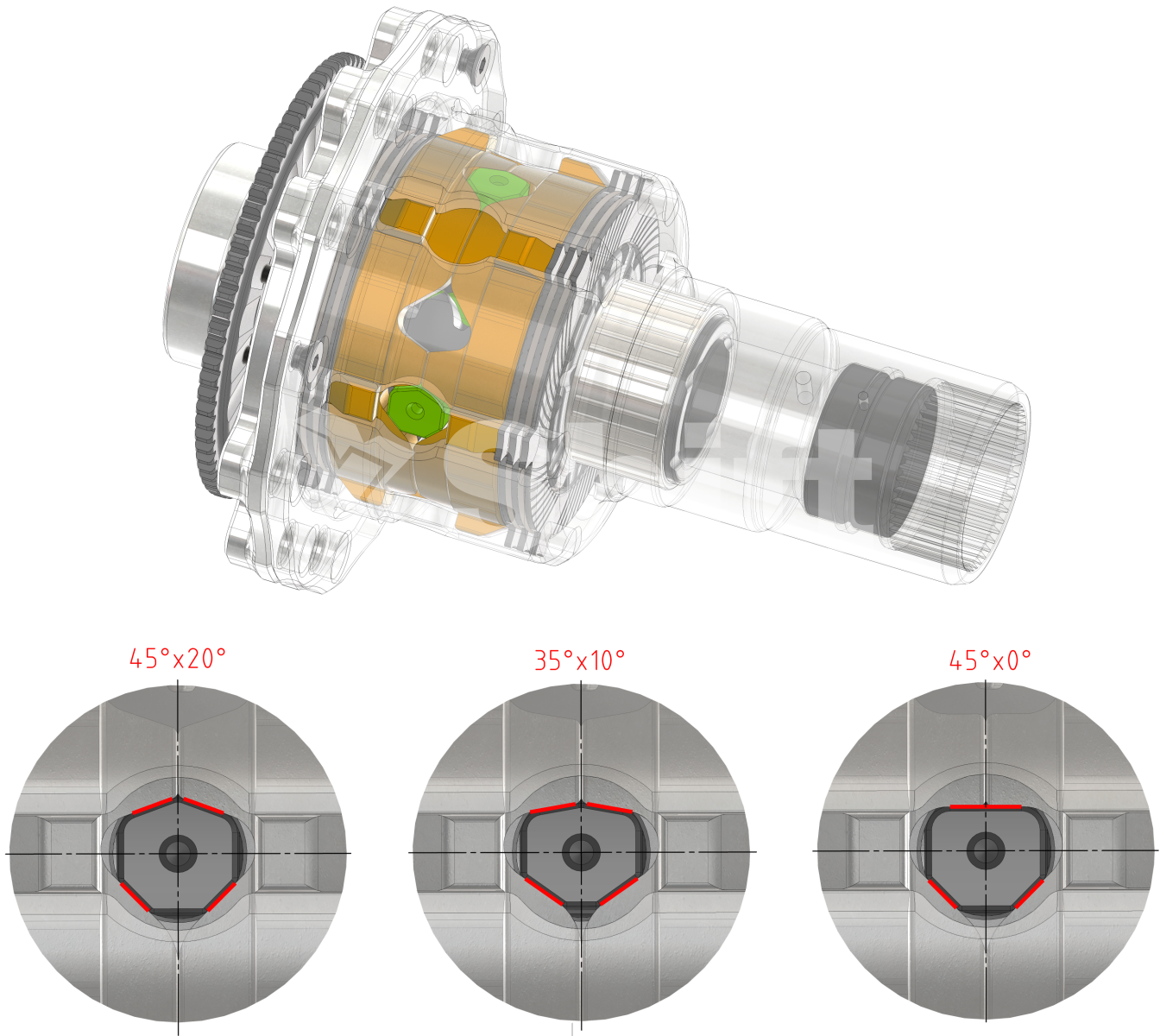

You can choose from multiple ramp angles to provide the most suitable function of LSD for your aplication.

  • 45°x20° (standard)
  • 35°x10°
  • 45°x0°

Other parameter that can be tuned is preload. It is achieved by disc spring which applies a pressure to the clutch plates – wheels are partially coupled all the time. Torque difference between wheels must overcome this baseline resistance to spin at different rates. Steel plates can wear down and get a little thinner over time, so it's benefitial to adjust the preload externally. We also provide special Toyota LSD Preload Tool to set you differential properly when it is out from the gearbox.

Product configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
