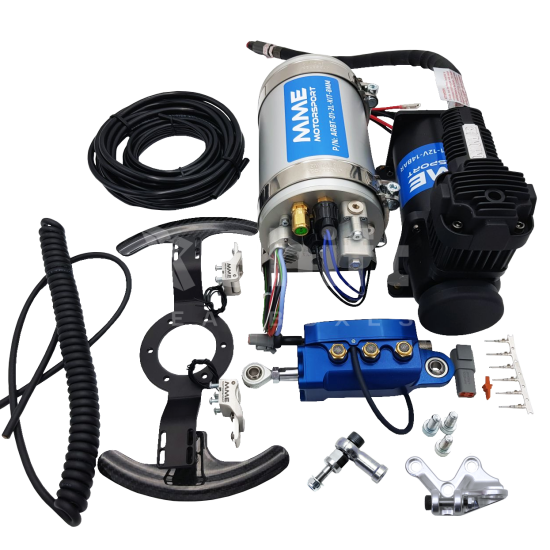

Paddle Shift Toyota GR

Suitable for:
Specification

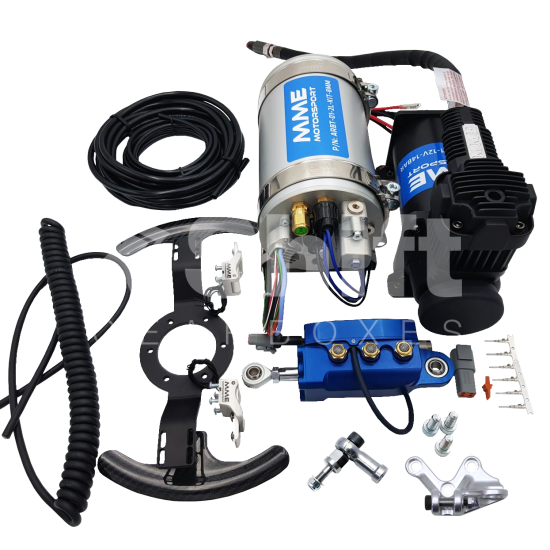

If you are searching for fast and ergonomic steering wheel shifting, this is product for you. In cooperation with MME Motorsport, we present the pneumatic shifting kit, which brings you super fast shifting experience with uninterrupted full control of the steering wheel with both hands. Whole kit is very easy to assemble and no other gearbox modifications are required. Depending on your car purpose, there are many options and additional features to achieve even better performance.

  • bolt on solution
  • safe shifting in fast long corners
  • quicker and easier to maintain than hydraulic system
  • can be used both with or without gear lever
  • suitable for up-shifting with full throttle and without clutch
  • reduced gear wear by clean and sharp shifts
  • optional interlock button to prevent the driver from incorrect downshift and possible damage of gearbox or engine parts

For online order you can contact MME Motorsport directly.

Gear actuator
One of the main parts of paddle shift kit is gear actuator. There are several types available.

Standard actuator 32 x 25 mm or 40 x 25 mm

  • very light and compact
  • adjustable stroke
  • requires external valve block
  • 32 mm version:
    • forces at 8 bars – 650 N push, 560 N pull force
    • +/- 12,5 mm stroke
  • 40 mm version:
    • forces at 8 bars –1005 N push, 920 N pull
    • +/- 25 mm stroke

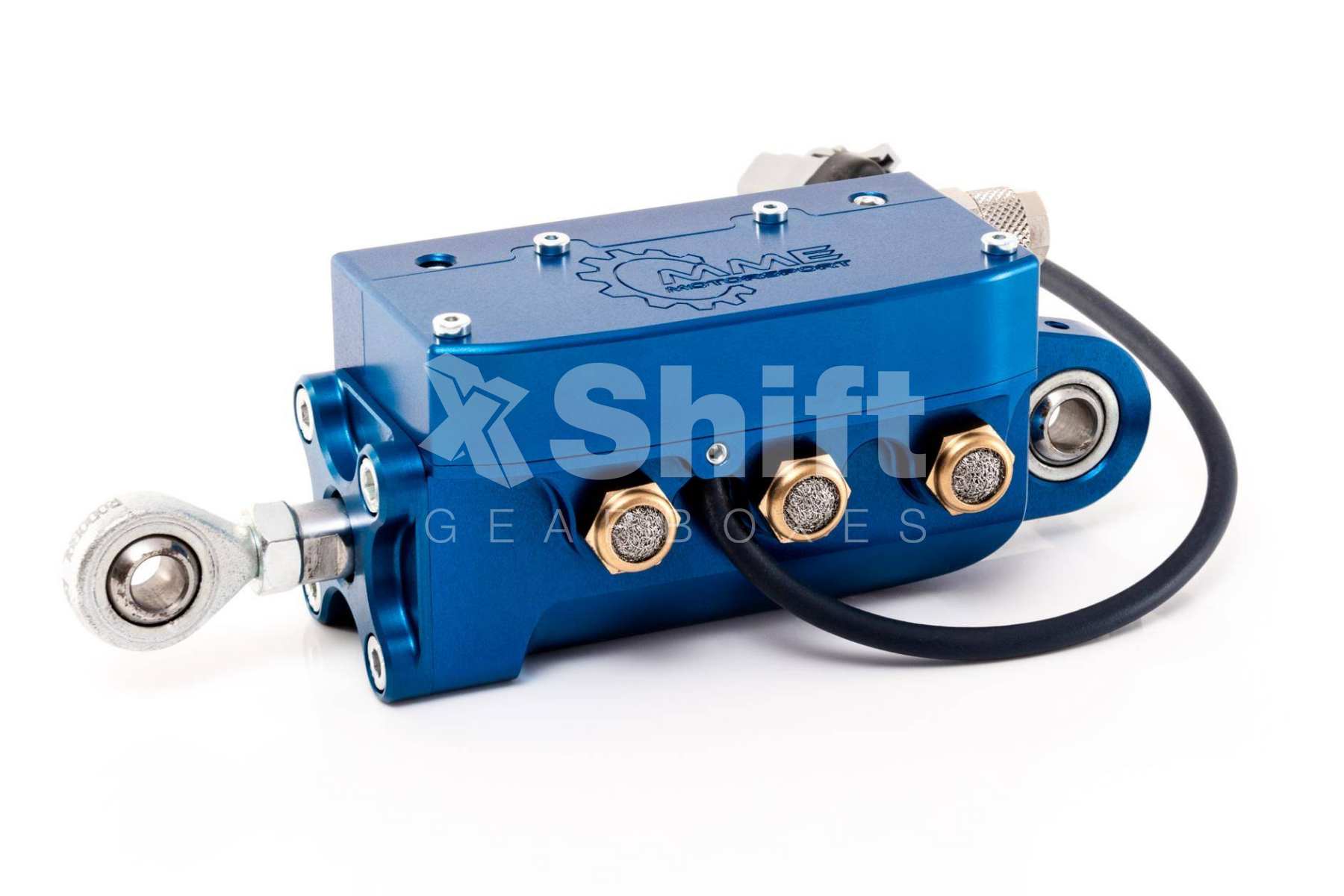

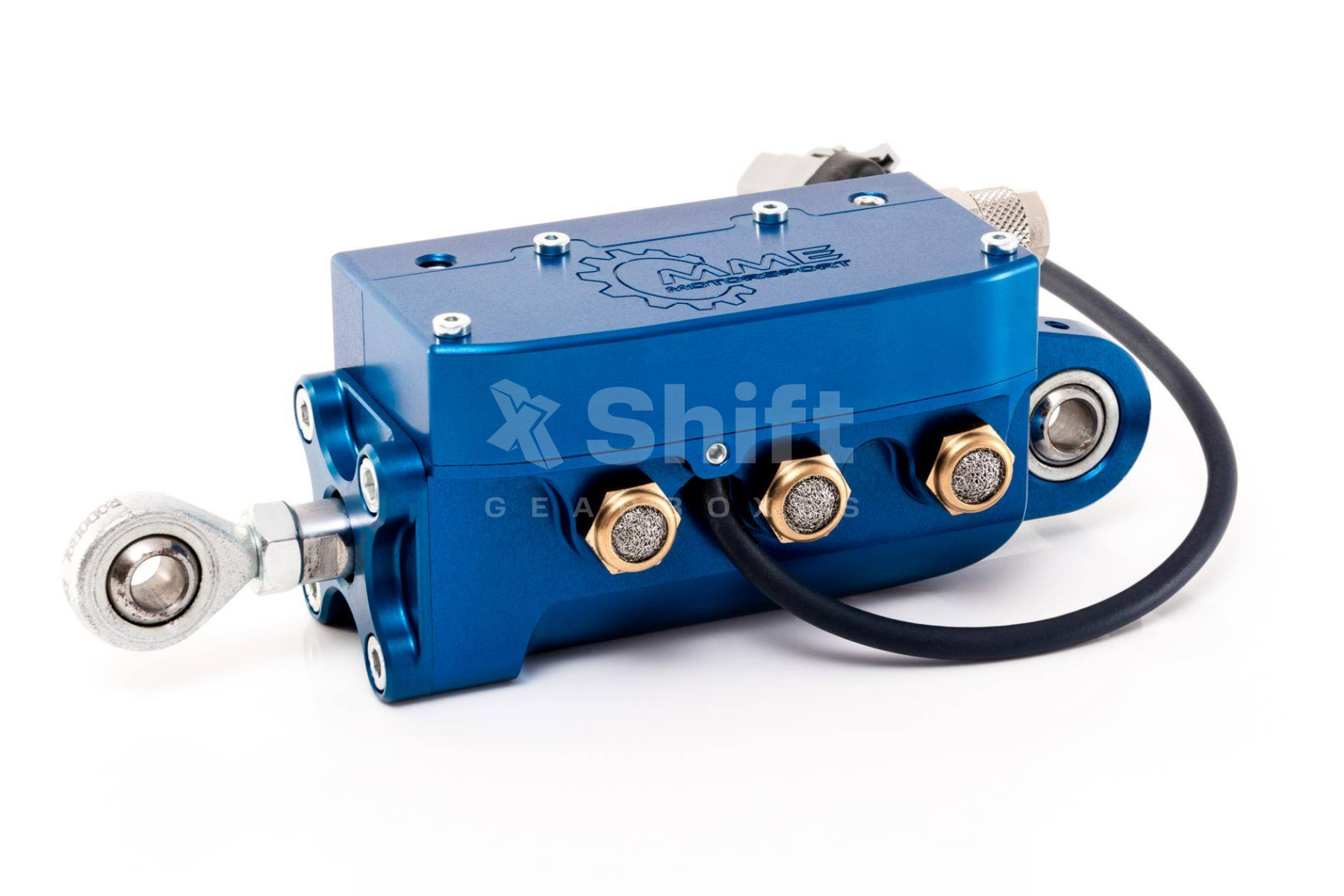

Actuator with integrated valves 32 x 50 mm or 40 x 50 mm

  • powered by Hypervelocity Valve – no need for additional valve block
  • adjustable stroke from 12 to 50 mm
  • IP68 rated
  • 32 mm version:
    • forces at 8 bars – 650 N push, 560 N pull force
    • +/- 25 mm stroke
  • 40 mm version:
    • forces at 8 bars –1005 N push, 920 N pull
    • +/- 25 mm stroke

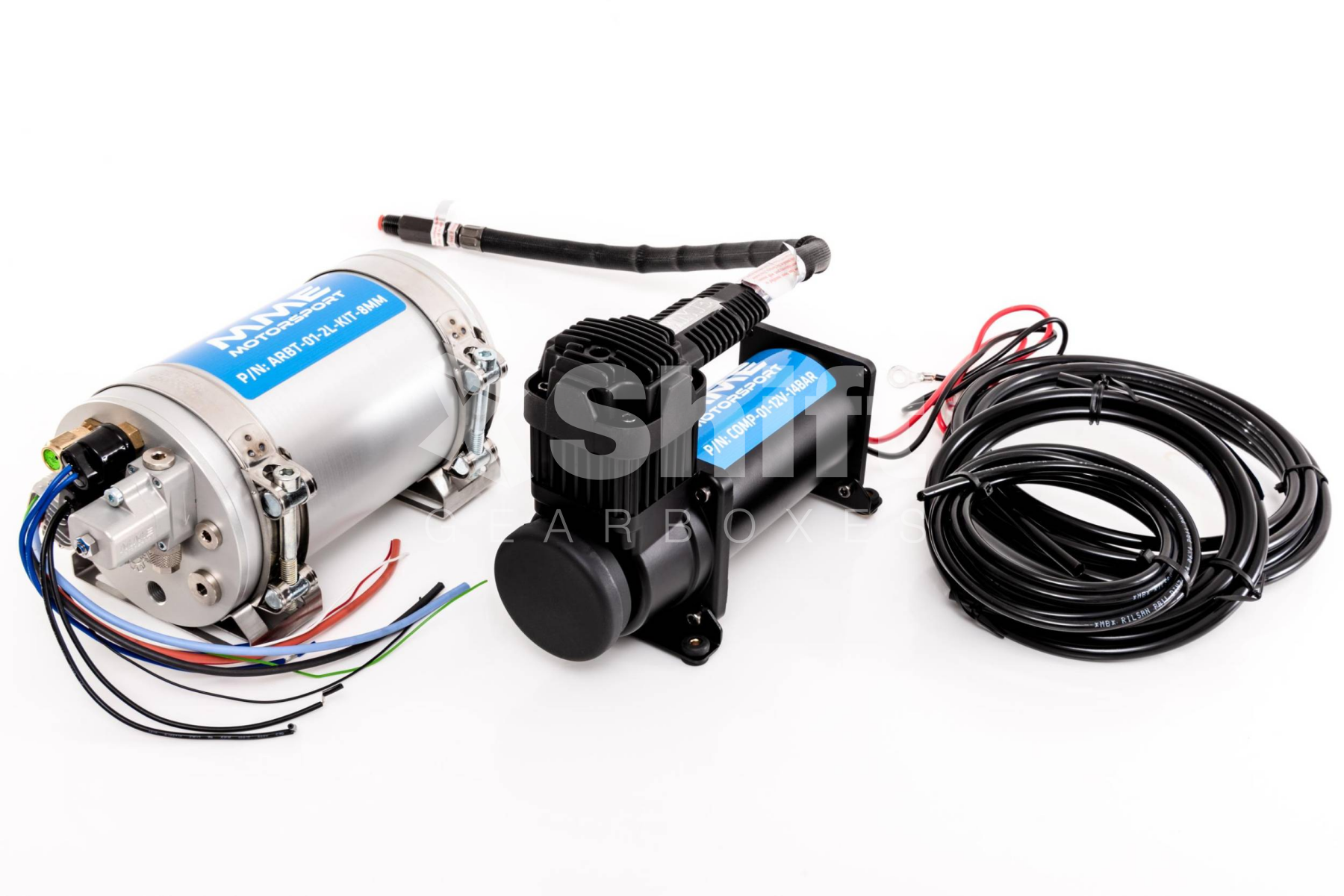

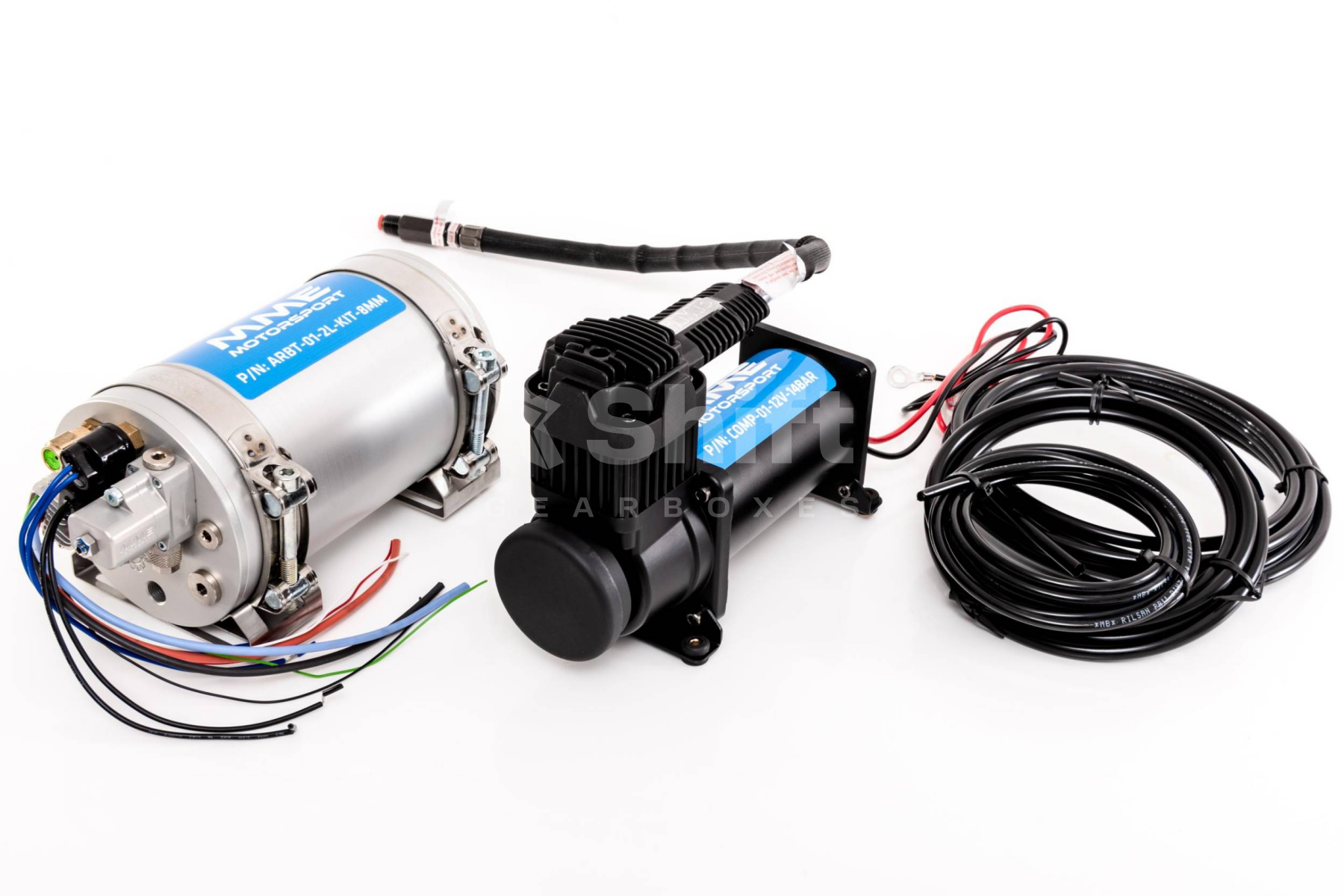

Air supply

Another key component in your paddle shift assembly is realiable air compressor kit, which provides constant air supply to the system.

  • compressor operates with 12V power supply
  • 2 l air bottle
  • overload safety valve
  • pressure regulator (1 - 8 bar)
  • Integrated solid state relay with pressure sensor
  • max pressure 14 bar
  • weight and dimensions: 3900g, 100x210x180 mm (WxLxH)
Other components

                                                                               There is a lot more options how you can elevate your shifting performance to another level.

Compressor air filter
  • replace regular plastic air filter with upgraded aluminium air filter to reduce noise up to 40 % with the same air flow
Air reservoir rollbar mount
  • for mounting air bottle to the rollbar with diameter 35 or 40 mm

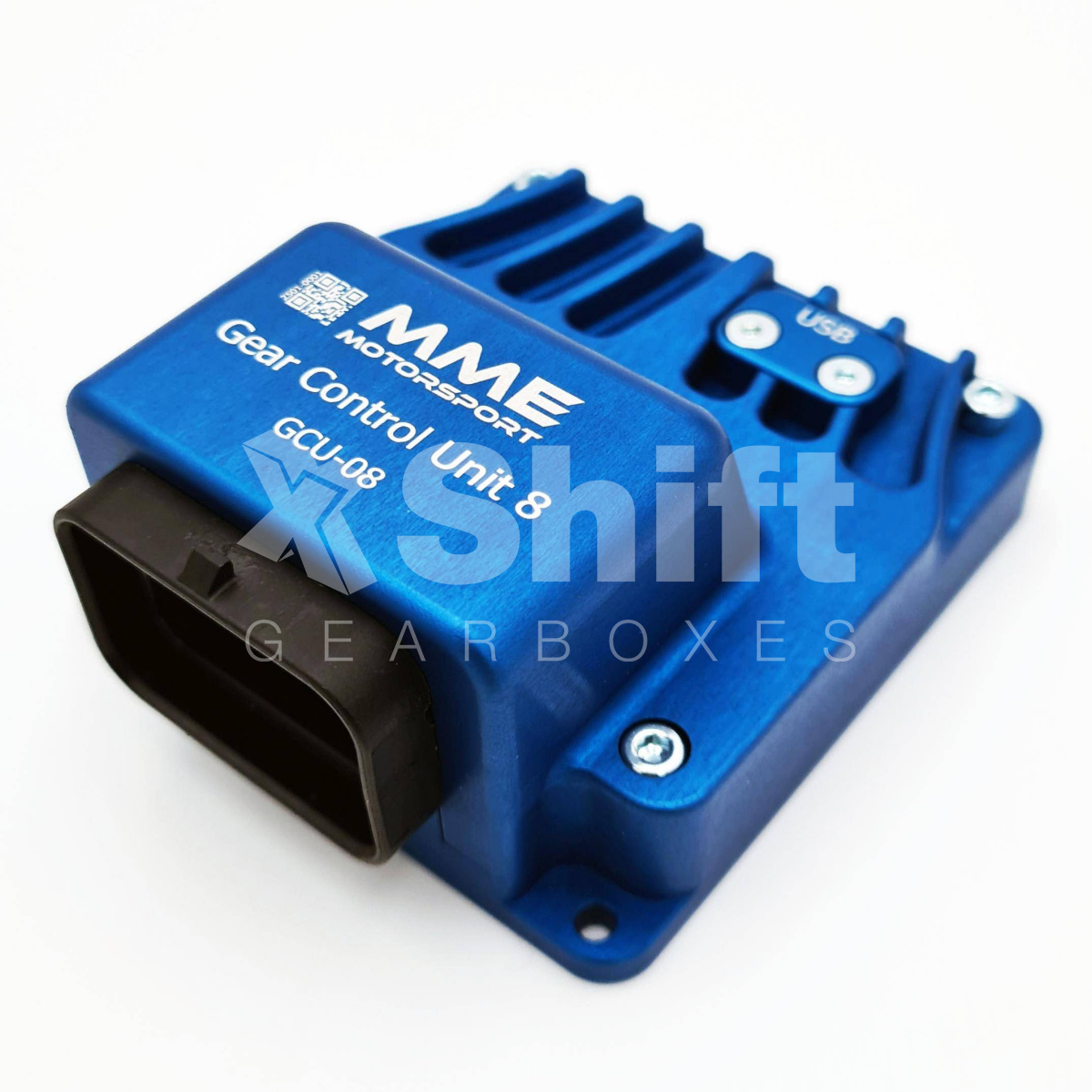

External GCU
  • if your ECU is not capable of controlling the paddle shit system, you need to add external gear control unit
  • drive by wire support
  • configurable via USB
  • upgradable firmware
Downshift throttle blip kit
  • throttle blip is neccessary to achieve smooth clutchless downshifts

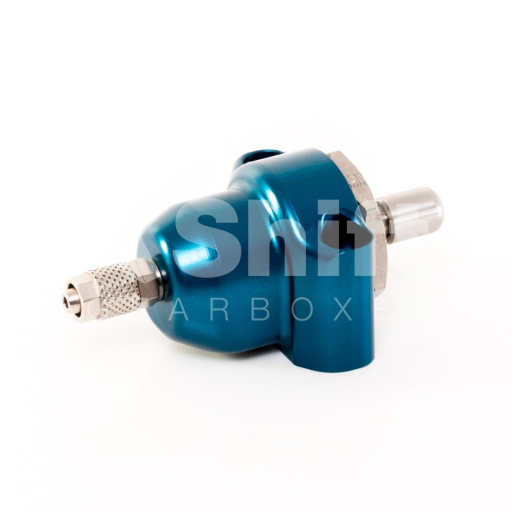

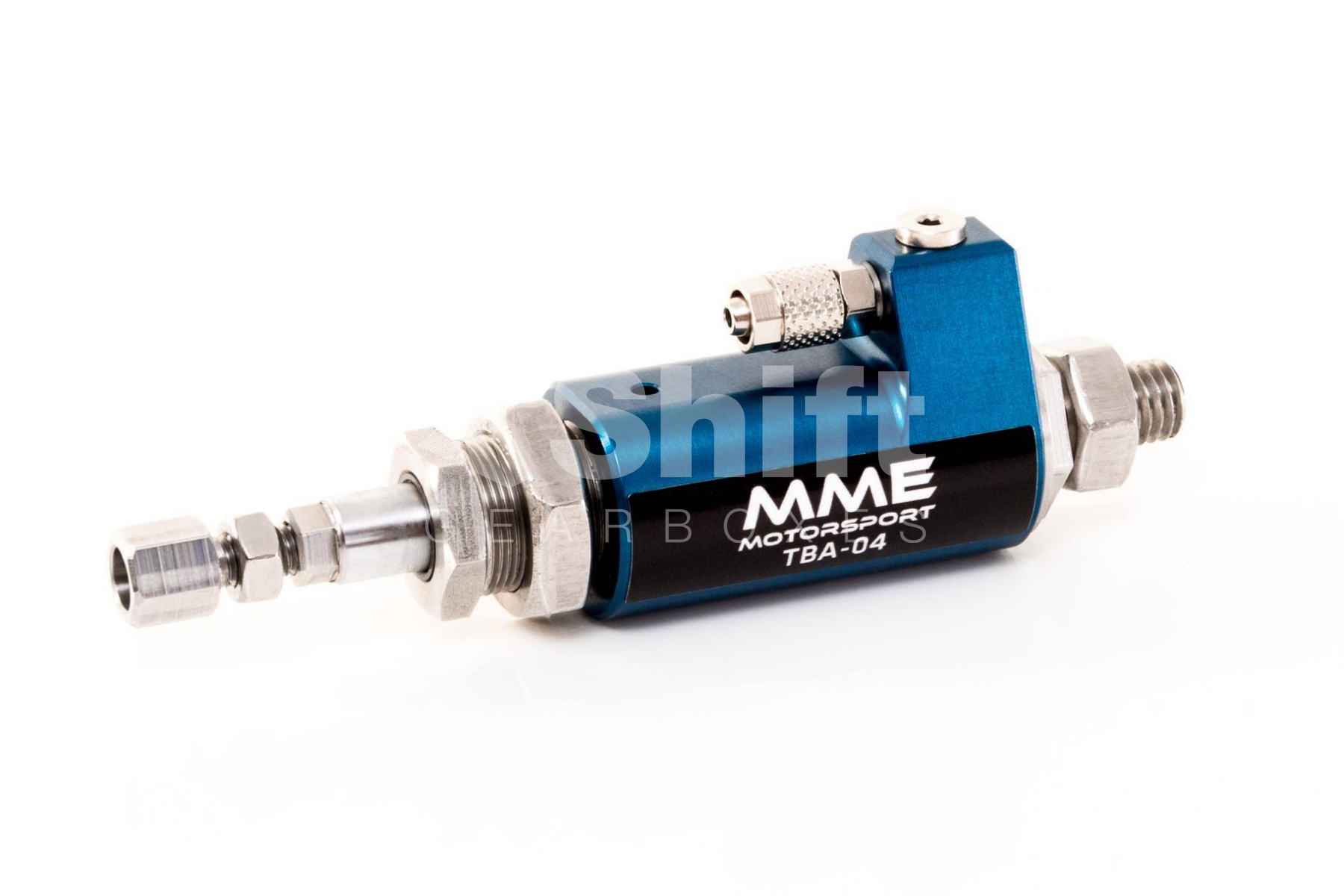

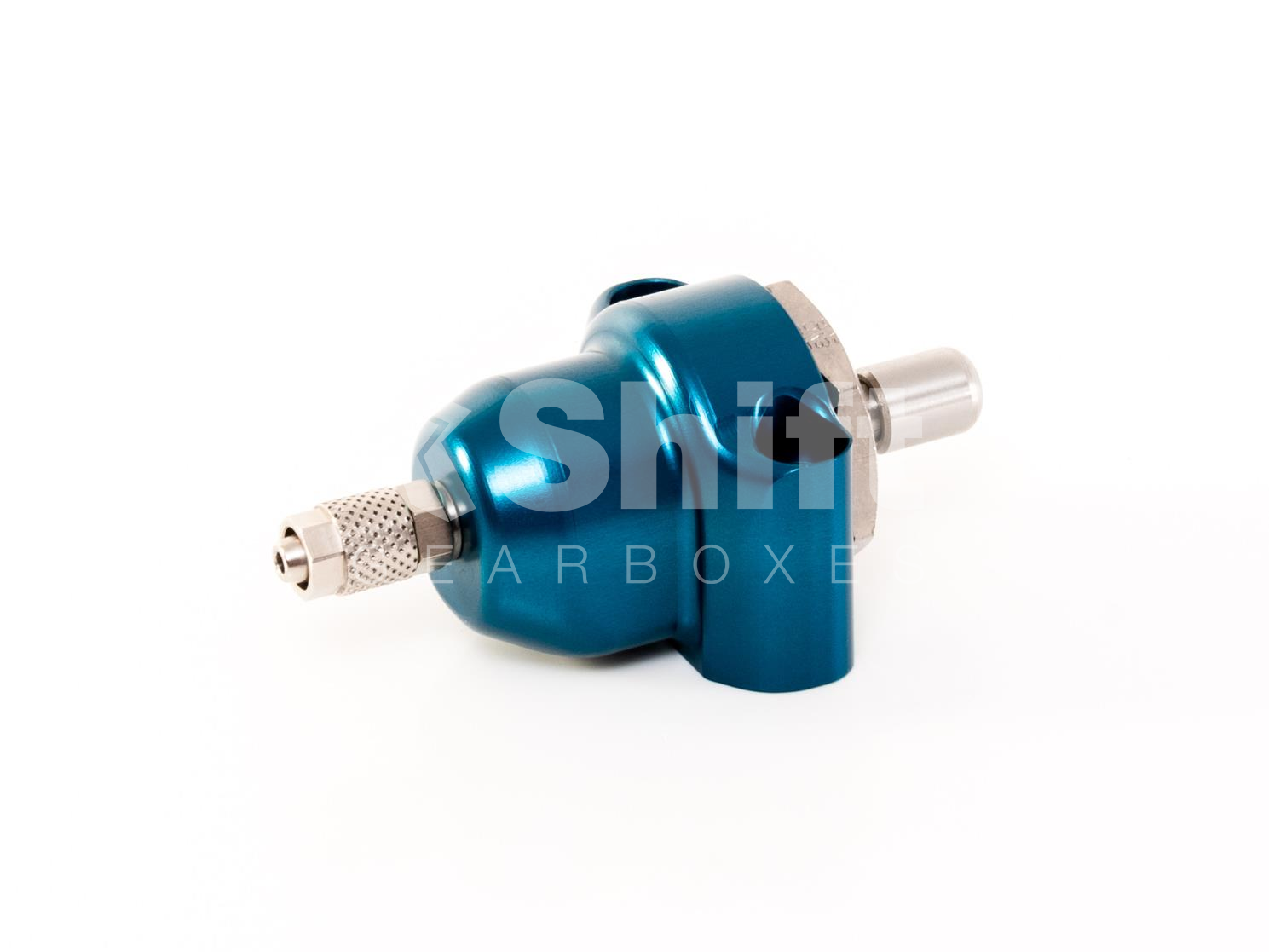

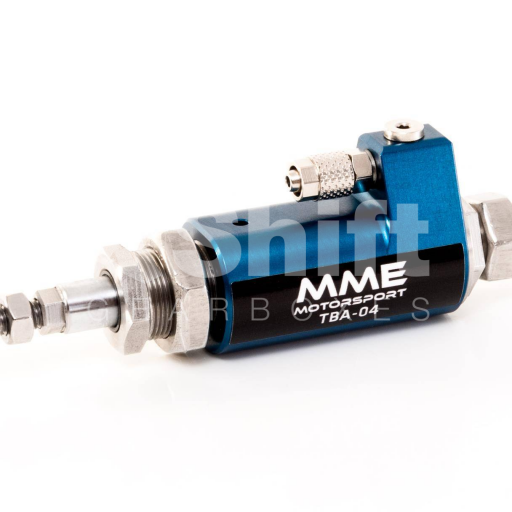

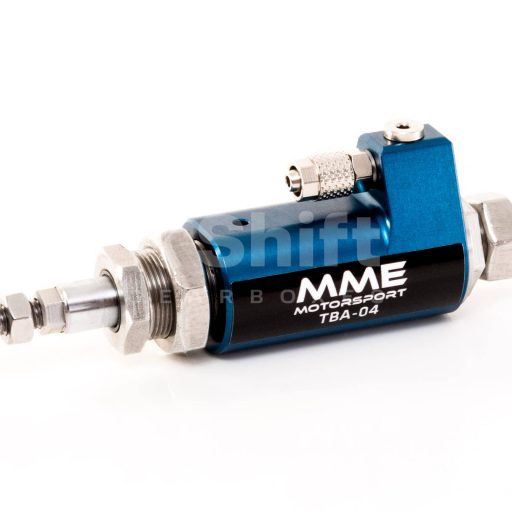

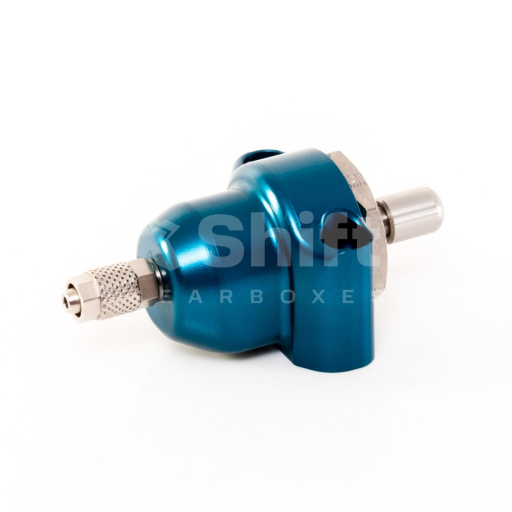

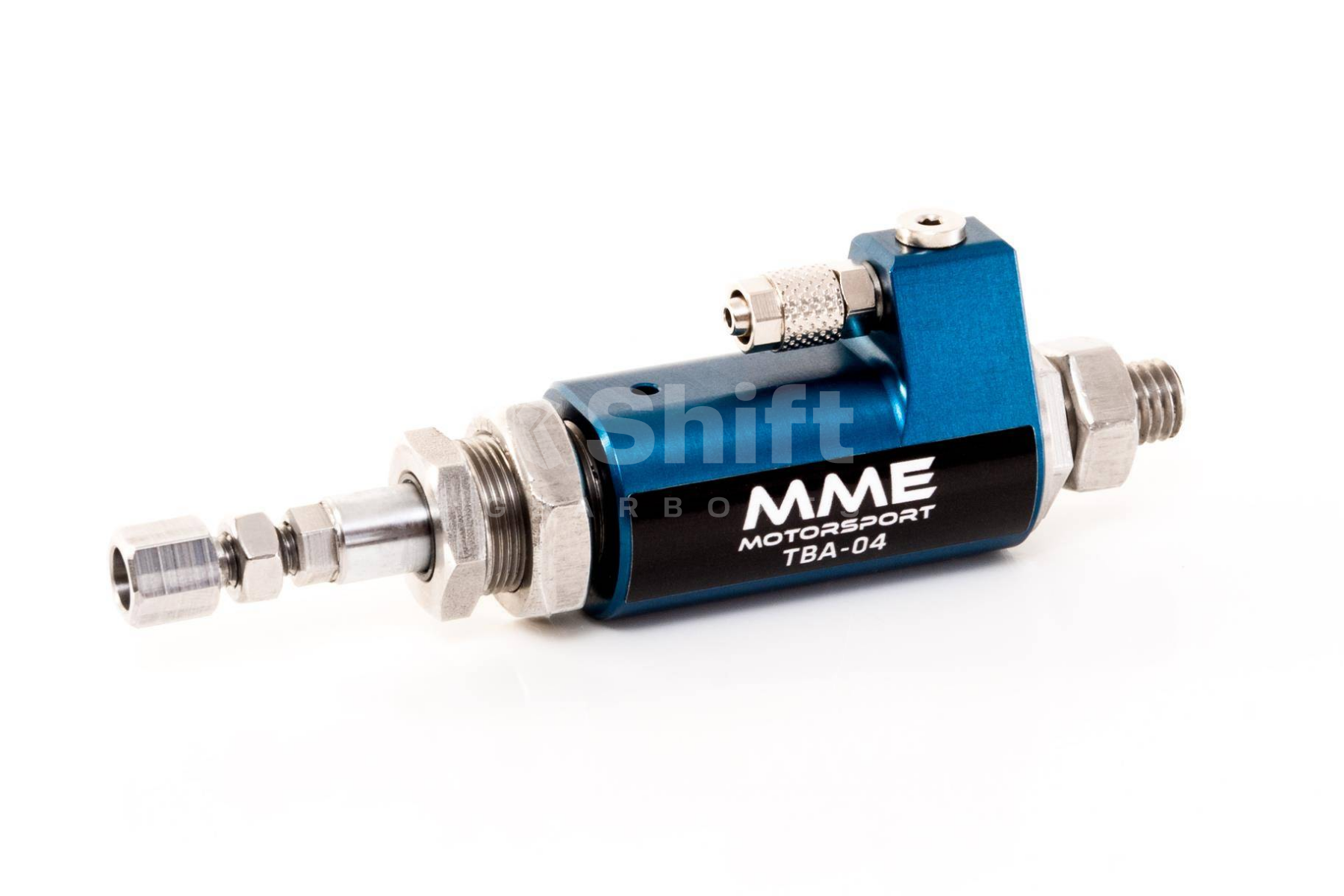

  • for cable throttle there are 2 options – inline pull or push actuator, which both need an external valve
  • for electronic throttle your ECU/GCU needs to support drive by wire throtle blip

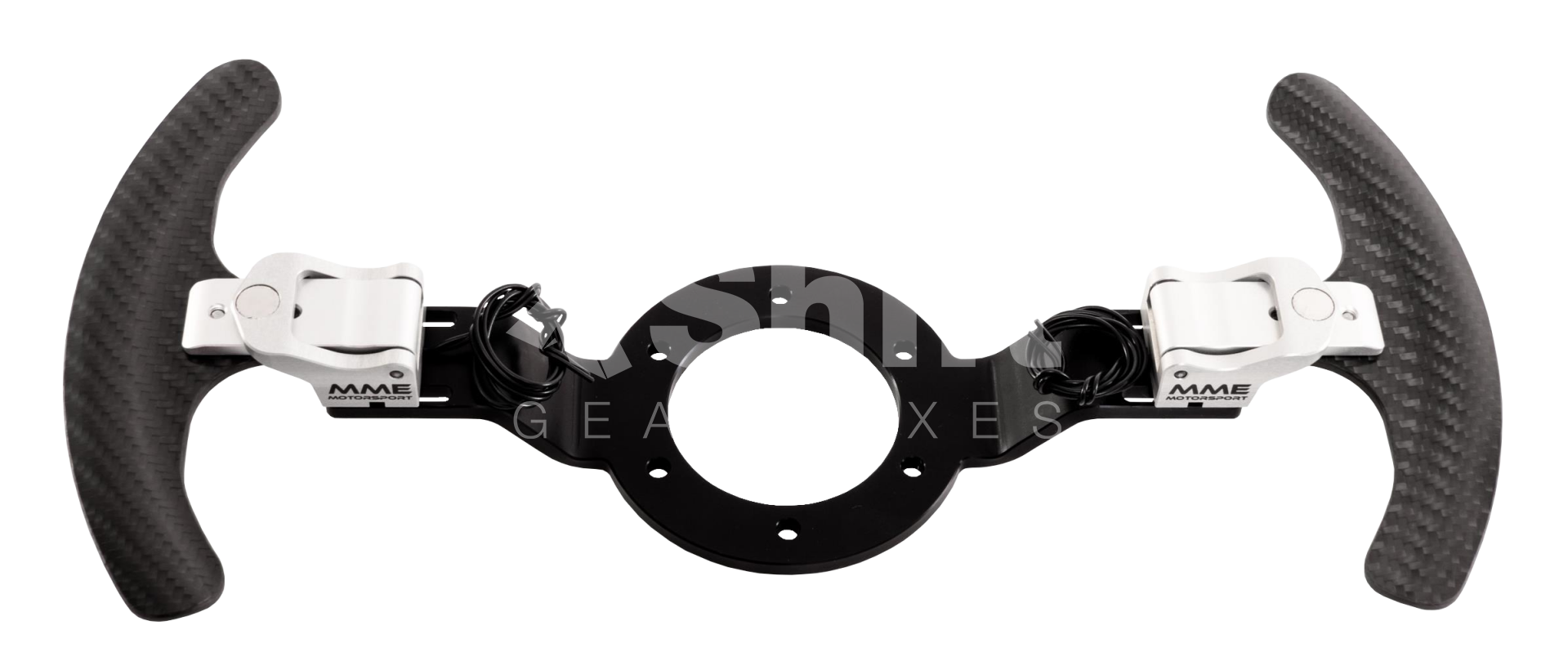

Steering wheel
  • paddle shift kit is suitable for multiple types of steering wheels including various diameters and shapes

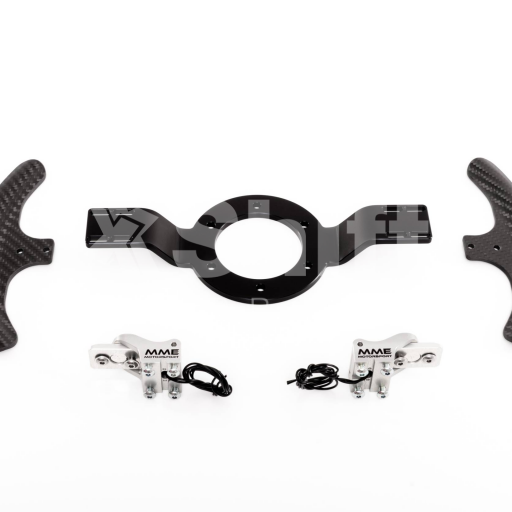

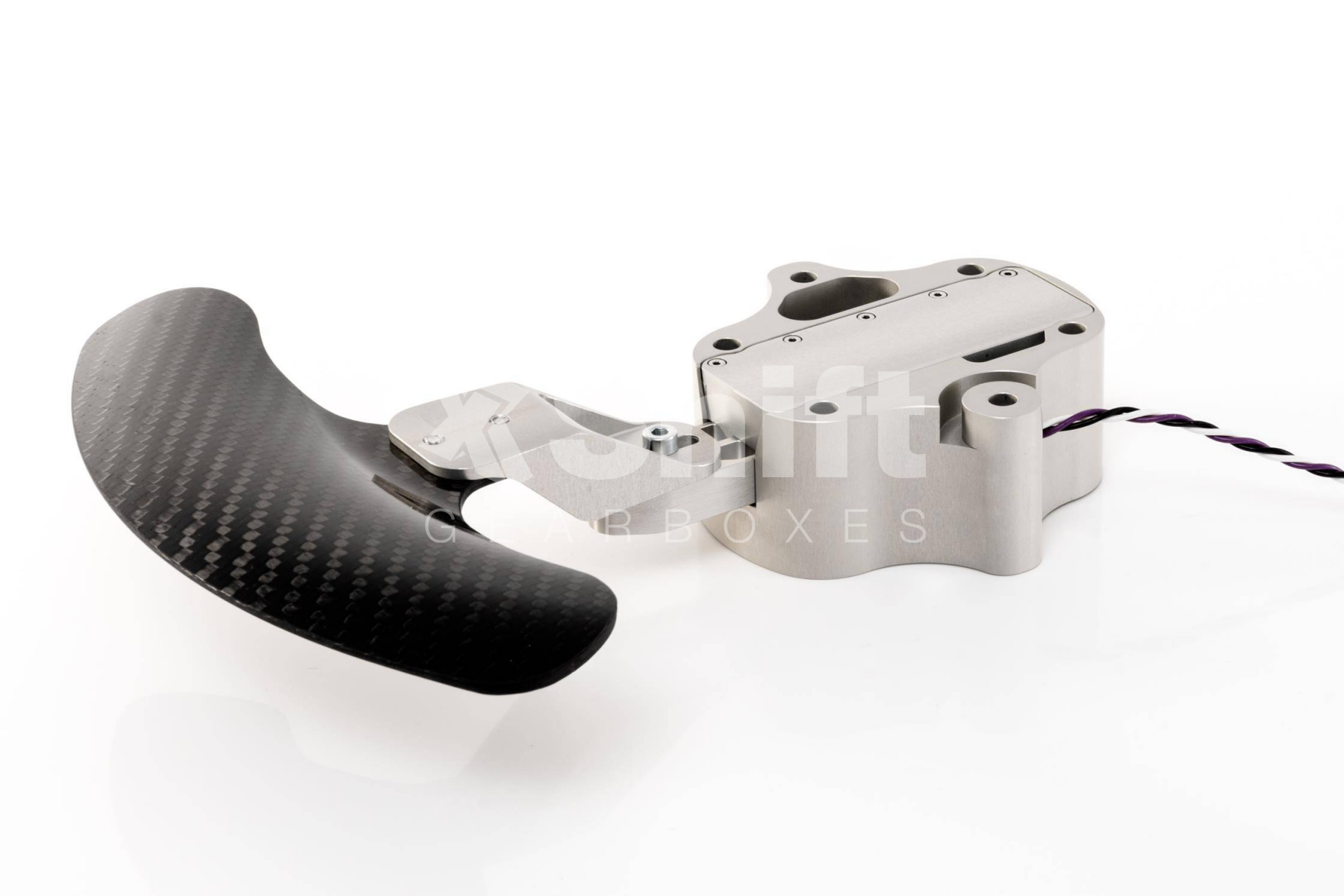

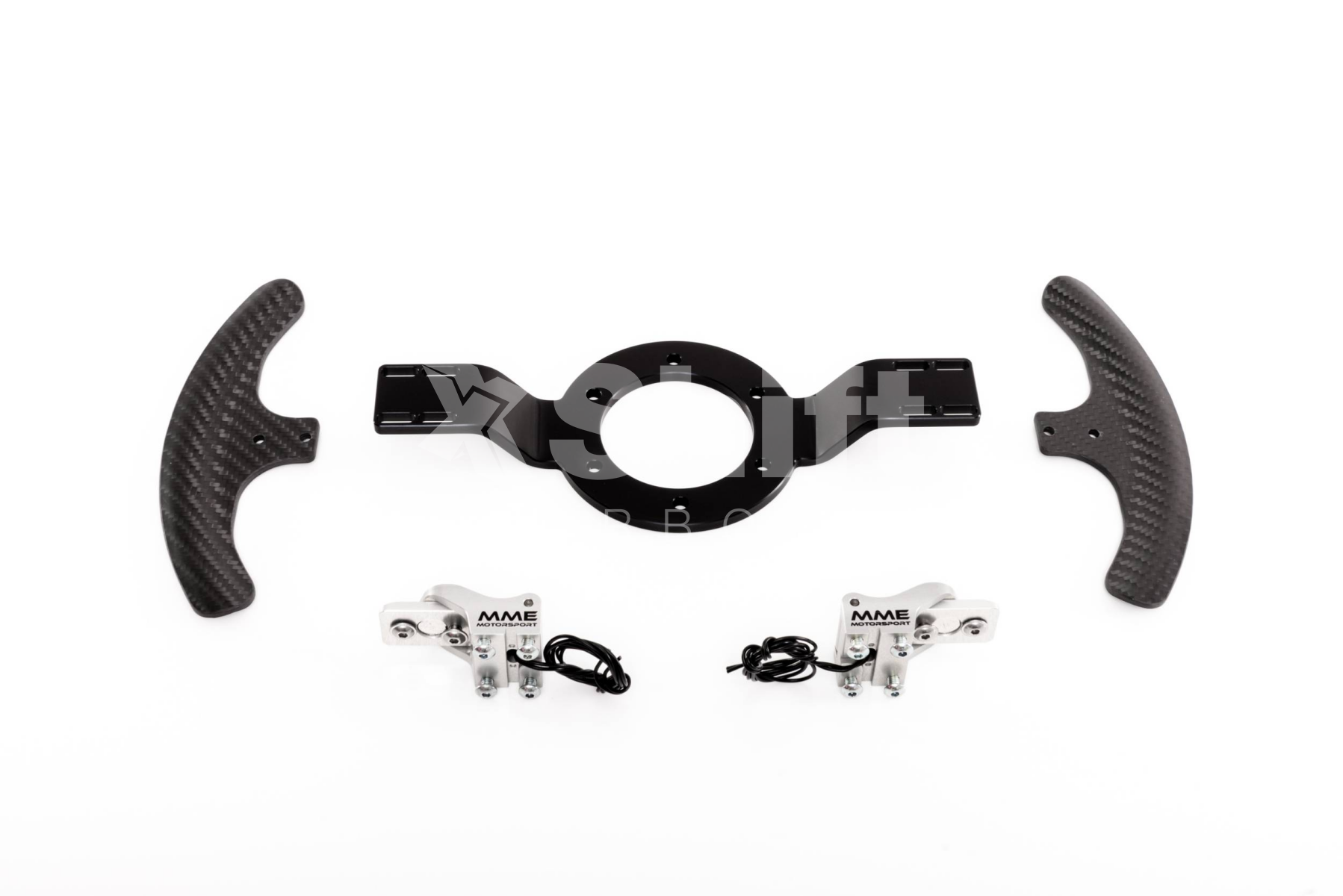

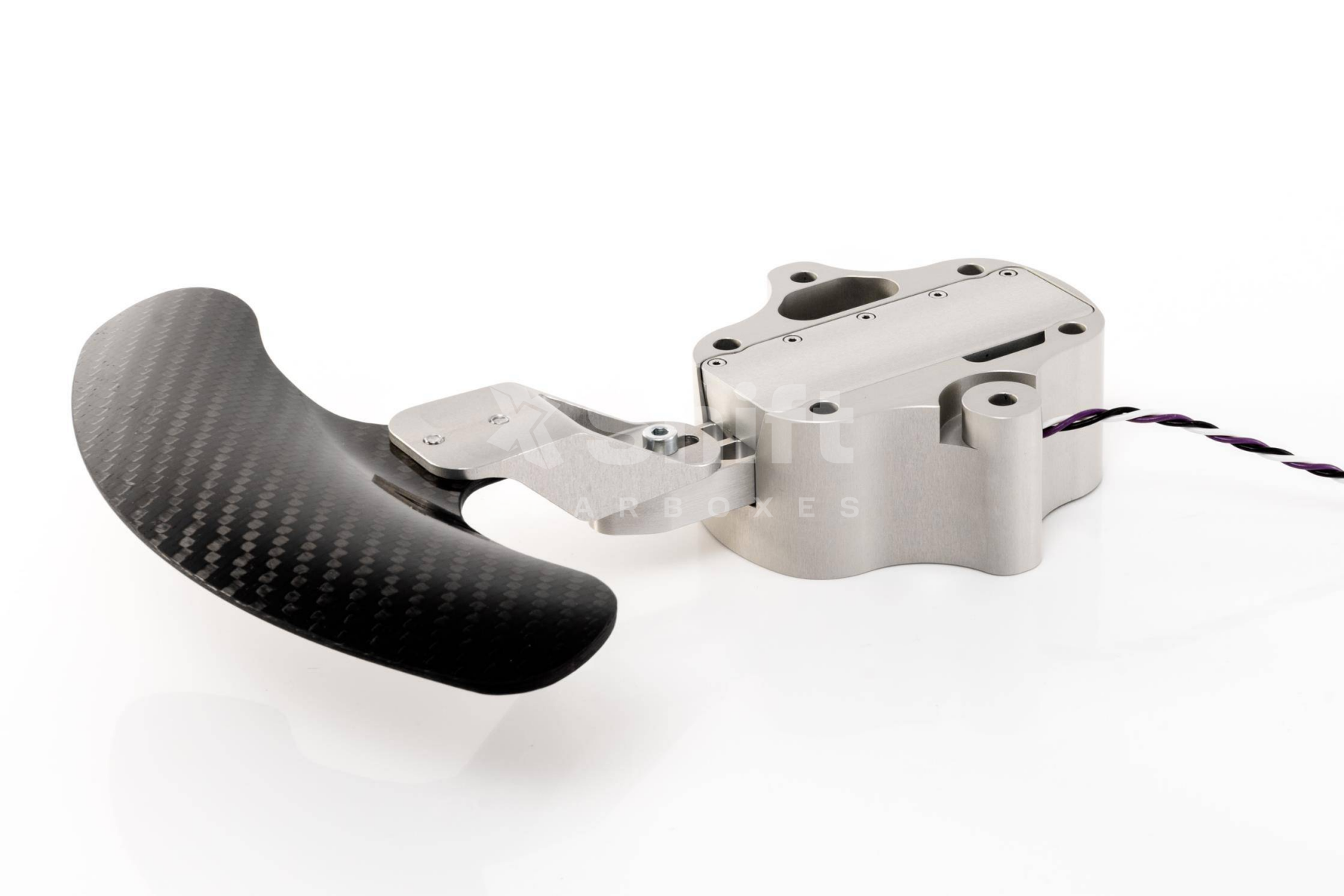

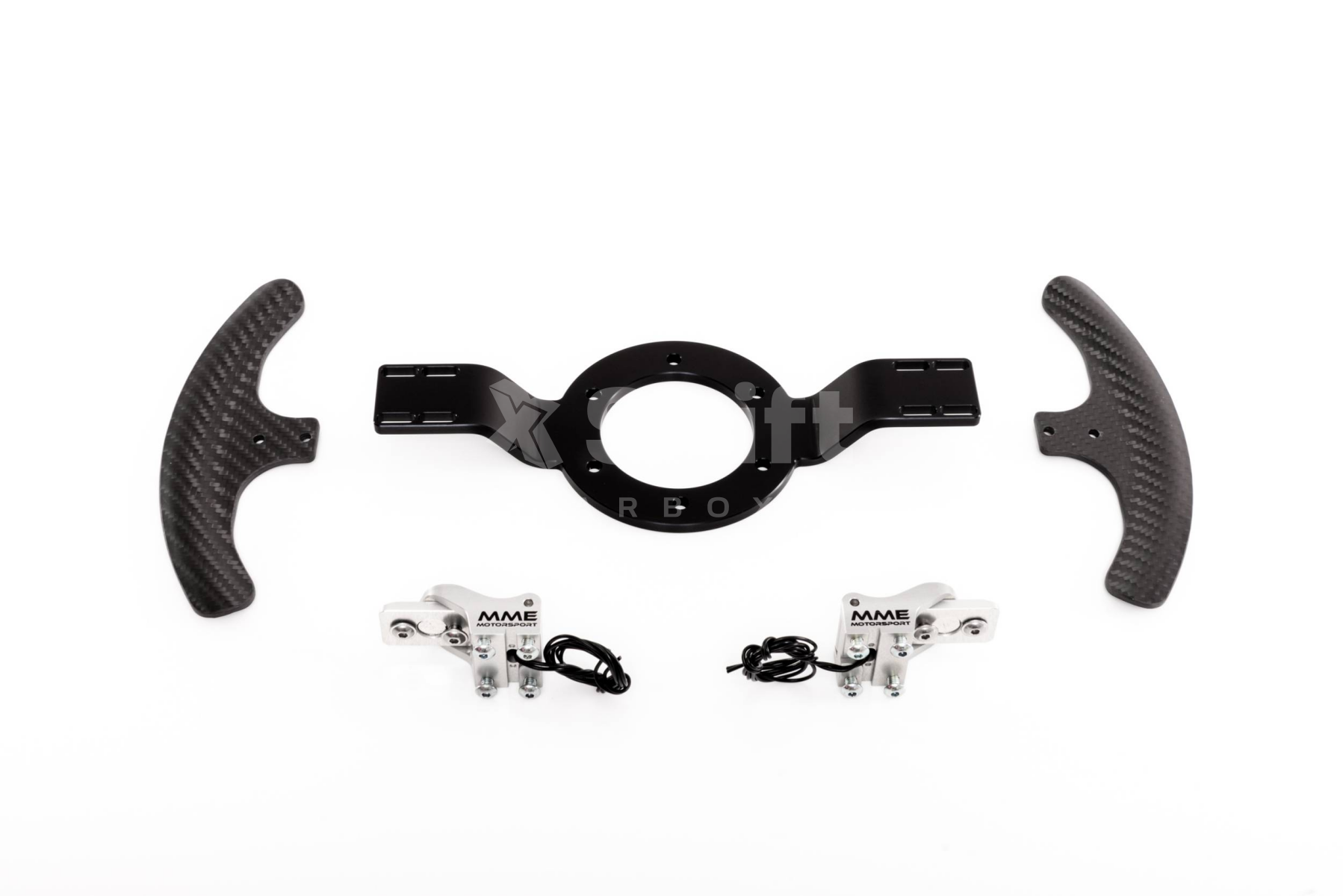

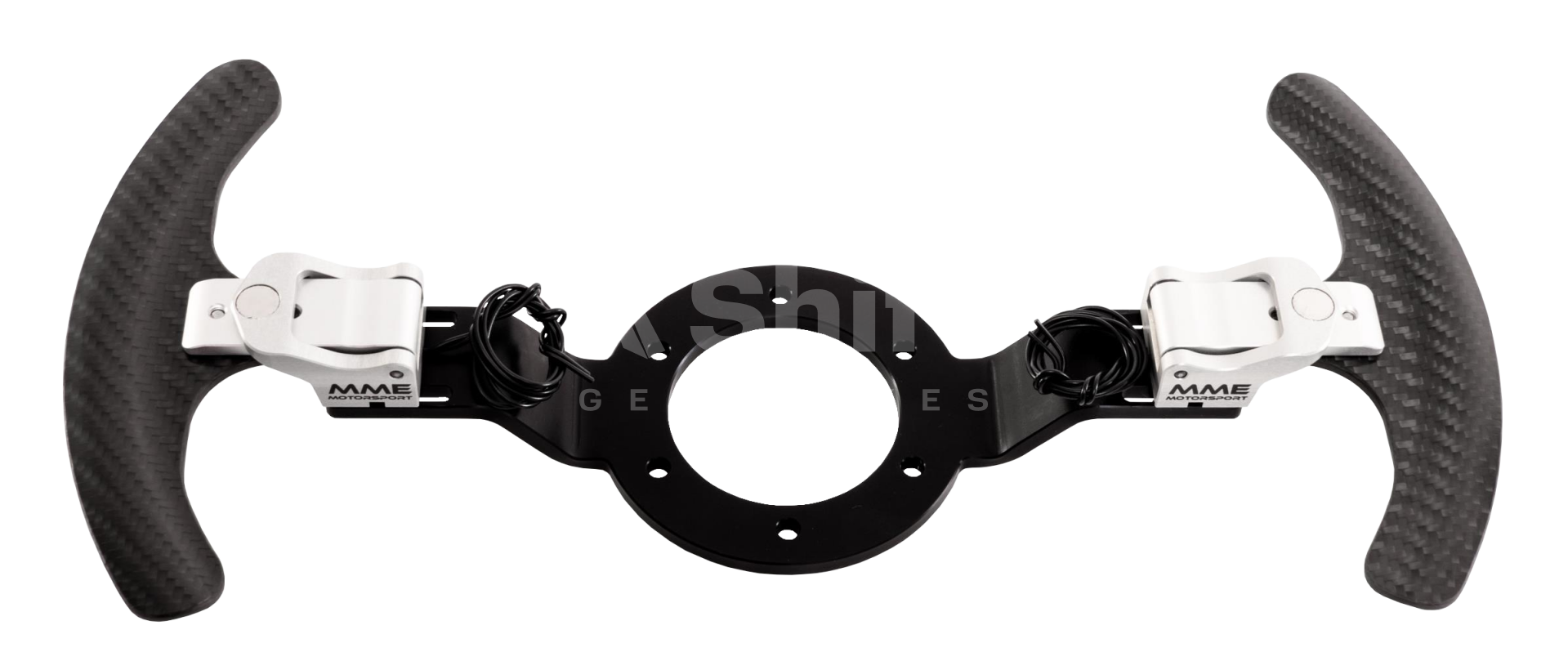

Paddles

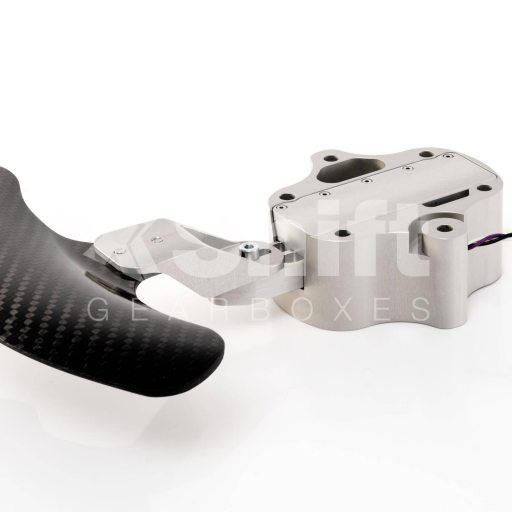

  • you can choose large or small paddles on both sides of steering wheel or single WRC paddle (push/pull)
  • magnetically assisted
  • optional spiral cord
Neutral interlock button
  • this button serves to prevent the driver from unintentional shift to wrong gear (e.g. from gear 1 to neutral), which protects the engine from over revving
Fittings
  • possibility to upgrade standard fittings 6 or 8 mm to AN-4 for all products
Product configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
