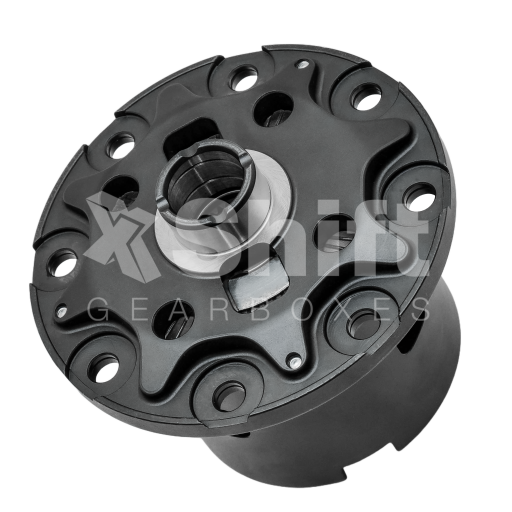

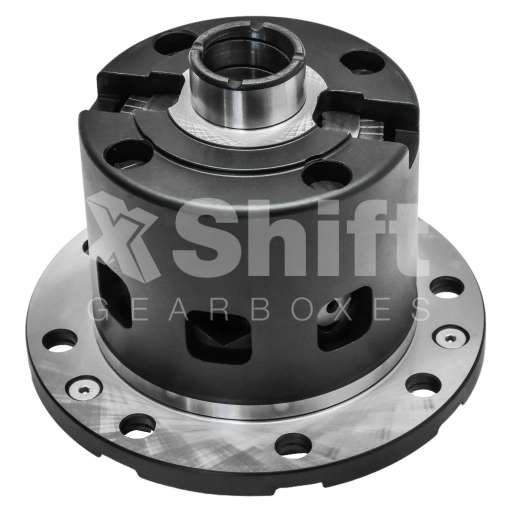

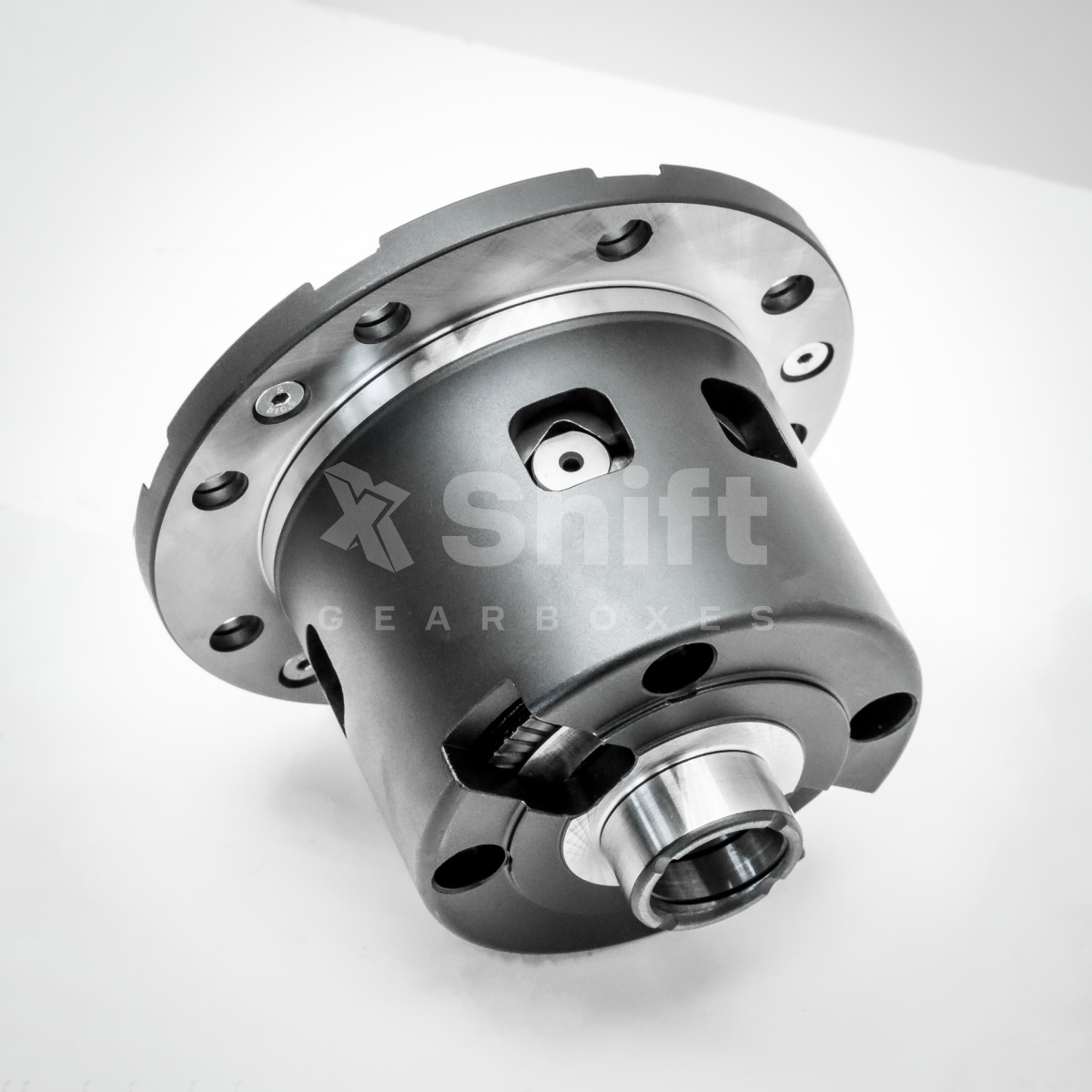

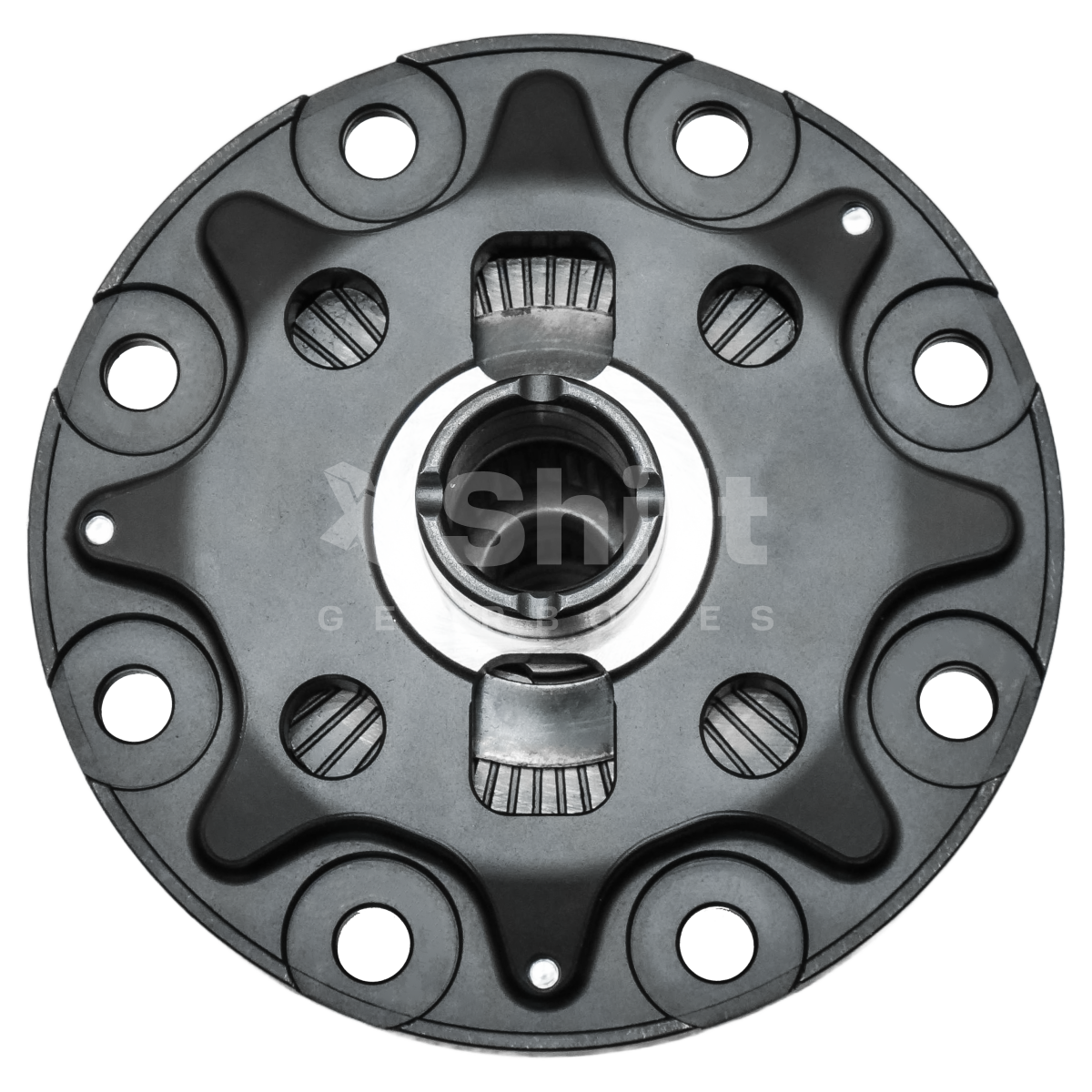

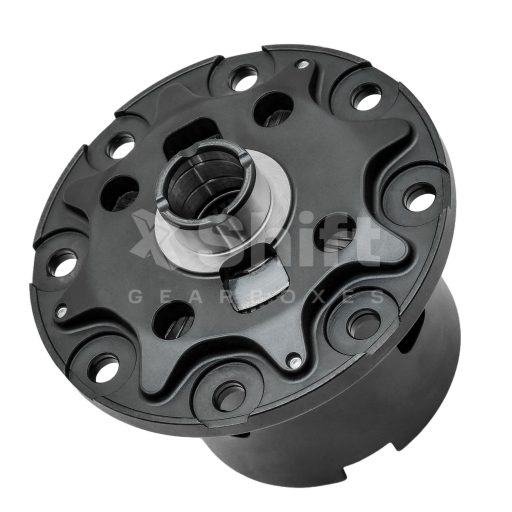

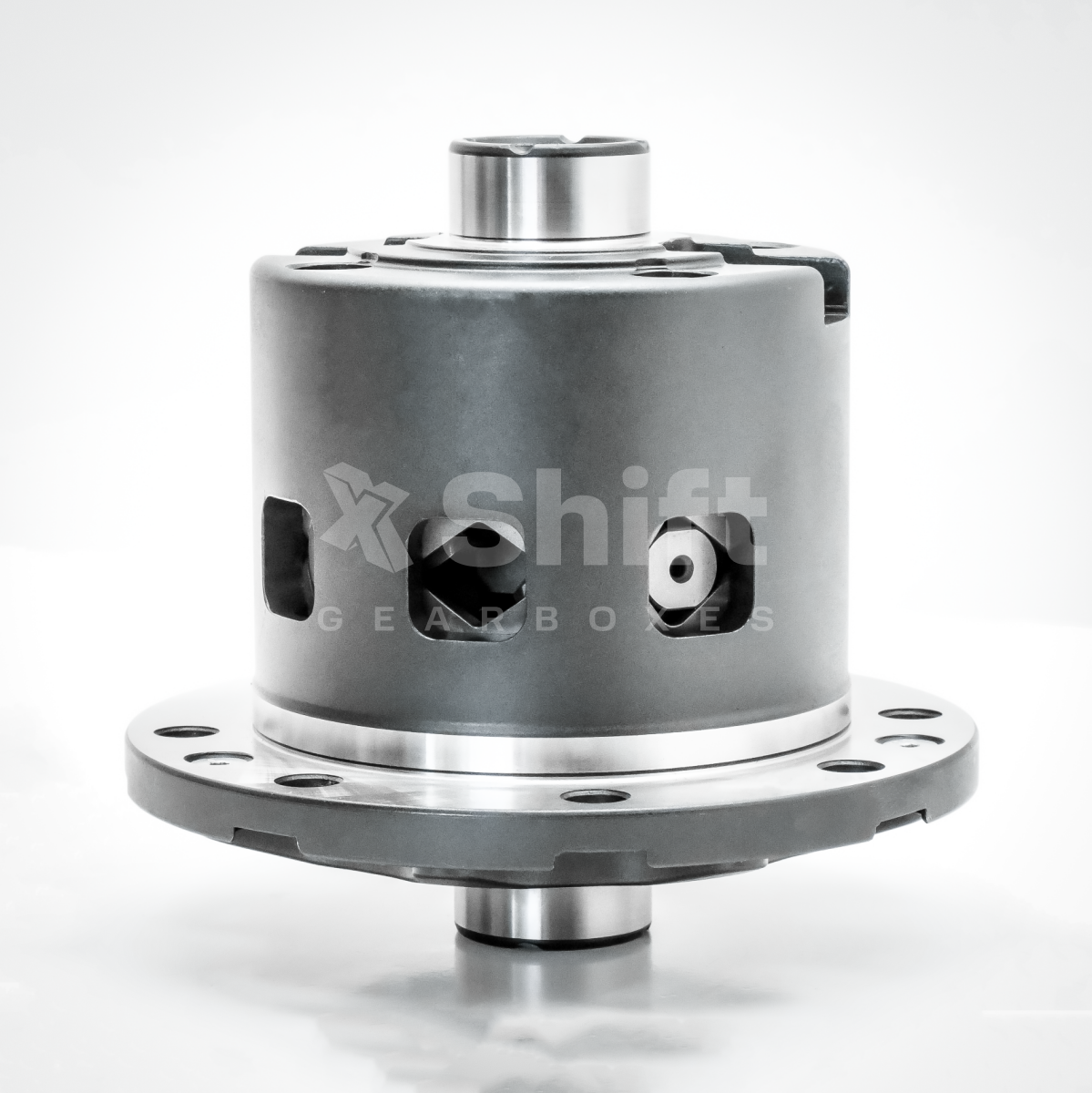

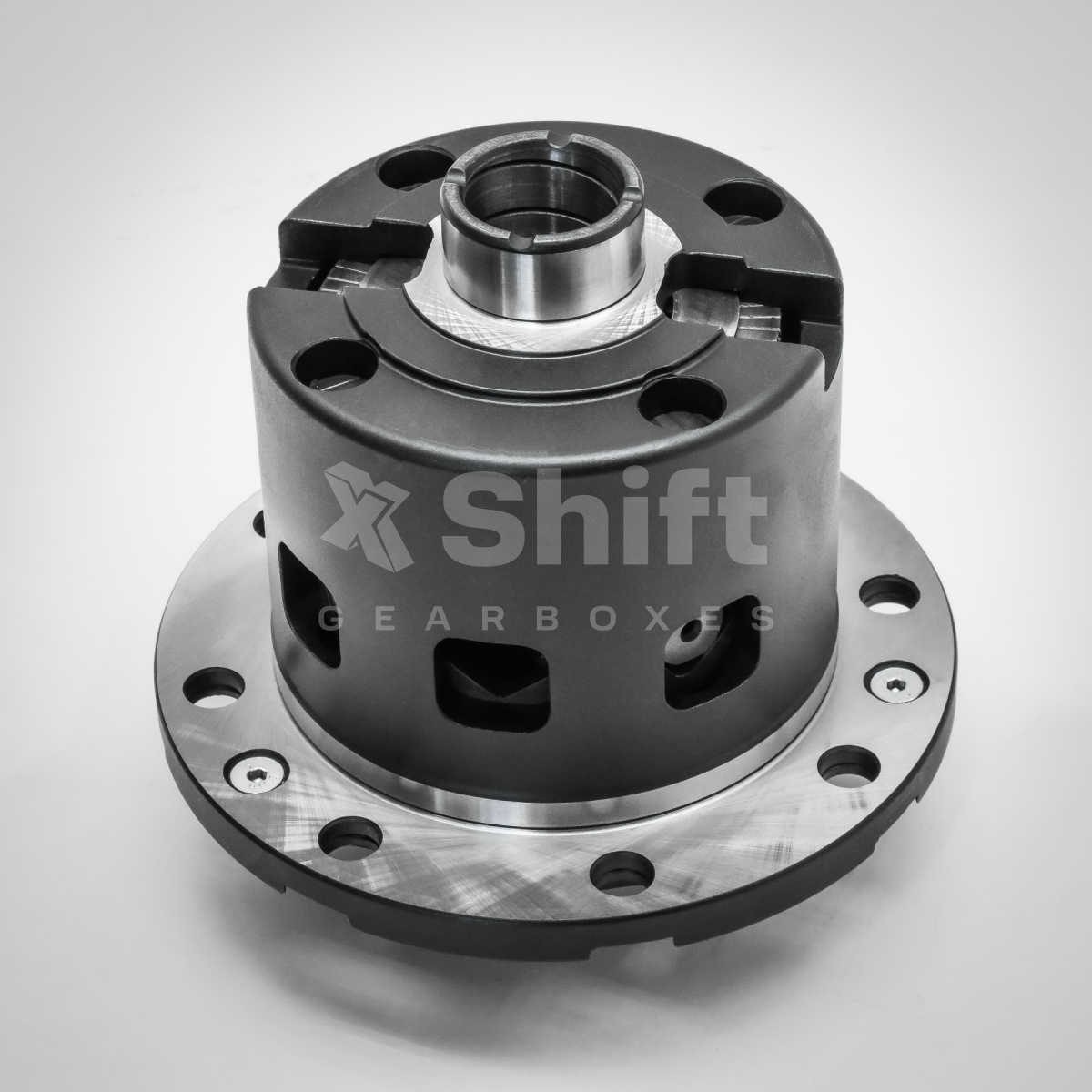

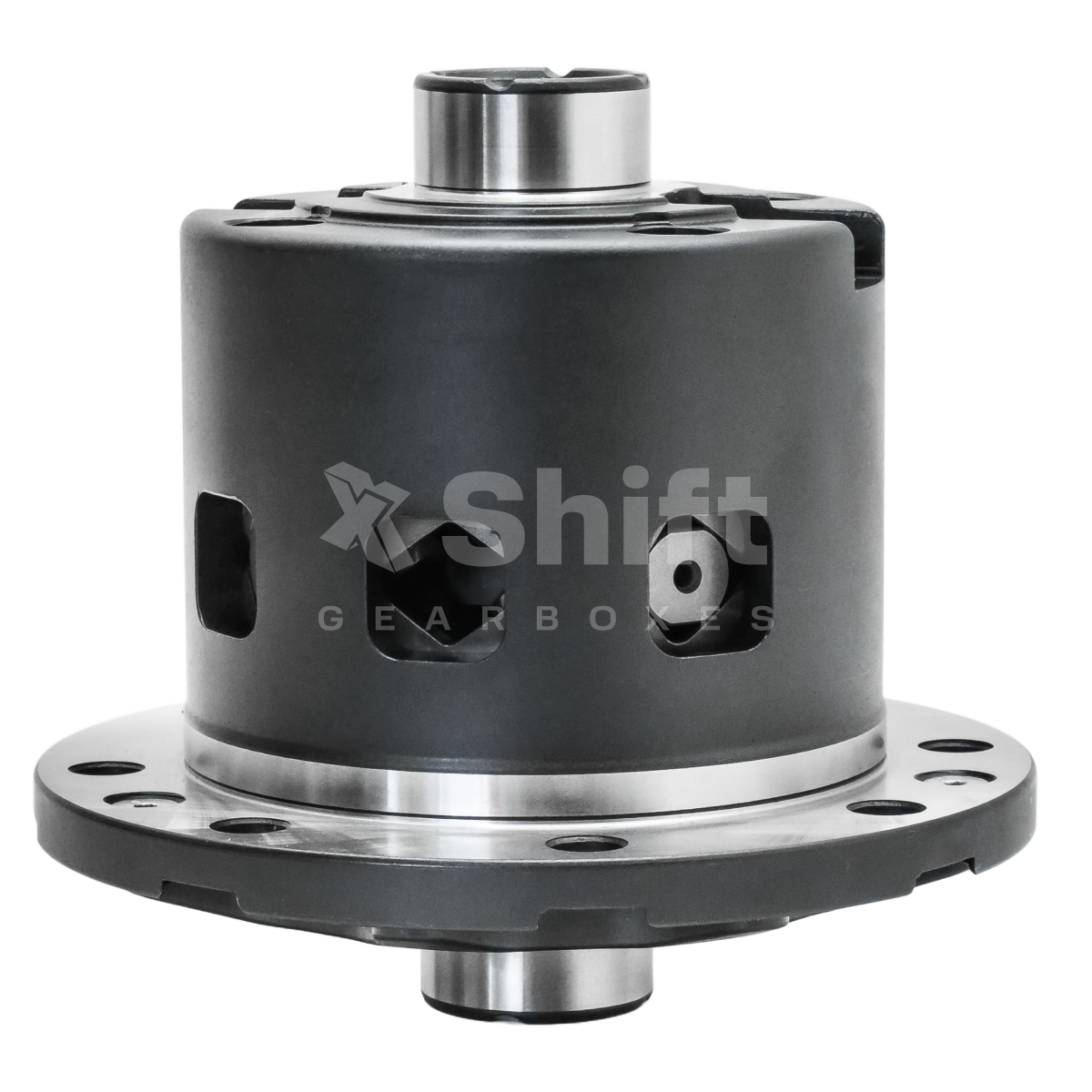

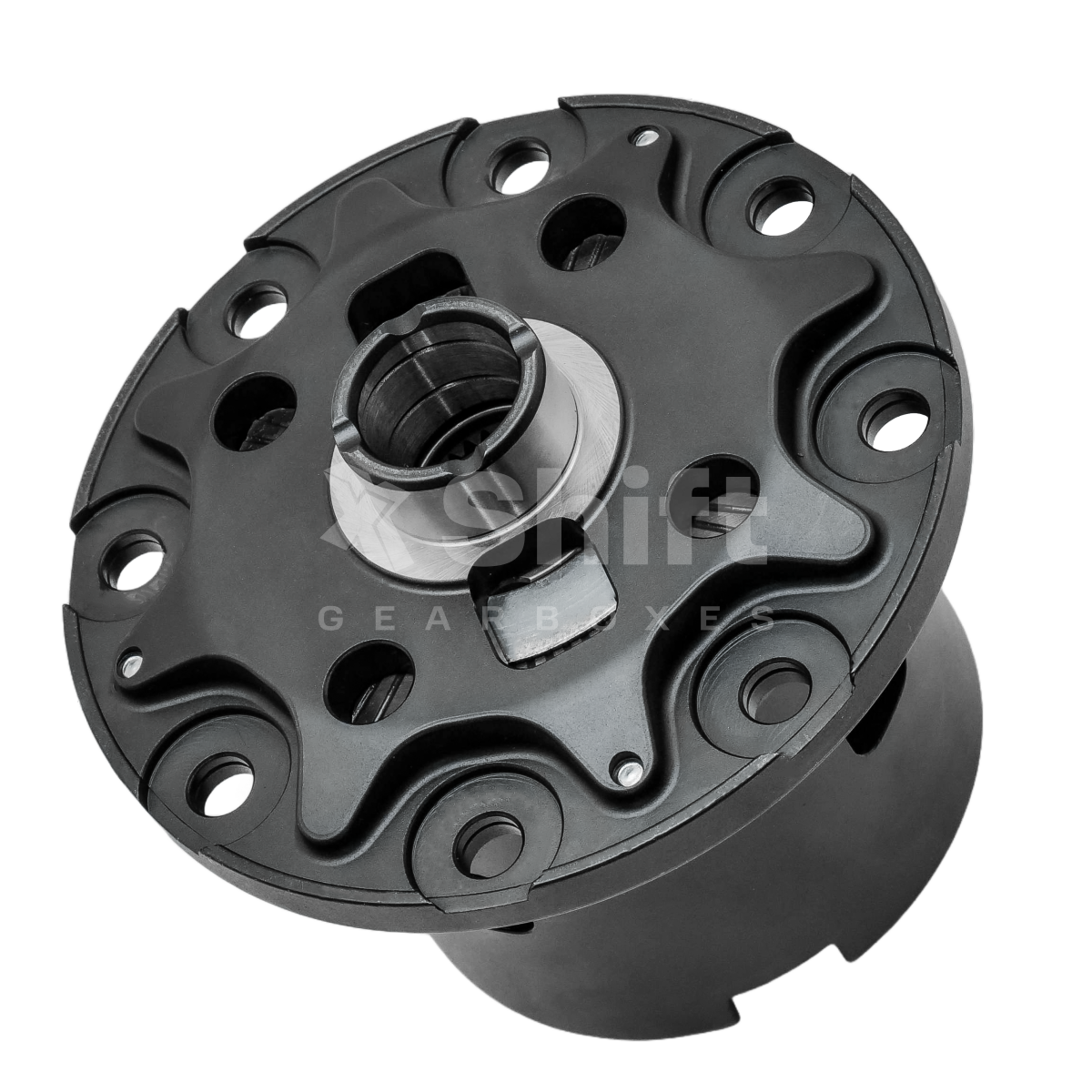

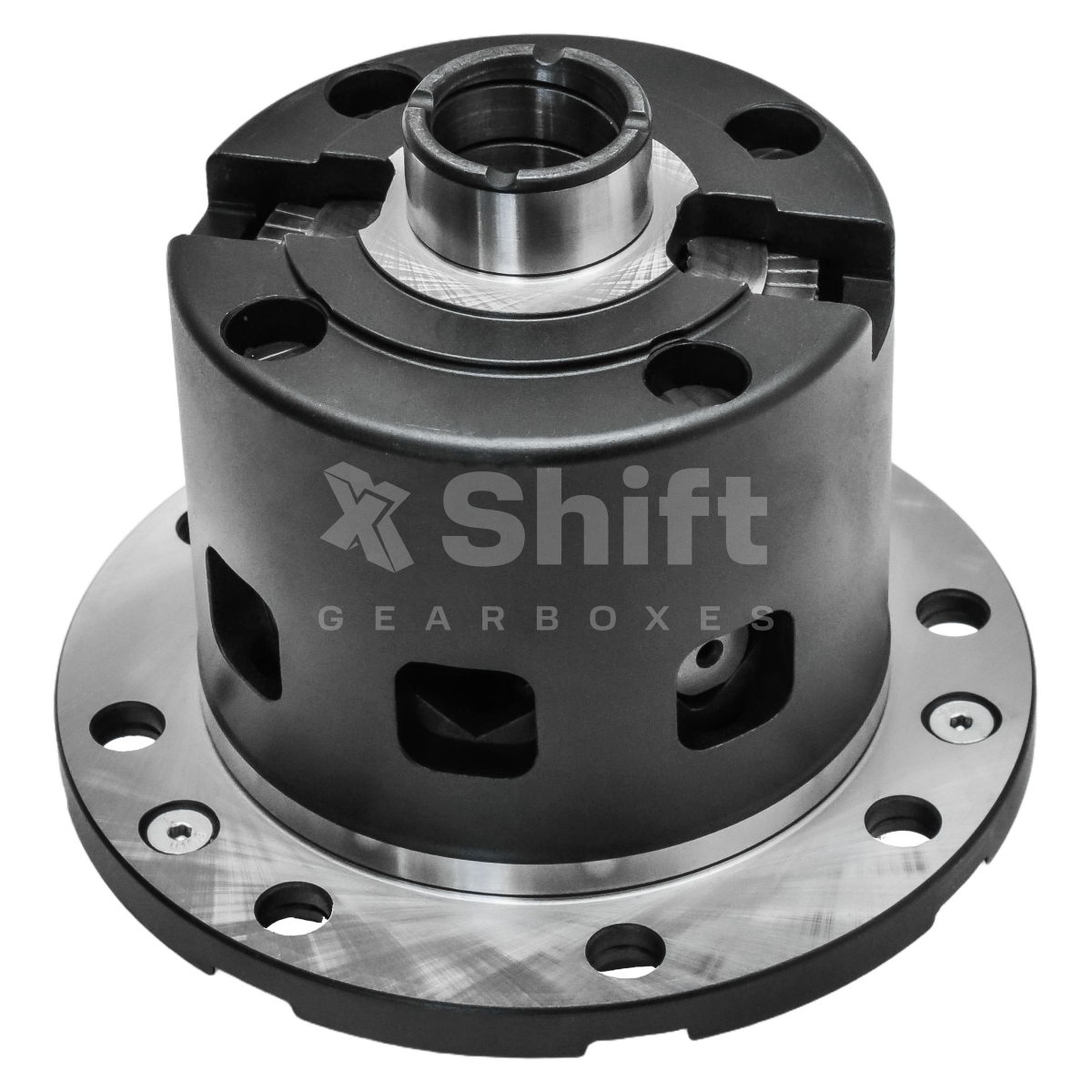

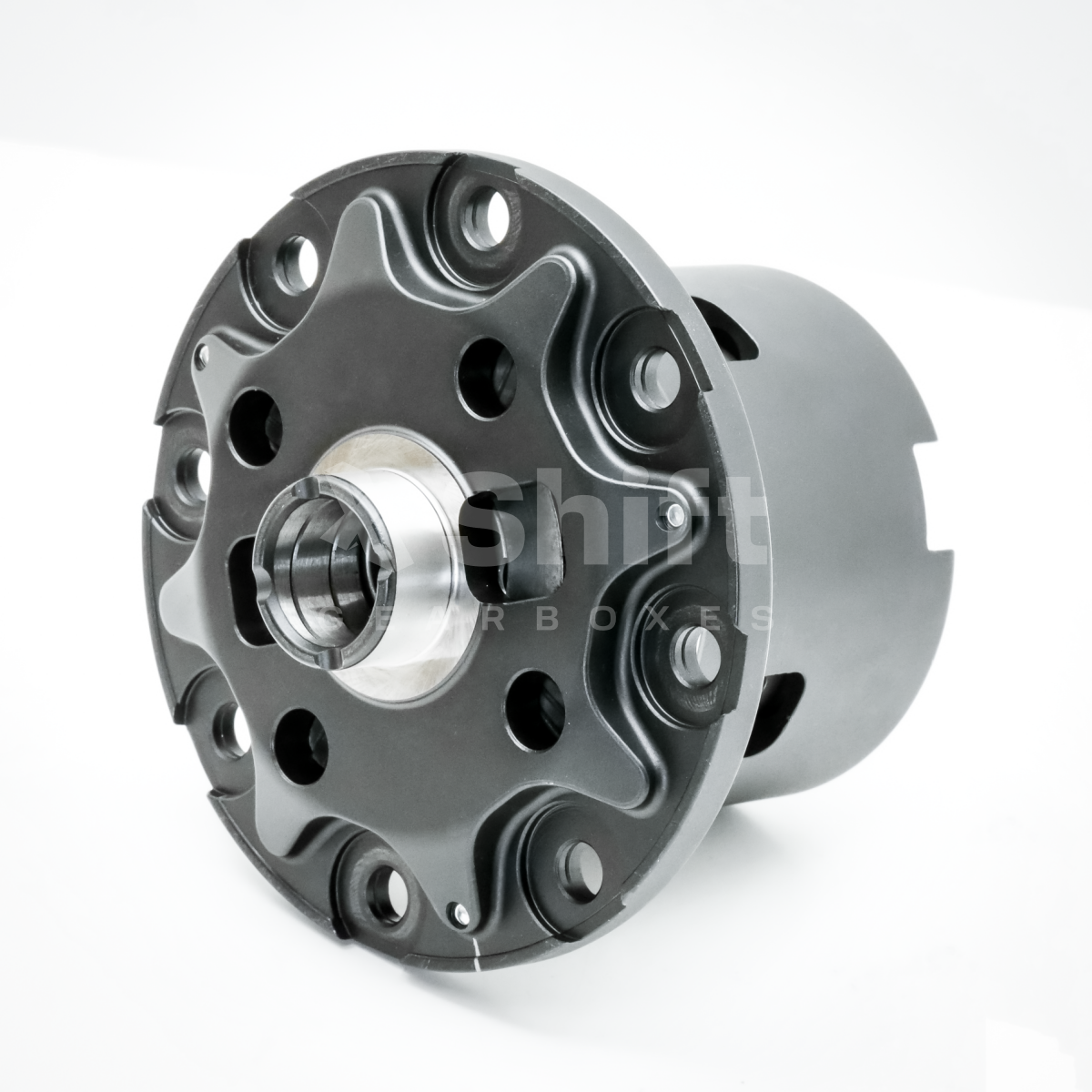

Rear LSD Mitsubishi EVO IV-X

Suitable for:
Specification
  • Outperforming other Mitsubishi EVO differentials producers thanks to its strength and reliability
  • Fast lock up reaction
  • Customisable preload
  • Standard ramp angles 55°x55° and 35°x55°
  • For RS differential case (without AYC)



  • EVO IV-IX: direct replacement
  • EVO X: can be adjusted in our workshop
Why LSD?

It is clear that limited slip differential is much more usable in racing cars than standard open differential, which is good tool to increase driveability, but cannot distribute the maximum power in performance conditions or on surfaces with different adhesion on right and left wheel.

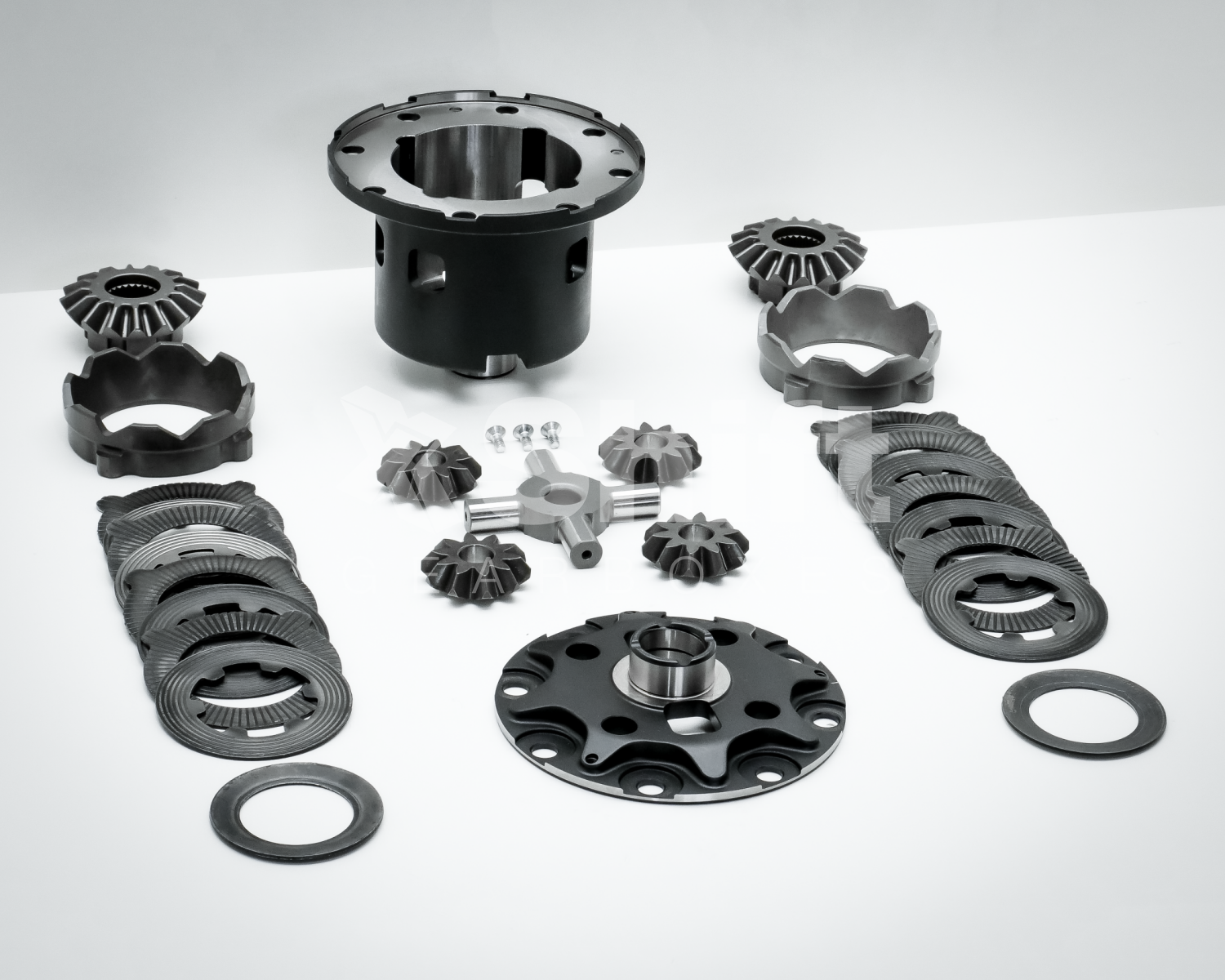

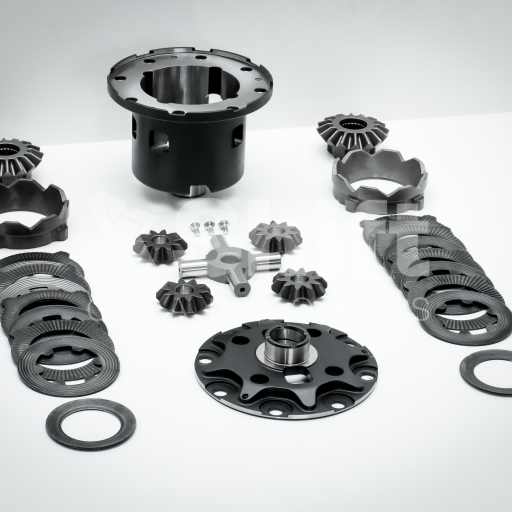

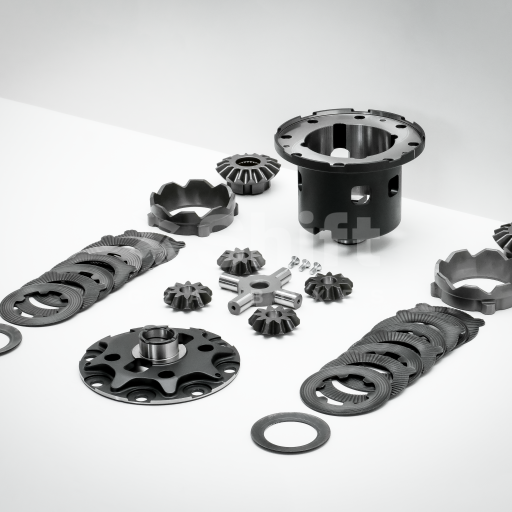

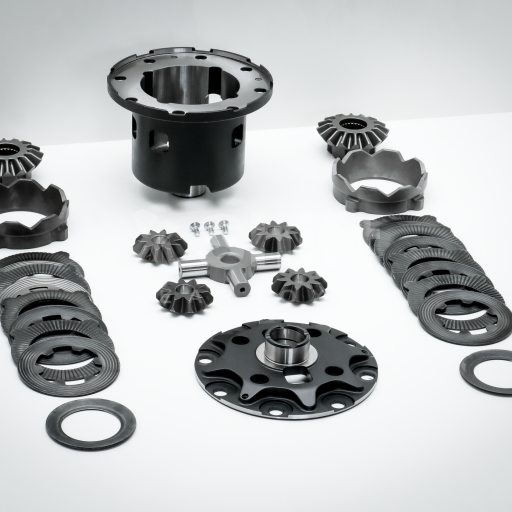

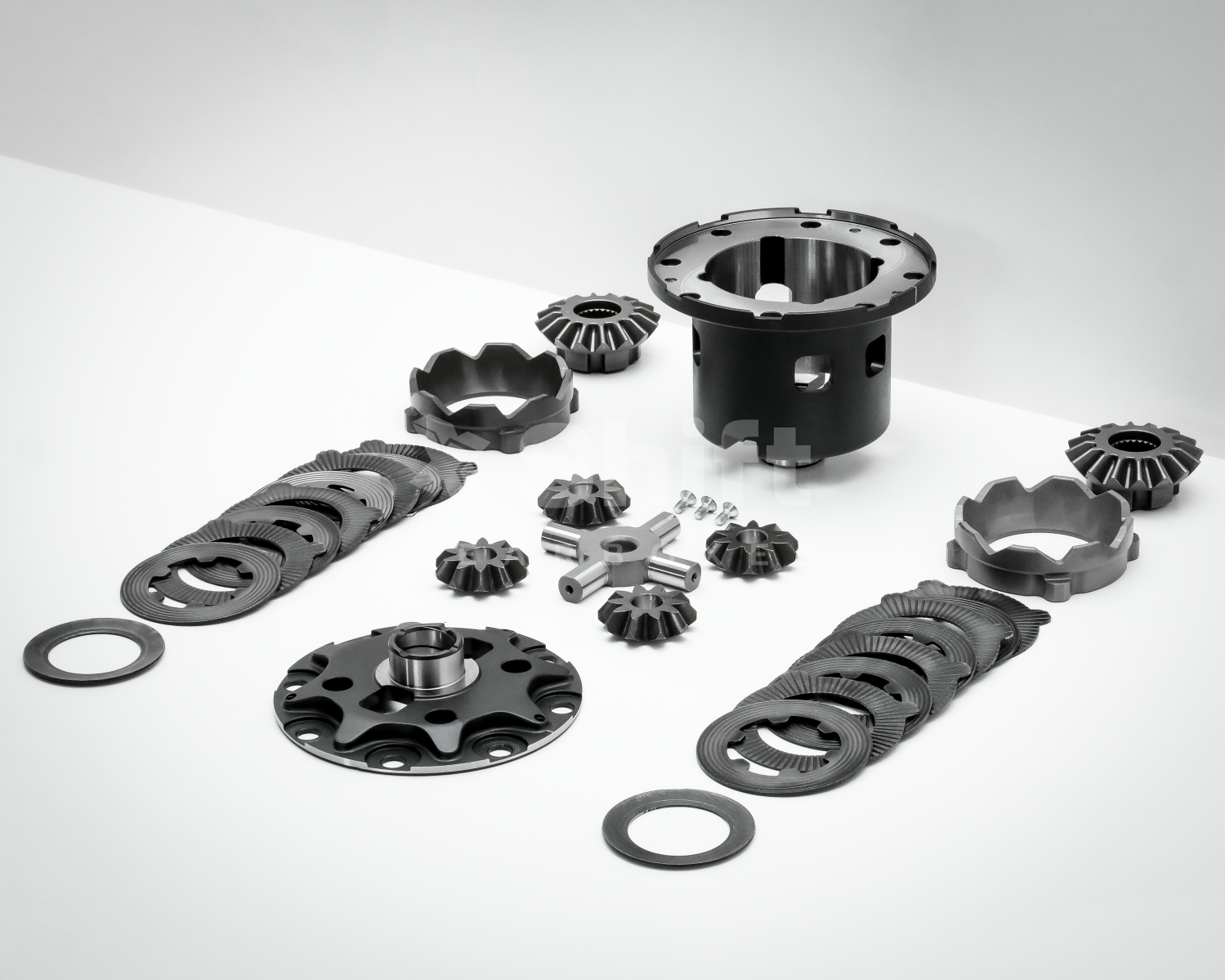

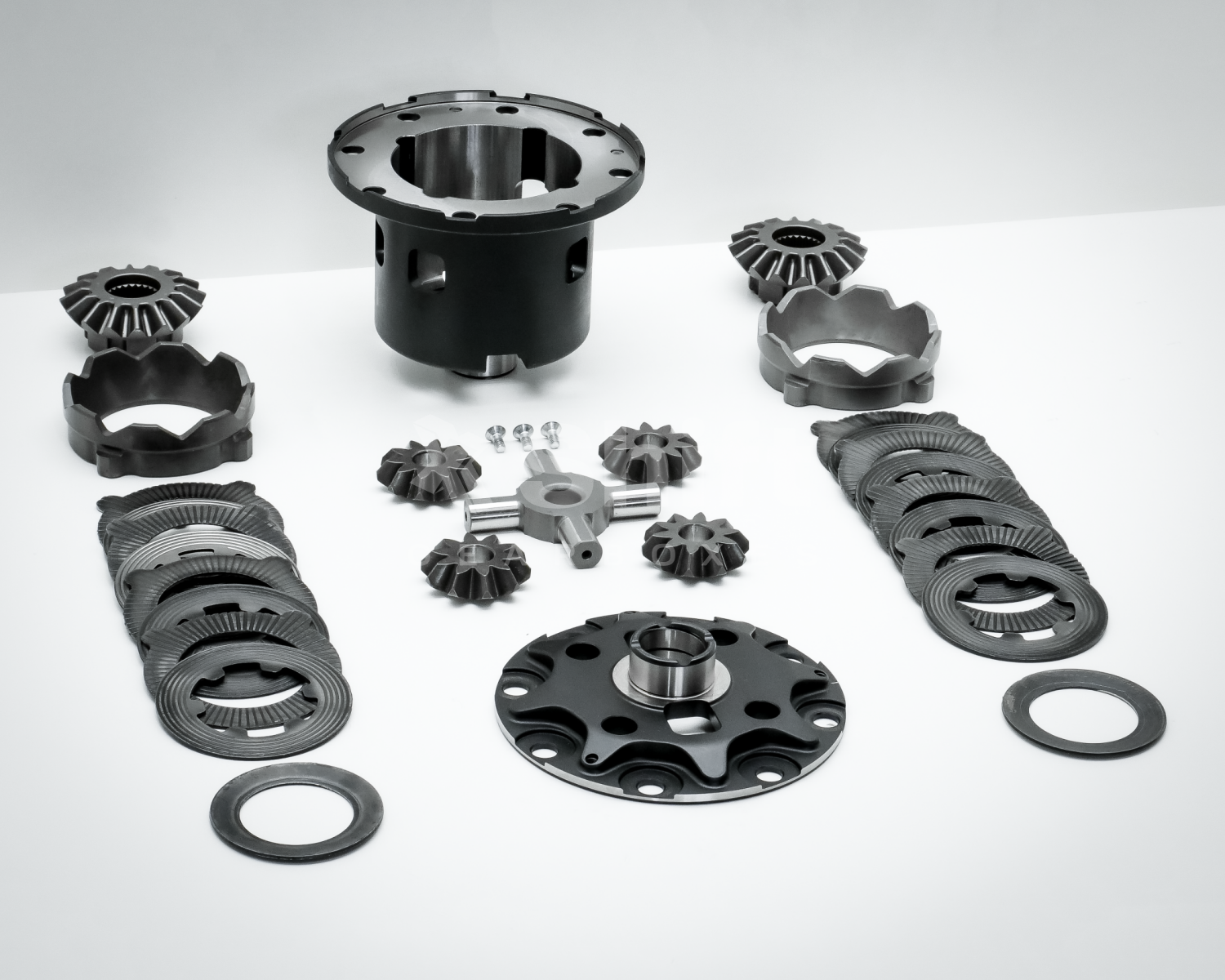

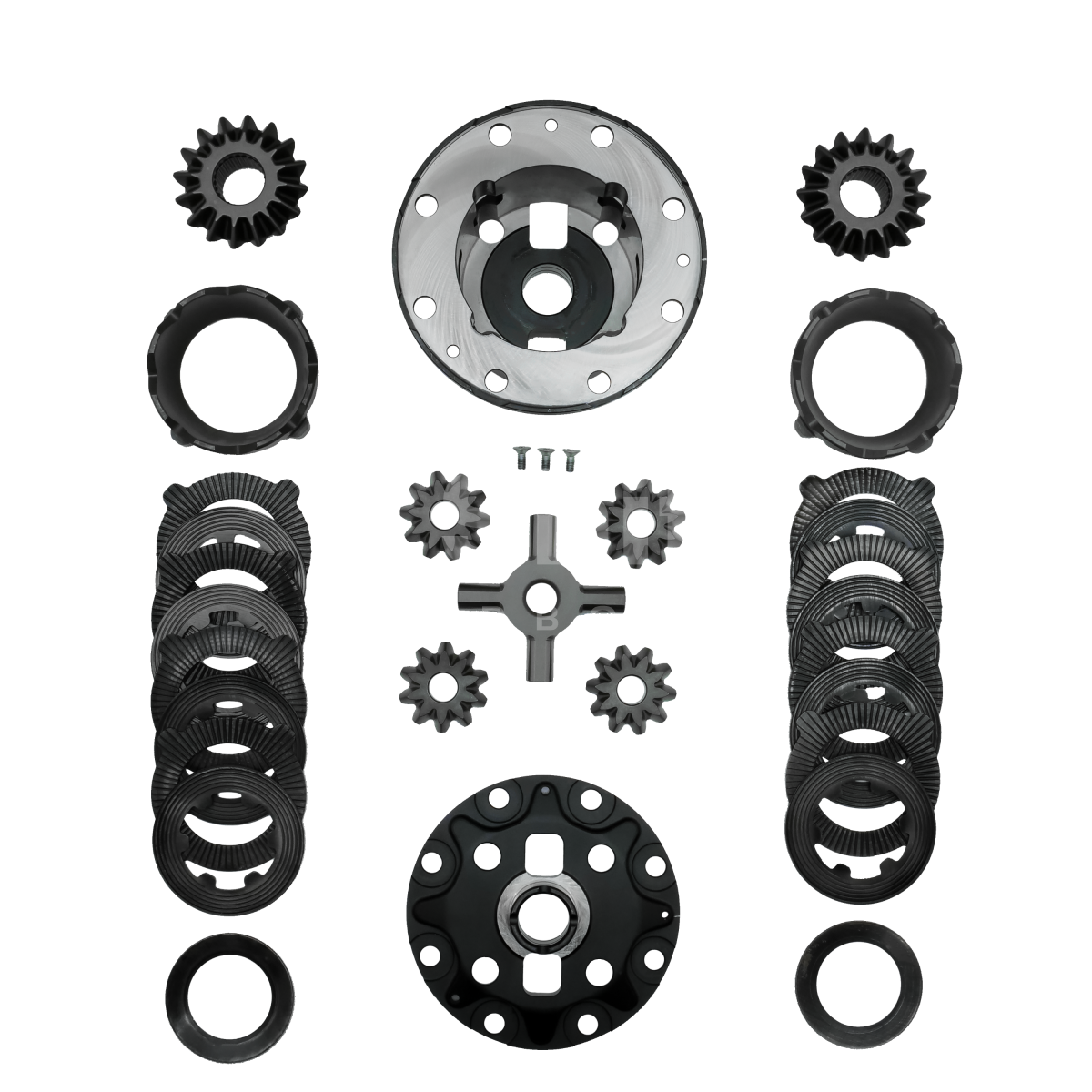

Plate LSD contains mechanism with ramps on pressure rings and cross shaft and steel plates that work as a clutch. As the car accelerates, the cross shaft is pushed to the the ramps of the pressure rings. which are forced to move outwards and push the steel plates together. With increasing pressure between plates, the friction also rises and therefore the driven gears are increasingly bind together and is more difficult for them to spin at different rates.

Plate LSD vs Torsen

Torsen differential uses gears instead of steel plates to transfer the torque on wheels. It is good solution for street driving with it's precise power distribution and stability on curvy roads. However, Torsen is not very suitable for high performance purposes, because it can't provide such aggressive torque transfer, especially under extreme conditions. As opposed, plate LSD is able to send power sharply to the wheel with grip which leads to improved traction and it's also more tunable than Torsen. Moreover, it works very fast and provides advanced handling even in the tight curves at high speeds.

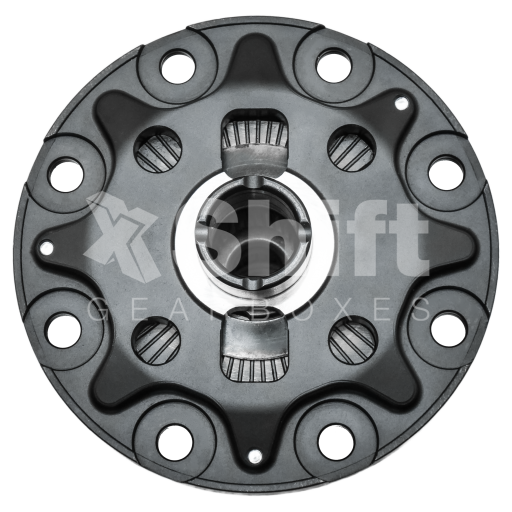

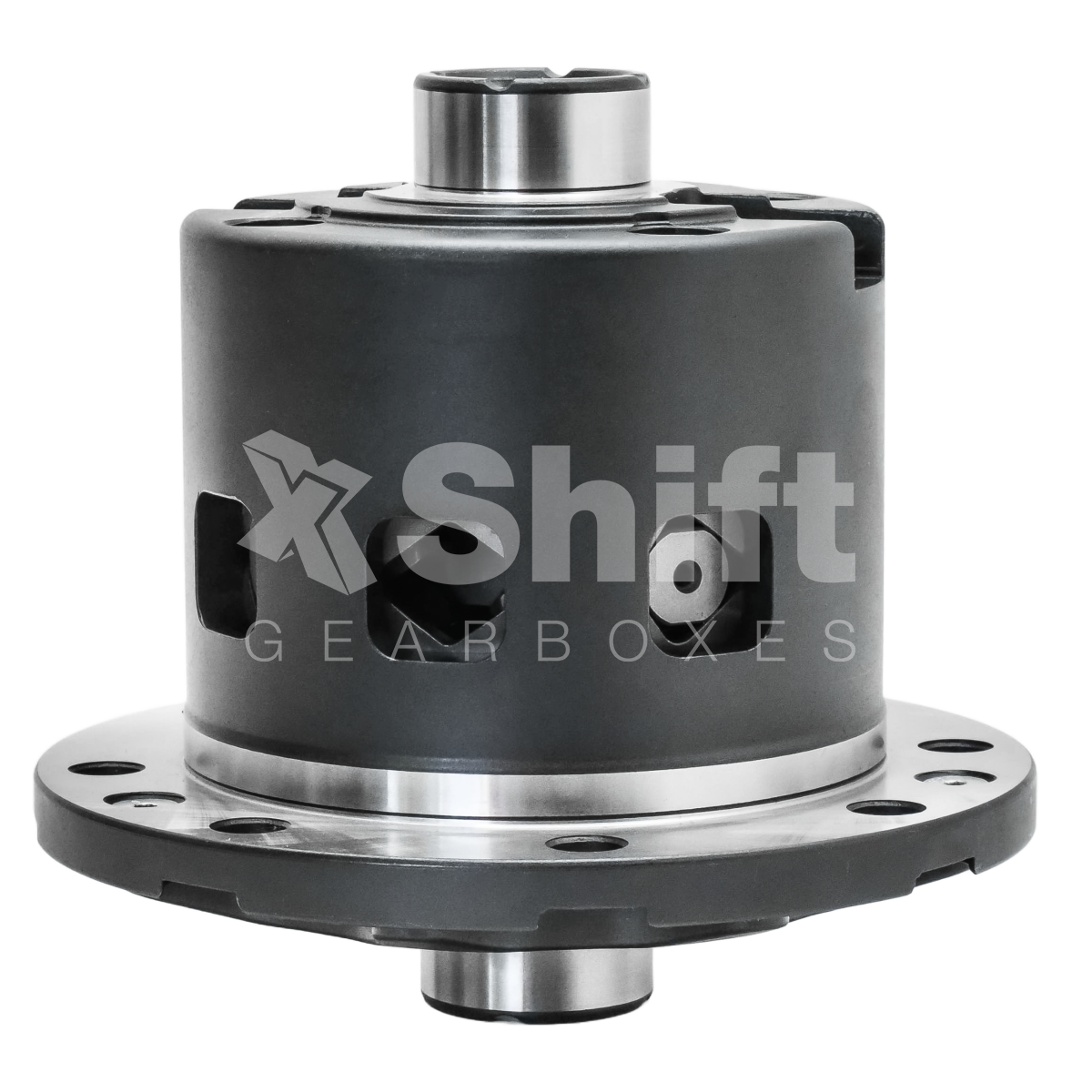

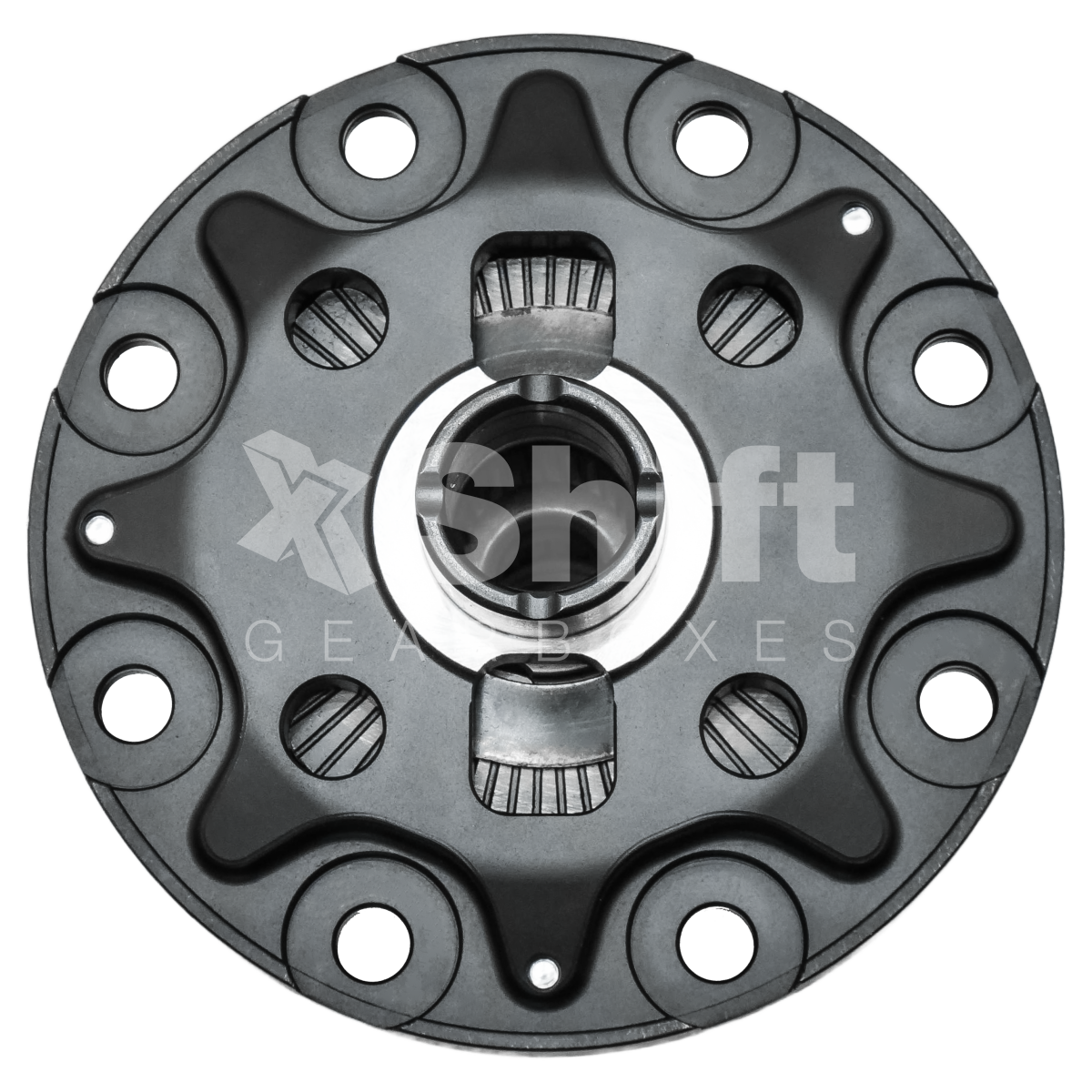

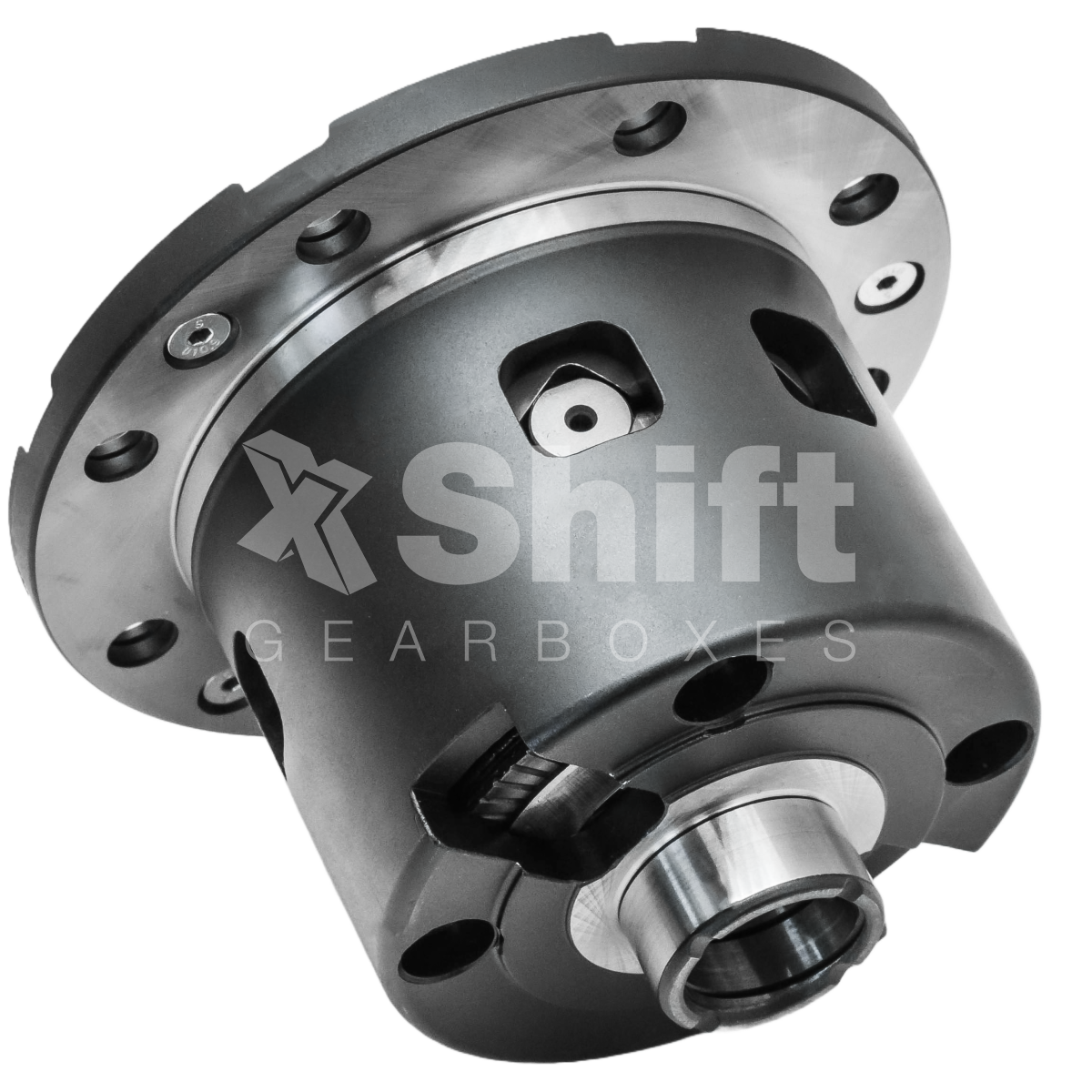

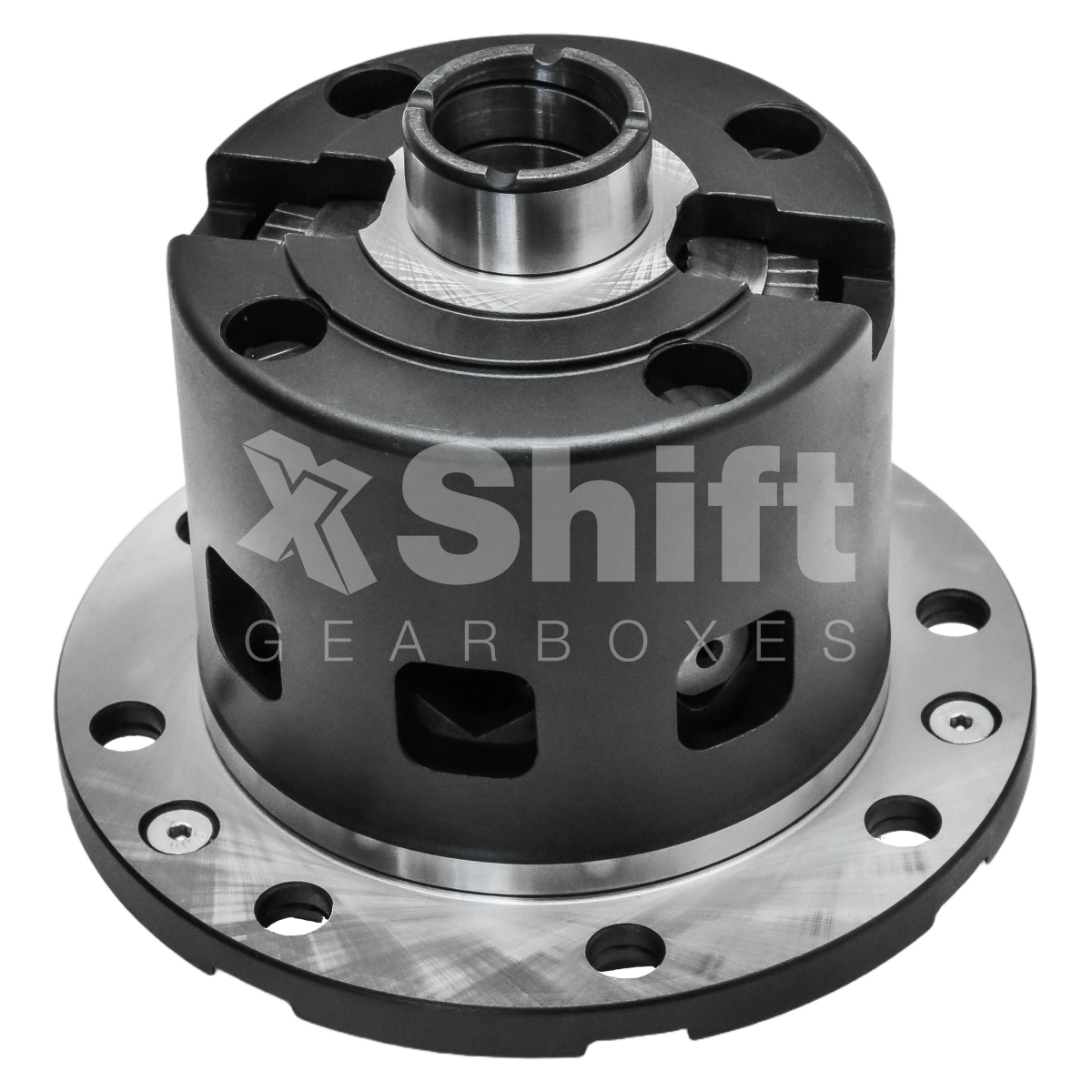

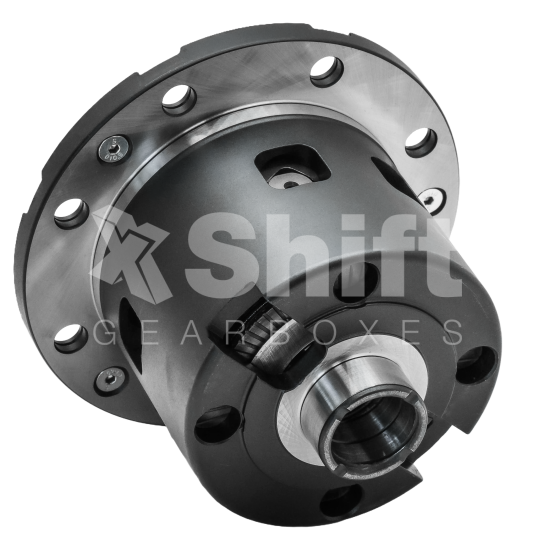

Photogallery
Product configurator

For prices and more info, please contact us down below.

Please fill in your details and as many information as possible about your car (power, race purpose). After sending your configuration we will contact you as soon as possible.
