Full Front Drivetrain PERFORMANCE KIT Toyota GR Yaris/Corolla

Suitable for:

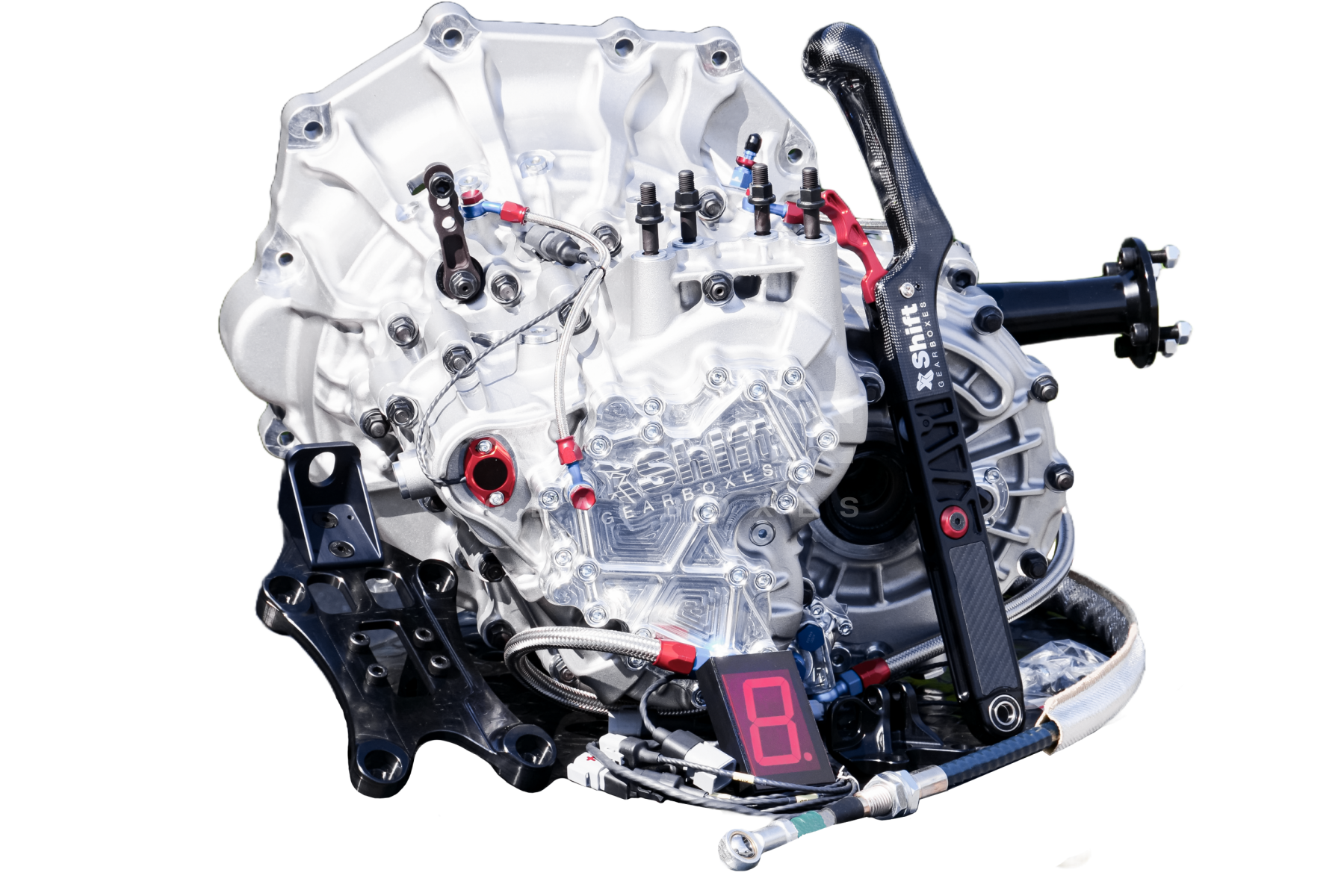

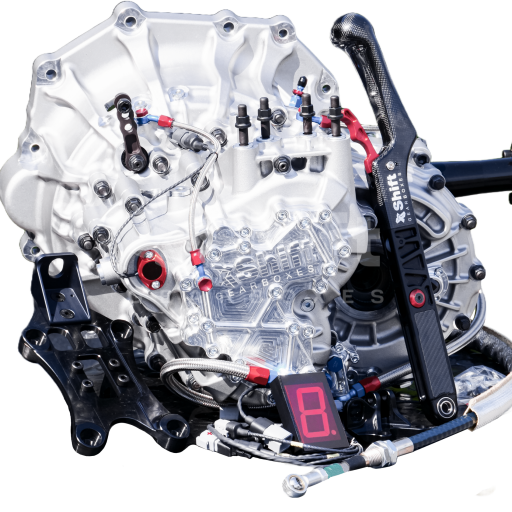

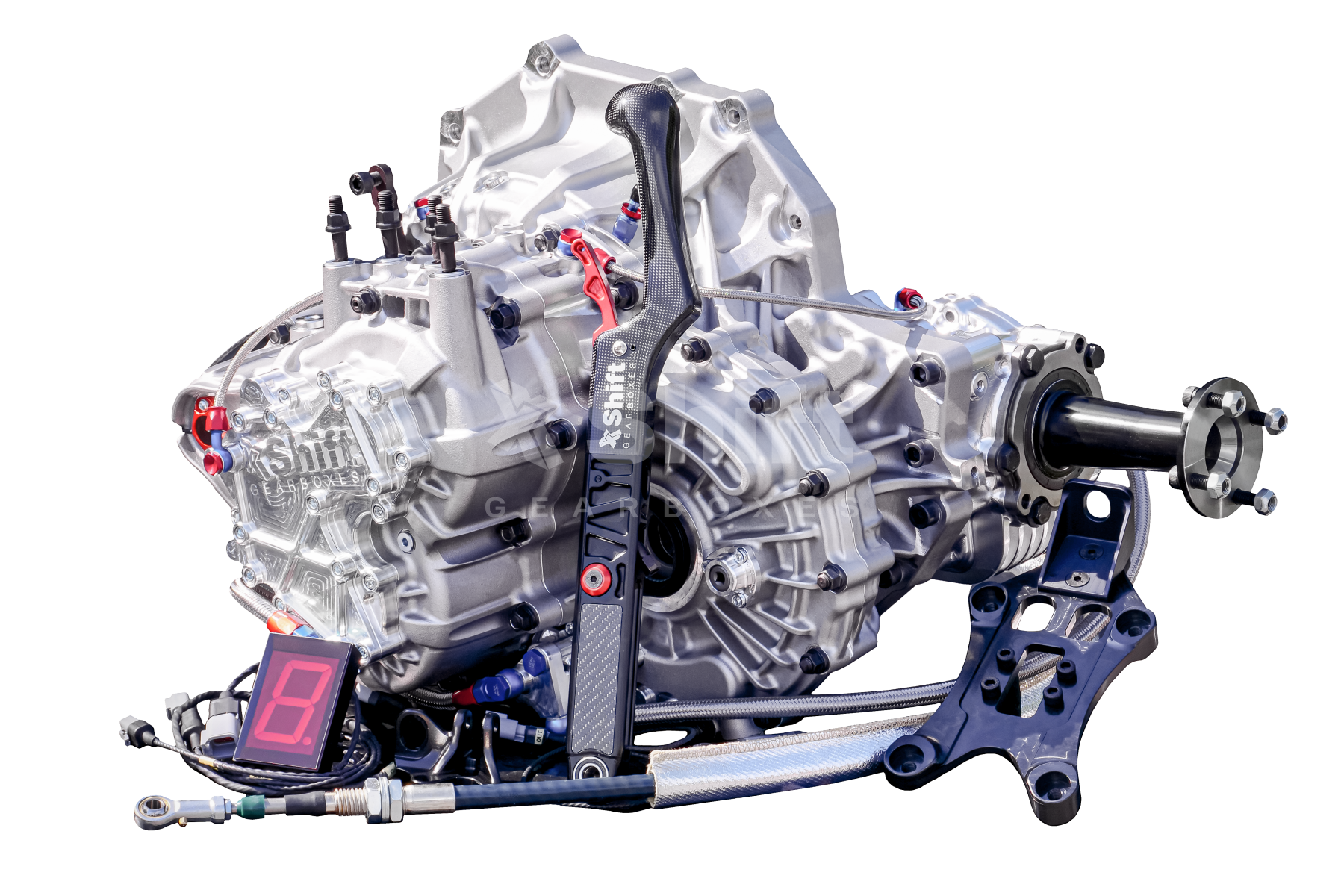

The complete sequential front drivetrain package for the Toyota GR Yaris and Corolla.

Specification

The complete sequential front drivetrain package for the Toyota GR Yaris/Corolla combining OEM fitment, race-proven strength, and ultimate performance! Every component is engineered to work together for maximum strength, durability, and precision on track, rally stage, drag, or street.

Included in the package:

TYGR 5/6/7 Sequential Gearbox – lightning-fast, reliable, race-ready shifts
Billet SHD Complete Transfer Case – precision-machined for extreme torque and endurance
Transfer Case Lubrication System – keeps your drivetrain cool under the toughest conditions
Shifting Lever Set – alu or carbon lever, big or small LED display, wiring harness, bowden + bracket
Pneumatic Paddle Shift Kit Set – ultimate racing feel at your fingertips (optional)

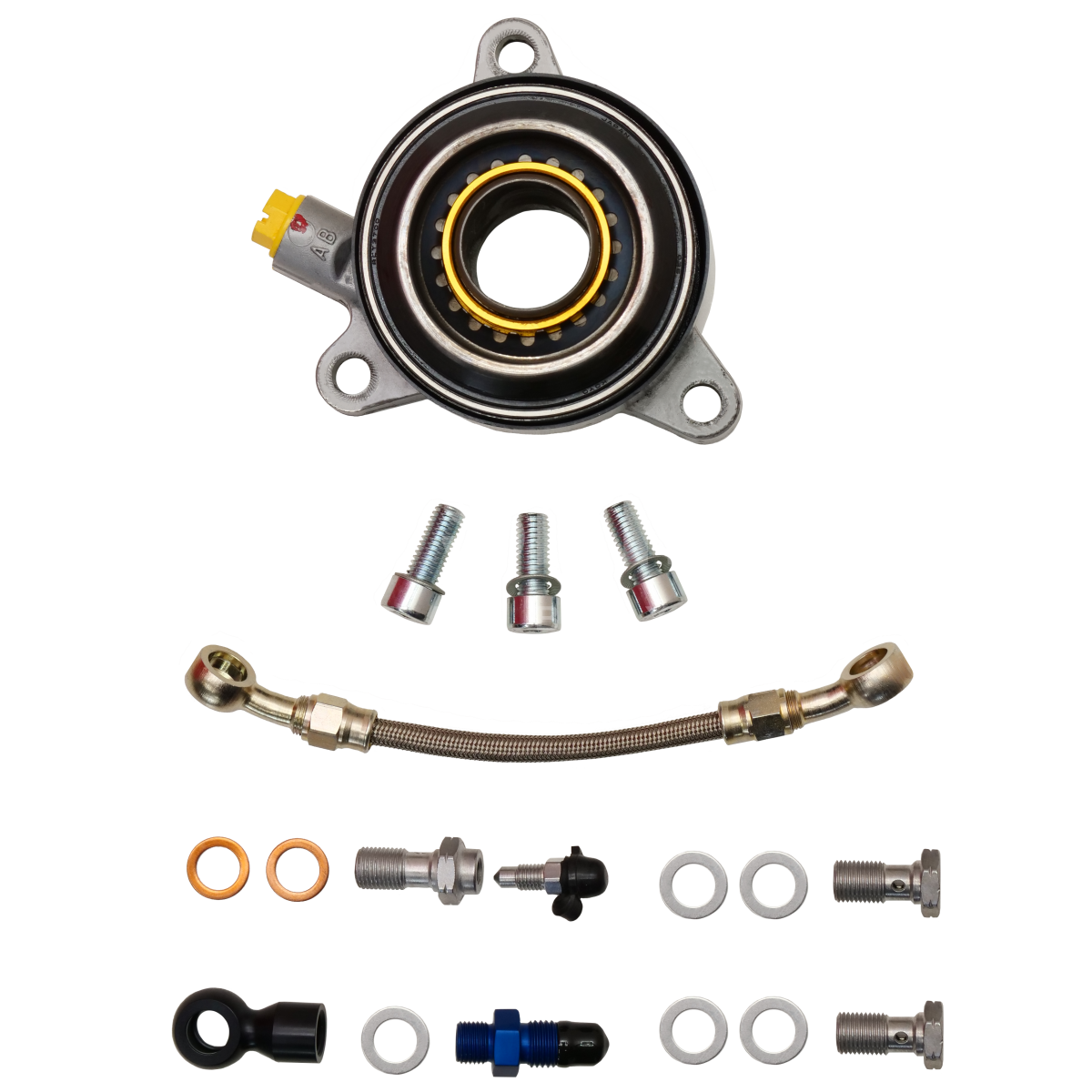

Hose Kit for OEM CSC Bearing – simple, reliable, ready-to-fit solution (optional)

Discounted set

Order together minimum of three components mentioned above and you take DISCOUNTED price!

The following two items are mandatory:

TYGR 5/6/7 Sequential Gearbox
Billet SHD Complete Transfer Case

Available worldwide through our dealers network or directly from X Shift.

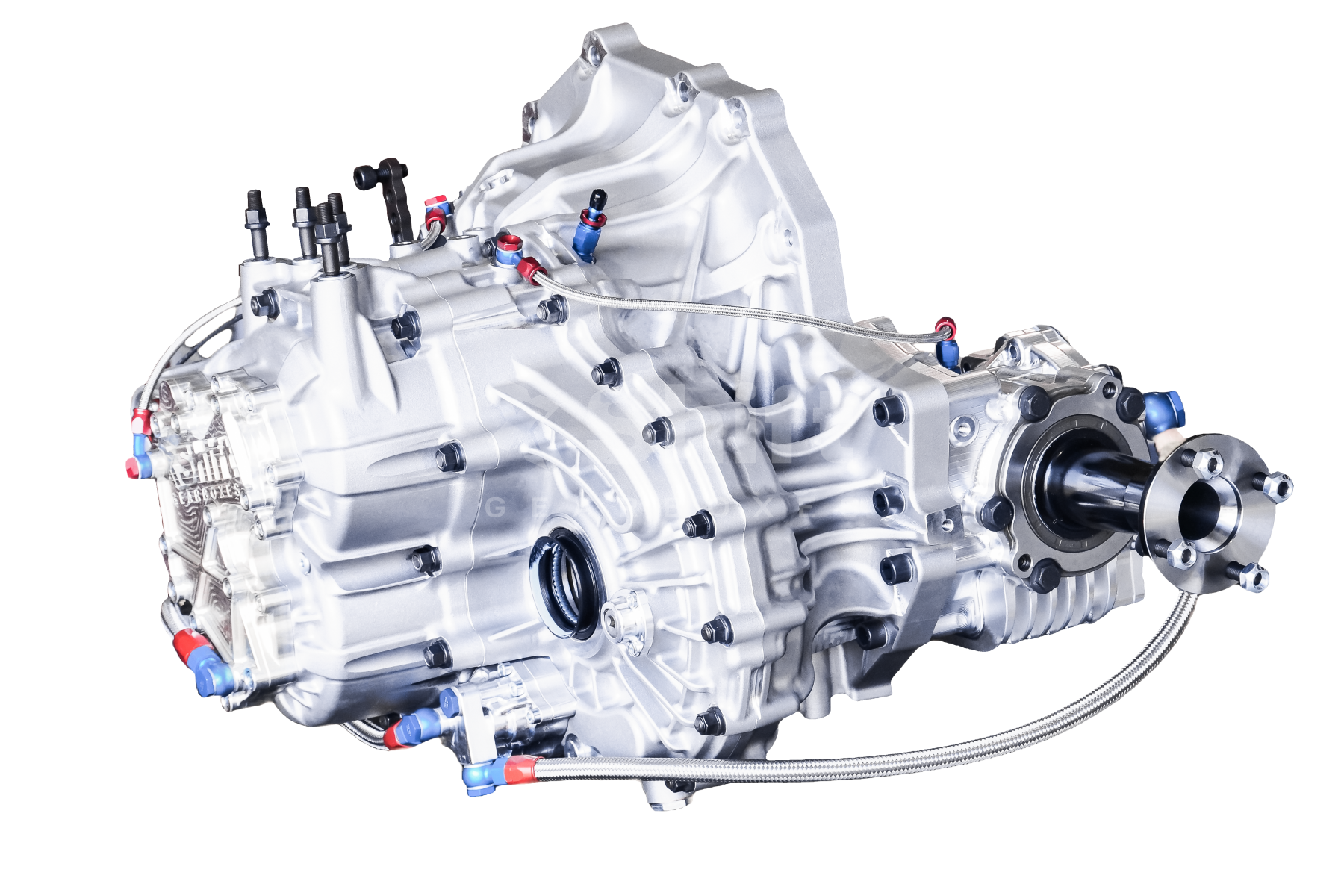

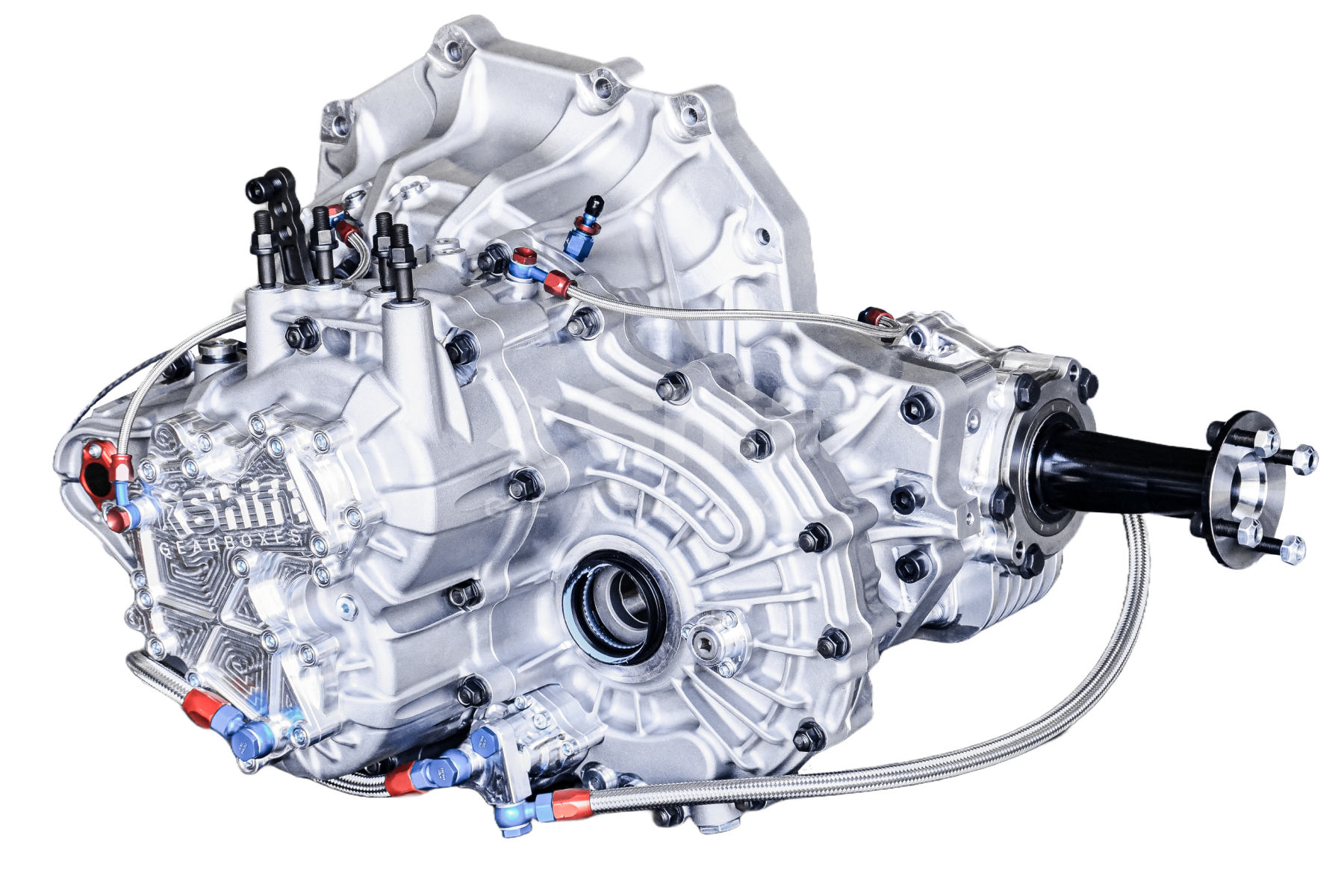

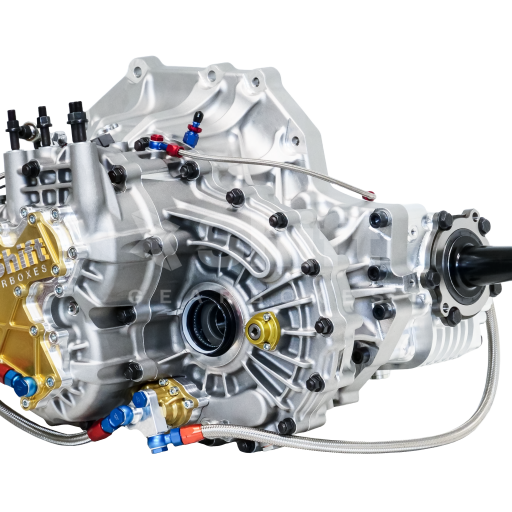

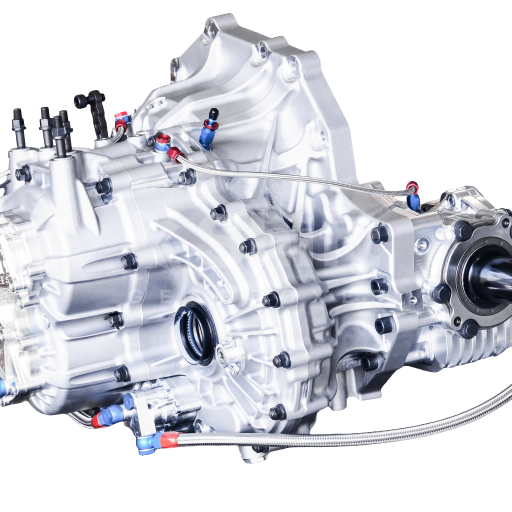

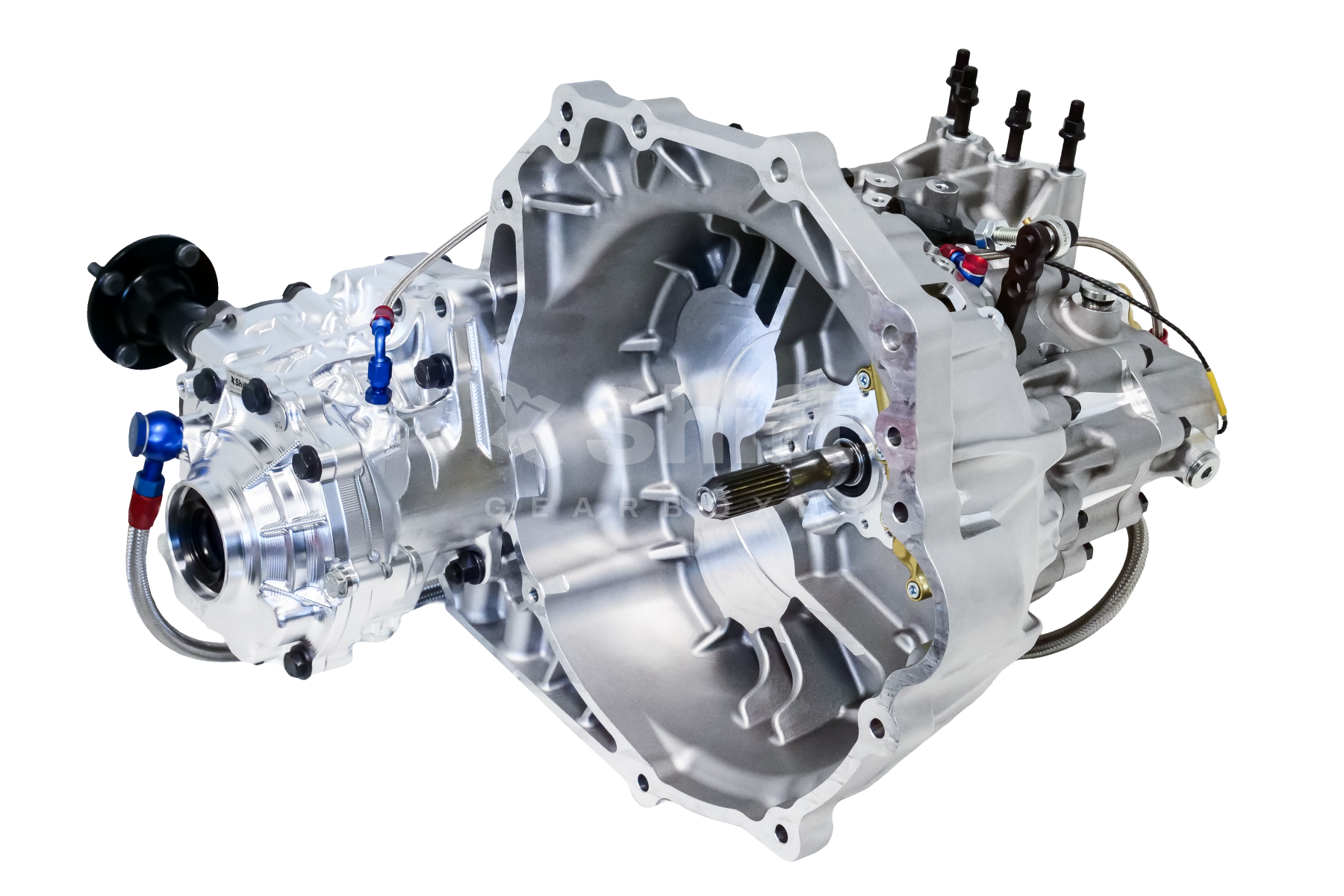

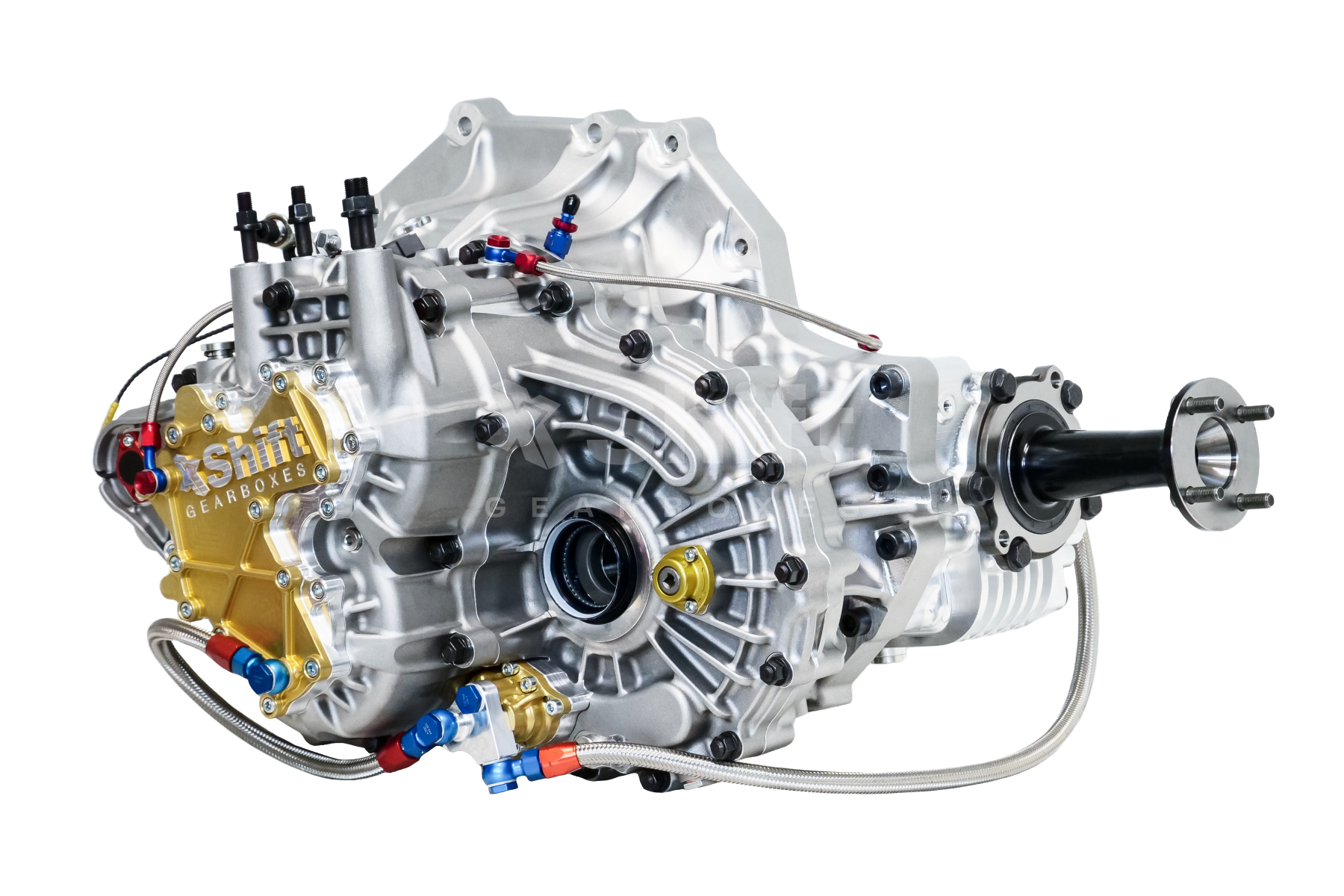

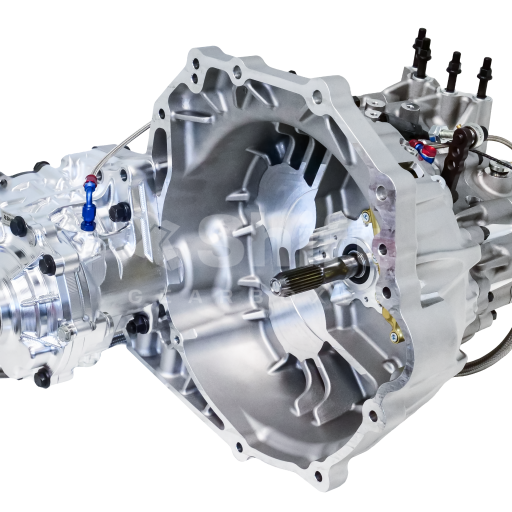

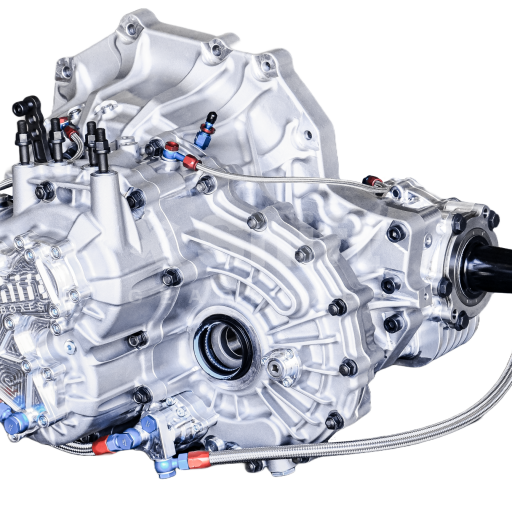

Sequential Gearbox

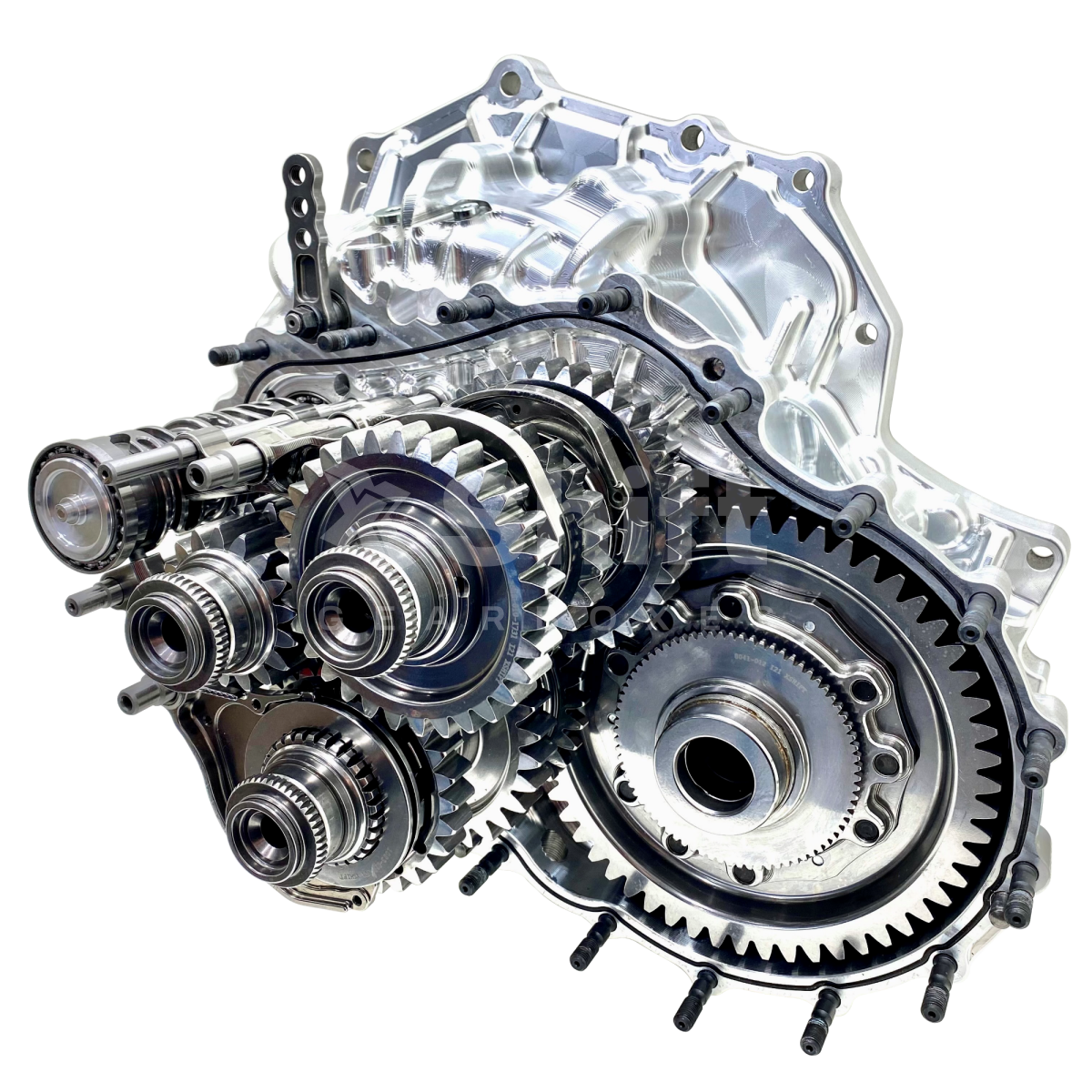

The heart of this performance kit is our most advanced Toyota GR Yaris/Corolla sequential gearbox available in 5, 6 or 7 speed version. It incorporates the latest shifting mechanism combined with durable forks and shifters which leads to unmatched performance and reliability.

Main features:

Casted cases for torque up to 1200 Nm, billet cases up to 1400 Nm
The most modern and sofisticated shifting mechanism on the market
Compatible with single or multi plate race clutches (Ogura, ATS, eXtreme, Uniclutch)
Use with OEM or racing clucth bearing (AP Racing)
5/6/7 speed configurations
Up to 6 final drive versions
Front multiplate X Shift LSD differential and bellhousing included
Preparation for pneumatic paddle shift
Mounts, axle-shafts and mounting points same as OEM

...and more

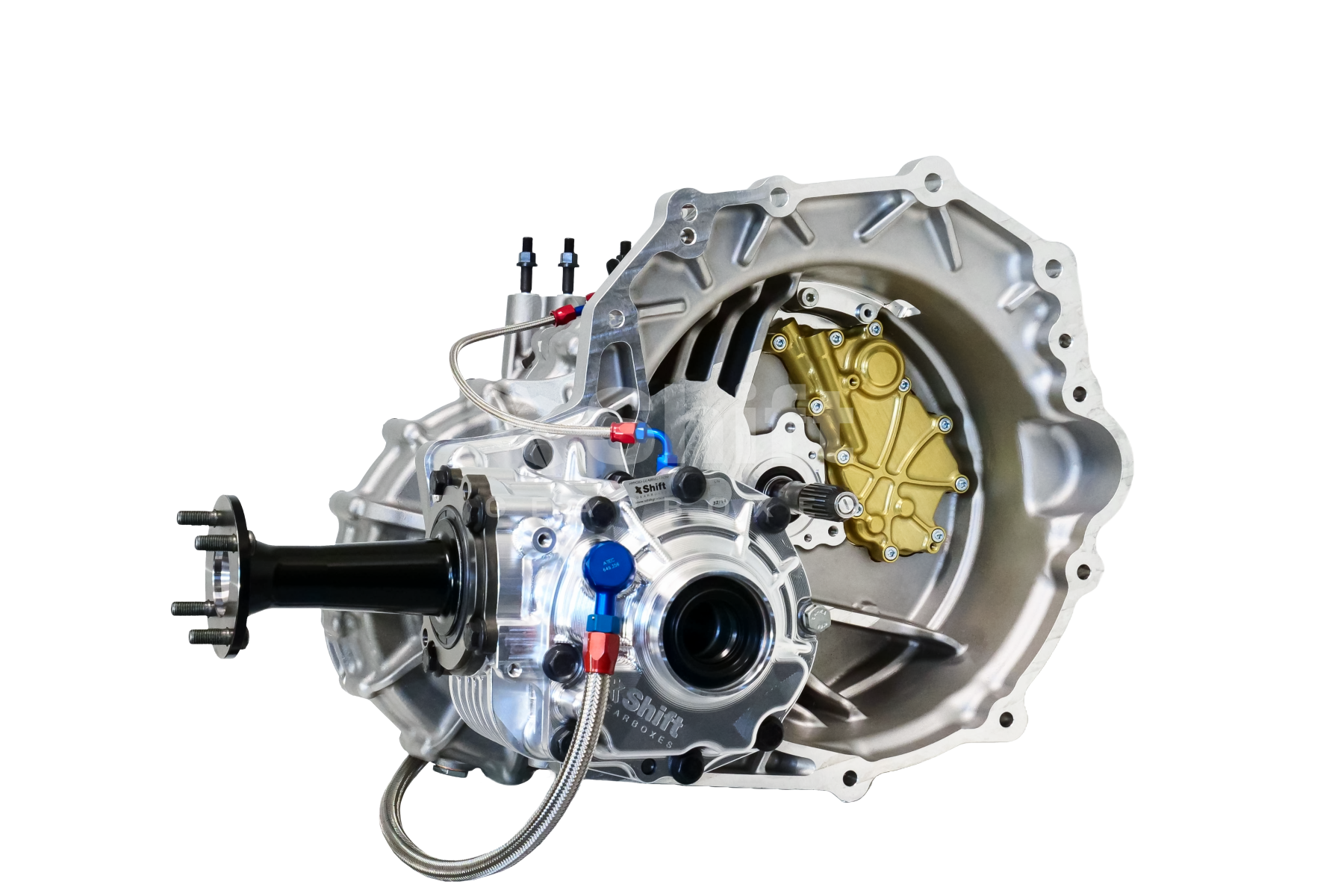

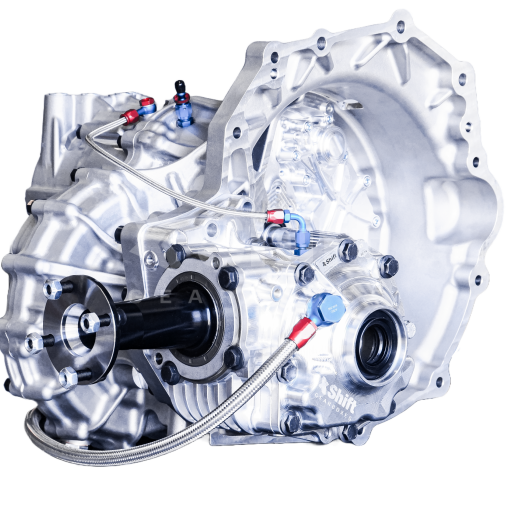

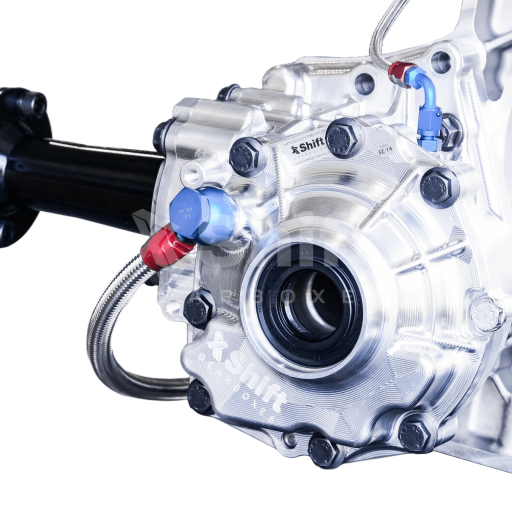

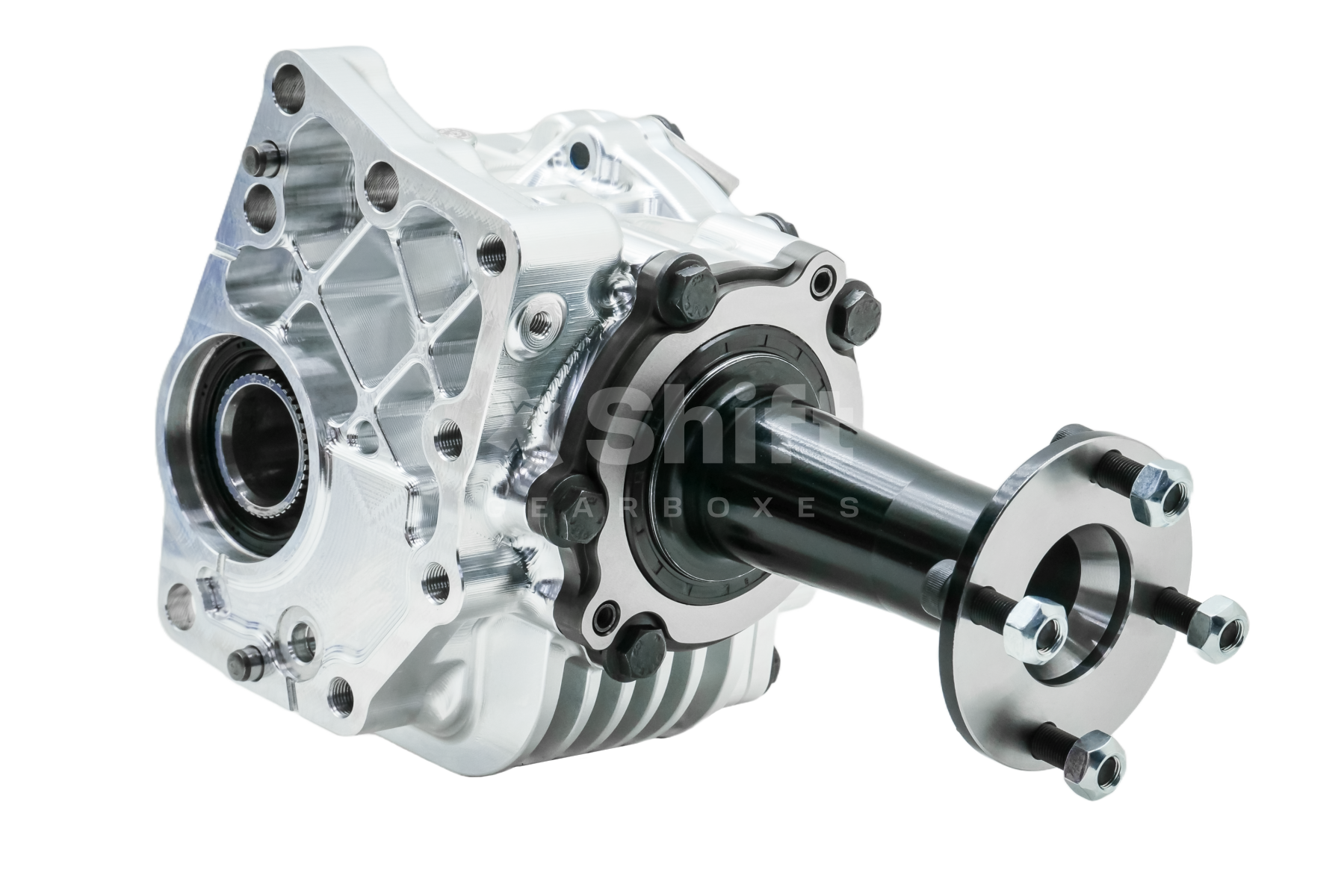

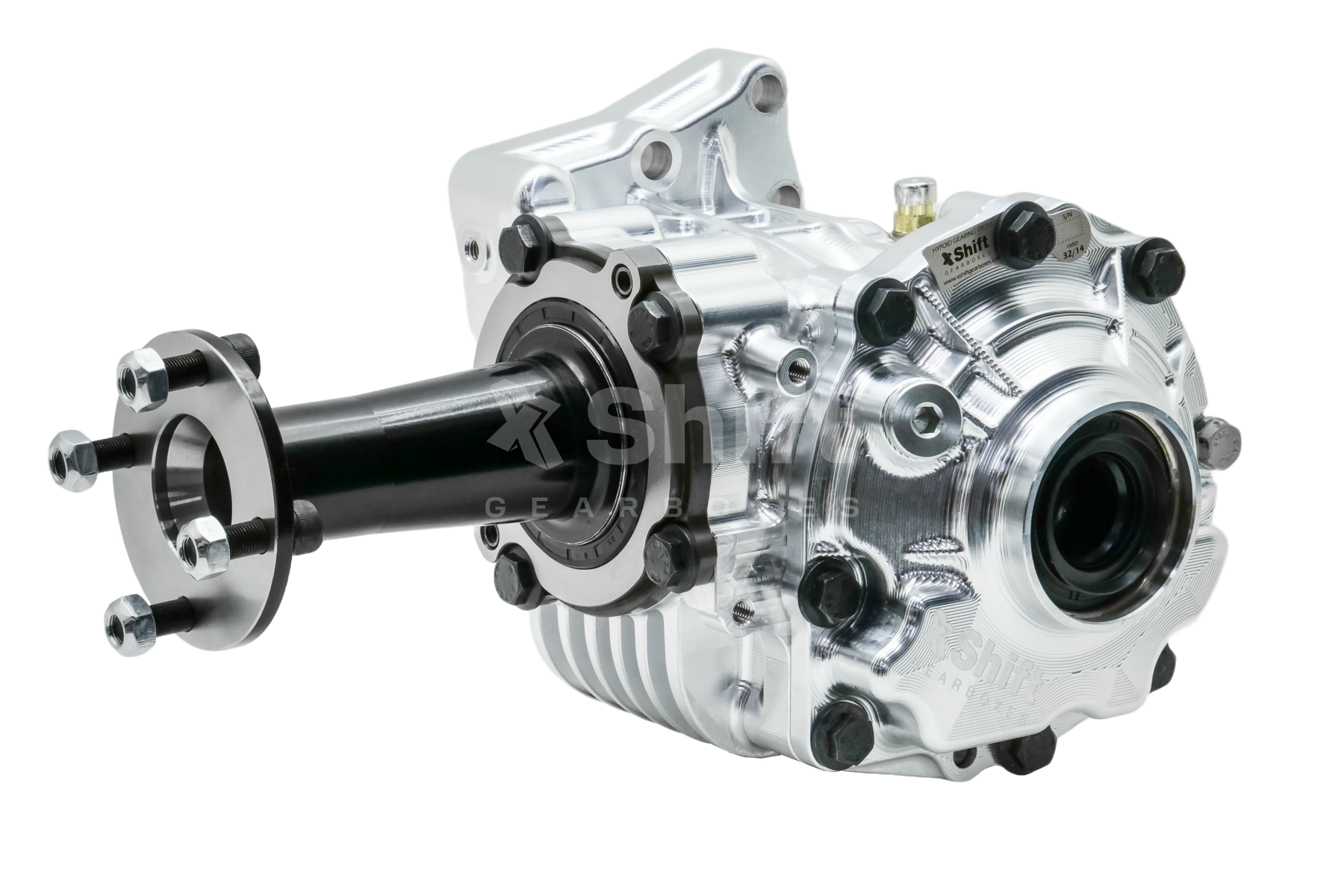

Billet SHD Front Transfer

Front transfer case is a must-have for any performance application of Toyota GR Yaris or Corolla. We put a huge effort to development of Full GR Yaris/Corolla transfer, which solves issues associated with weak OEM transfer.

Our solution includes:

Billet transfer case and cap – +25 % of oil fill in comparison with OEM
Upgraded hypoid gearing – larger teeth to withstnad higher torque
Strong input shaft – thicker wall and securing nut instead of snap ring
Upgraded pinion bearing
Our new output shaft
All the necessary components like bearings, gaskets, screws and others

More info...

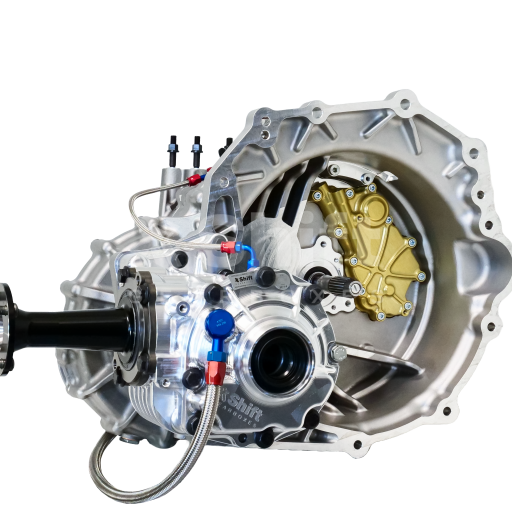

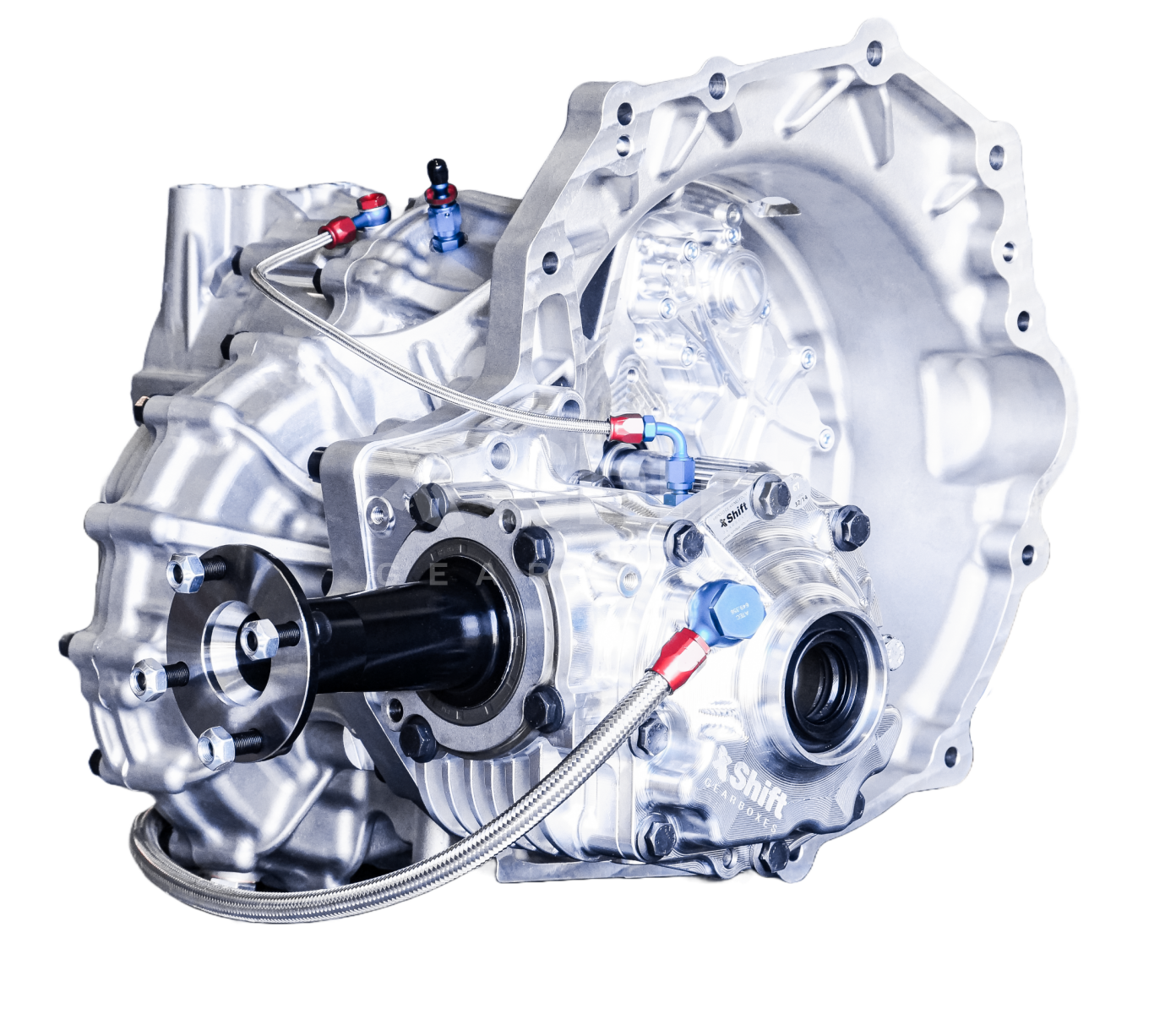

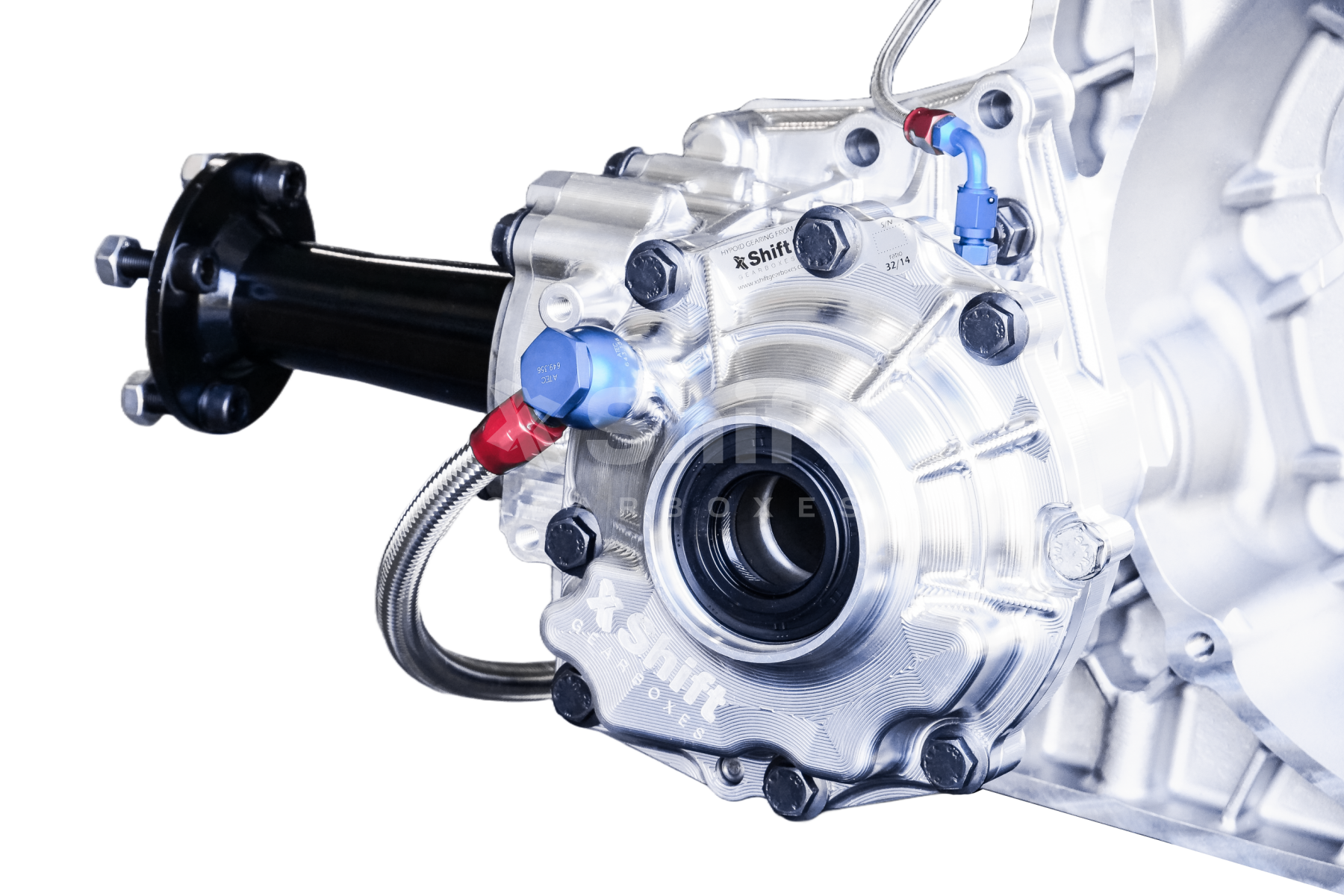

Transfer Case Lubrication System

Our billet transfer case is pre-machined for Transfer Case Lubrication System (TCLS), that sigificantly improves performance of the transfer.

In OEM front transfer case, heat buildup and poor oil circulation are critical issues that lead to accelerated wear and limited service life of hypoid gearing. The TCLS eliminates these weaknesses. By ensuring continuous oil flow by oil pump circuit, it reduce operating temperatures, maximizes durability and extends the life of critical drivetrain components – delivering the reliability that standard solutions simply cannot achieve.

Advantages of the system:

Full compatibility with X SHIFT Billet Transfer Case without any modifications
Optimized oil flow & heat management → reduced wear, extended lifespan
Advanced engineering – gearbox and lubrication system developed as one complete motorsport solution
The kit can be retrofitted to existing X SHIFT gearboxes

More info...

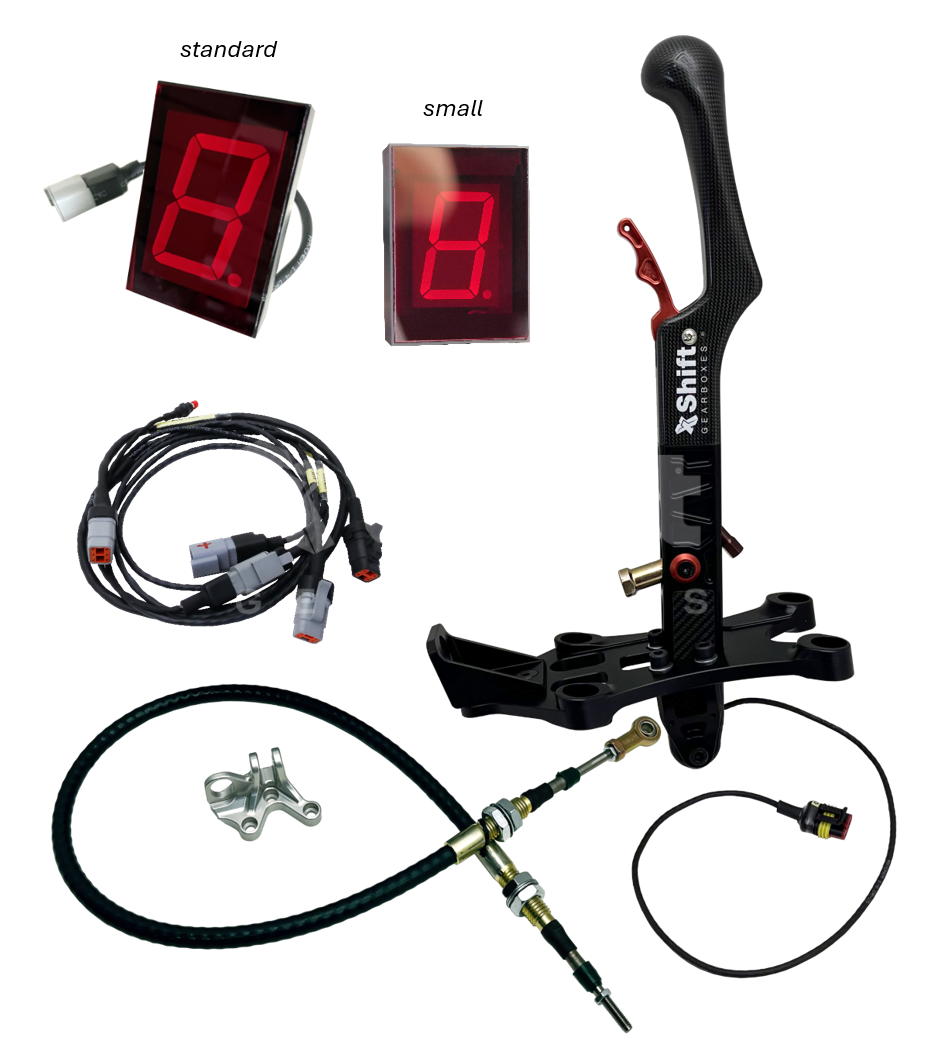

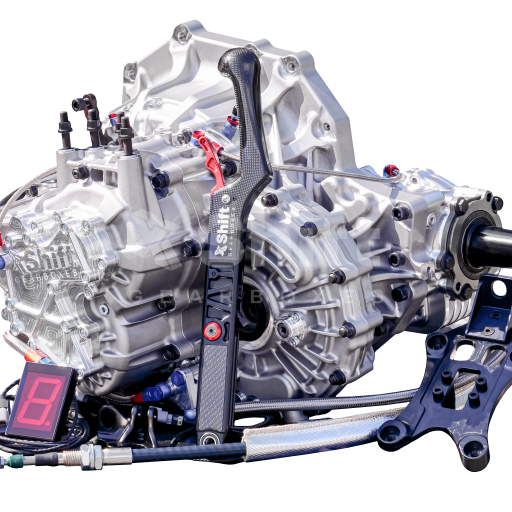

Shifting lever sets

X Shift sequential gear levers for Toyota GR Yaris/Corrola offer quick and sharp shifting experience while keeping high standard in design and ergonomy. Levers contain integrated electronics used for ignition cut and flatshifting strategies inside the engine ECU. All shifting levers also have built-in lever to control reverse lock worm operating on the shifting barrel. Gear lever base, uniball joints and strain gauge are also included.

Available configurations:

Carbon or Aluminium lever (CNC machined from aircraft grade AL)
Selector rod or bowden
Left, right or central base

With sequential levers we also supply programmable LED display with automatic dimmer to ensure good visibility at any time of the day. You can choose standard or small version of display. We also provide pracical sunvisors, which are 3D printed from high quality ASA black plastic.

To easily connect LED display, gear position sensor and battery of the car with ECU and gear lever strain gauge you can use our Wiring Harness Loom.

More info...

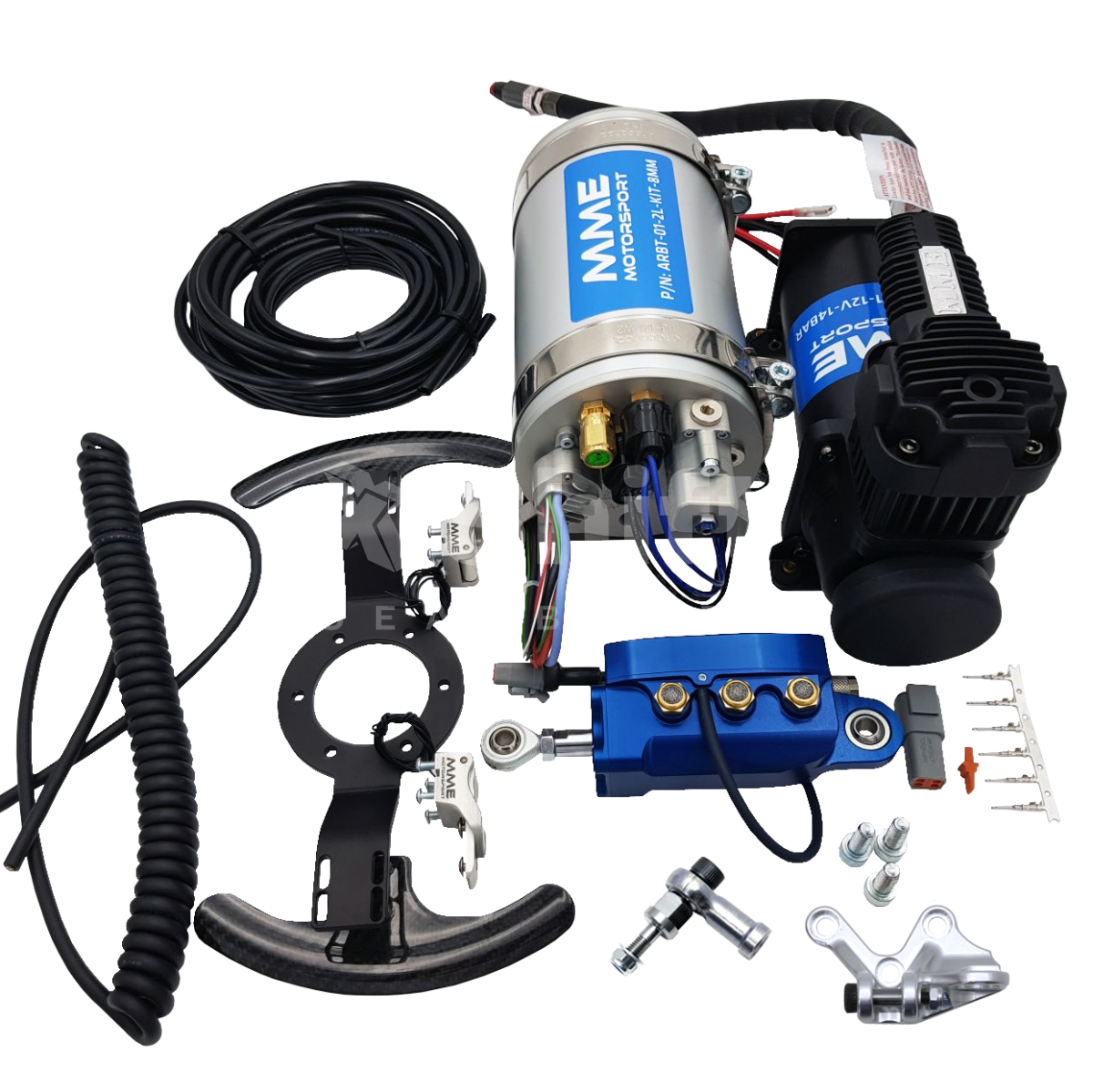

Paddle Shift

In cooperation with MME Motorsport, we present the pneumatic shifting kit, which brings you super fast shifting experience with uninterrupted full control of the steering wheel with both hands. Whole kit is very easy to assemble and no other gearbox modifications are required. Depending on your car purpose, there are many options and additional features to achieve even better performance.

bolt on solution
safe shifting in fast long corners
quicker and easier to maintain than hydraulic system
can be used both with or without gear lever
suitable for up-shifting with full throttle and without clutch
reduced gear wear by clean and sharp shifts
optional interlock button to prevent the driver from incorrect downshift and possible damage of gearbox or engine parts

For online order you can contact MME Motorsport directly.

More info...
