Subaru STi SHD DOGBOX KIT R4 PRO 6 speed

Due to the high level of inquiries received about our earlier version of the Subaru H-pattern kit (800Nm), we are releasing this SHD UPGRADED (up to 1200Nm) version again with the latest advanced technologies used in our products!

General info

Subaru dog box kits for racing purposes!

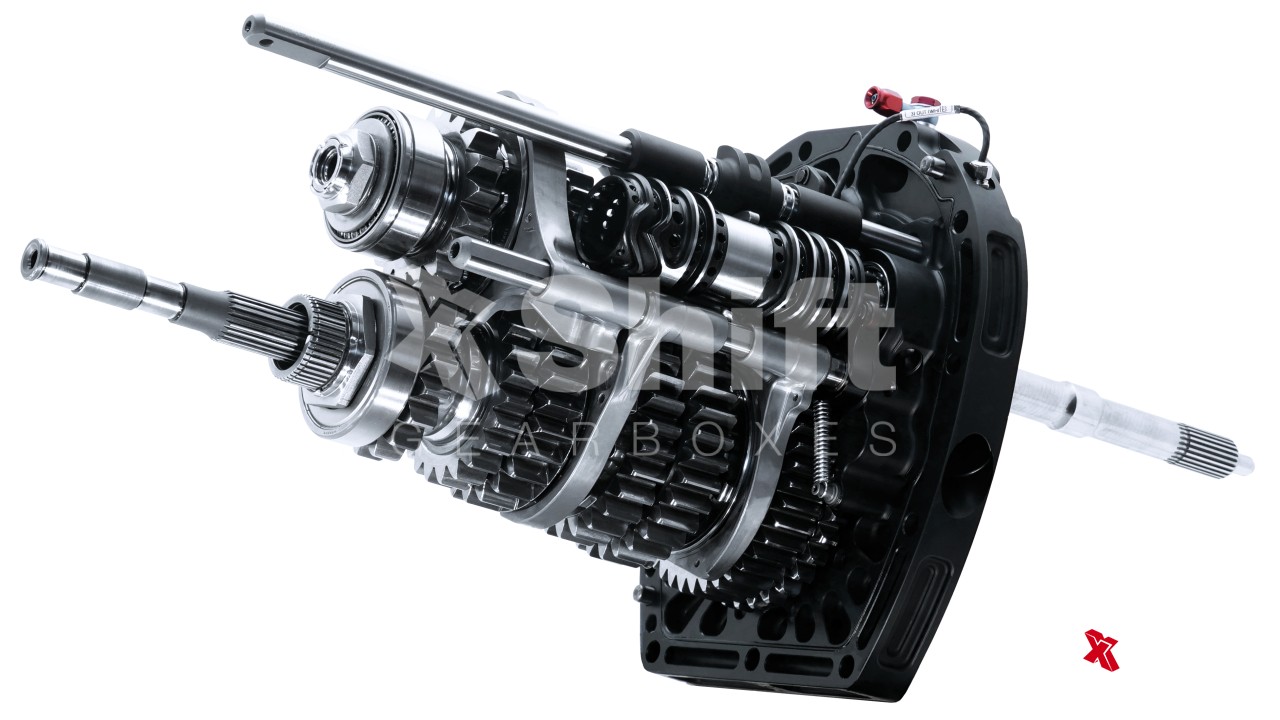

Using the standard Subaru gearbox housing, the H-pattern SHD kit is designed for the racer looking to have a quick shifts and keeping budget in mind. Kit is supplied in assembly position for easy installation into the gearbox. No modification required!


In the kit are shafts fitted with all gears, hubs, bearings, all billet selector rods and selector forks and all other billet shifting mechanism parts. No stock shifting mechanism is used because with our kits is supplied complete shifting mechanism which is much more reliable and stronger than in stock gearboxes.

All parts are REM isotropic superfinished.

Fast facts

  • Gearbox type: 6 speed H-pattern gearbox
  • Available with several gear ratio options
  • Tooth profile: Straight cut
  • R4 Kit Weight: 30kgs
  • Total gearbox weight: 80kgs (7 kilos lighter than a standard 6 speed STI gearbox)
  • Maximum torque: 1000 Nm
  • Smooth and fast shifting
  • Easy replacement of original kit
R4 PRO kit is focused on rally, circuit, time attack. For heavy disciplines like drag, hillclimb and roll racing we can also recommend our new H-pattern +PLUS. You can find more information here.

Kit includes

  • BILLET shifting mechanism with dog engagement
  • INPUT Shaft and OUTPUT Shaft
  • GEARS 1st - 6th +
  • SHIFTING Forks
  • SHIFTING Selector Rods
  • BEARING and NEEDLE Bearing Set
  • INLET /OUTLET for oil cooler

Our kits also come with parts of the shifting mechanism that are more reliable and stronger than those found in stock, or competitor's gearboxes. Reinforced pars are based on extensive fatigue testing of serial components.

Complete, ready to install gearboxes

We at X Shift offer installation of H-pattern DOGBOX kits into your original gearboxes.

This service includes:

  • Cleaning (sandblasting or aquablasting) of casings and inspection of all parts
  • Front differential check and adjustment
  • Setting teeth clearance of final hypoid drive
  • Installation of the DOGBOX kit
  • Check/repair DCCD center differential
  • Check/change drop gears condition
  • Check of gearbox wiring harness
  • Possibly replacement of necessary OEM parts



Note: The reward for this service is the delivery of your own OEM TY856 gearbox in the best and most complete condition. Non-standard parts can be ordered upon agreement. The gearbox is sent back in a cushioned tailor-made box along with the original OEM parts.

Occasionally we are also able to source a 6MT donor gearbox, intended for rebuild purposes.

RATIOS AVAILABLE

  MR-N5 MR 1 MR 2  C1  C2 C3   C4
1. 3,10 2,64 3,33  3,33 3,33 3,33   2,91
2. 2,42  2,87 2,38  2,38  2,38 2,14   2,08
3.  2,00  2,27  1,87 1,80  1,80 1,59   1,56
4.  1,67 1,80  1,53  1,41 1,37 1,26   1,21
5.  1,39 1,43  1,28  1,15  1,05  1,05  1,00
6.  1,17  1,16  1,09  0,94  0,83  0,90  0,83
Subaru R4 PRO MR-N5 = 175km/h at 6500rpm
Subaru R4 PRO MR1 = 176km/h at 6500rpm
Subaru R4 PRO MR2 = 187 km/h at 6500rpm
Subaru R4 PRO C1 = 215,5 km/h at 6500 rpm
Subaru R4 PRO C2 = 243 km/h at 6500 rpm
Subaru R4 PRO C3 = 226,9 km/h at 6500 rpm
Subaru R4 PRO C4 = 243km/h at 6500rpm
