Toyota GR Corolla Sequential Gearbox 5, 6, 7 speed

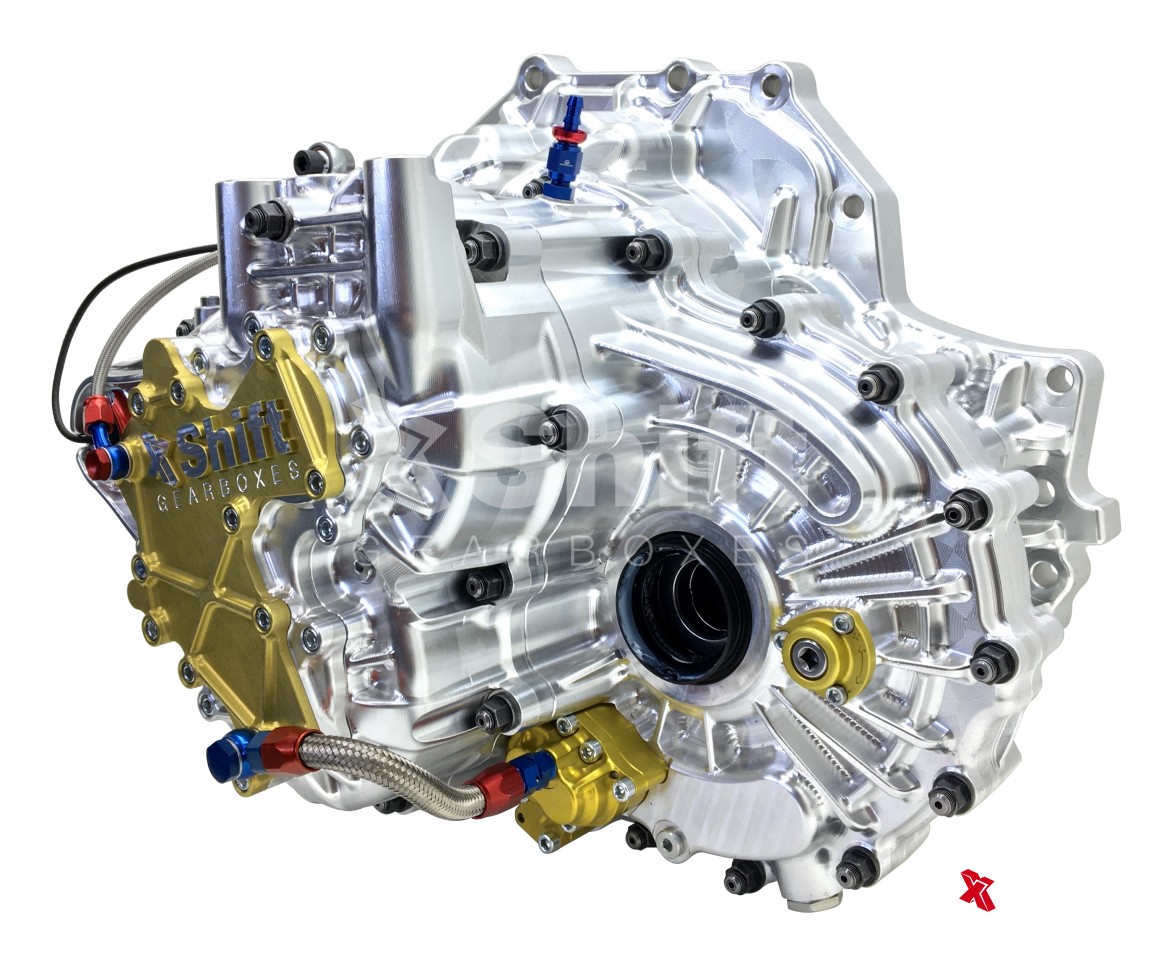

TY-7 GR Corolla Sequential Gearbox 7 SPEED
TY-7 GR Corolla Sequential Gearbox 5, 6, 7 Speed
TY-7 GR Corolla Sequential Gearbox 5, 6, 7 Speed with the most modern shifting mechanism and properties required for top race cars. This sequential is a complete gearbox and is direct replacement of Toyota GR Corolla original gearbox.
Specifications and advantages
- Latest shifting mechanism and dog engagement system
- 5/6/7 speed ratios
- Gearbox case made from ultra-lightweight aircraft grade aluminium CNC Billet - rated to 1400Nm engine torque
- Barrel rotation customization: R-N-1-7 or R-N-1-2-3-4-5-6-7-R-N-1-2..
- Option for cooling the transfer case
- Position for original oil temperature sensor
- Gear position sensor included
- Shifting with rod or cable in neat interior design
- Aluminum or carbon shifting lever
- Limited slip differential with externally adjustable preload
- Integrated oil pump better lubrication = increased lifespan
- Bellhousing in unique design included
All parts are made of billet steel, applied special heat treatment and REM isotropic superfinished to ensure strength and high level of abrasion resistance.
TY-7 GR Corolla Sequential Gearbox 5, 6, 7 Speed
Specifications and advantages
- Latest shifting mechanism and dog engagement system
- 5/6/7 speed ratios
- Gearbox case made from casting - rated to 1200Nm engine torque
- Barrel rotation customization: R-N-1-7 or R-N-1-2-3-4-5-6-7-R-N-1-2..
- Option for cooling the transfer case
- Position for original oil temperature sensor
- Gear position sensor included
- Shifting with rod or cable in neat interior design
- Aluminum or carbon shifting lever
- Limited slip differential with externally adjustable preload
- Integrated oil pump better lubrication = increased lifespan
- Bellhousing in unique design included
All parts are made of billet steel, applied special heat treatment and REM isotropic superfinished to ensure strength and high level of abrasion resistance.
X Shift Gearboxes recommend for gearbox this Twin plate clutches
- ATS JAPAN TWIN PLATE CLUTCH (METAL TYPE) - RT23H2160-11S
- OGURA RACING ORC 559DB TWIN PLATE CLUTCH for Toyota GR Yaris
GR Corolla Performance lubrication system.
The Toyota GR Corolla has insufficient lubrication to the transfer case, this was one of the main improvements that was needed, here at XShift gearboxes we developed a solution that uses a powerful gearbox lubrication pump which provides an oil supply to the transfer case increasing the durability and life to this part.
TY7-Toyota GR Corolla 5, 6, 7 speed with oil pump
TY7- Toyota GR Corolla 5, 6, 7 speed
TY7-Toyota GR Corolla 5, 6, 7 speed open
Toyota GR Corolla Aluminium gear lever
Toyota GR Corolla Aluminium gear lever with Bowden Cable
Toyota GR Corolla Carbon fibre gear lever with Bowden Cable
SPEED GRAPHS TY7-GR 7 speed
TY7-GR 7_speed_7000_rpm_1156_207kmph (custom ratio available on request)
TY7-GR 7_speed_7000_rpm_1255_230kmph (custom ratio available on request)
TY7-GR 7_speed_7000_rpm_1251_248kmph (custom ratio available on request)
TY7-GR_7_speed_7000_rpm_1248_263kmph (custom ratio available on request)
TY7-GR_7_speed_7000_rpm_1453_278kmph (custom ratio available on request)
TY7-GR_7_speed_7000_rpm_1551_310kmph (custom ratio available on request)
SPEED GRAPHS TY6-GR 6 speed
TY6-GR 6_speed_7000_rpm_1255_197kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1251_212kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1248_225kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1453_238kmph (custom ratio available on request)
TY6-GR 6_speed_7000_rpm_1551_265kmph (custom ratio available on request)
SPEED GRAPHS TY5-GR 5 speed
TY5-GR 5_speed_7000_rpm_1251_174kmph (custom ratio available on request)
TY5-GR 5_speed_7000_rpm_1248_185kmph (custom ratio available on request)
TY5-GR 5 speed_7000_rpm_1453_196kmph (custom ratio available on request)
TY5-GR 5_speed_7000_rpm_1551_218kmph (custom ratio available on request)
Toyota Yaris Cup
Torque rating1000 Nm
Gear ratios6 speed
